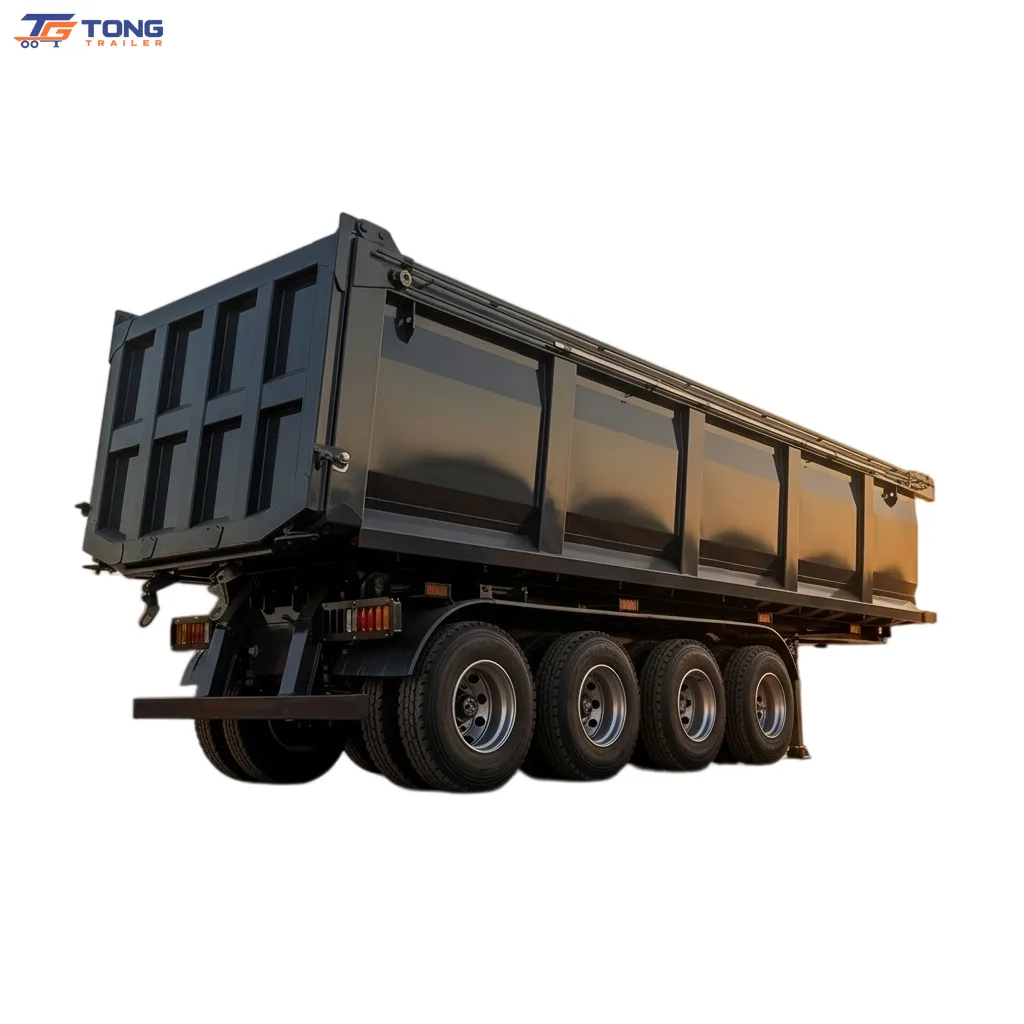

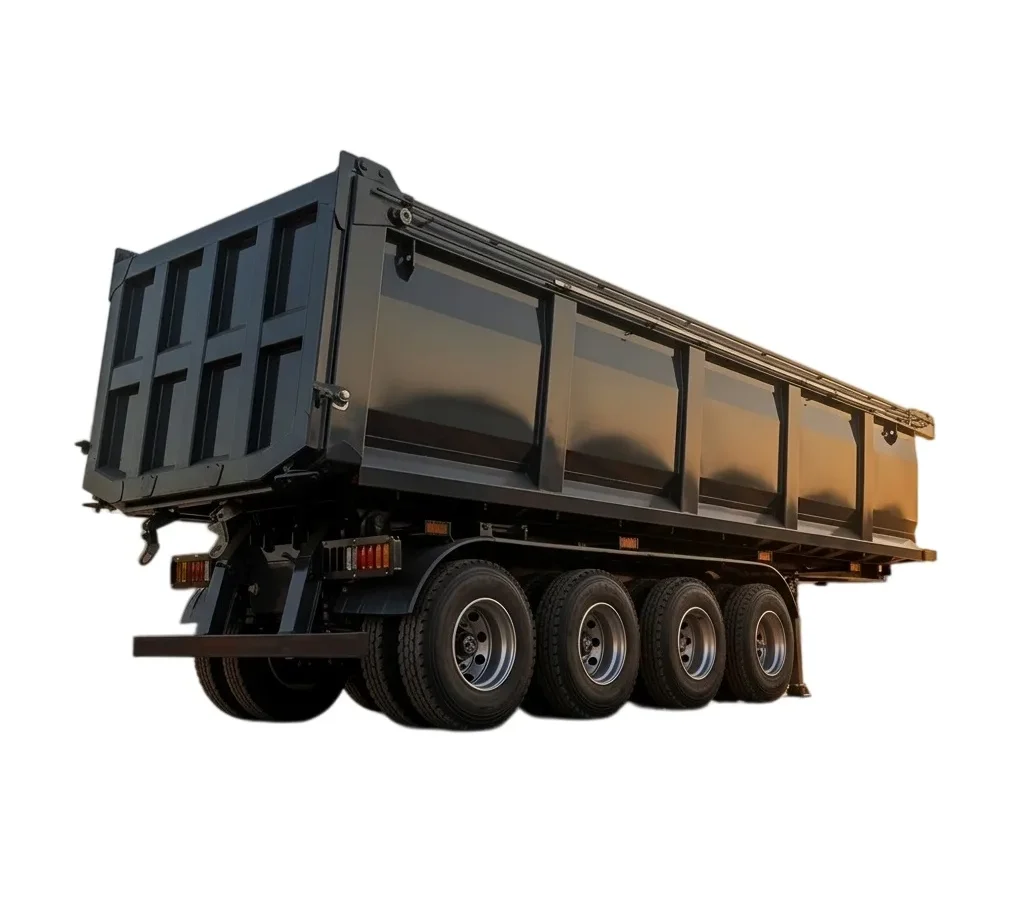

U-type dump semi-trailer with 30T-100T load capacity and 2/3/4 axles. Steel U-shaped body, 5mm floor plate. Custom sizes available. Contact us for pricing.

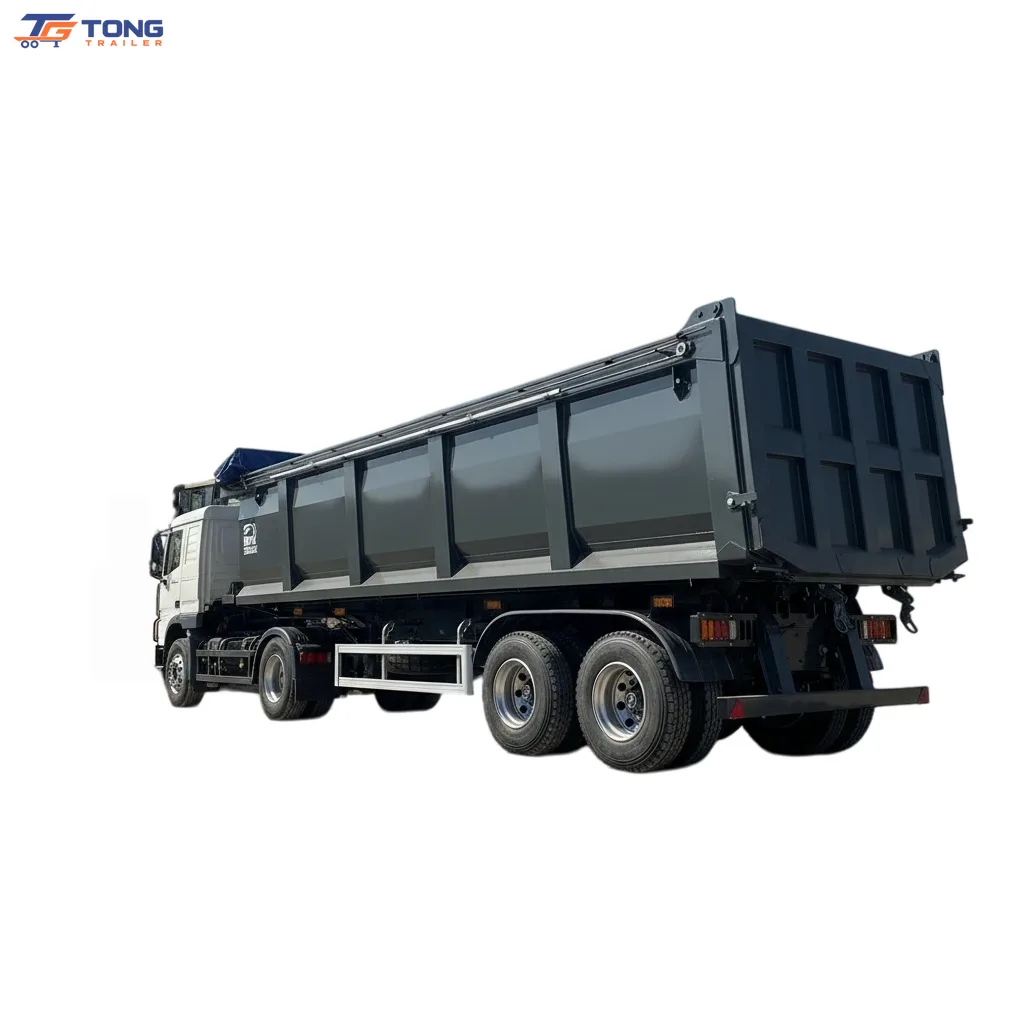

The U type dump semi-trailer is heavy-duty equipment designed for efficient sand and stone transport. It handles bulk cargo unloading through a hydraulic rear tipping system.
Rated payload exceeds 30000 kg, with loading capacity from 30T to 100T depending on configuration. Axle options cover 2, 3, 4, 5, or 6 units rated at 13T or 16T. Overall size is 11280 x 2495 x 3970 mm, and custom dimensions are available.

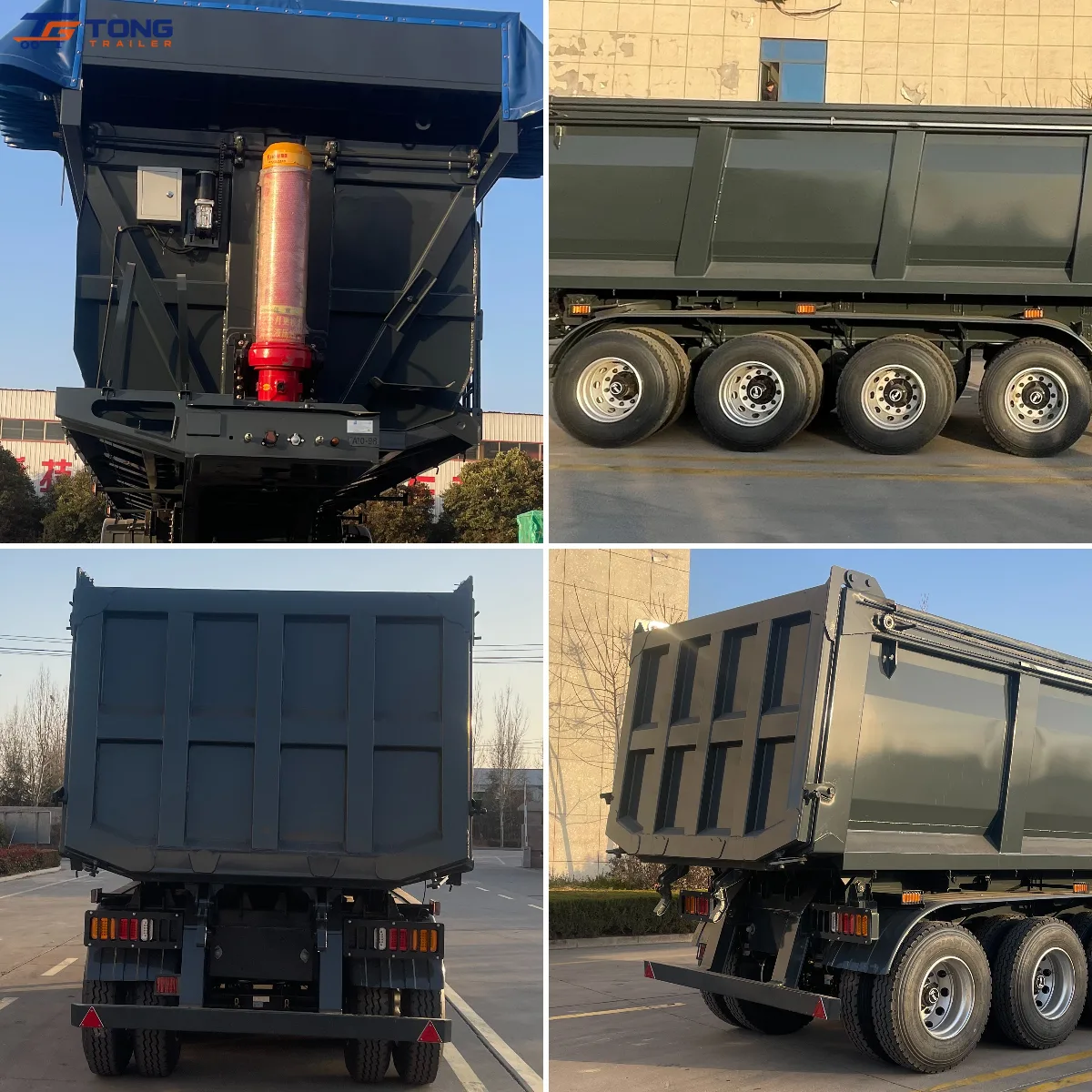

The body is built from steel with a 5mm floor plate and 4mm sidewalls. U-shaped or rectangular tub designs are optional. The hydraulic system delivers a maximum tilt angle of 45 degrees. The complete chassis is sandblasted, then given an anti-corrosive primer and two top coats.
Mechanical or air suspension, 90mm x 13/16mm leaf springs, and a 28T two-speed landing gear support the chassis. Tires include 11.00R20 and 12R22.5 sizes in 8, 12, or 16 pieces, on steel or aluminum rims. A dual line braking system is standard. Kingpin options are 2.0 inch (50mm) or 3.5 inch (90mm). OEM and ODM customization is available, and a tool box is fitted as standard.
This U type dump semi-trailer suits mining, construction, and logistics operations. It moves coal, sand, gravel, and other bulk materials over long distances.
Contact us for U type dump semi-trailer pricing with your required axle count and capacity.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
