U type dump semi trailer with over 30,000 kg payload and 2 to 6 axle options. Hydraulic rear tipping for sand, stone and mining haulage.

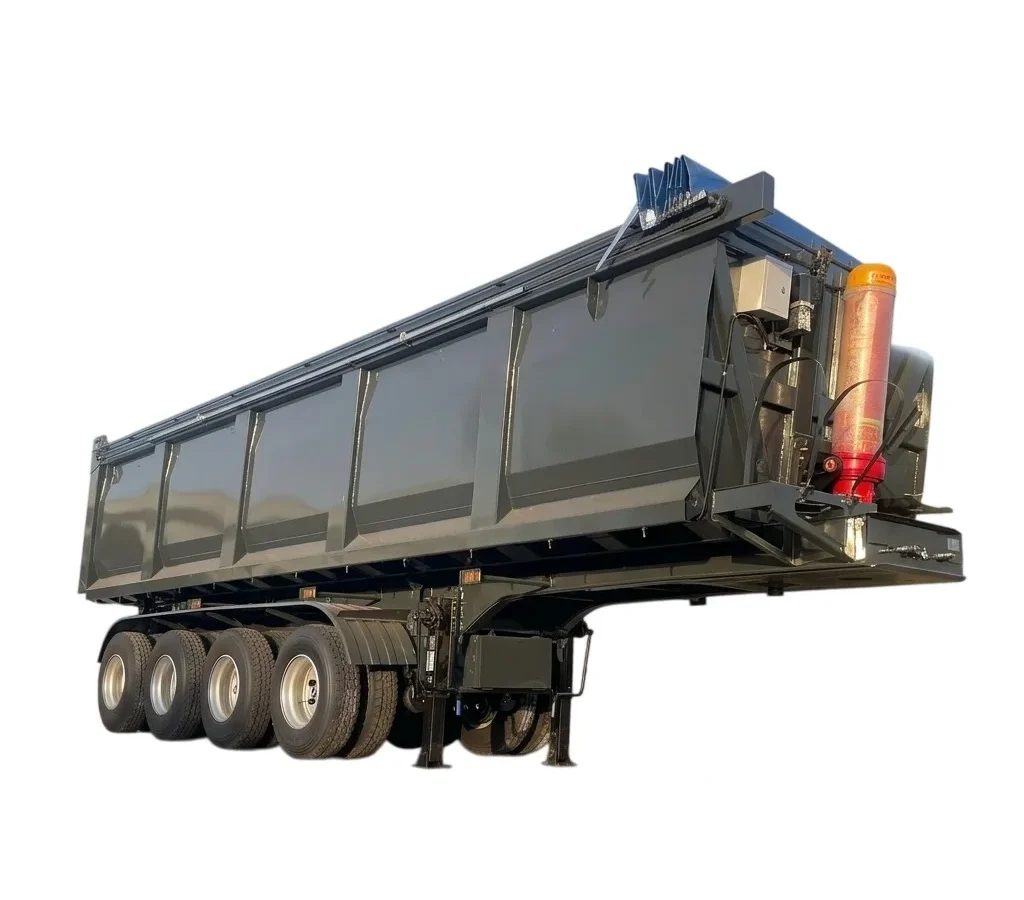

The U type dump semi trailer is a heavy-duty vehicle built for bulk cargo haulage. It handles sand, stone and construction material transport with efficient rear tipping.
This dump semi trailer carries a max payload above 30000 kg. It is available in 2, 3, 4, 5 or 6 axle configurations. The overall size is 11280 x 2495 x 3970 mm, with customization offered. A 50 mm or 90 mm king pin and a dual line braking system come standard. Mechanical and air suspension options are available.
The U-shaped body uses full thickness steel for strong load-bearing capacity. A post-mounted multi-stage hydraulic cylinder with explosion-proof piping delivers smooth lifting and a large tipping angle. The vehicle has a double-layer anti-corrosion paint finish. An electric retractable rain shelter keeps the load sealed and dust-repellent. Integrated LED tail lights with braking and reflective indicators ensure night visibility. Wide-width tires and heavy-duty axles distribute the load evenly on uneven ground.
This rear dump semi trailer suits engineering, mining and construction sites. It moves large stone blocks, wet soil and other ultra heavy bulk cargo over long distances.
Contact us for pricing and customization on your U type dump semi trailer order.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
