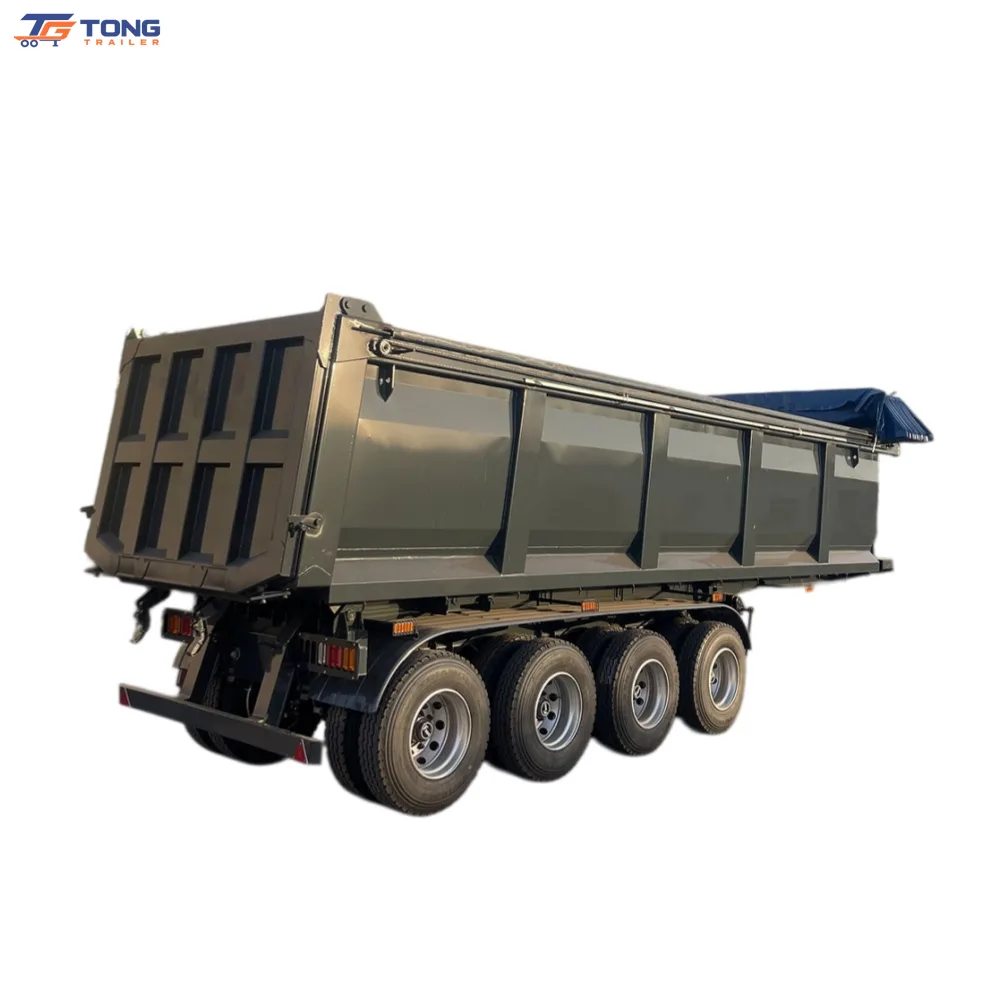

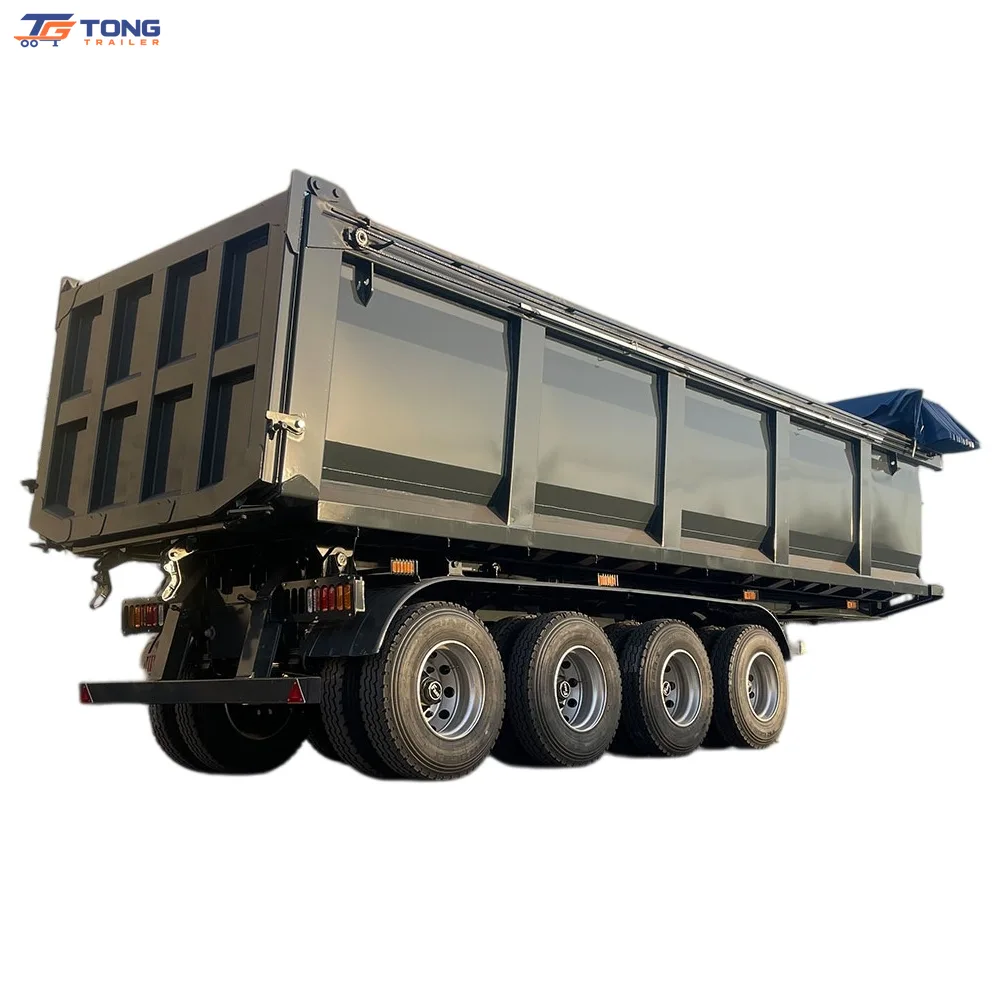

U type dump semi trailer with over 30,000 kg payload, 2 to 6 axles and 11,280 mm steel body. Hydraulic rear tipping for sand and ore. Contact for pricing.
This U type dump semi trailer handles sand, stone and ore hauling with hydraulic rear tipping. It supports efficient bulk material transport in demanding work conditions.
The trailer carries a maximum payload of over 30000 kg. It is available with 2 to 6 axles. A 3 or 4 axle layout spreads cargo weight evenly and reduces tire abrasion. Overall dimensions are 11280 x 2495 x 3970 mm, with customized sizes on request.

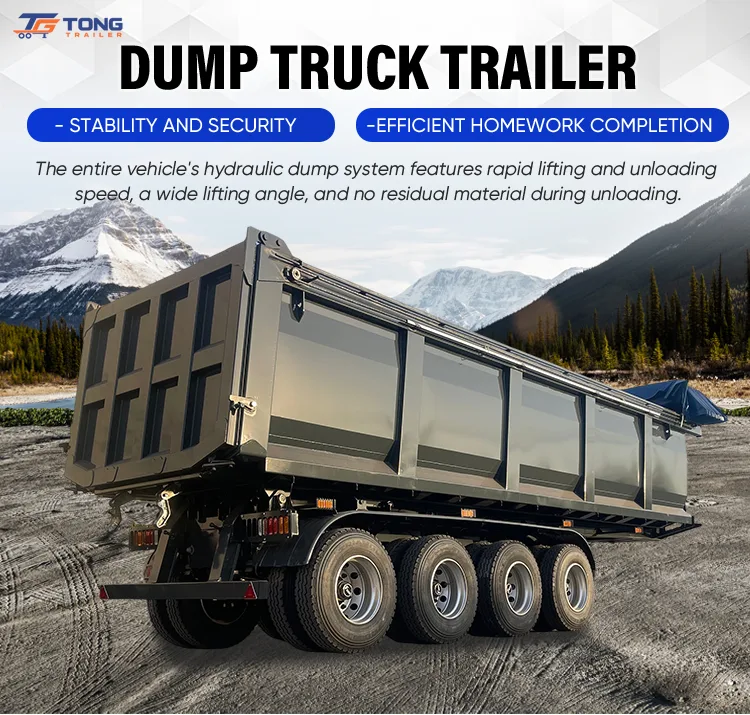

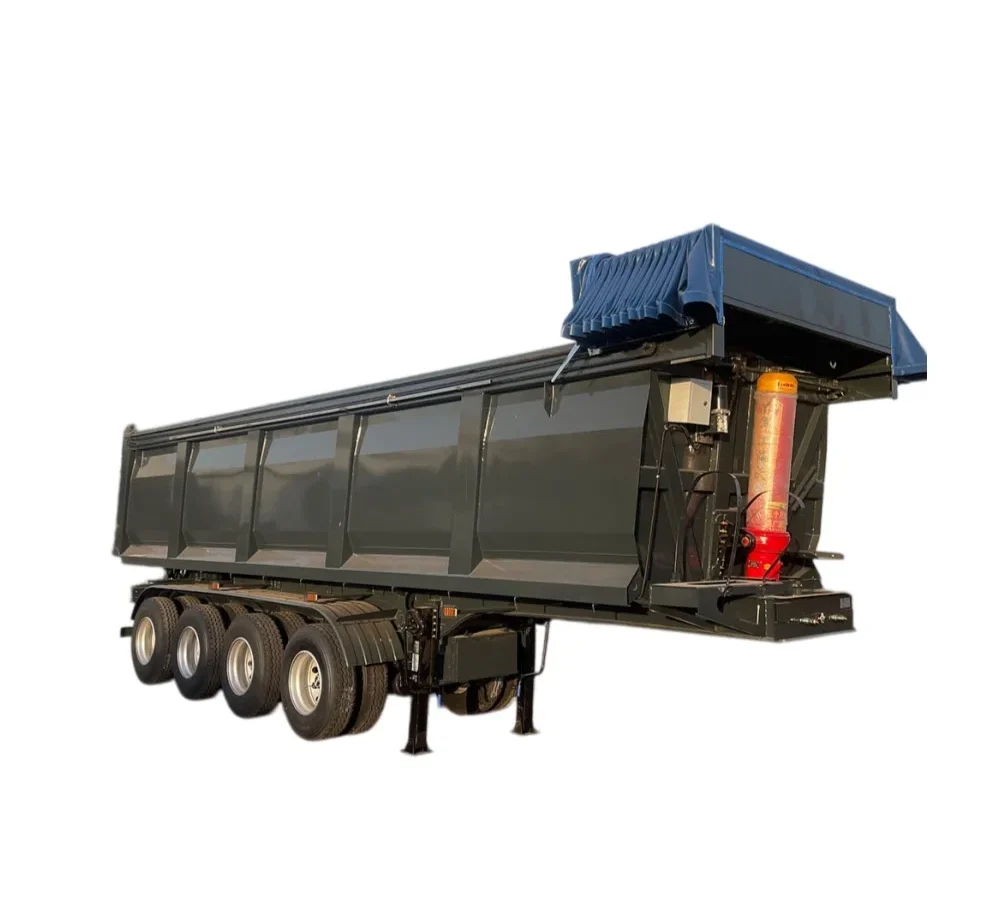

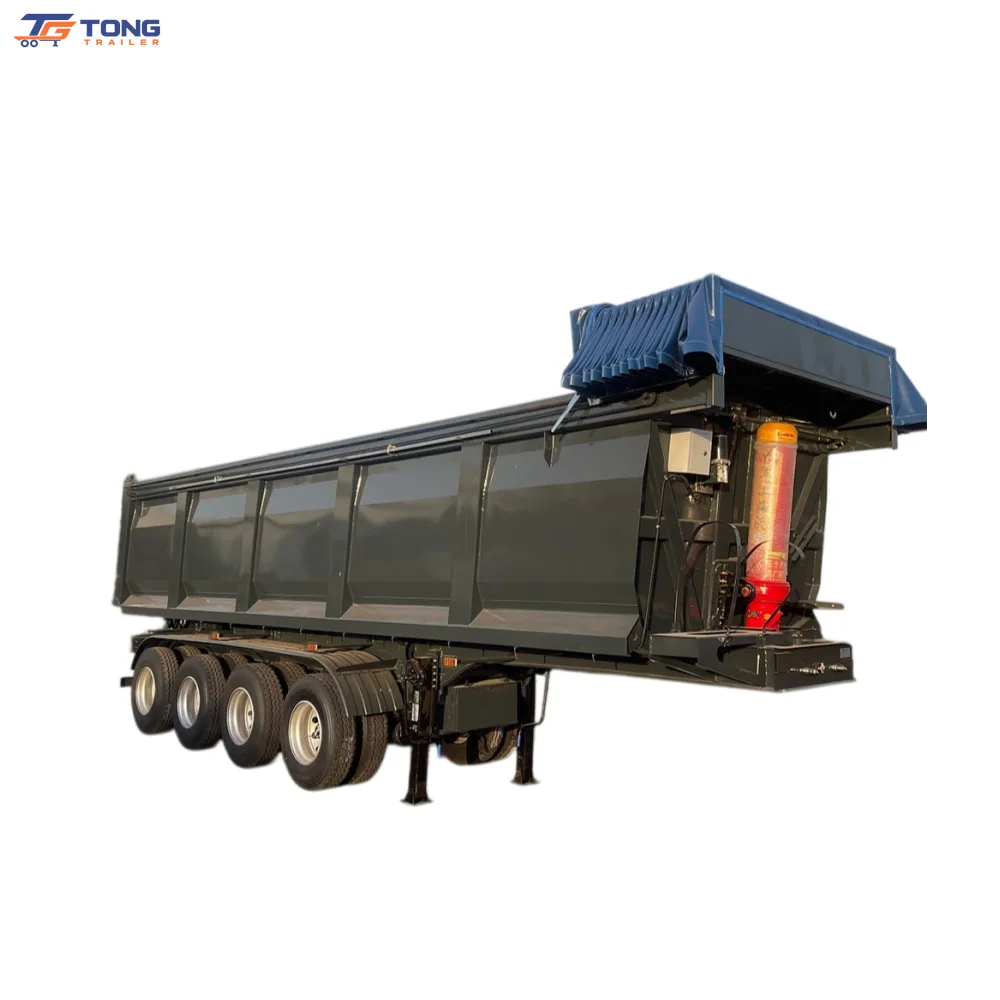

The carriage and frame use high-strength thickened steel plates. This steel dump semi trailer resists wear, impact and deformation under hard bulk loads. The large-volume cargo compartment cuts transport round trips for bulk materials. The hydraulic rear tipping system lifts fast and discharges smoothly. A large tipping angle limits material residue inside the tank. Dual line braking, mechanical or air suspension and 28 ton landing gear support heavy-duty work. Each component passes strict production and quality inspection.
Typical applications include mines, quarries, construction sites and waste transfer. The rugged chassis handles uneven quarry terrain and muddy ground. Heavy-duty tires and a strong frame suit continuous heavy-load operation. Tire options include 11.00R20, 12R22.5, 315 and 385 sizes. Kingpin choices are 2.0 inch (50 mm) or 3.5 inch (90 mm).
Contact us for pricing and configuration details on this U type dump semi trailer.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
