Steel dump semi trailer with 30,000 kg payload, 3 or 4 axles and hydraulic rear tipping. For aggregate, sand and ore hauling. Contact us for pricing.

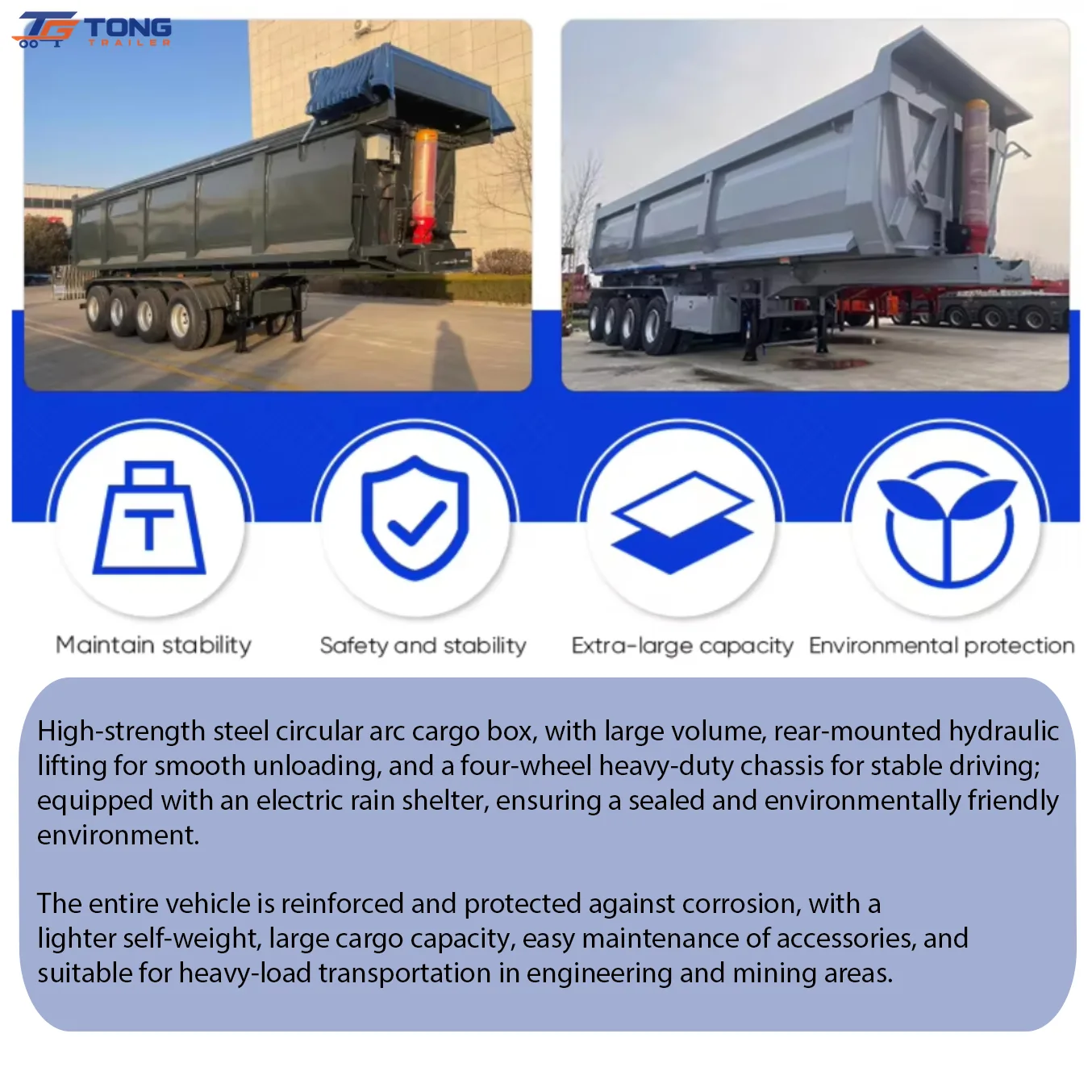

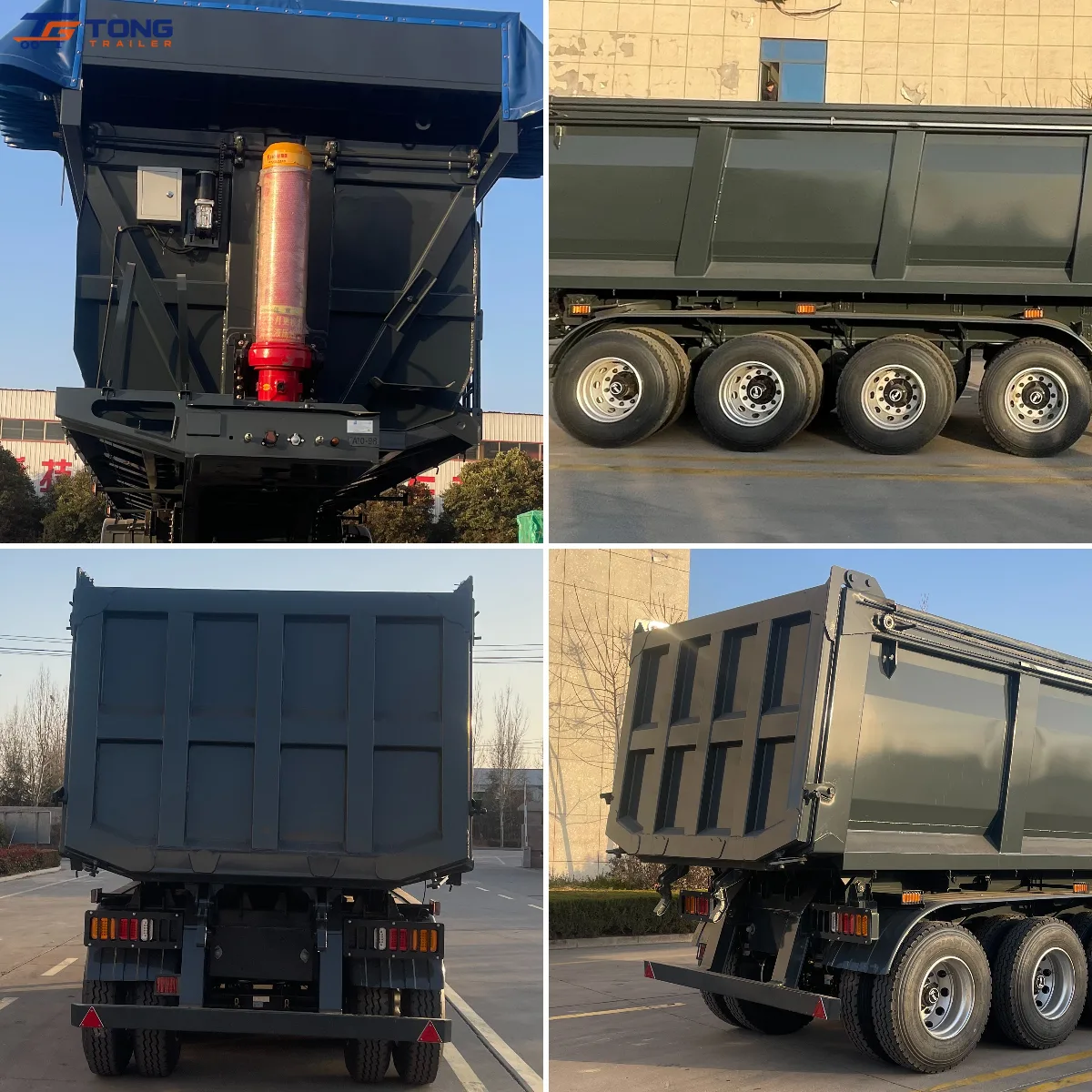

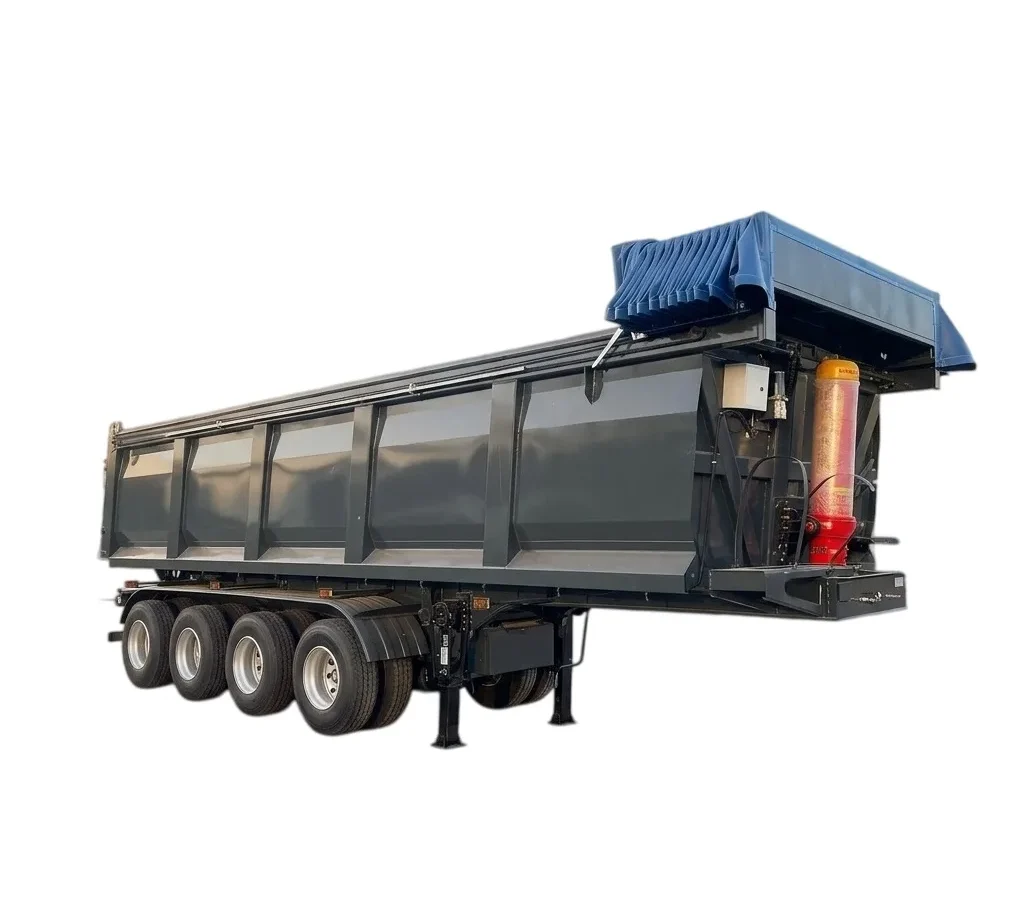

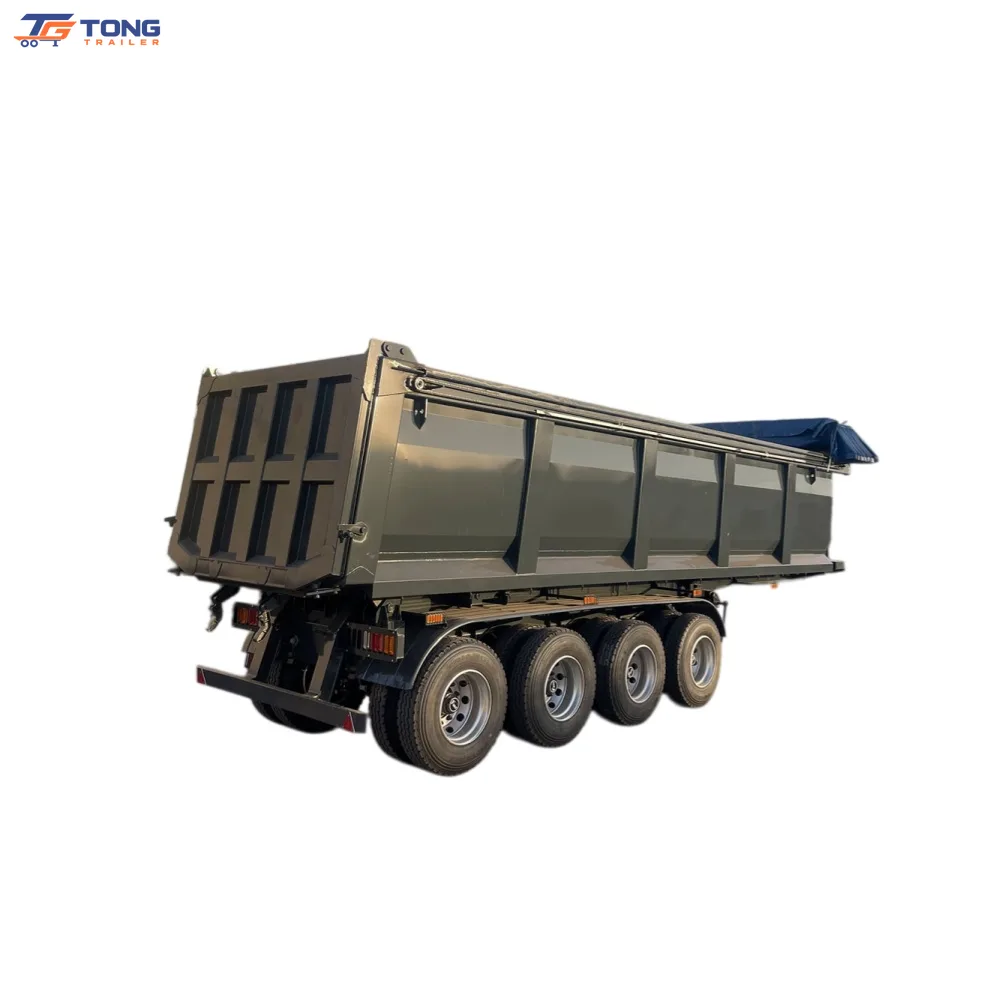

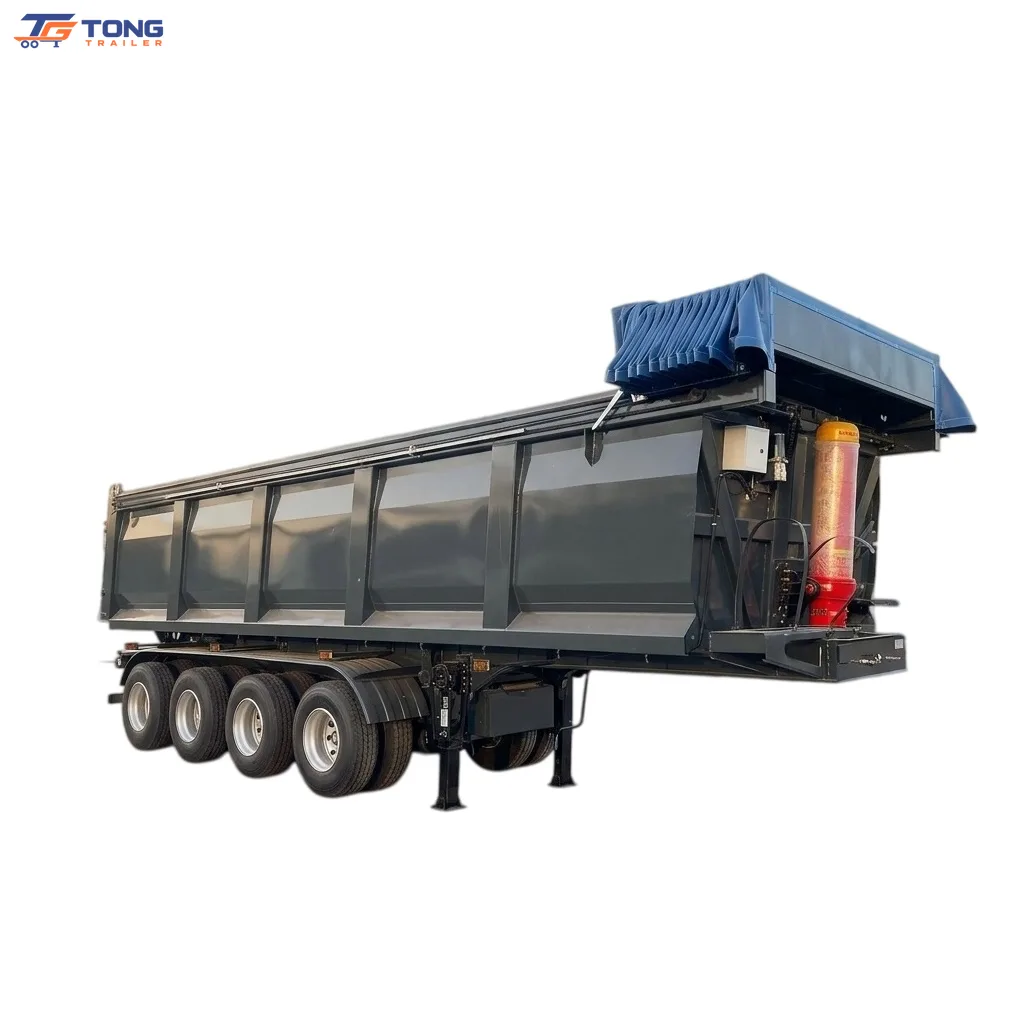

This steel dump semi trailer is a heavy-duty rear tipping trailer designed for industrial bulk material transport. It handles sand, gravel, ore and construction waste in mines, quarries and construction sites.
Payload capacity exceeds 30000 kg. The trailer measures 11280 x 2495 x 3970 mm, with size customization available. Axle layouts of 2, 3, 4, 5 or 6 axles are offered to match different load demands. Tire options include 11.00R20, 12R22.5, 315 and 385 sizes. The kingpin is available in 2.0 inch (50 mm) or 3.5 inch (90 mm). Mechanical suspension and air suspension are both optional. A dual line braking system is standard.
The carriage and frame are fabricated from high-strength thickened steel plates. Every component undergoes strict production and quality inspection. This steel dump semi trailer resists wear, collision and deformation under hard bulk impact. The hydraulic rear tipping system delivers fast lifting and smooth automatic unloading. A large tipping angle limits material residue inside the tank.
Typical applications cover mining raw material hauling, quarry transport, construction waste removal and heavy-duty equipment transport. The rugged chassis suits rough mine roads and uneven terrain. It also supports long-haul bulk material delivery.
Contact us for pricing, customization options and delivery details.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
