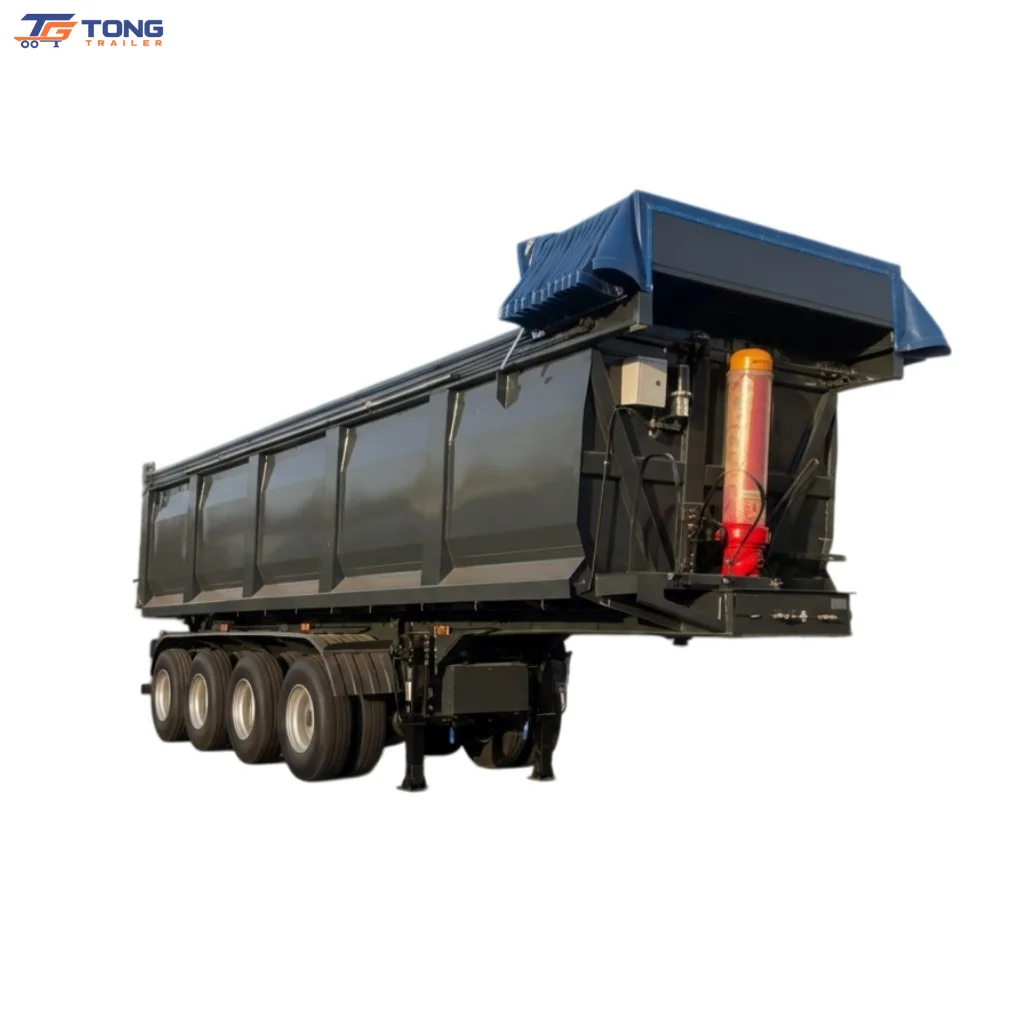

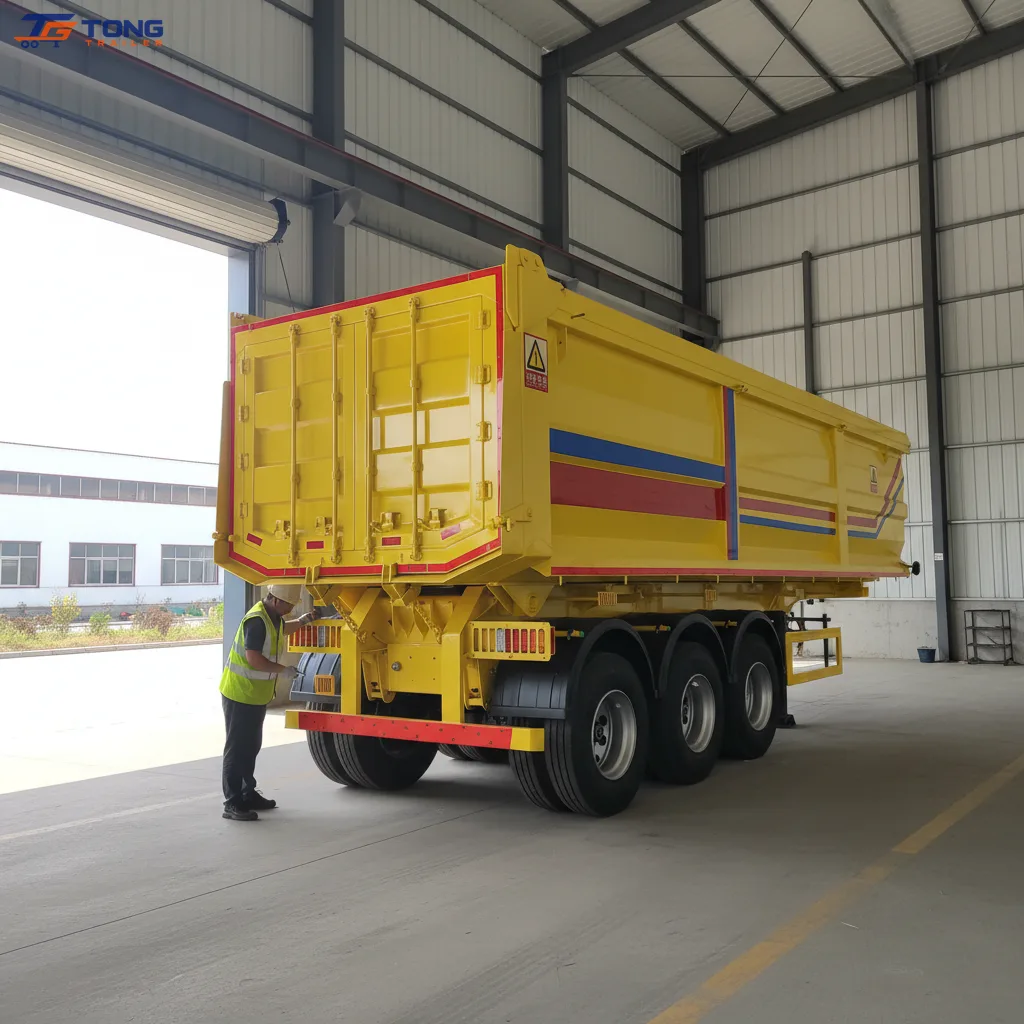

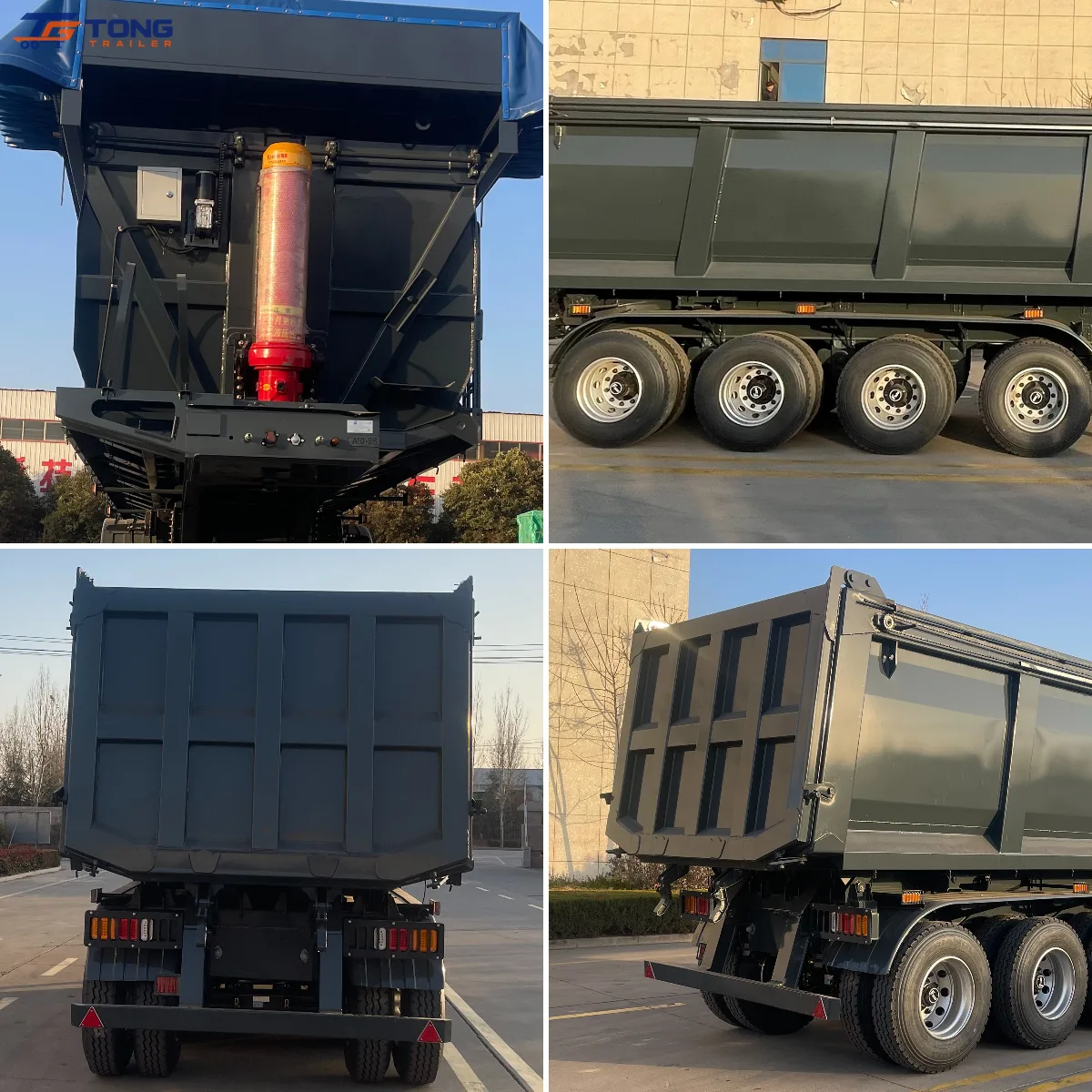

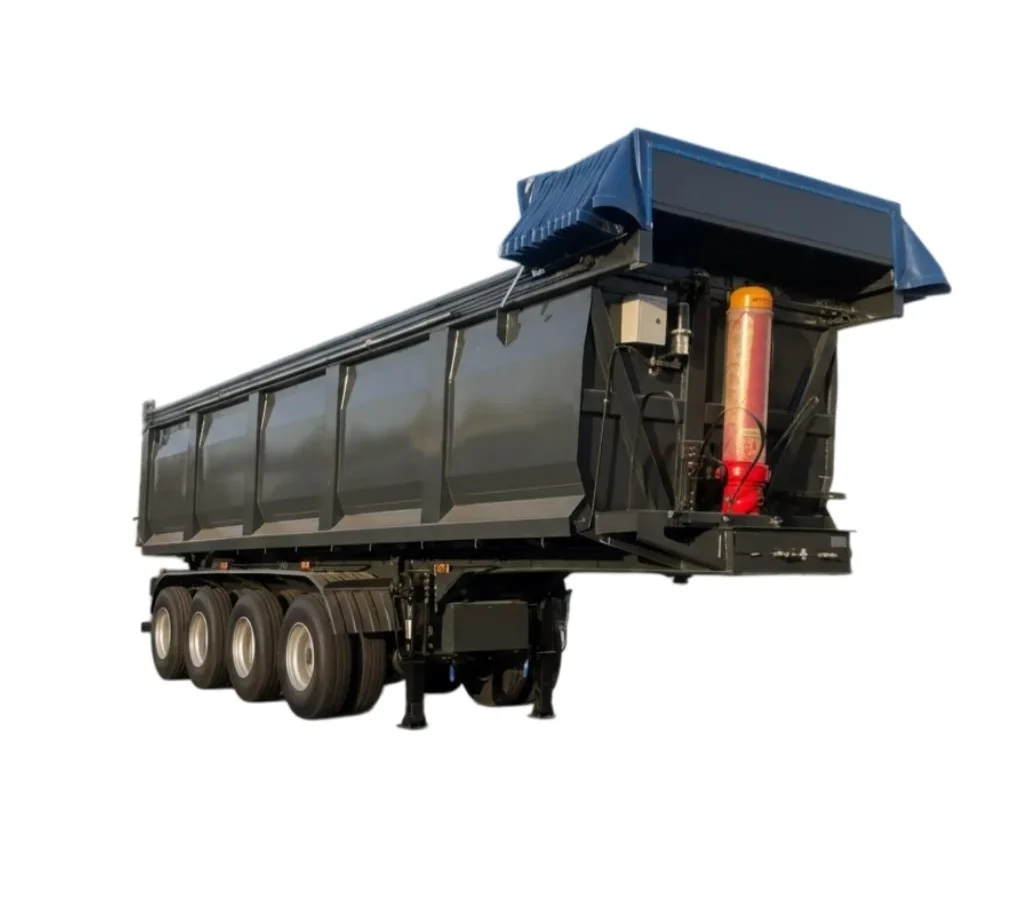

Rear dump semi trailer with 30000 kg payload and a steel tipper body, 11280 mm long, available with 2 to 6 axles. Request pricing and delivery details.
The rear dump semi trailer is a heavy-duty steel tipper built for stone, sand, gravel and ore hauling.
Max payload is above 30000 kg. The trailer measures 11280 x 2495 x 3970 mm. Axle layouts of 2, 3, 4, 5 or 6 are optional. Tire sizes include 11.00R20, 12R22.5, 315 and 385. Buyers can also select mechanical or air suspension and a dual line braking system. All parameters can be adjusted to match fleet requirements.
The cargo compartment and chassis are fabricated from high-strength thickened steel plates. This steel body resists wear, collision and deformation under hard bulk loads. The hydraulic rear tipping system lifts fast and unloads smoothly at a large angle. Fewer material residues stay inside the tank after each discharge. Each component passes strict production and quality inspection. The frame supports steady performance in continuous heavy-duty operation.
Mines, quarries and construction sites use this rear dump semi trailer for continuous heavy-load hauls. The rugged chassis and heavy-duty tires handle uneven quarry ground and muddy site roads without slipping. The large tank volume lifts single-trip capacity and cuts round trips for sand, gravel, ore and construction waste.
Contact our team for pricing, axle configuration, tire options and delivery lead times. Custom sizes are supported on request.
| Model Number | Rear Dump Semi Trailer |
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
| Model | Rear Dump Semi Trailer |
