Heavy duty dump semi trailer for mining and construction. 30T+ payload, 2-4 axles, hydraulic rear or side tipping. Request a quote today.

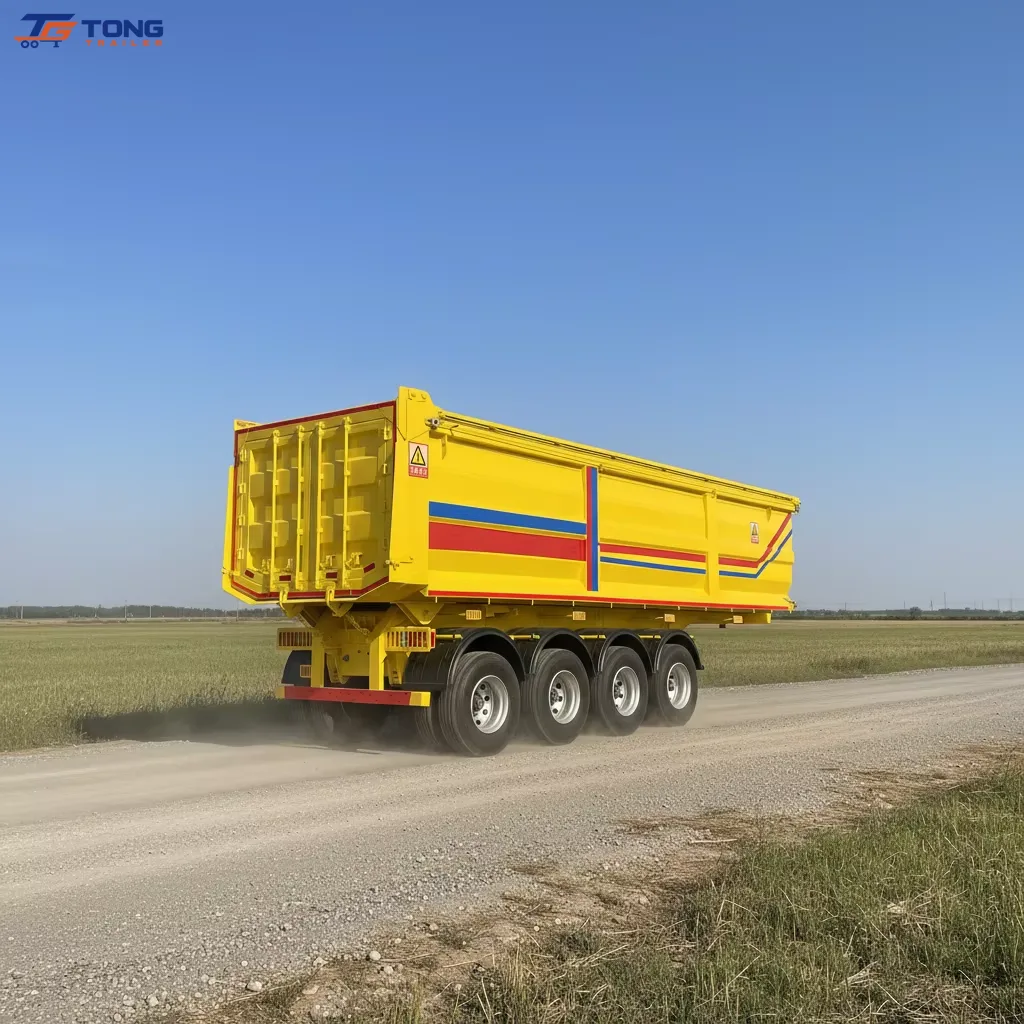

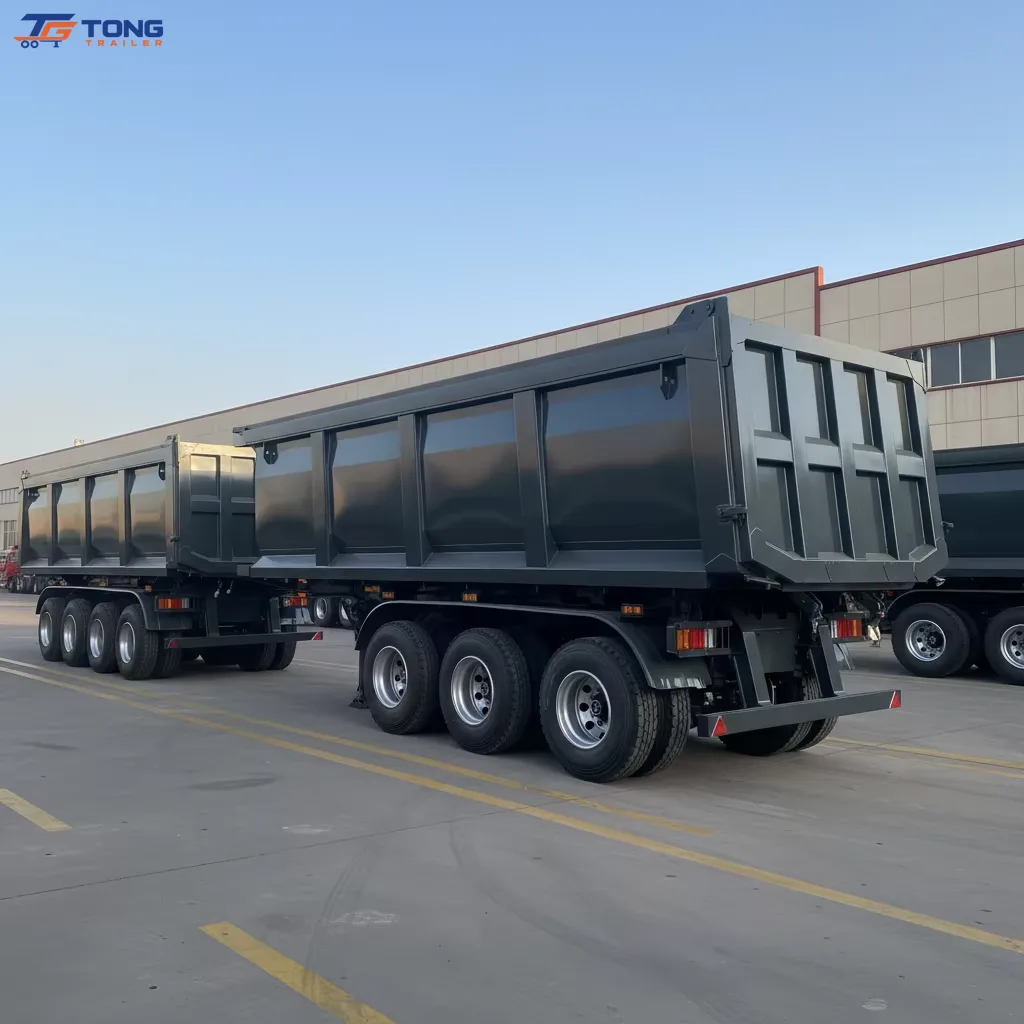

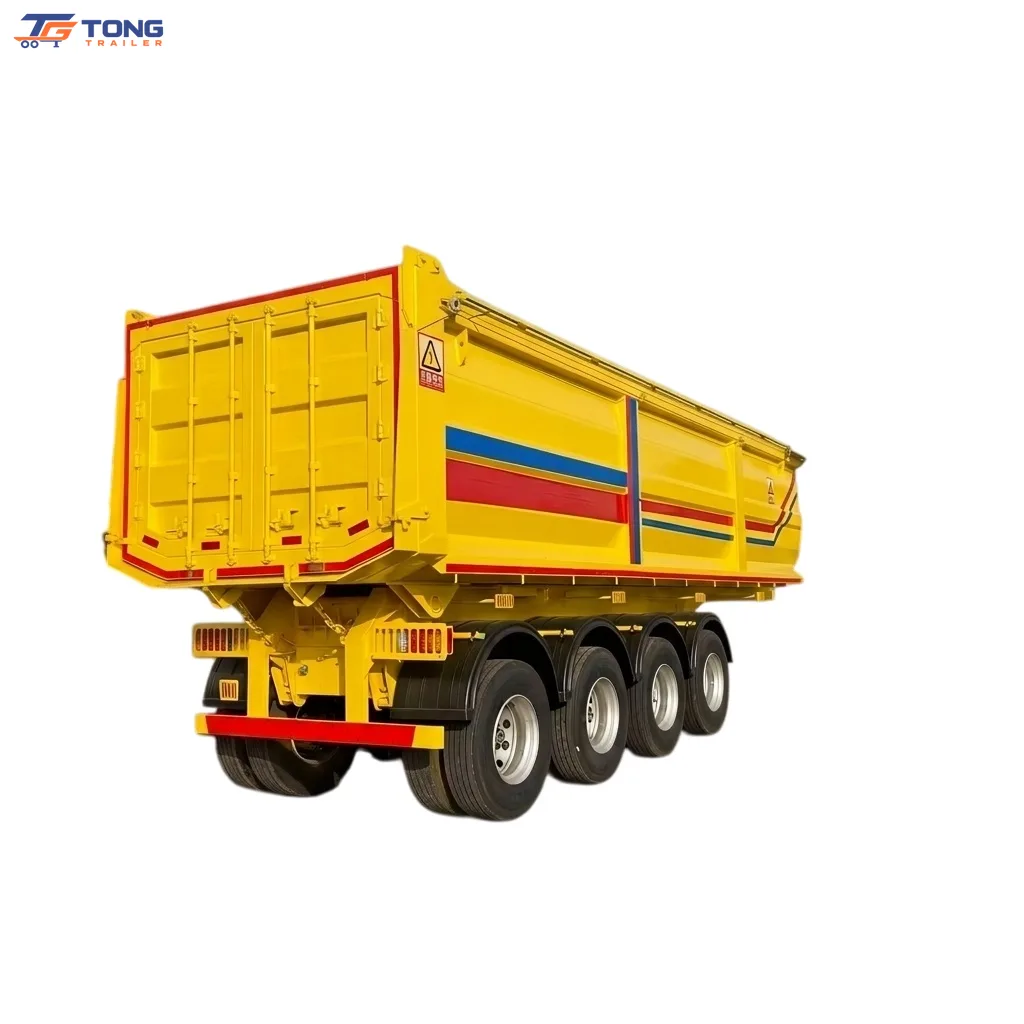

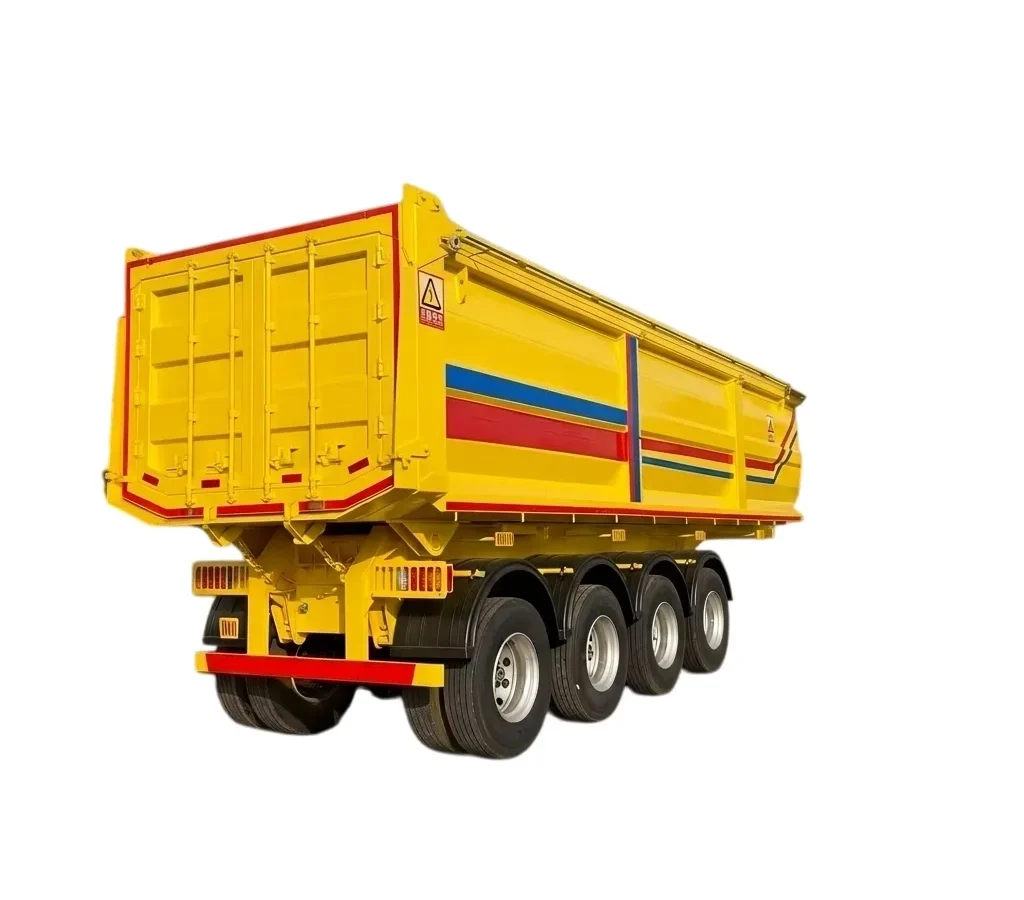

This heavy duty dump semi trailer is a hydraulic tipper built for hauling bulk material in mining, construction, and agriculture.

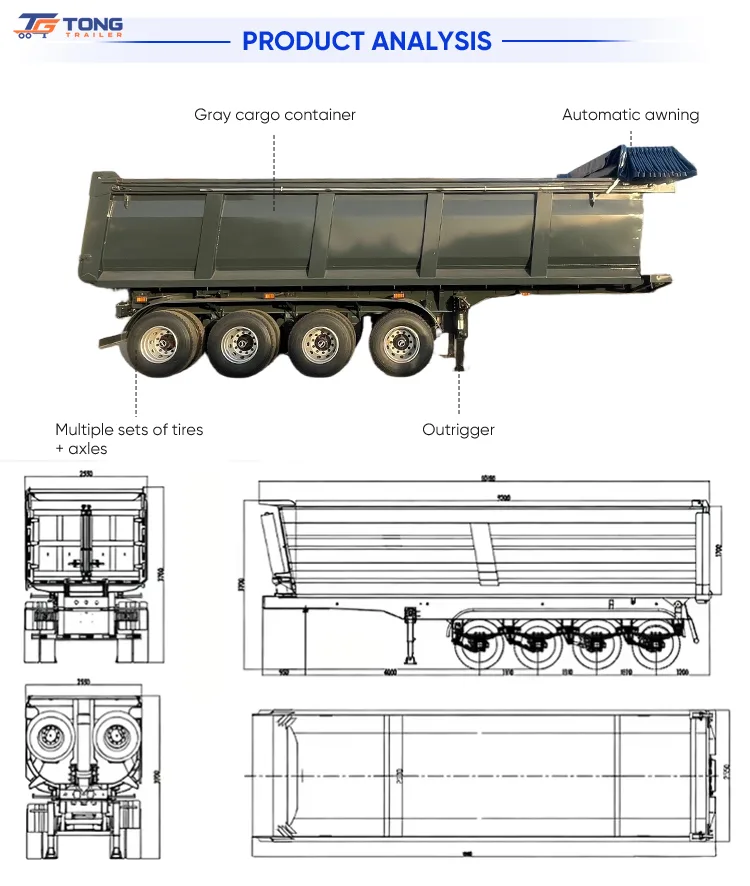

Payload capacity exceeds 30000 kg. Axle configurations of 2, 3, or 4 are available, and the trailer measures 11280 x 2495 x 3970 mm, with custom sizes on request. Mechanical heavy-duty suspension is standard, and air suspension is optional. A dual line braking system with anti-lock option supports e stopping under load.

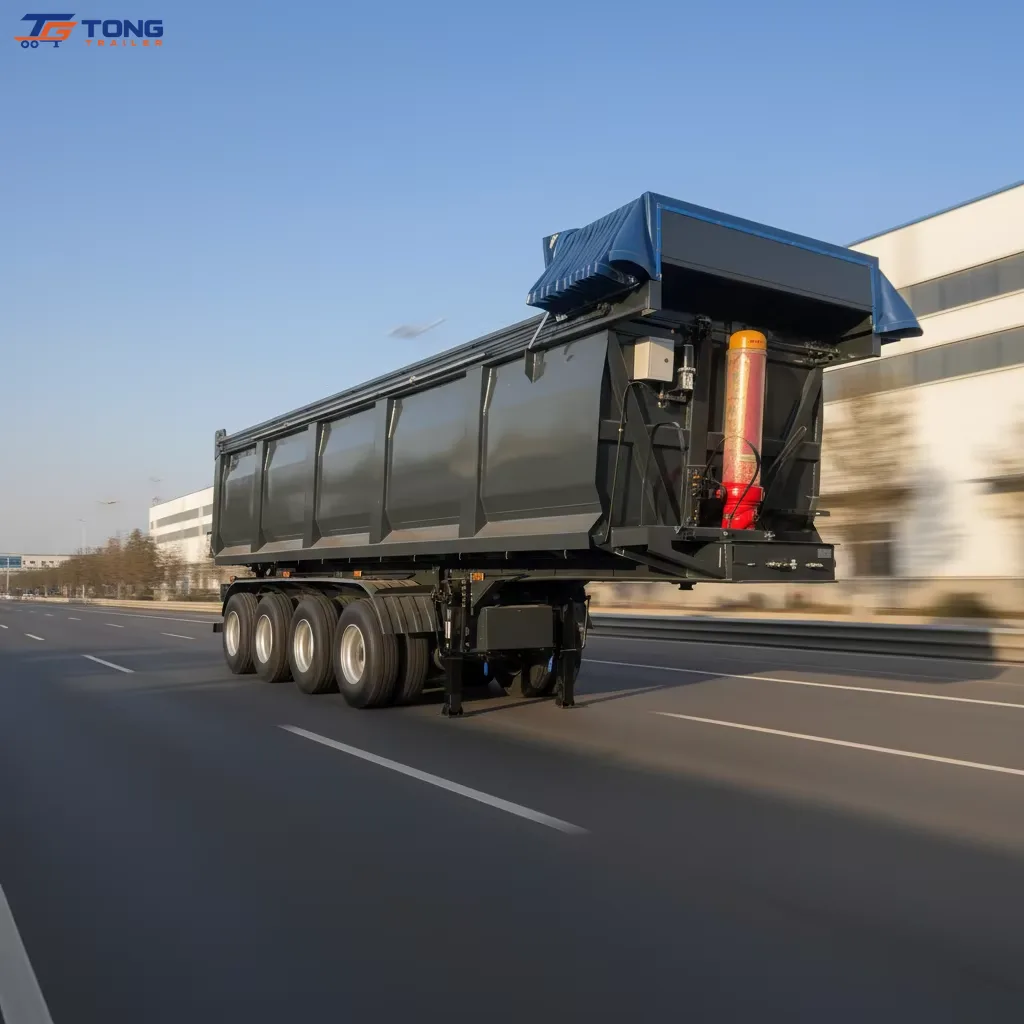

The cargo box uses high strength wear resistant carbon steel. Rear tipping is standard, with optional side tipping structure. An industrial grade hydraulic tipping cylinder with explosion-proof piping delivers smooth lifting and a large lifting angle. An electric rain shelter keeps loads sealed and dust contained. The unit ships with anti-rust treatment or export frame packing.

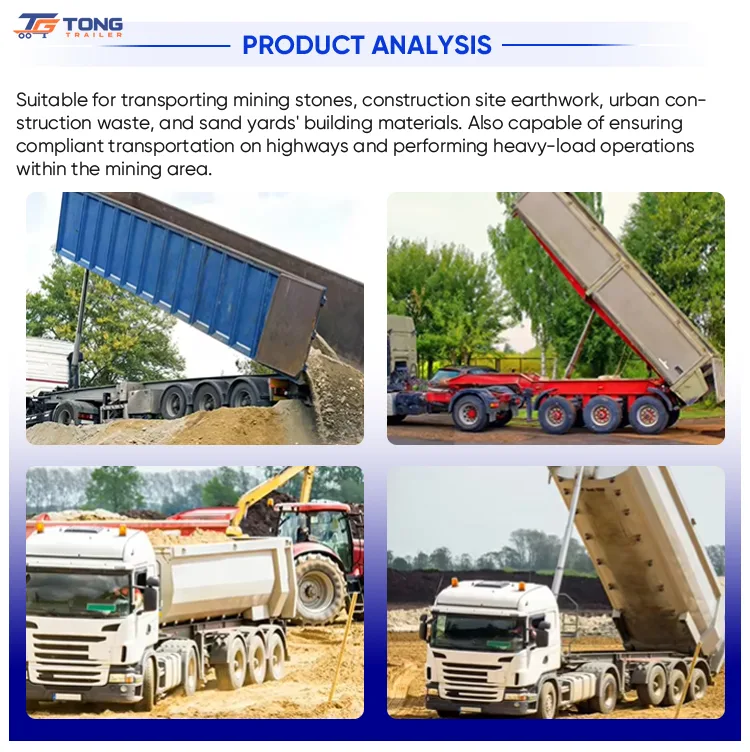

Typical cargo includes sand, gravel, ore, coal, grain, fertilizer, and construction aggregate. It suits mining operators, construction contractors, logistics fleets, and agricultural cooperatives.
Customization covers axle count, volume, payload, tipping structure, color, and king pin. One unit sample orders are accepted. Contact us for pricing and lead times on this heavy duty dump semi trailer.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
