Heavy-duty 40 ton dump semi trailer with 2 or 3 axles and an 11,280 mm body, built for stone, sand and mining haulage. Request a quote today.

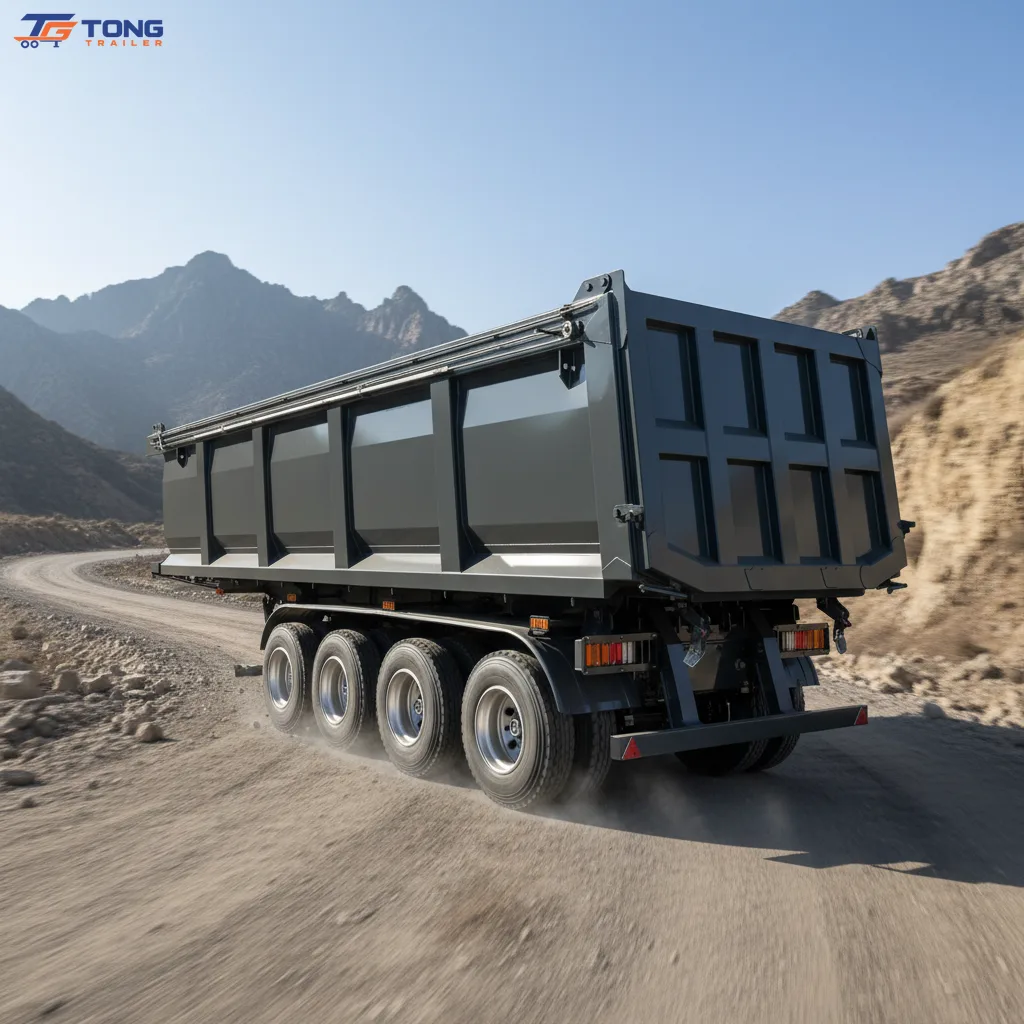

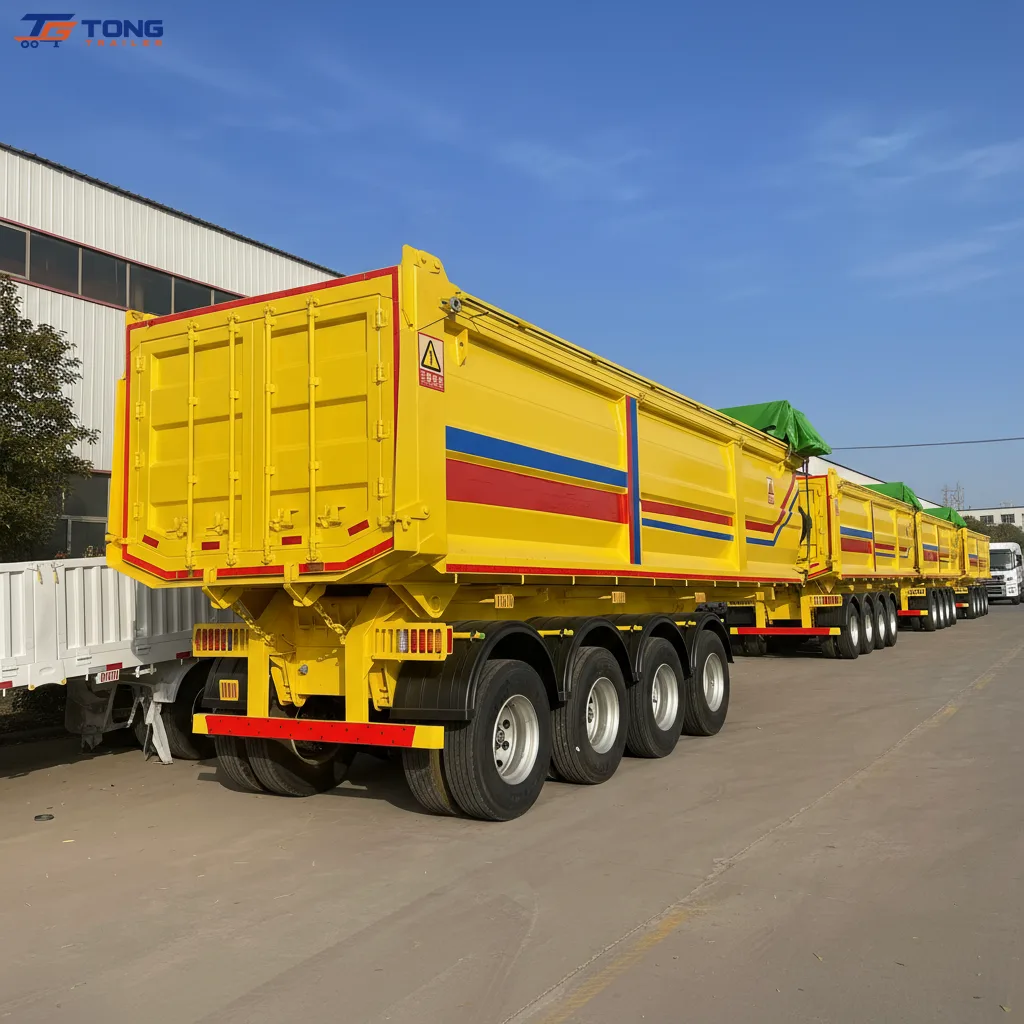

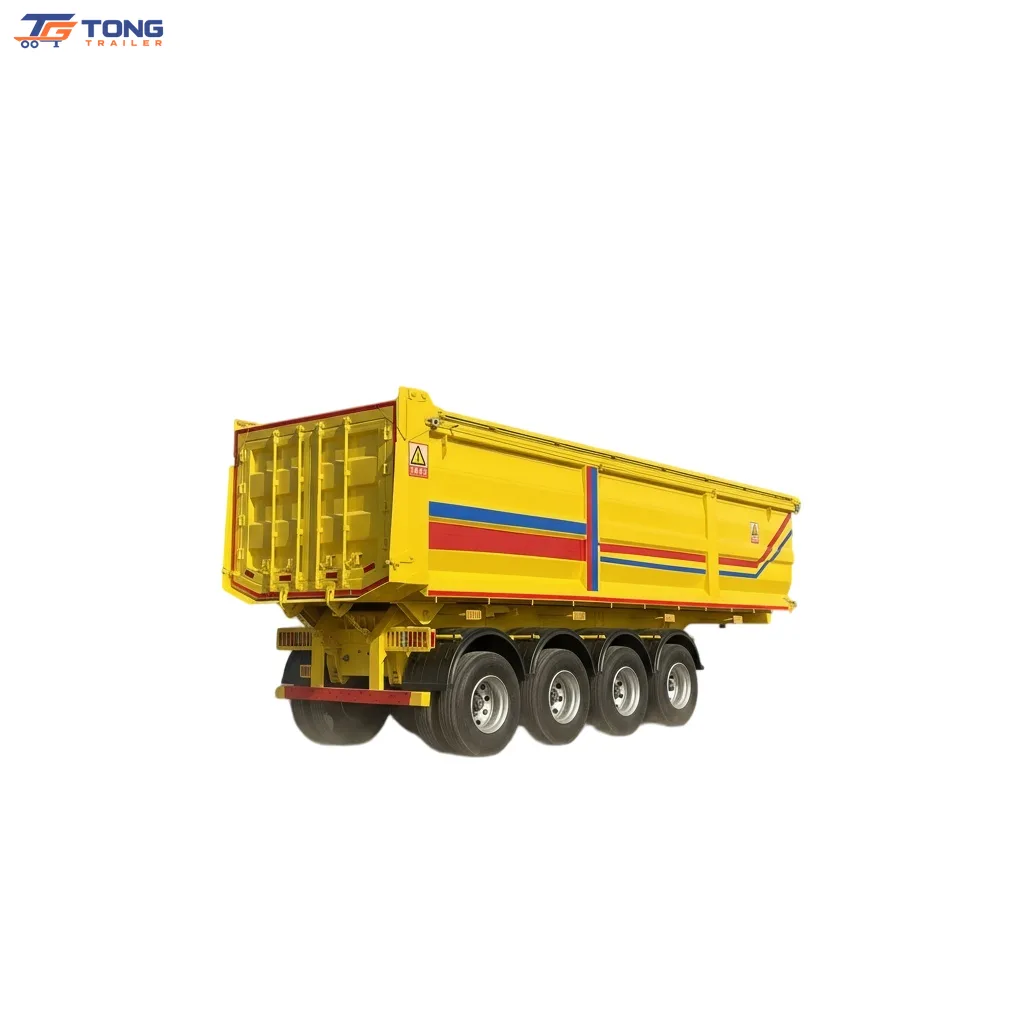

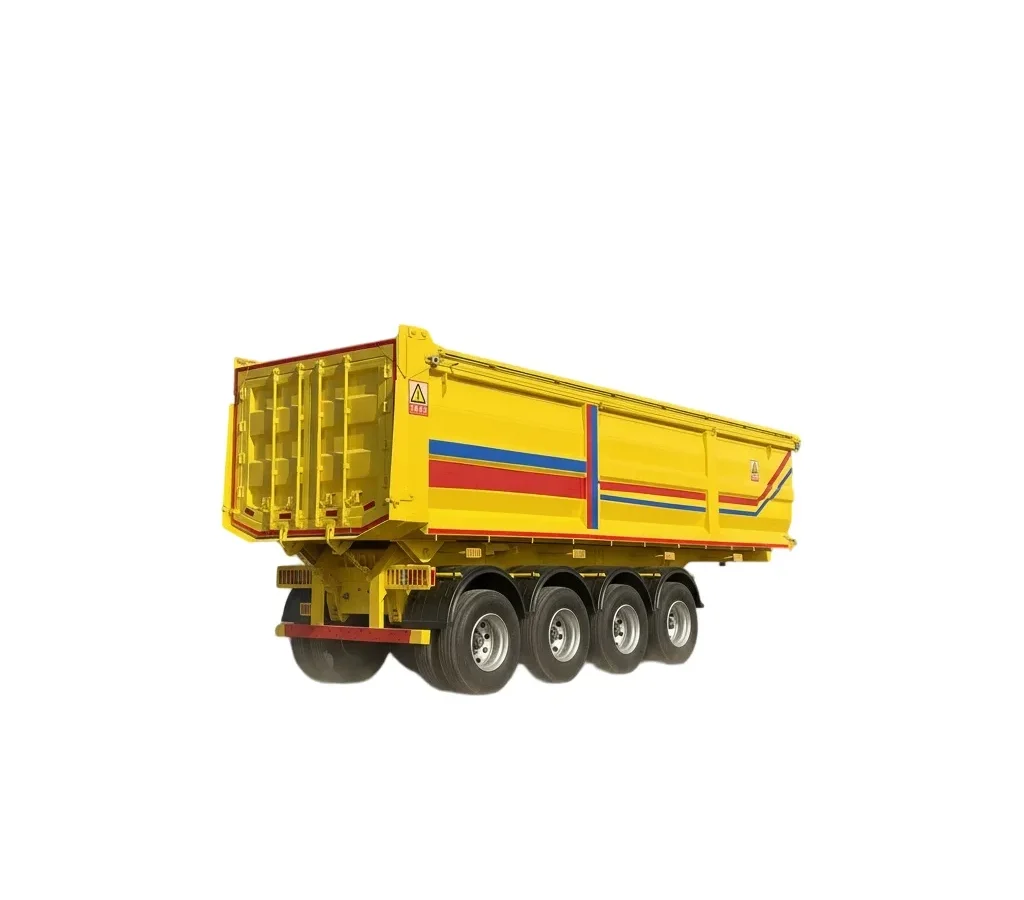

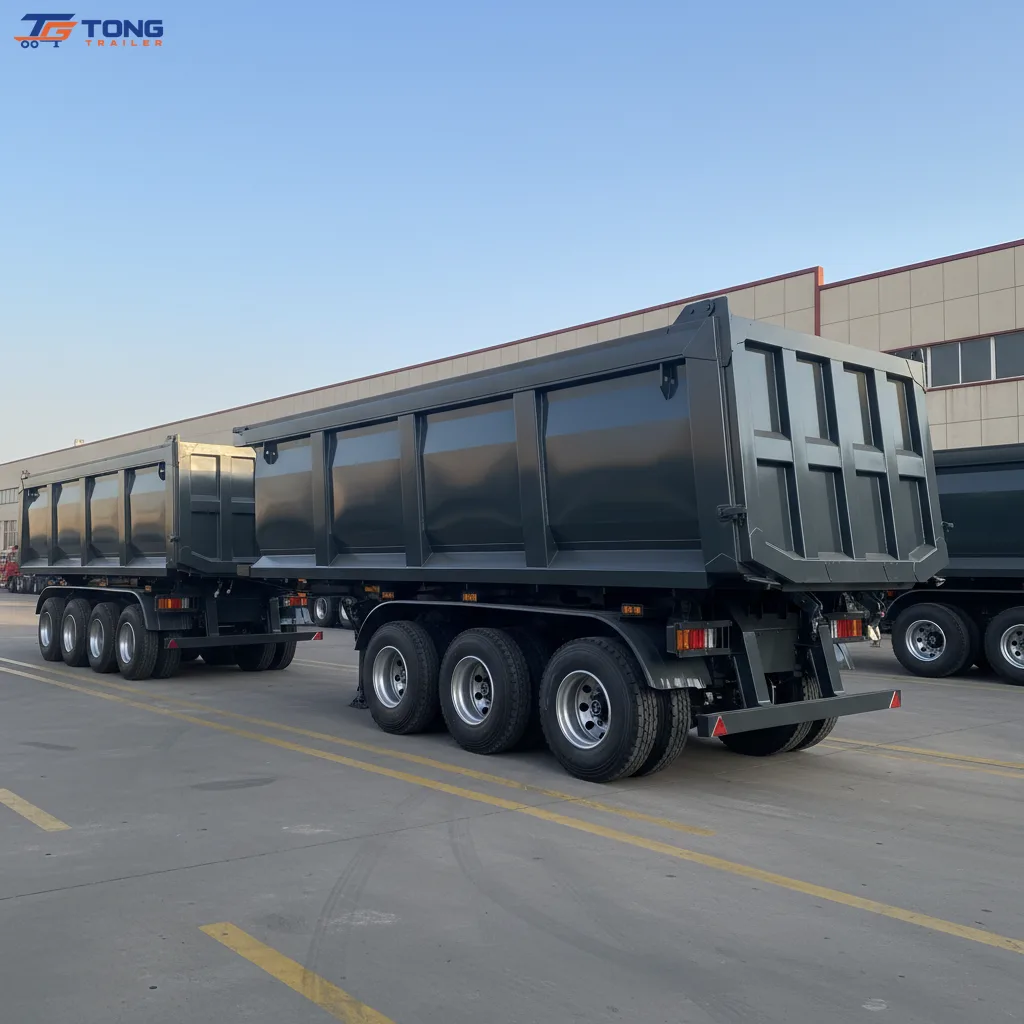

The 40 Ton Dump Semi Trailer is a heavy duty hydraulic dumping trailer built for bulk cargo haulage. It is designed for stone, sand, coal and mining transport with fast rear unloading.
Payload capacity is over 30,000 kg, with a 40 ton maximum. The trailer is available in 2 or 3 axle configurations with mechanical or air suspension. Axle ratings of 13T and 16T are offered. Overall size is 11,280 x 2,495 x 3,970 mm, and custom dimensions are accepted. Tire options include 11.00R20 and 12R22.5.

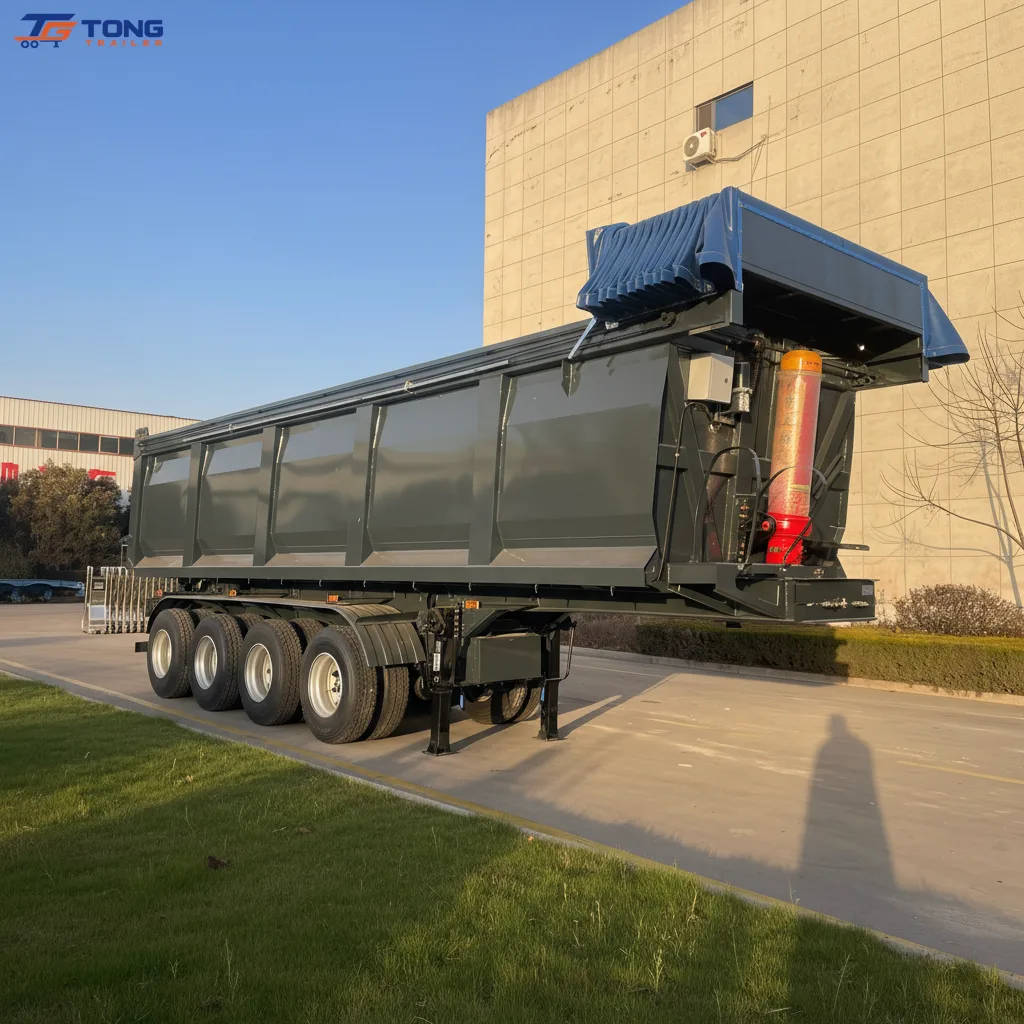

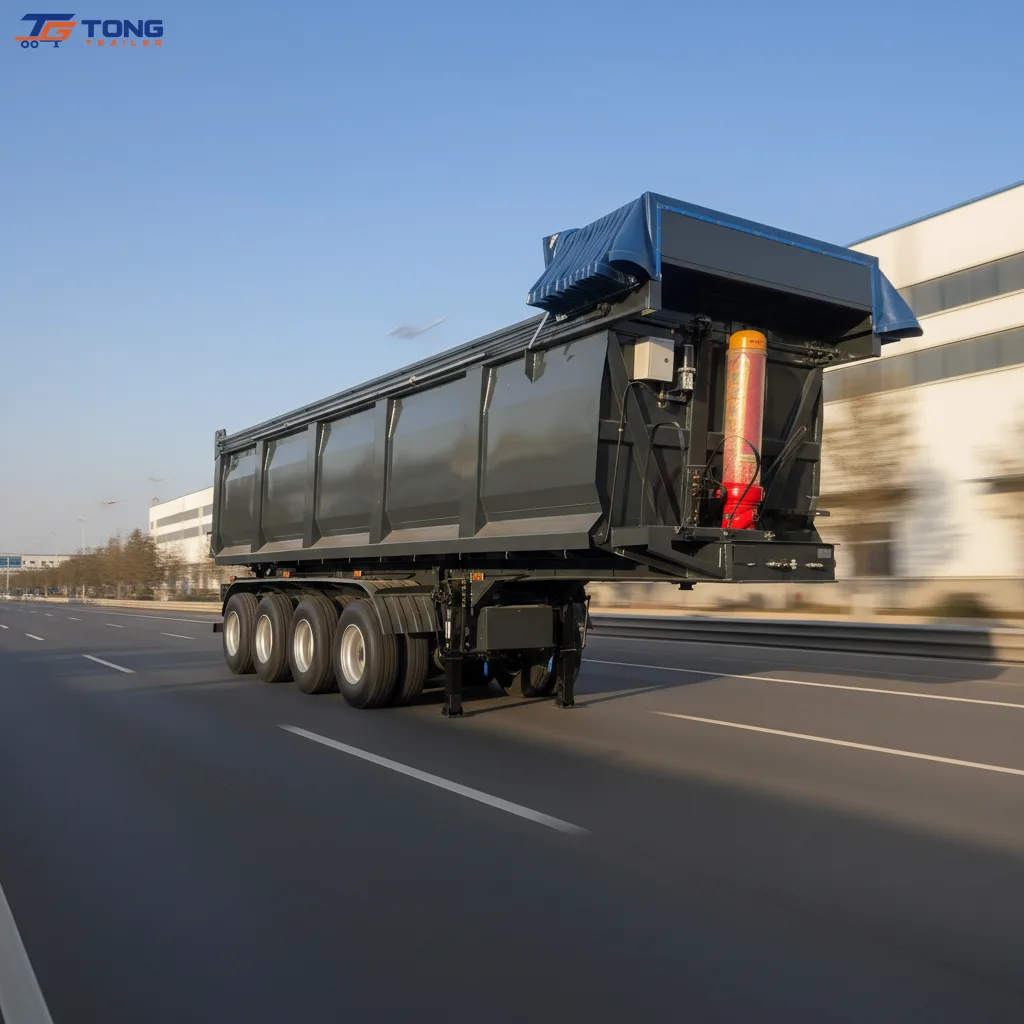

The body uses full thickness high strength steel. Floor plate thickness is 5 mm and sidewalls are 4 mm. A hydraulic cylinder drives the rear dump. Cylinder model is chosen to match the cargo box length. The carriage reaches a maximum tilt angle of 45 degrees. The chassis is sand blasted, primed and finished with two topcoats. A 28 ton two-speed landing gear and a dual line braking system are standard.
Typical applications include gravel, stone, sand and coal haulage. These trailers suit mining, quarry, construction and logistics fleets that move bulk materials.
Contact us for 40 Ton Dump Semi Trailer pricing, custom sizes and configuration options. U-shaped or rectangular cargo boxes are optional, and OEM or ODM requests are supported. A tool box is supplied with each unit.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
