Heavy duty hydraulic dump semi trailer for mine and quarry hauling. 40 to 60 ton payload, 3 or 4 axles, steel body. Request pricing and customization.

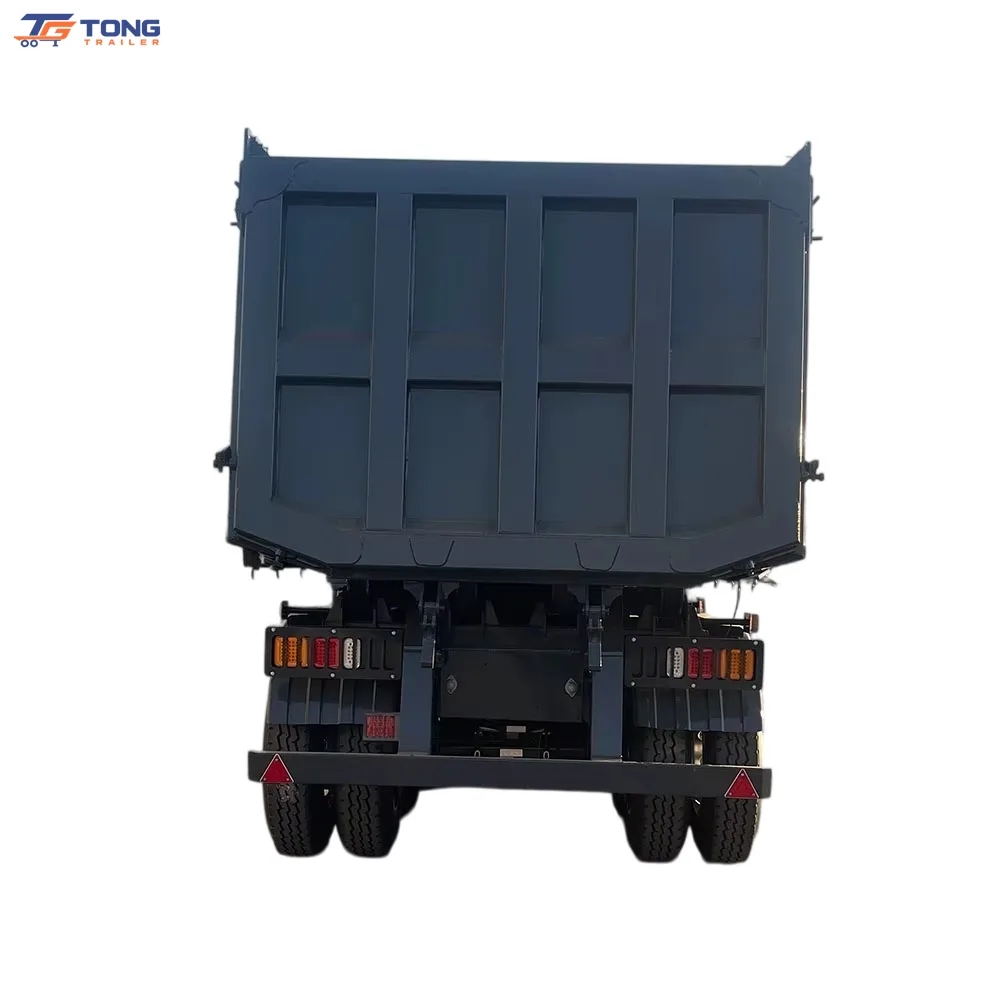

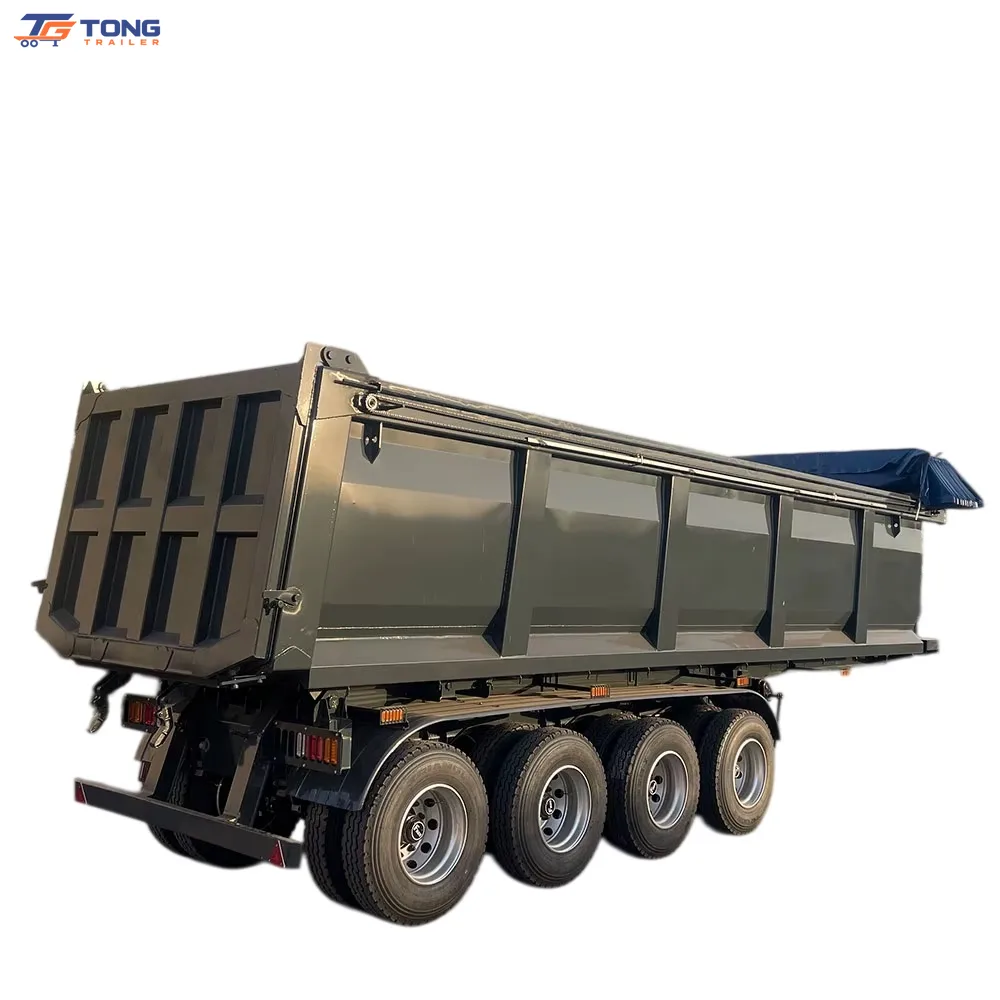

The heavy duty hydraulic dump semi trailer is built for efficient unloading of bulk cargo in mining, quarry, and engineering operations.
This tipping trailer carries a payload range of 40 to 60 tons. It is available in 3 or 4 axle configurations. The overall size is 11280 x 2495 x 3970 mm, with customization available. The trailer uses a dual line braking system and supports mechanical or air suspension.

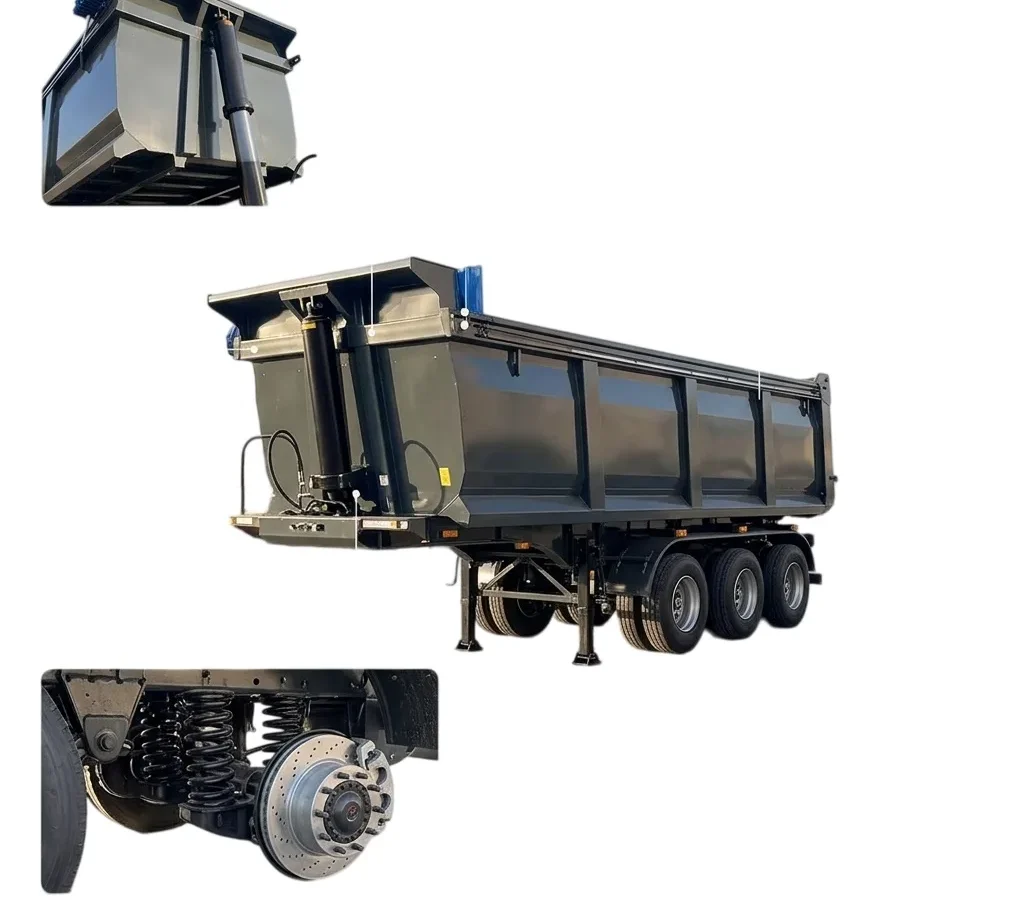

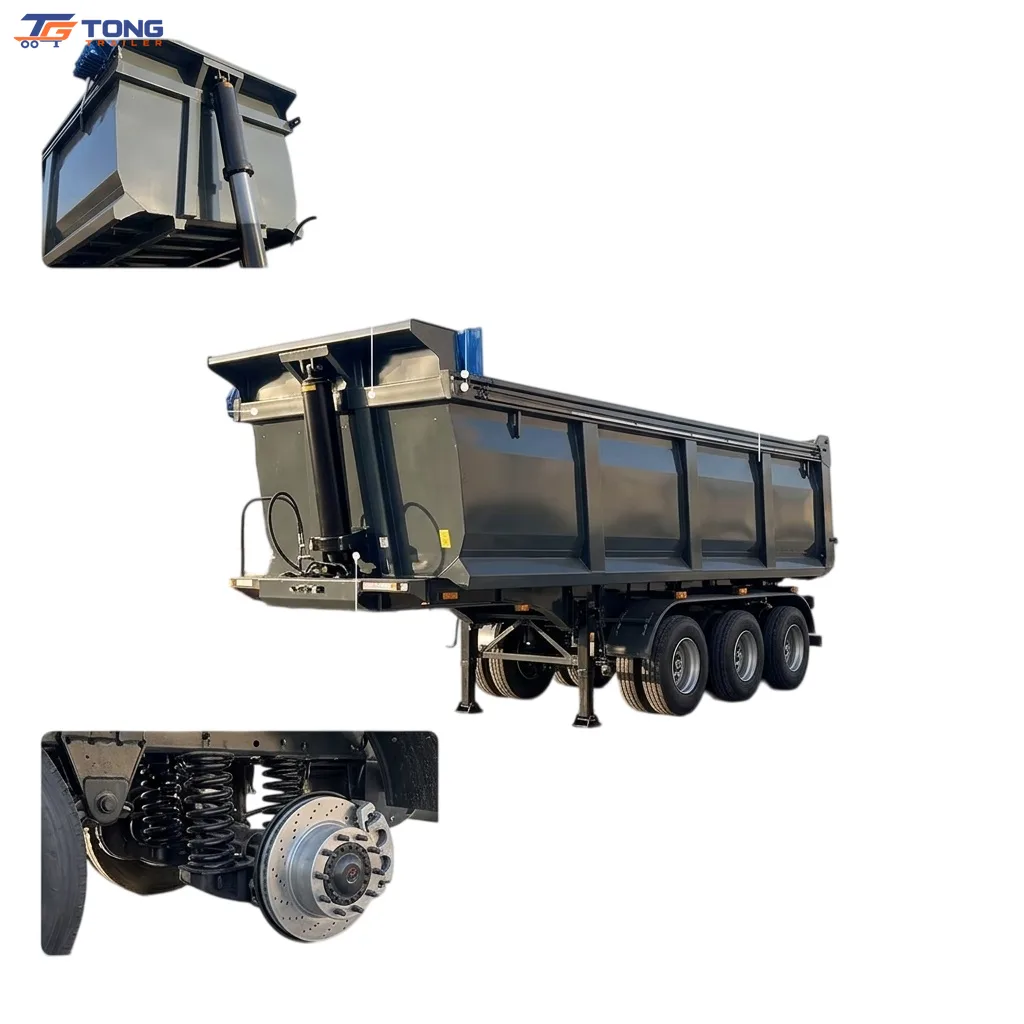

The body is of full thickness special steel for strong load-bearing capacity. U-shaped or rectangular cargo boxes are optional. A post-mounted multi-stage heavy-duty lifting cylinder with explosion-proof piping delivers smooth lifting and a large lifting angle. The four-axle version uses wide-width vacuum tires to distribute load evenly on uneven ground. An electrically retractable rain shelter keeps cargo sealed and dust-repellent. The entire vehicle has a double-layer anti-corrosion paint finish, and accessories are universal for low maintenance costs.
This heavy duty hydraulic dump semi trailer suits mine and quarry material transport, construction sites, and heavy-load hauling of stone and wet soil. An integrated LED combination tail light assembly provides complete braking and reflective indicators for night driving.
Contact us for pricing, axle options, and customization details on this hydraulic dump semi trailer.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
