Four-axle U-style dump trailer with over 30,000 kg payload and hydraulic rear tipping. Steel body, 11,280 mm length. Contact us for pricing.
This 4 axle U style dump trailer is a heavy-duty semi-trailer for bulk material hauling. It serves mines, quarries, construction sites and other heavy-load operations. It carries more material per trip and cuts transport round trips.
Maximum payload is over 30000 kg. The four axles share cargo weight evenly, cutting tire wear and road surface pressure. Overall dimensions are 11280 x 2495 x 3970 mm, with customization available. Axle counts from 2 to 6 can be ordered. Tire size options include 11.00R20 and 12R22.5. The trailer is ECE and OTTC certified.

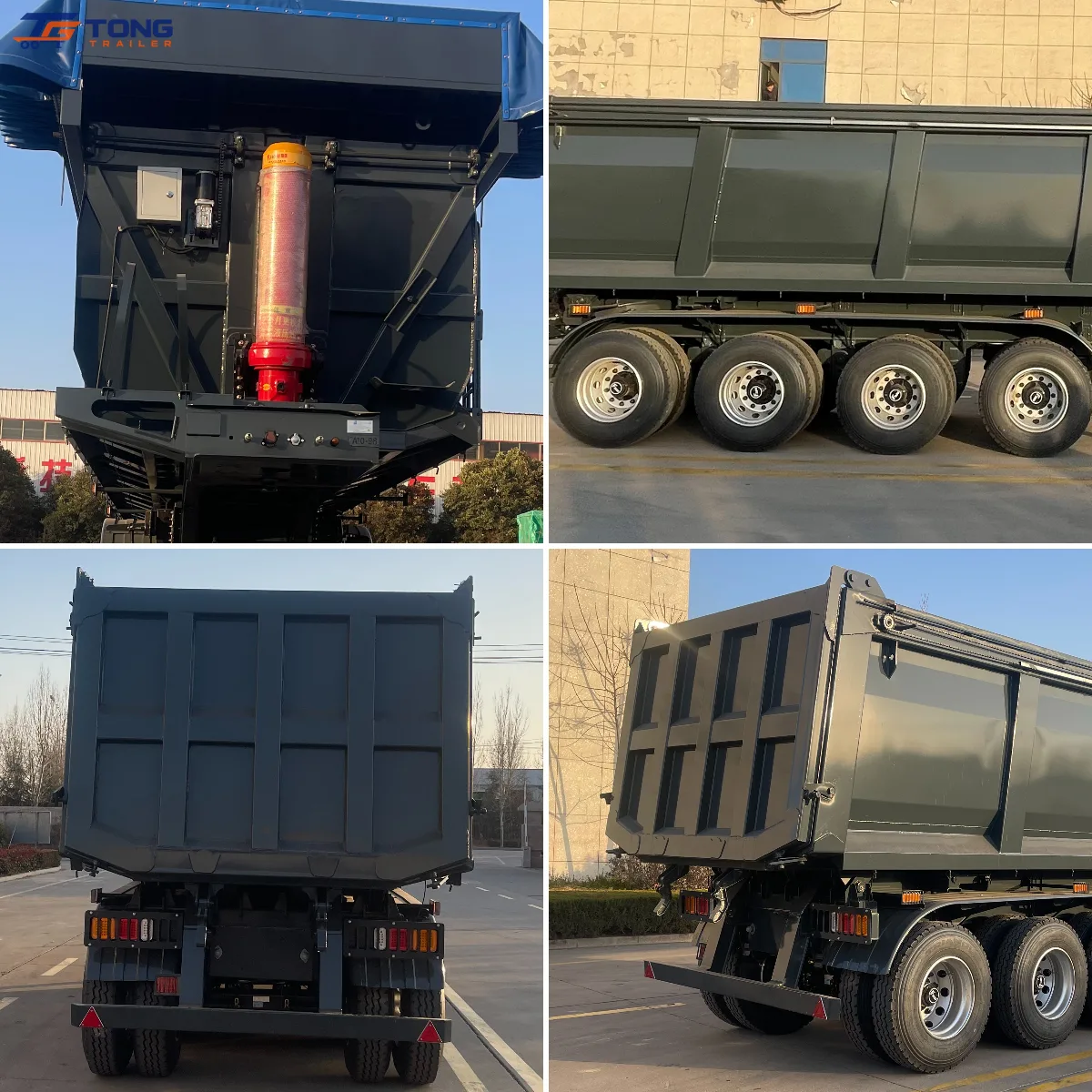

The carriage and frame are fabricated from high-strength thickened steel plate. This gives strong anti-wear, anti-collision and anti-deformation performance. A hydraulic rear tipping system lifts fast and unloads smoothly. The large tipping angle limits material residue inside the tank. Mechanical or air suspension and a dual line braking system are available. The optimized structure balances load capacity, stability and operating performance.
This 4 axle U style dump trailer moves sand, gravel, ore and construction waste. The spacious cargo compartment raises single-shipment volume. Its rugged chassis and heavy-duty tires handle rough mine roads and uneven quarry terrain. Continuous heavy-duty operation is supported by strict production and quality inspection.
Contact us for pricing, delivery time and customization options.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
