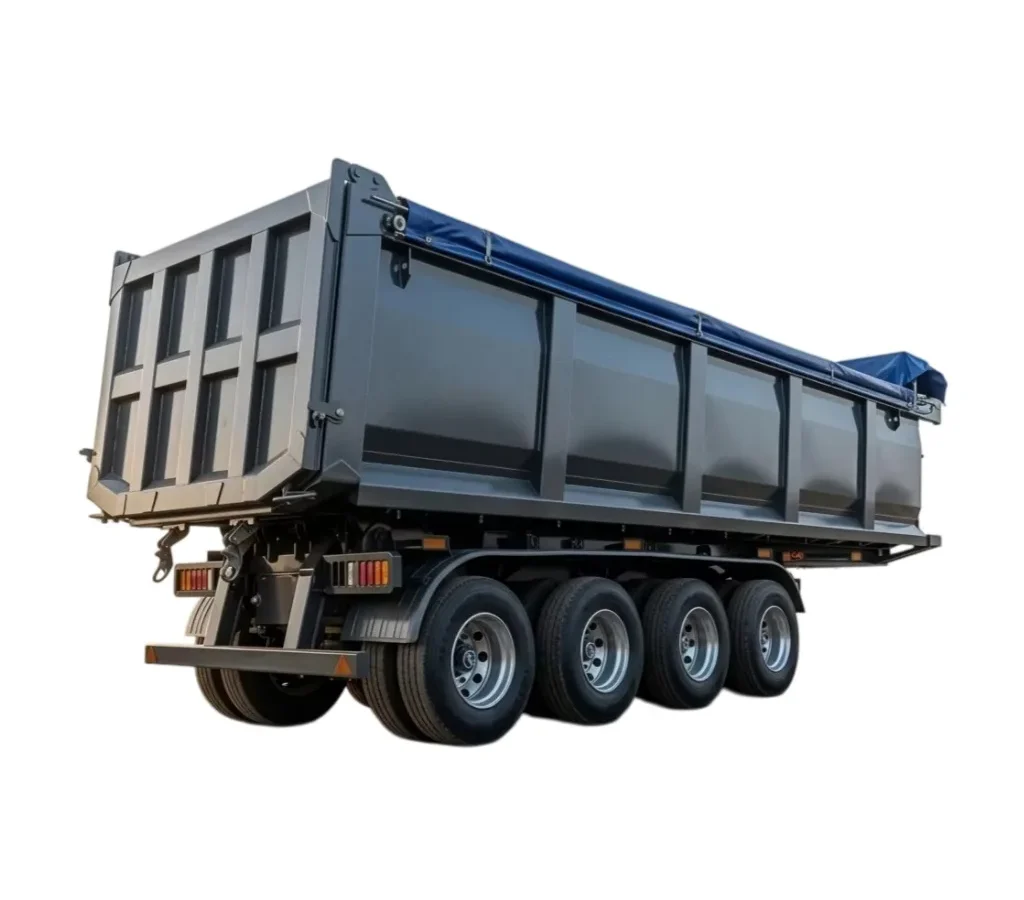

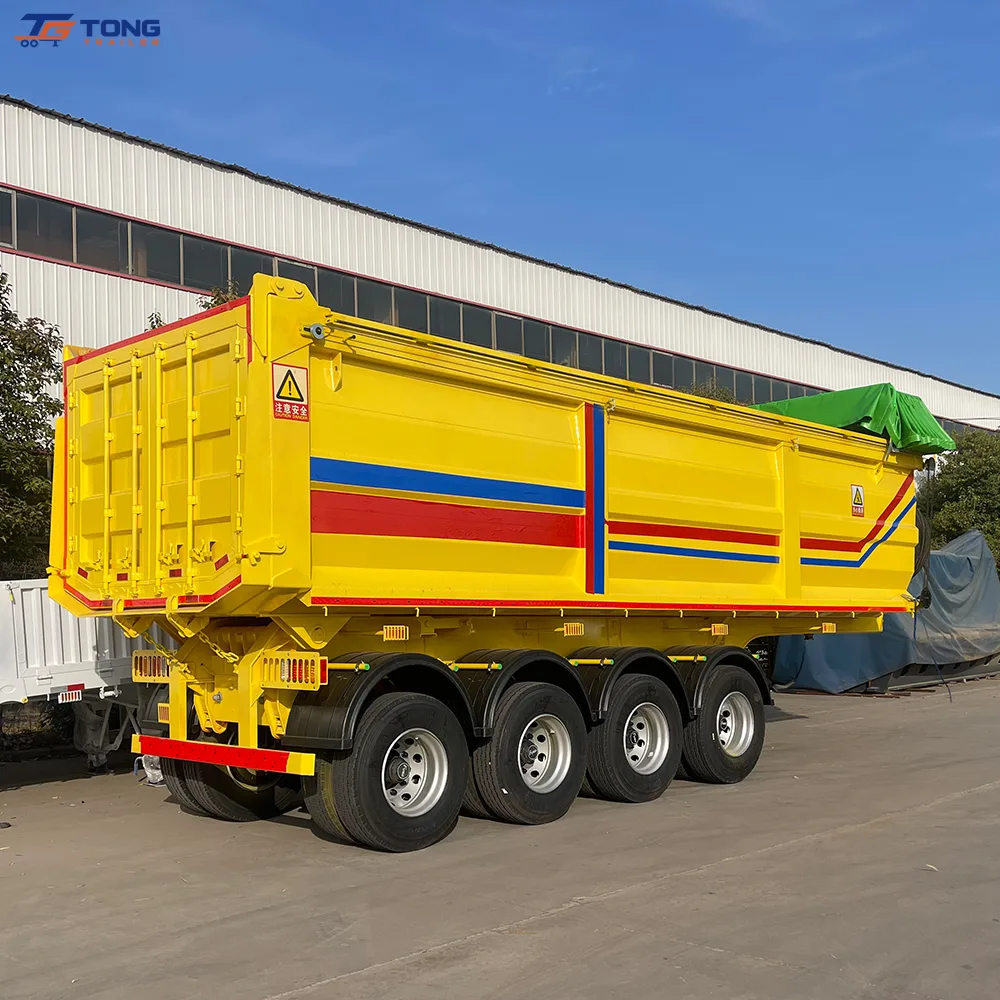

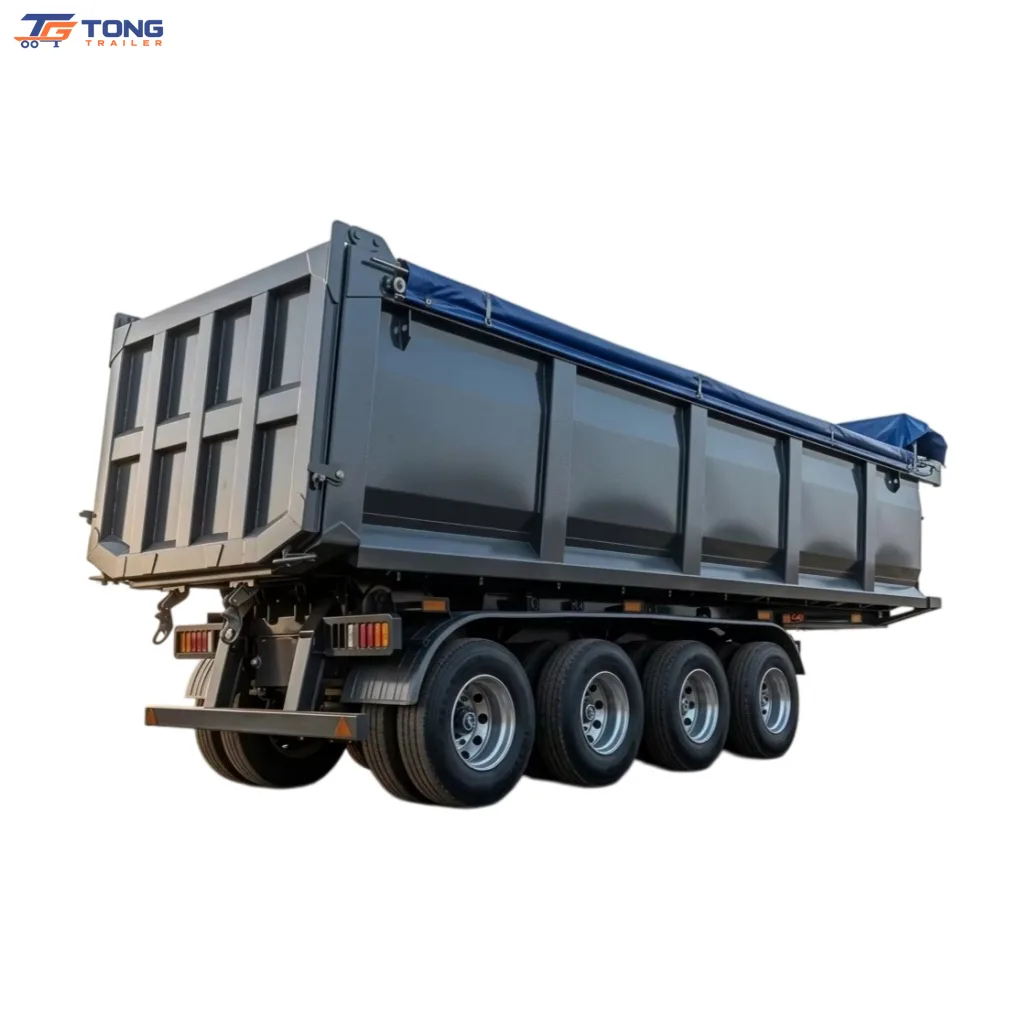

4 axle dump semi-trailer with 30,000 kg payload and 12R22.5 tires. 11280 mm steel body for mining hauling. Contact us for pricing and customization.
A 4 axle dump semi-trailer is a heavy-duty tipper trailer built for hauling bulk materials in mines, quarries and construction sites. It is designed for continuous heavy-load hauling.
It carries a maximum payload above 30000 kg. The steel body measures 11280 x 2495 x 3970 mm and can be customized. Four axles share the cargo weight evenly, which reduces tire wear and road surface pressure. Tire options include 11.00r20, 12r22.5, 315 and 385. Axle layouts from 2 to 6 axles are available.

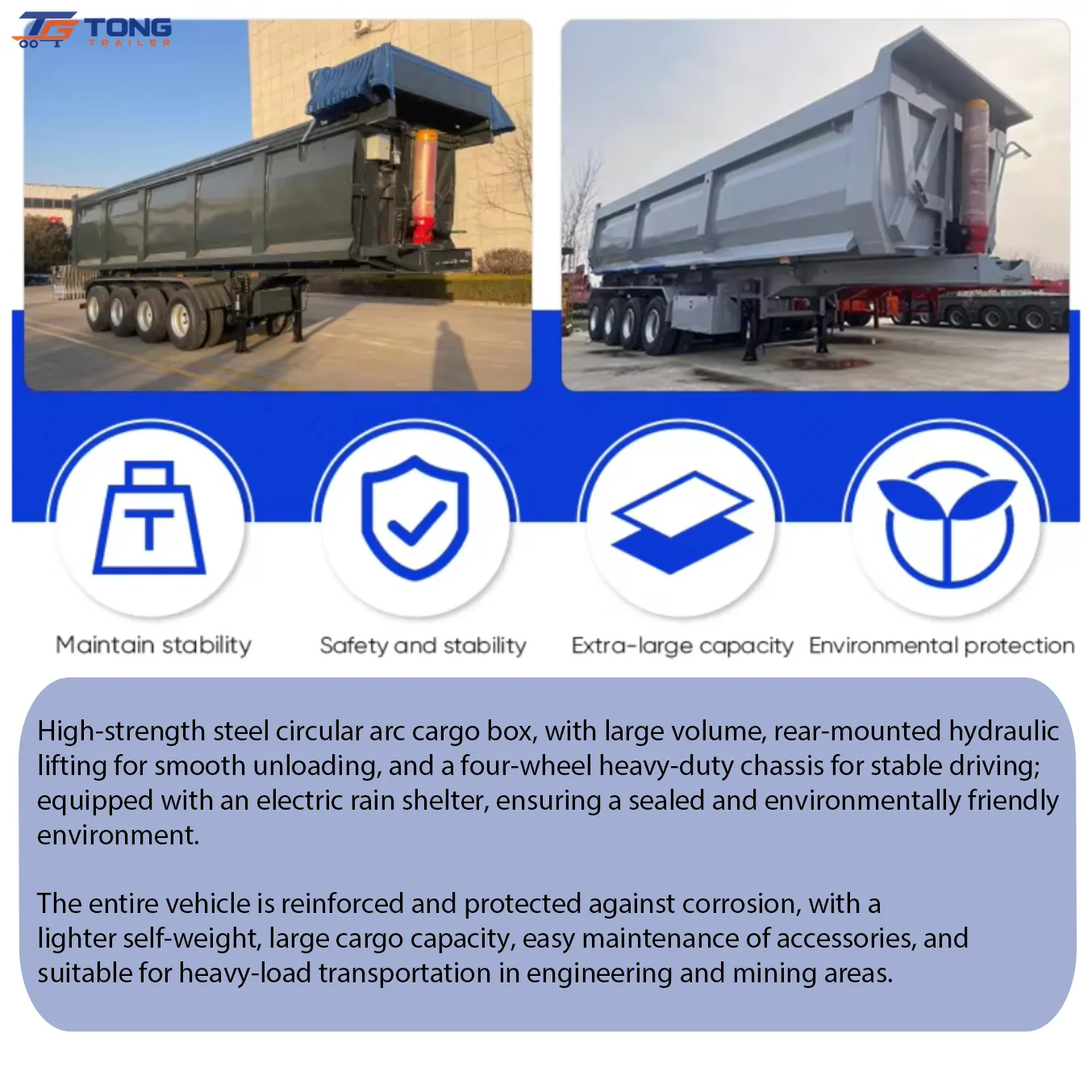

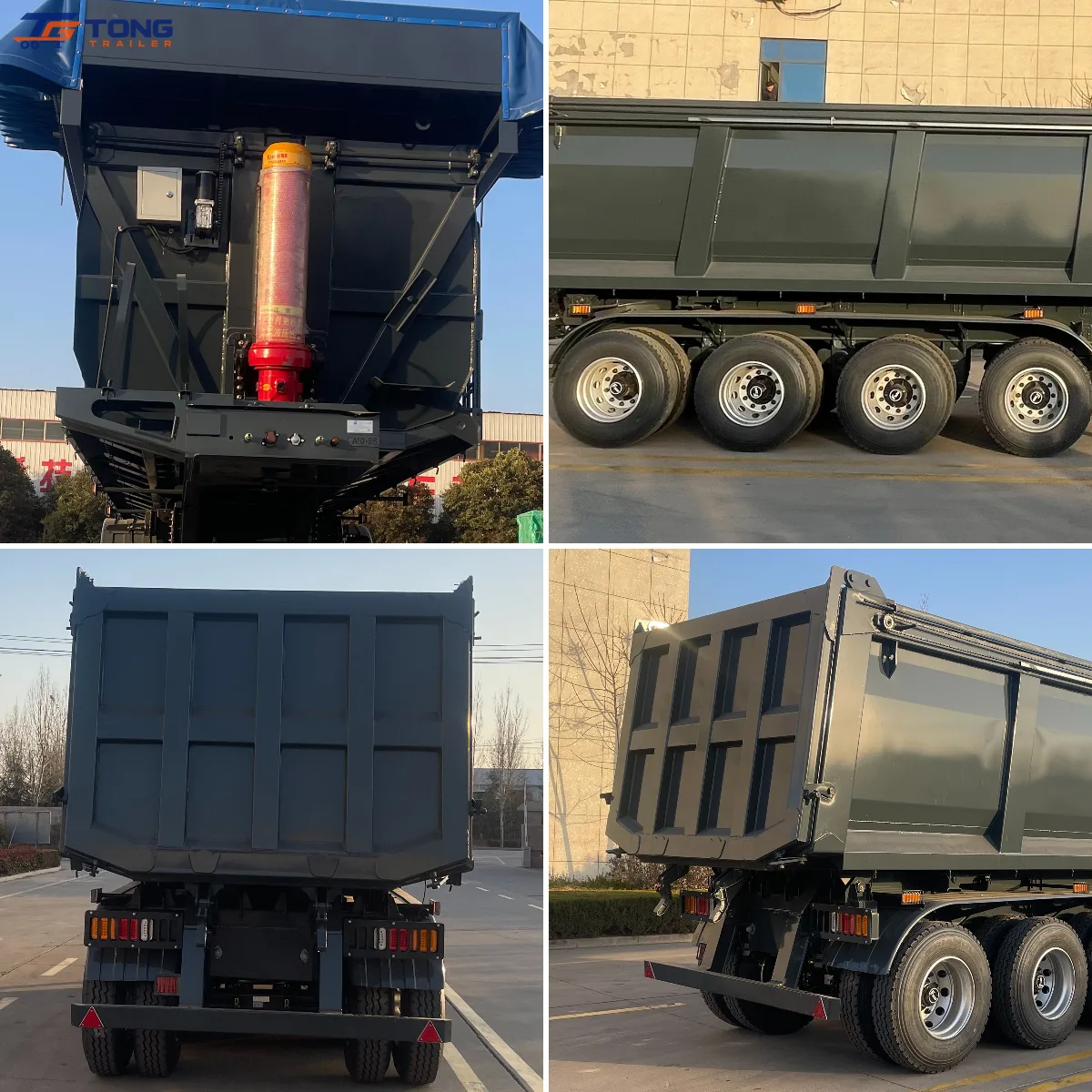

The carriage and frame are fabricated from high-strength thickened steel plates. This gives outstanding anti-wear, anti-collision and anti-deformation performance under hard bulk impact. The hydraulic rear tipping system lifts fast and discharges smoothly. A large tipping angle limits material residue inside the tank. Mechanical or air suspension, dual line braking, and a 2.0 inch (50 mm) or 3.5 inch (90 mm) kingpin are available. A standard 28 ton configuration and further customization are offered. Every component passes strict production and quality inspection.
Typical uses include sand, gravel, ore and construction waste transport. This 4 axle dump semi-trailer suits mining, quarry and construction fleet operations. The rugged chassis and heavy-duty tires handle uneven quarry terrain and muddy site roads without slipping or overloading deformation.
Contact us for pricing and export details on this 4 axle dump semi-trailer.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
