3 axle tipper semi trailer with a 40cbm steel body and 30 ton payload. Hydraulic rear dump, 2 to 6 axle options. Request a quote today.
This 3 axle tipper semi trailer is a heavy-duty rear dump unit built for bulk material transport. It handles sand, gravel, ore and construction waste in mines, quarries and construction sites.
The trailer is rated for a maximum payload above 30000 kg, giving 30+ ton capacity. Its 40cbm steel compartment carries large single-shipment volumes. Overall size is 11280*2495*3970mm, with customization available. Axle layouts of 2, 3, 4, 5 or 6 axles are offered.

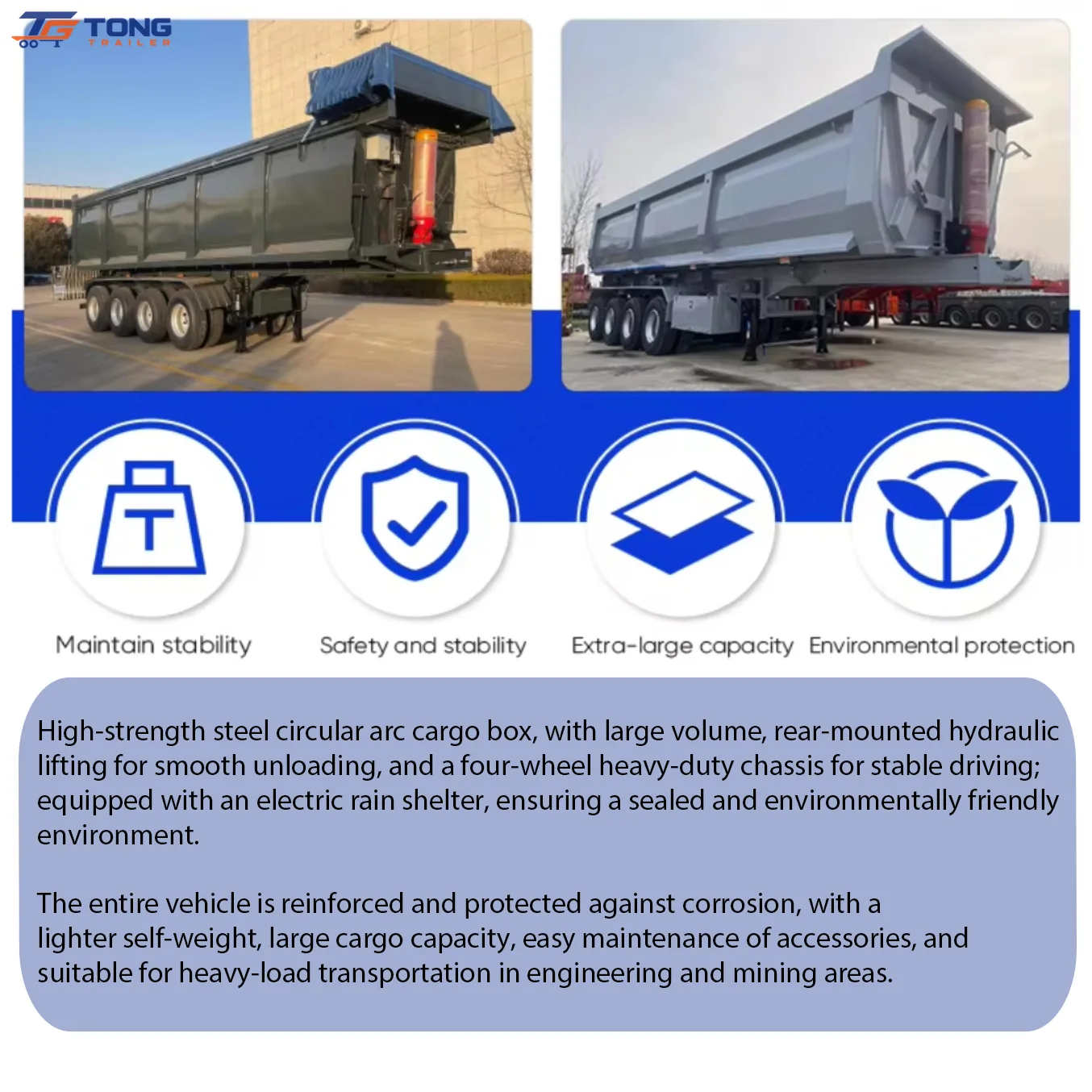

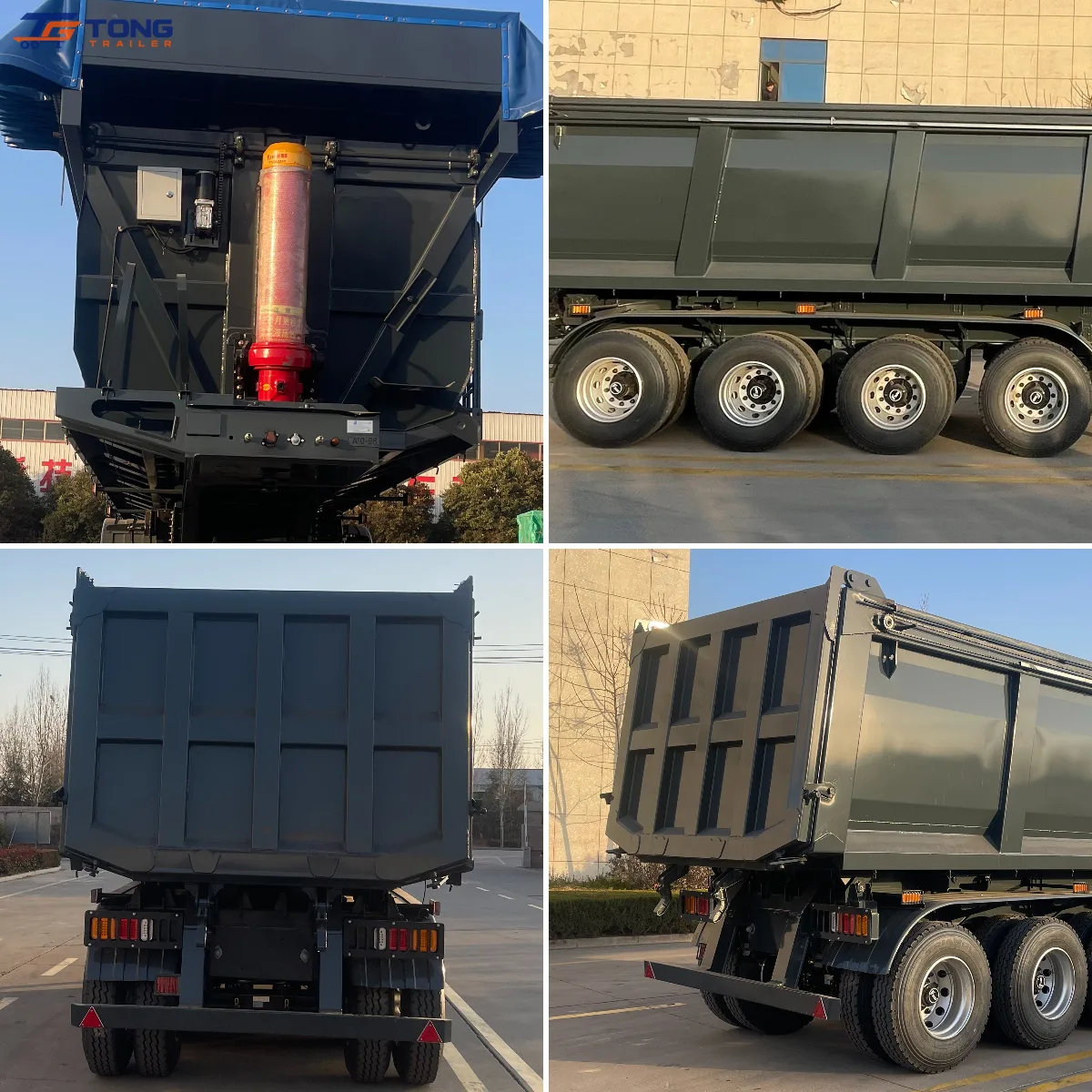

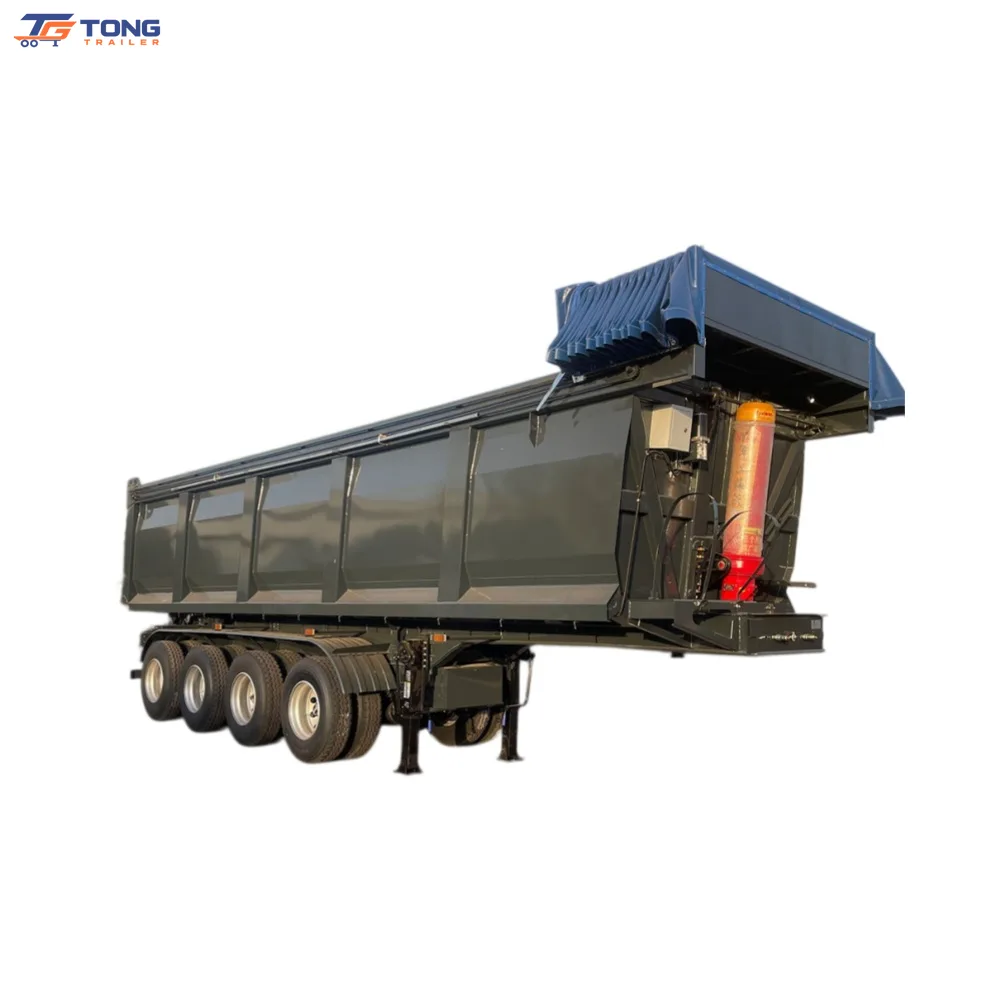

The carriage and frame use high-strength thickened steel plates. This delivers wear, impact and deformation resistance under hard bulk loads. The hydraulic rear tipping system lifts fast and discharges smoothly. A large tipping angle limits material residue inside the tank. Dual line braking system is fitted. Mechanical or air suspension is available. Tire options include 11.00r20, 12r22.5, 315 and 385. Kingpin sizes are 2.0 inch (50mm) and 3.5 inch (90mm). Every component passes strict production and quality inspection.
Fleet operators choose this 3 axle tipper semi trailer for continuous heavy-duty work. The rugged chassis and heavy-duty tires suit uneven quarry terrain and muddy sites. These units cut transport round trips and raise conveying efficiency.
Contact us for pricing, axle configuration and customization details. Send your required payload and volume for a quotation.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
