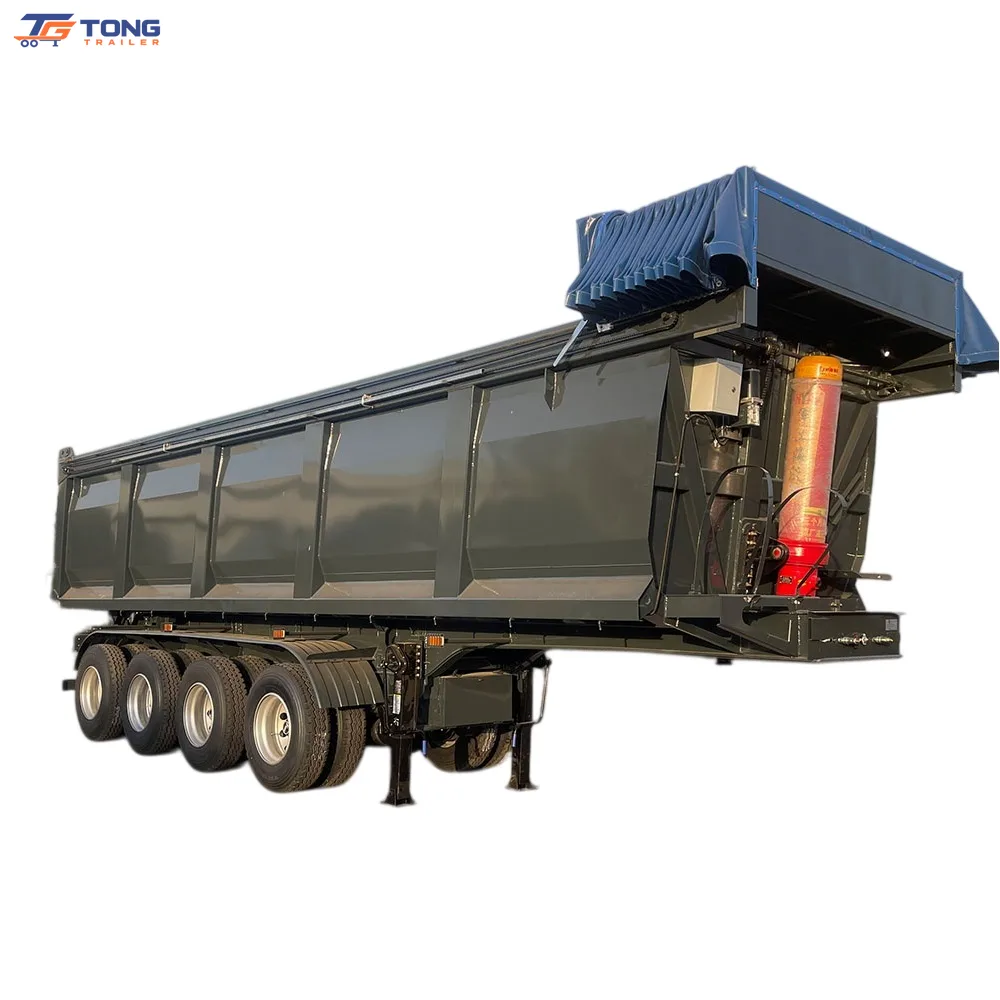

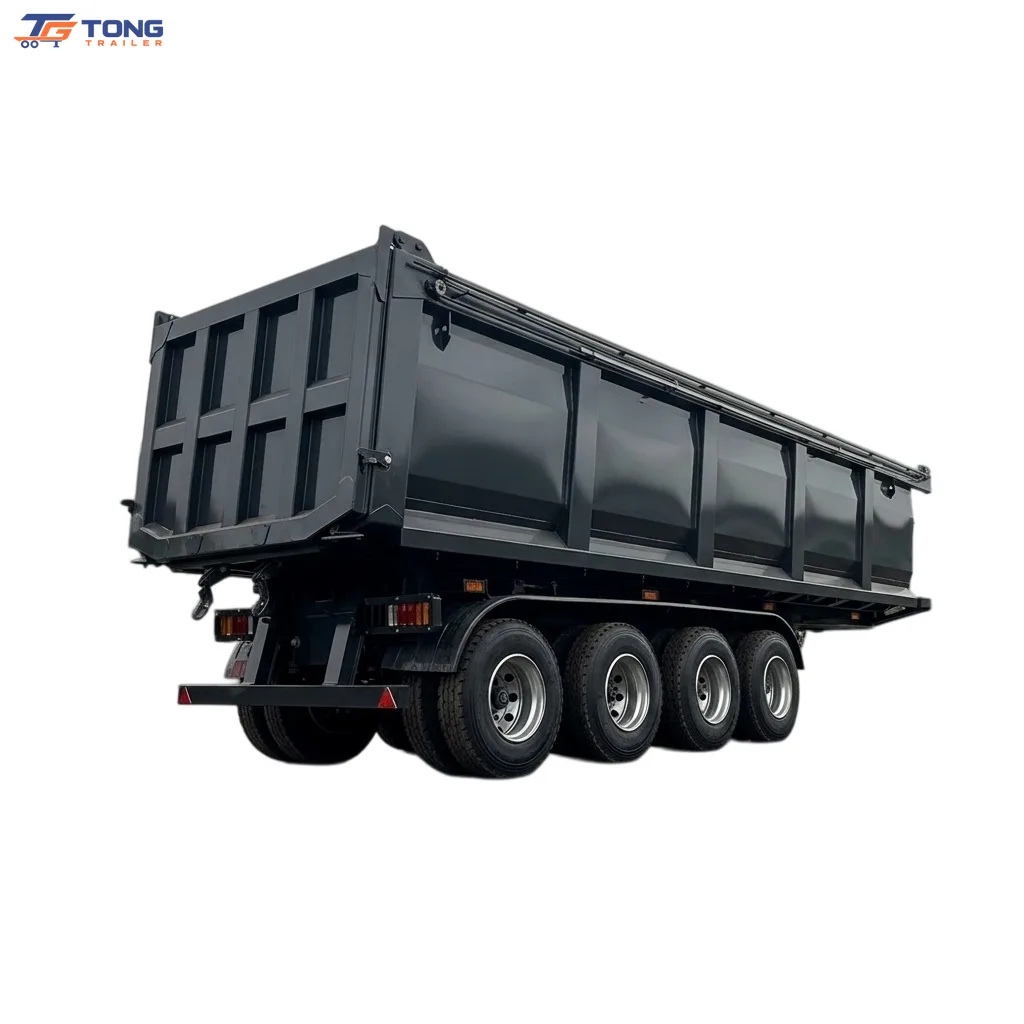

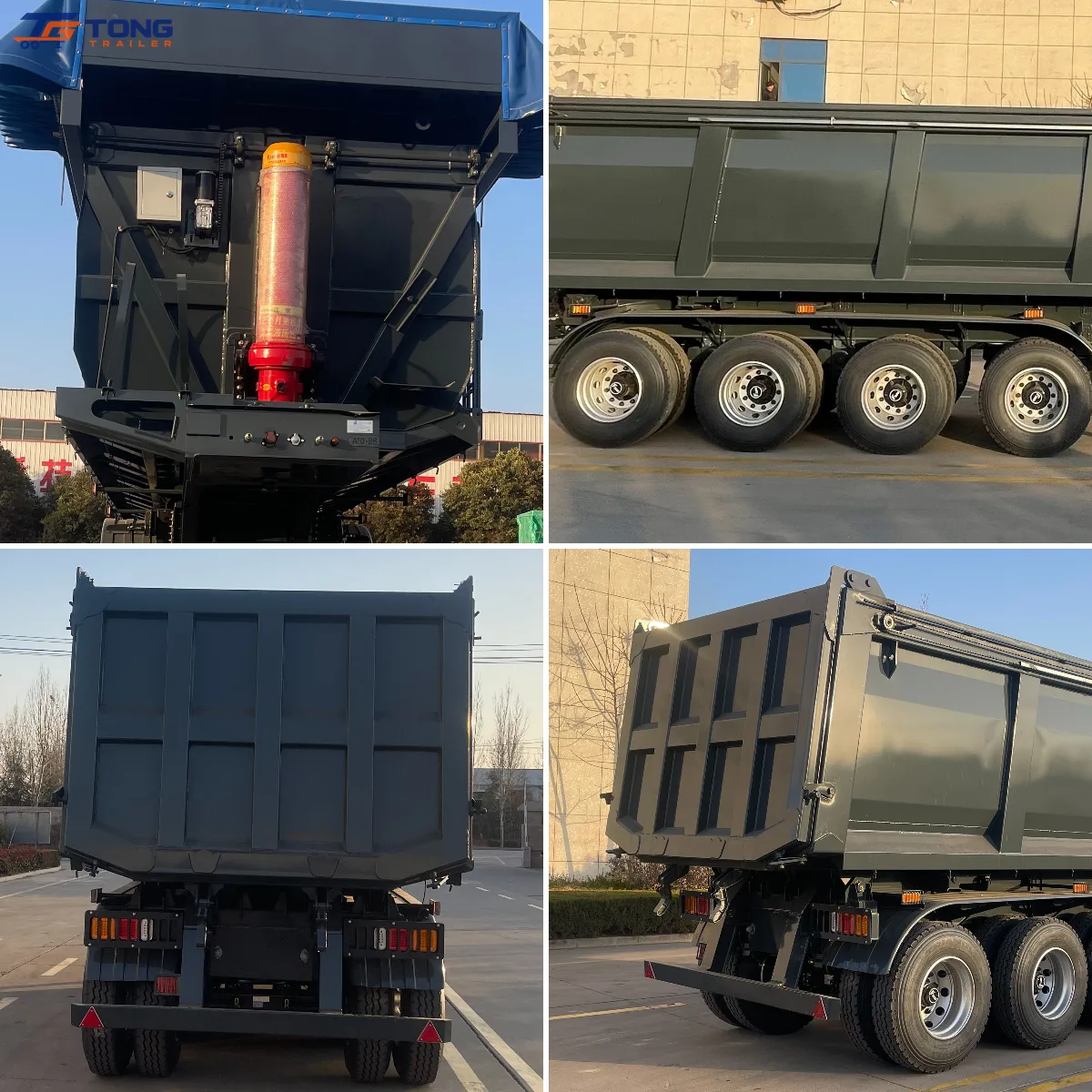

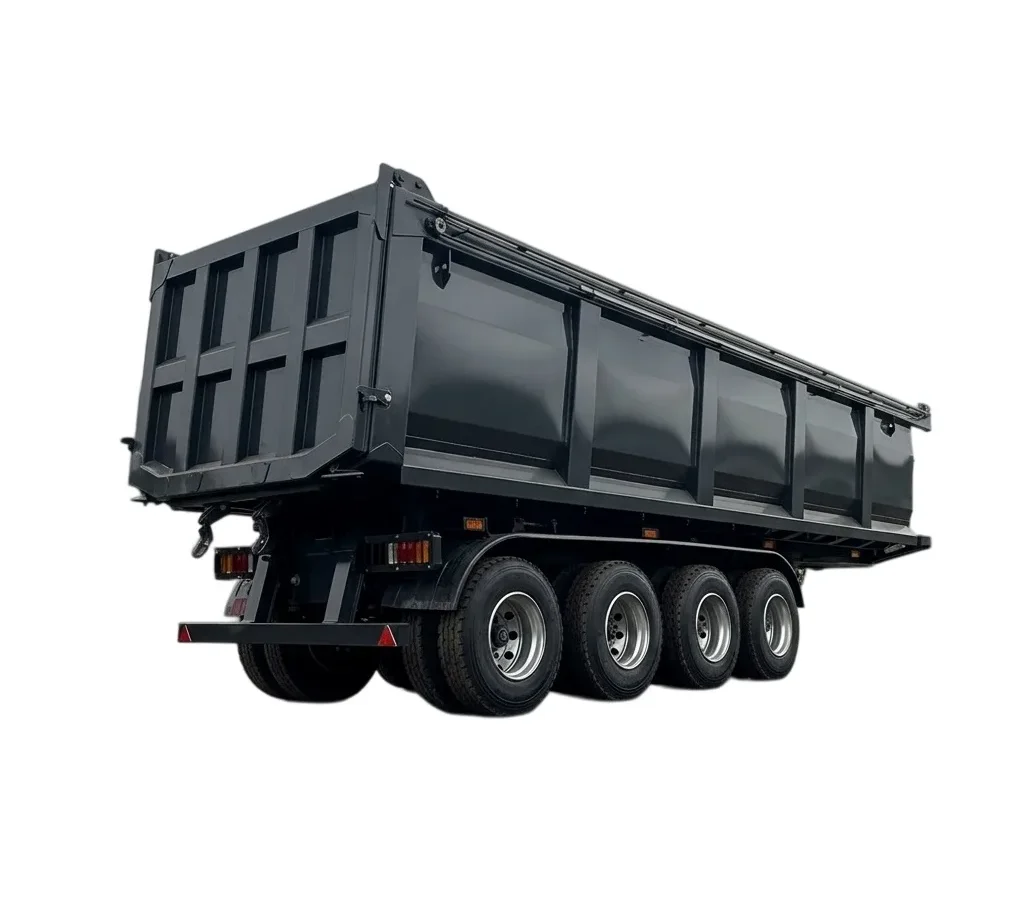

Three-axle hydraulic dump trailer with 30,000 kg payload. 11,280 mm steel box body, dual-line braking, and 2 to 6 axle configurations available.

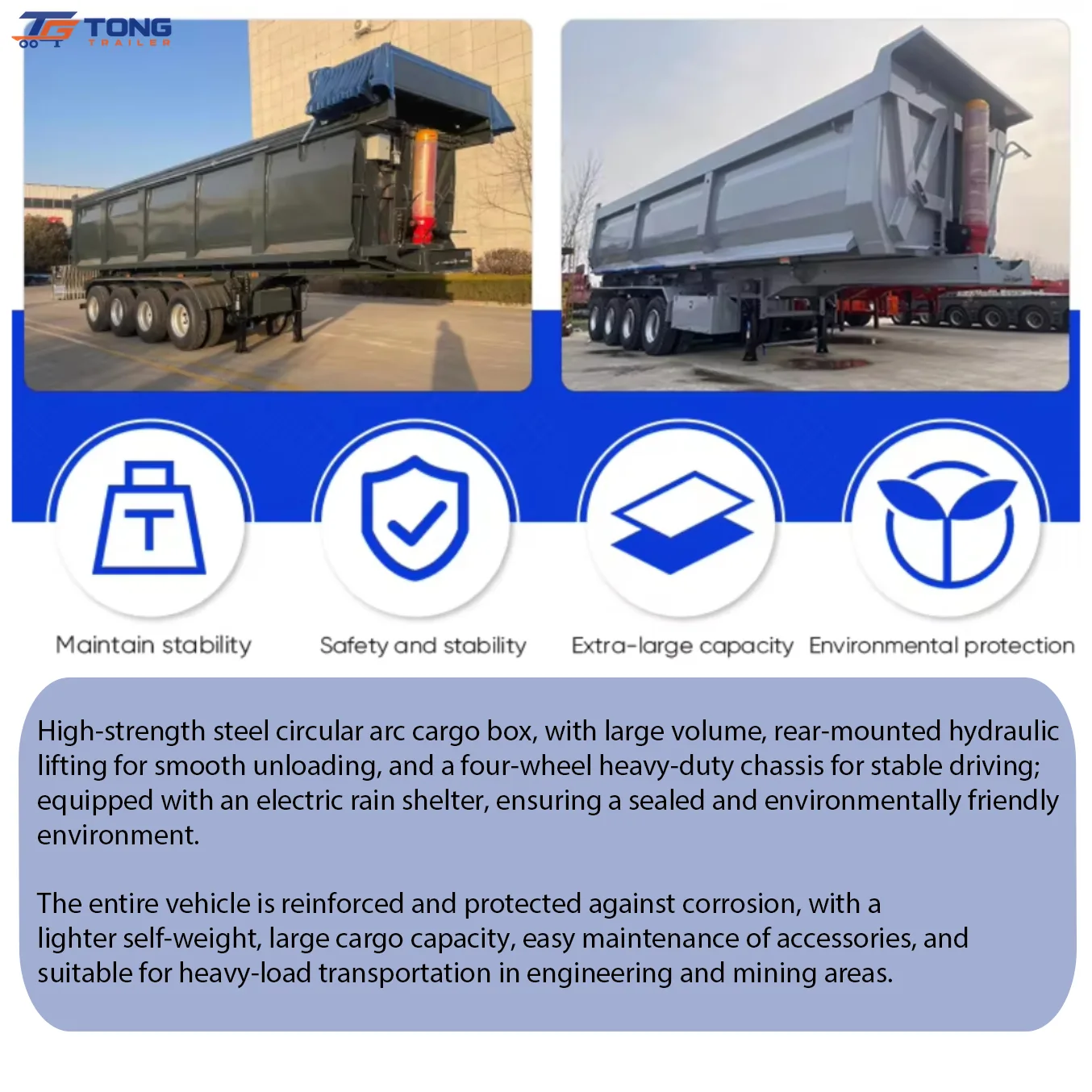

This 3 axle hydraulic dump trailer handles efficient tipping of bulk and heavy loads on construction, mining and logistics sites. The hydraulic rear dump system raises the steel box for fast discharge. It is a heavy duty vehicle built for daily hauling work.
Maximum payload capacity is above 30000 kg, supported by a three-axle configuration. The trailer measures 11280 x 2495 x 3970 mm, with custom sizes available. Tire options cover 11.00R20, 12R22.5, 315 and 385 sizes. A dual line braking system delivers stable stopping force across all axles.
The steel box structure and heavy-duty frame resist deformation under repeated loading. Buyers can choose mechanical suspension for rough roads or air suspension for smoother cushioning. Kingpin sizes of 2.0 inch (50 mm) or 3.5 inch (90 mm) are offered. Axle counts from 2 to 6 are available for different hauling demands. Every unit can be customized, so buyers can adjust axle count and parameters to match local road rules.
This dump semi trailer suits construction contractors, mining operators and fleet managers moving sand, gravel, soil and aggregates. It performs on highways, mountain roads and unpaved job sites. Fleets use it for aggregate delivery, earthmoving support and site clearing.
Contact the supplier for pricing, customization options and delivery terms on this 3 axle hydraulic dump trailer.
| Type | Semi-Trailer, Heavy Duty Vehicle |
| Max Payload | >30000 kg |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11280*2495*3970mm/Customization |
| Dimensions | 450 * 228 * 210 |
