Heavy-duty lowbed semi trailers with 3-7 axles for 60-150 ton loads. Custom deck lengths for excavators and machinery. Get factory pricing.

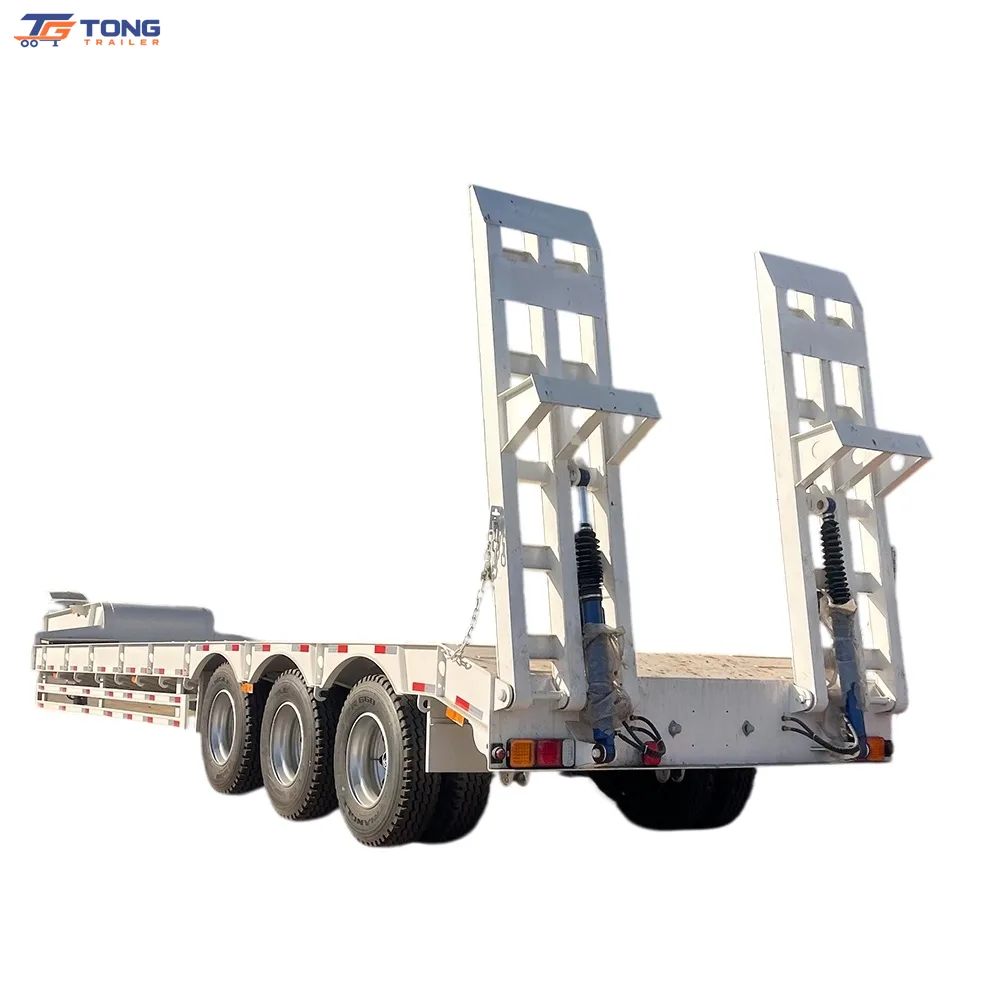

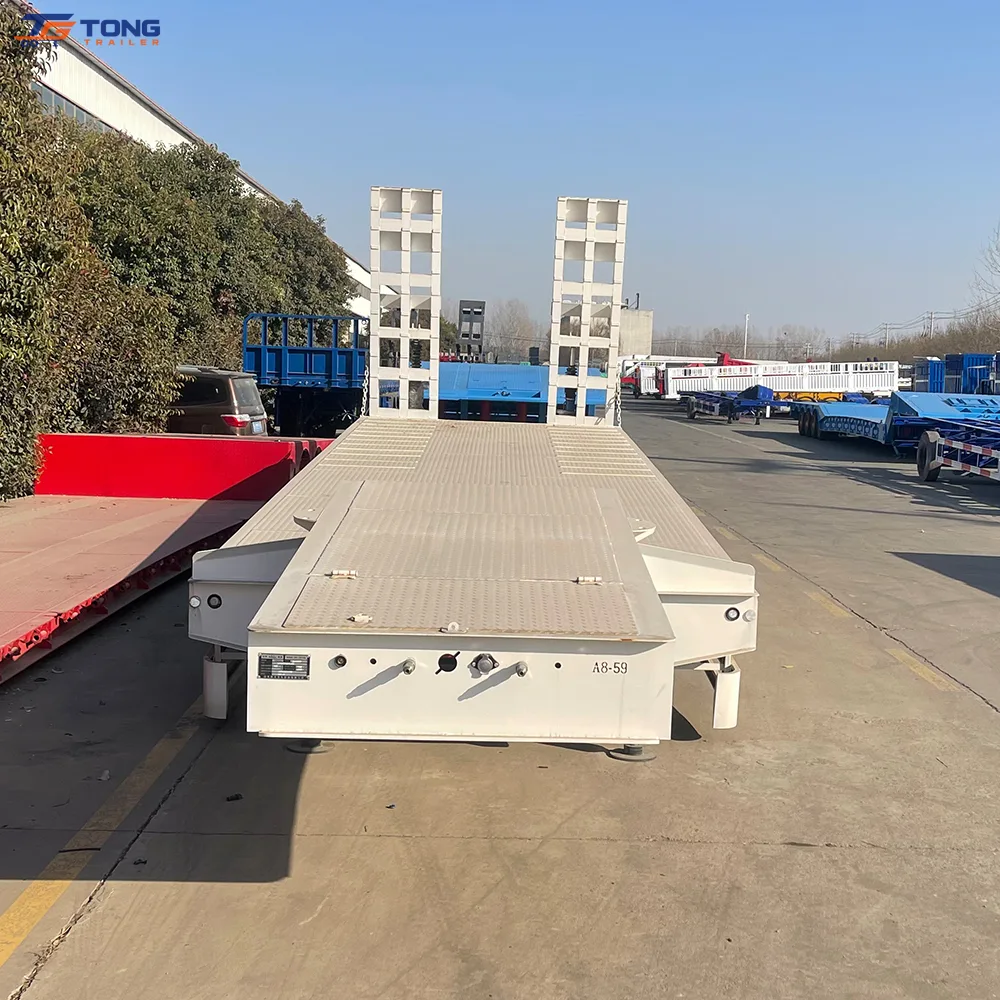

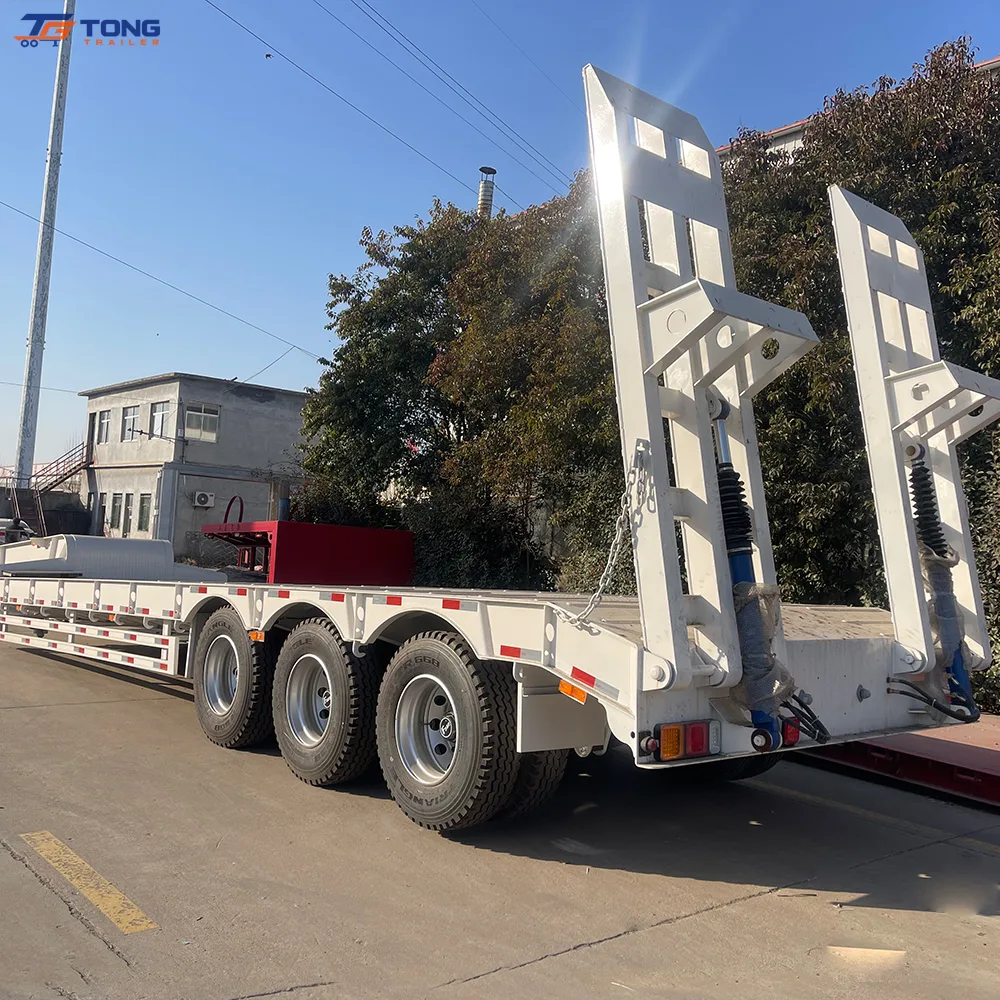

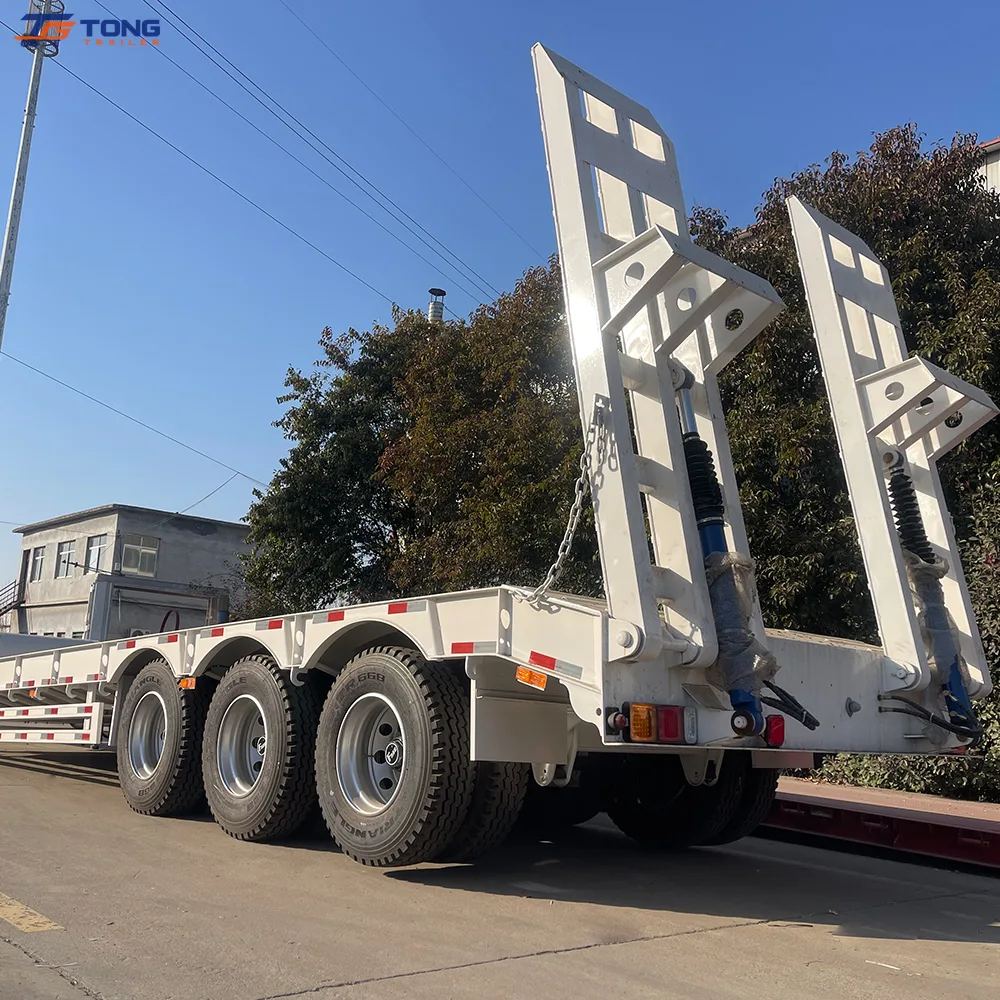

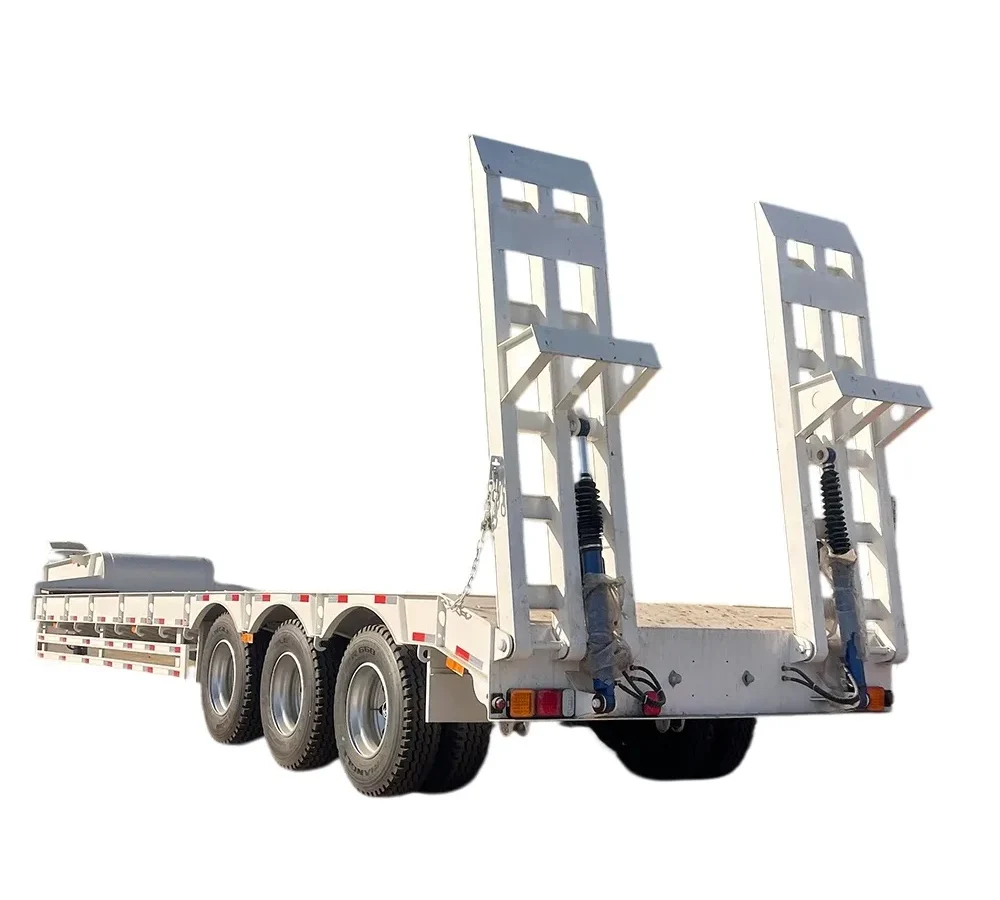

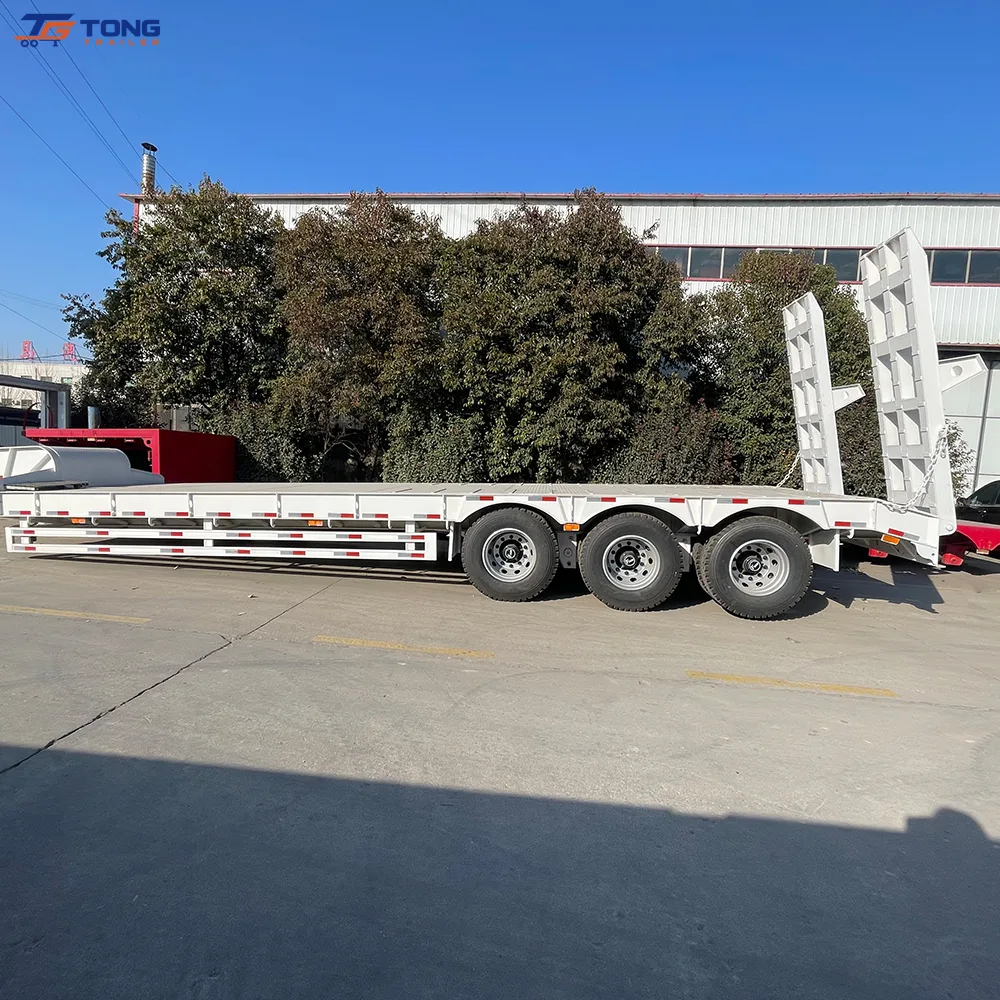

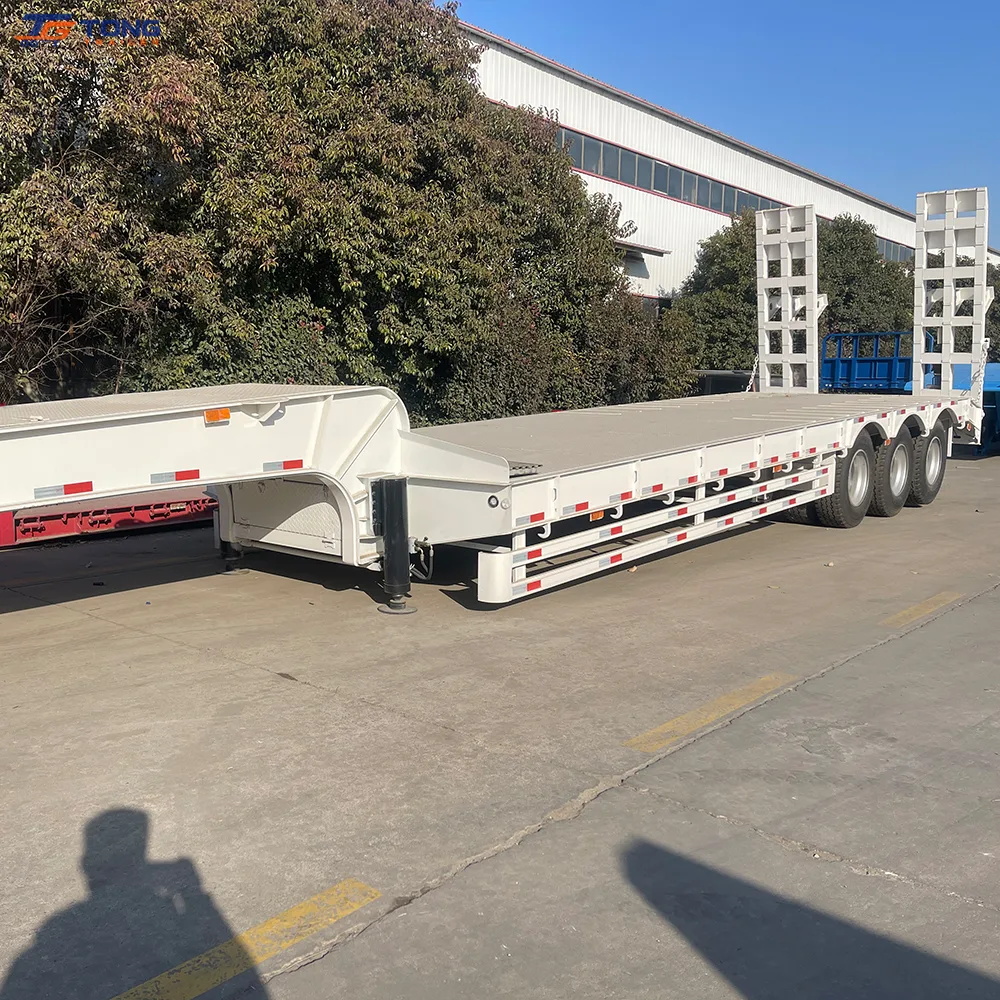

The lowbed semi trailer 3-7 axles is designed for heavy equipment transport. It moves excavators, bulldozers, cranes, and mining machinery. The low deck height ensures stability. It also improves ety under overhead obstacles.
Choose from 3, 4, 5, 6, or 7 axles. Payload options are 60T, 80T, 100T, or 150T. Deck length ranges from 11500 to 13000 mm. Width is 3000 mm and height is 1750 mm. Custom dimensions are available on request. Tare weight is between 8000 kg and 12800 kg.
The main beam uses Q690 high-strength steel. Side beams are 16-25 mm high-strength plate bending. The platform is made of 3-5 mm chequered plate. It includes welded anti-slip ribs. Suspension can be mechanical or air type. Braking system uses relay valves and spring brake chambers. Ladders are manual or hydraulic. Hydraulic ladders handle over 60 tons. Gooseneck reinforcement bars increase load capacity. Kingpin options are 2.0 or 3.5 inch bolted type.
Tire options include 235/75R17.5, 245/70R19.5, and 12.00R22.5. Rim sizes are 9.0×22.5 or 8.0-20. Two spare tire carriers are standard. Painting includes anti-corrosive primer and two finish coats.
This trailer suits construction, mining, and forestry industries. It transports tractors, buses, rail vehicles, and heavy machinery. The low center of gravity improves stability. It handles oversized loads with ease. The trailer complies with ISO, CE, and DOT standards.
Contact us for pricing and detailed specifications. We offer factory-direct prices and reliable after-sales support. Customization is always welcome. Get a quote today.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
