Lowbed semi trailer, 100 ton capacity, 3 axles, for excavators and heavy machinery. Heavy duty steel build, 11500-13000mm deck. Contact us for pricing.

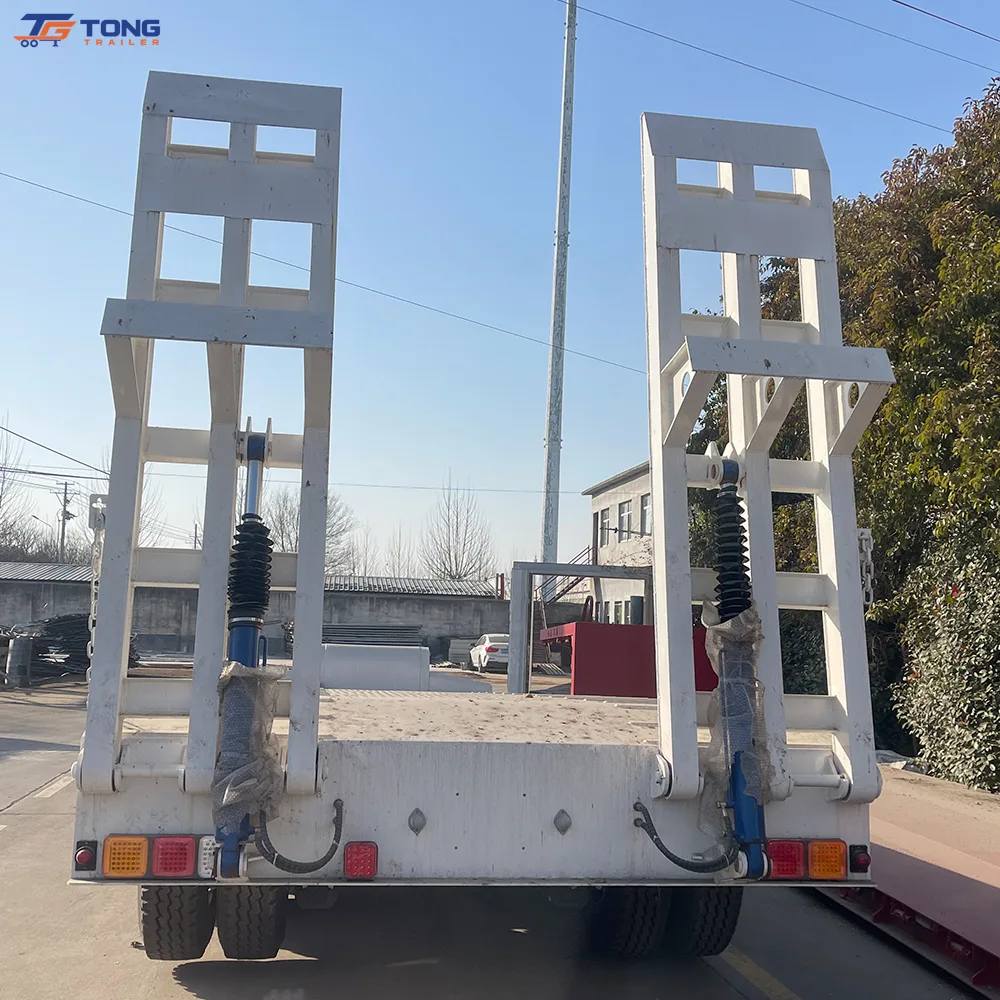

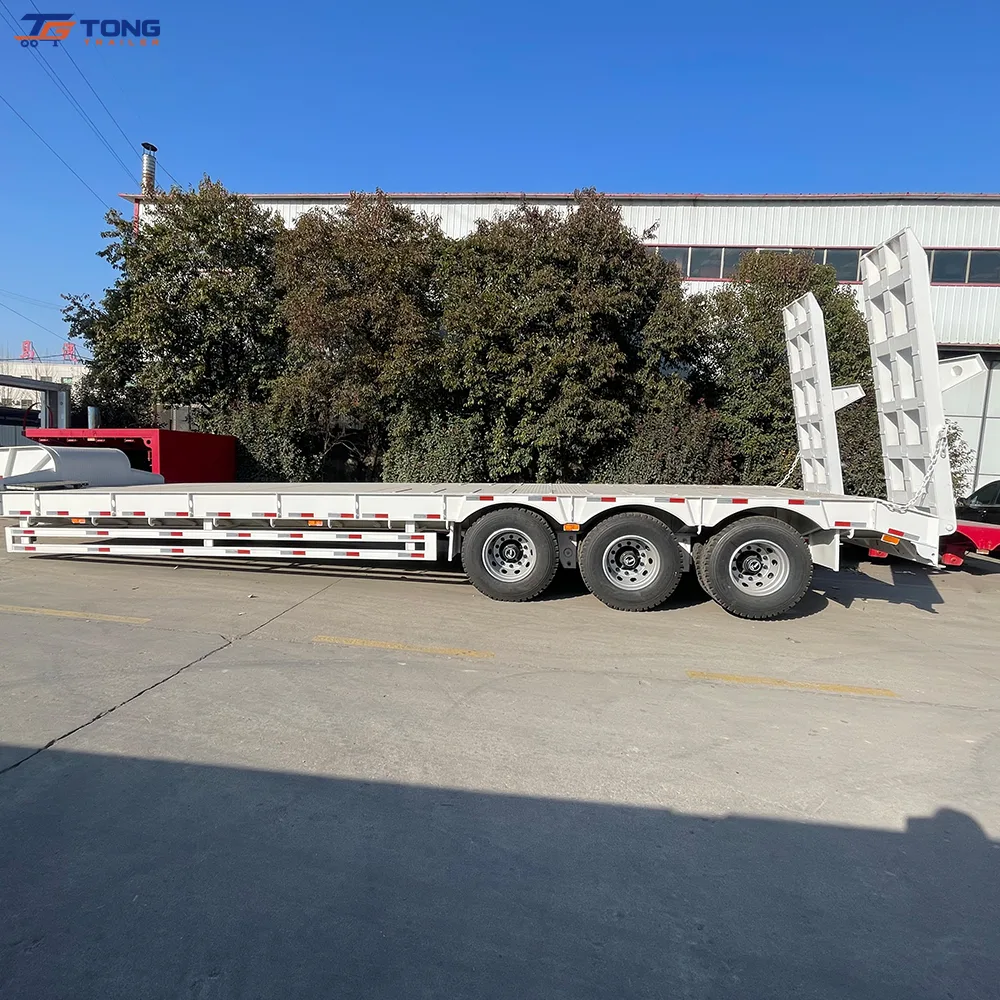

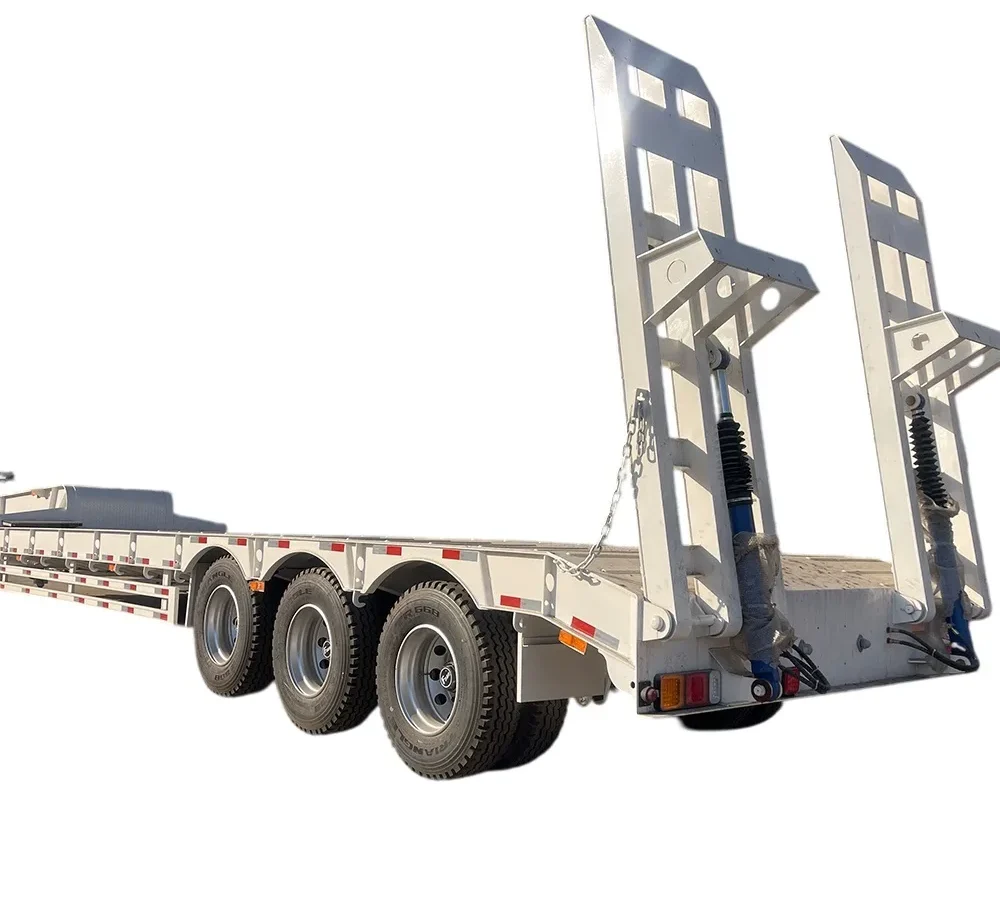

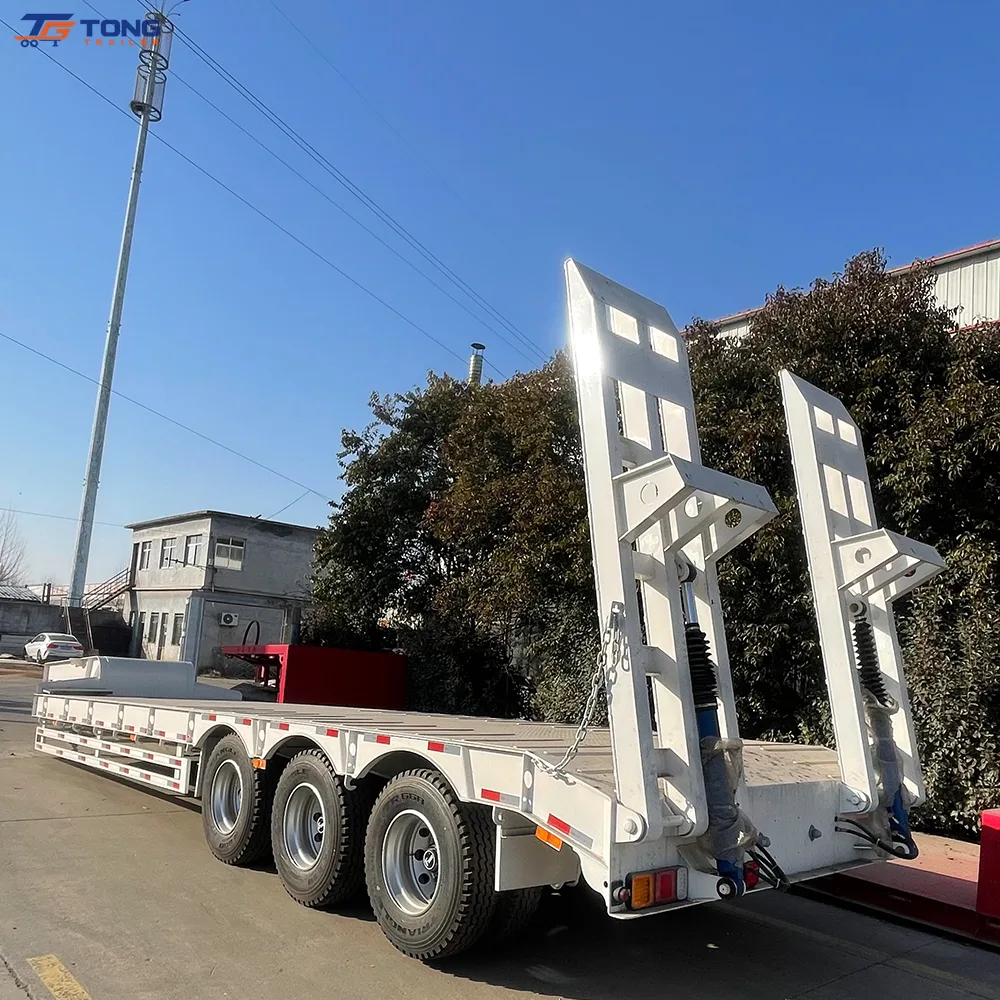

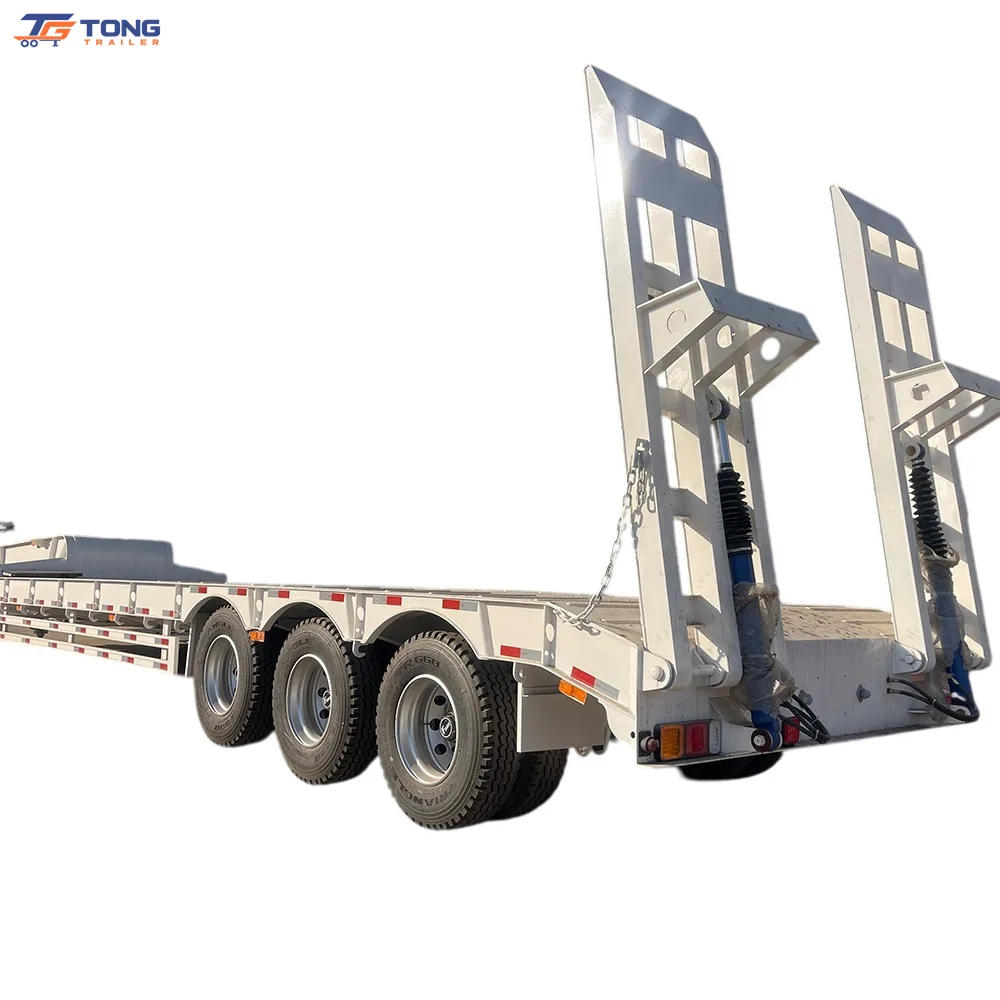

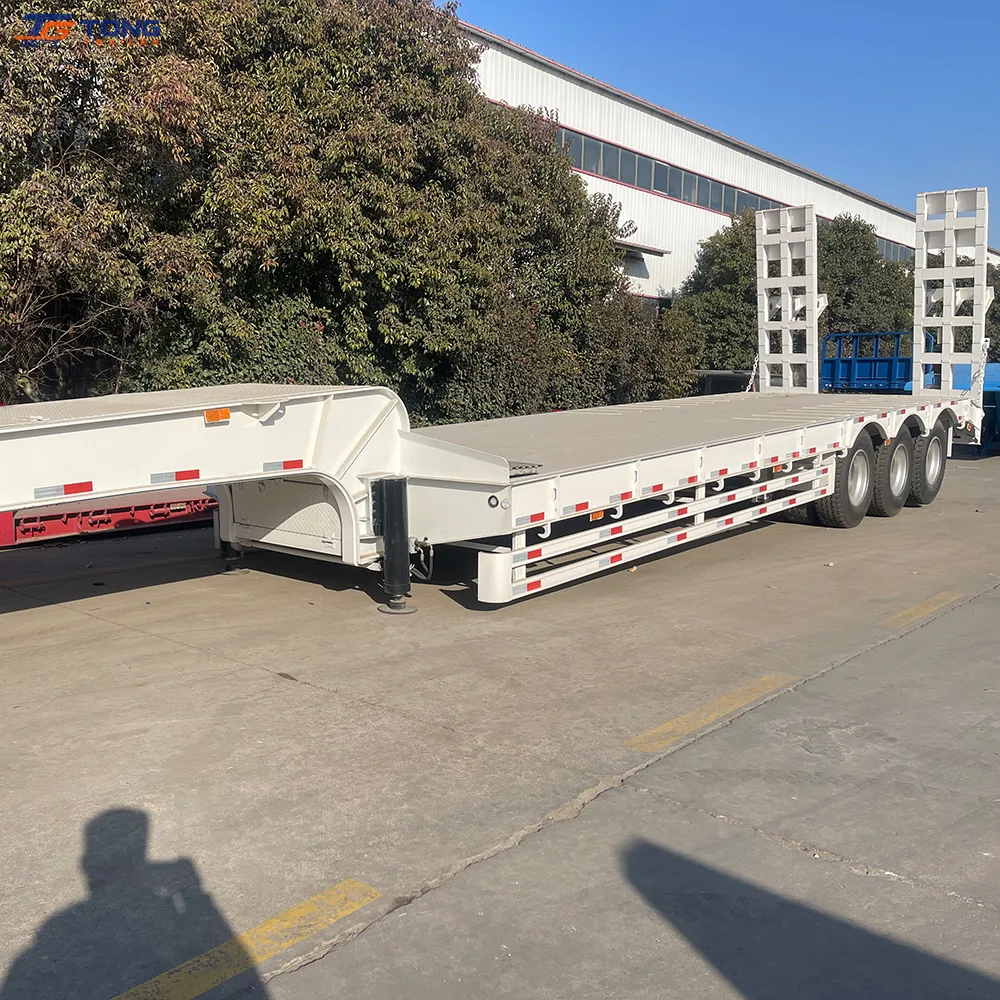

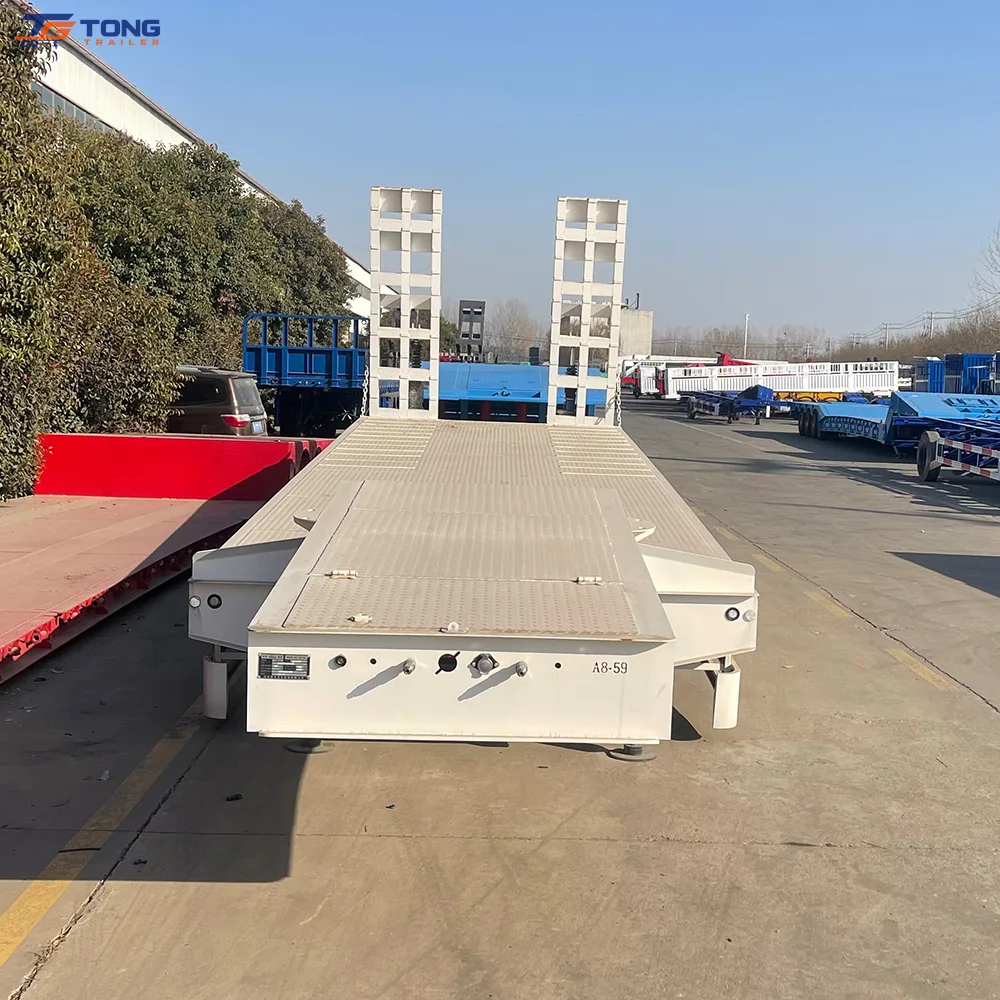

The Lowbed Semi Trailer 100 Ton is designed to transport excavators, loaders, and other heavy machinery. It is a three-axle low loader for construction and mining work.
Max payload runs from 60T to 100T, with 150T available on request. The three-axle setup uses 13/16 ton axles and 12 tires. Deck sizes cover 11500mm, 12500mm, and 13000mm lengths. Overall width is 3000mm and the tare weight is 8000kg to 12800kg. Each unit can be customized to buyer requirements.
The main beam uses Q690 steel, and side beams are 16mm to 25mm high-strength bent plate. The platform is 3mm to 5mm chequered plate with anti-slip ribs. A gooseneck reinforcement bar raises effective load capacity. The king pin is 2.0 or 3.5 inch bolted type. Mechanical or air suspension is available. Braking uses a relay valve, spring brake chambers, and two 45L air tanks. ABS is optional. Two spare tire carriers are fitted. A manual or hydraulic ladder is available. Painting uses one anticorrosive primer coat and two finishing coats. Tire options include 12R22.5 and 315/80R22.5.
The lowbed semi trailer carries excavators, bulldozers, loaders, pavers, and cranes. These units serve construction, mining, forestry, and rail transport. The low deck height improves stability and helps clear overhead obstacles.
Contact us for pricing on the lowbed semi trailer. Custom deck lengths and axle configurations are available.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
