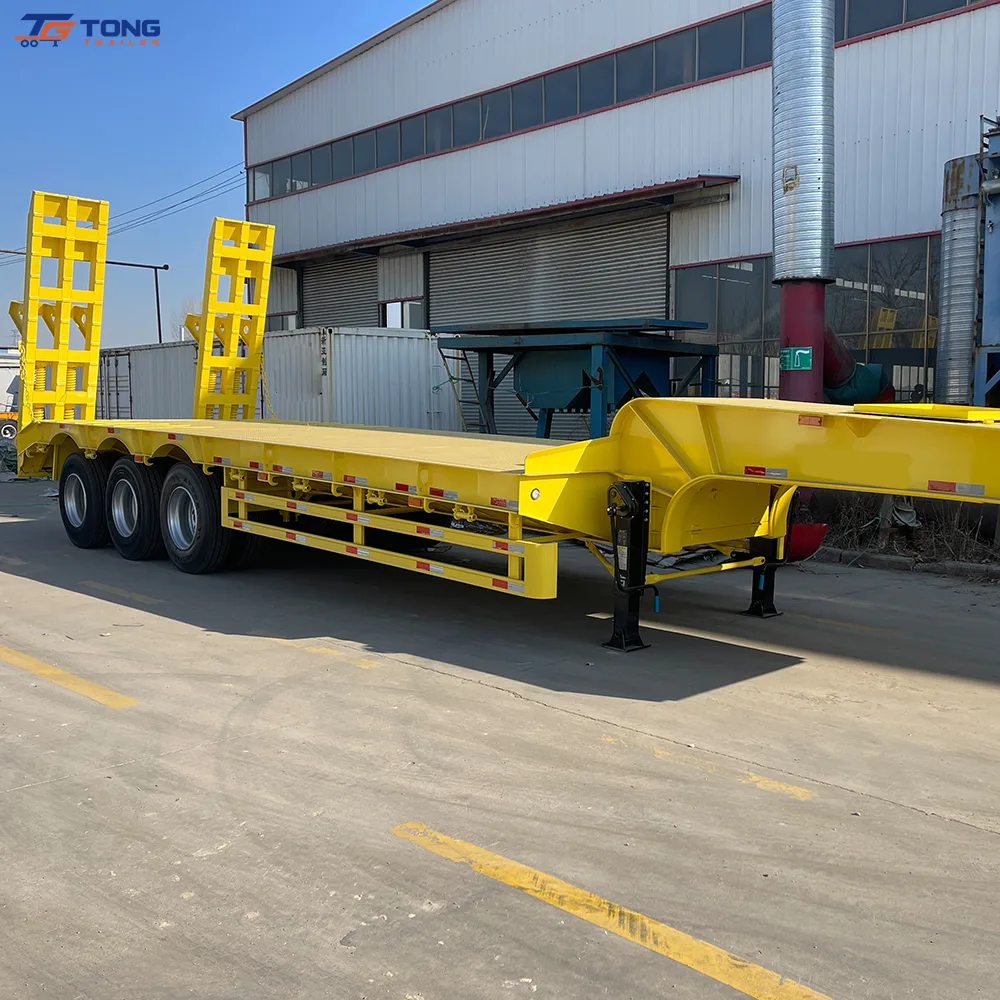

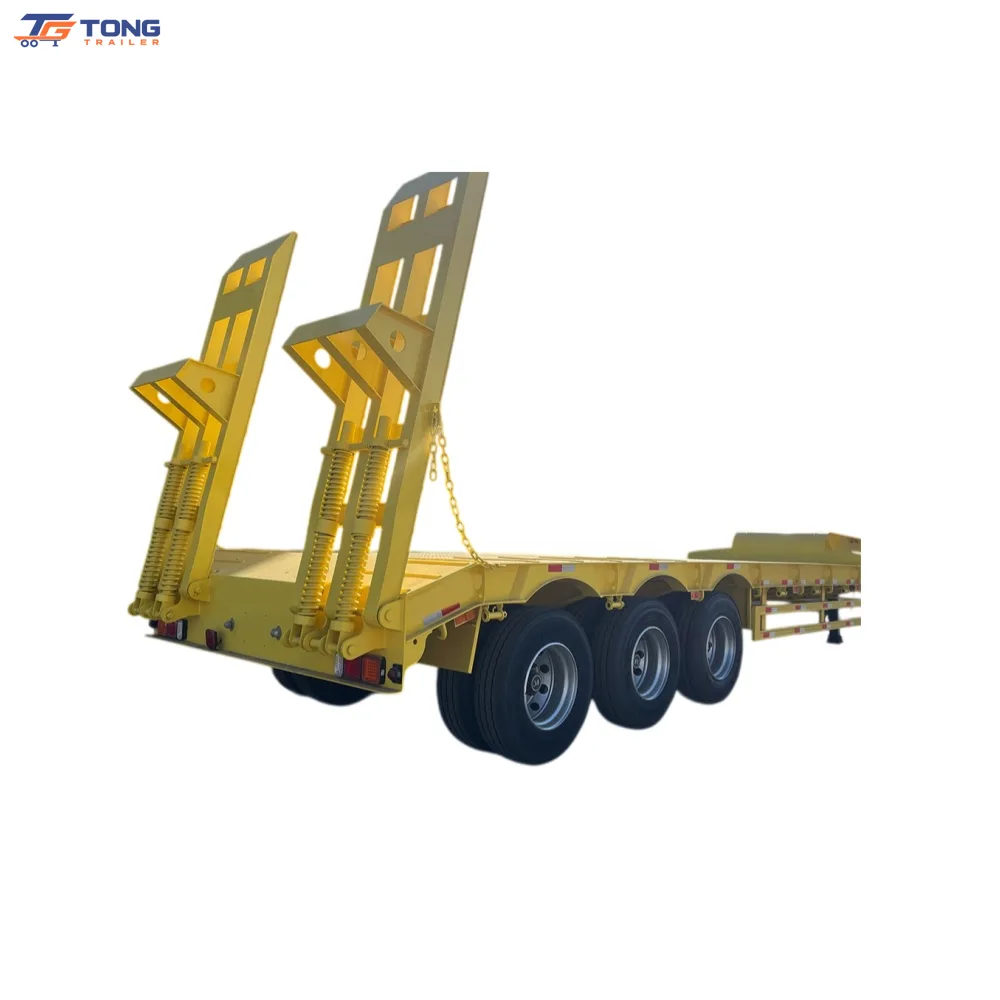

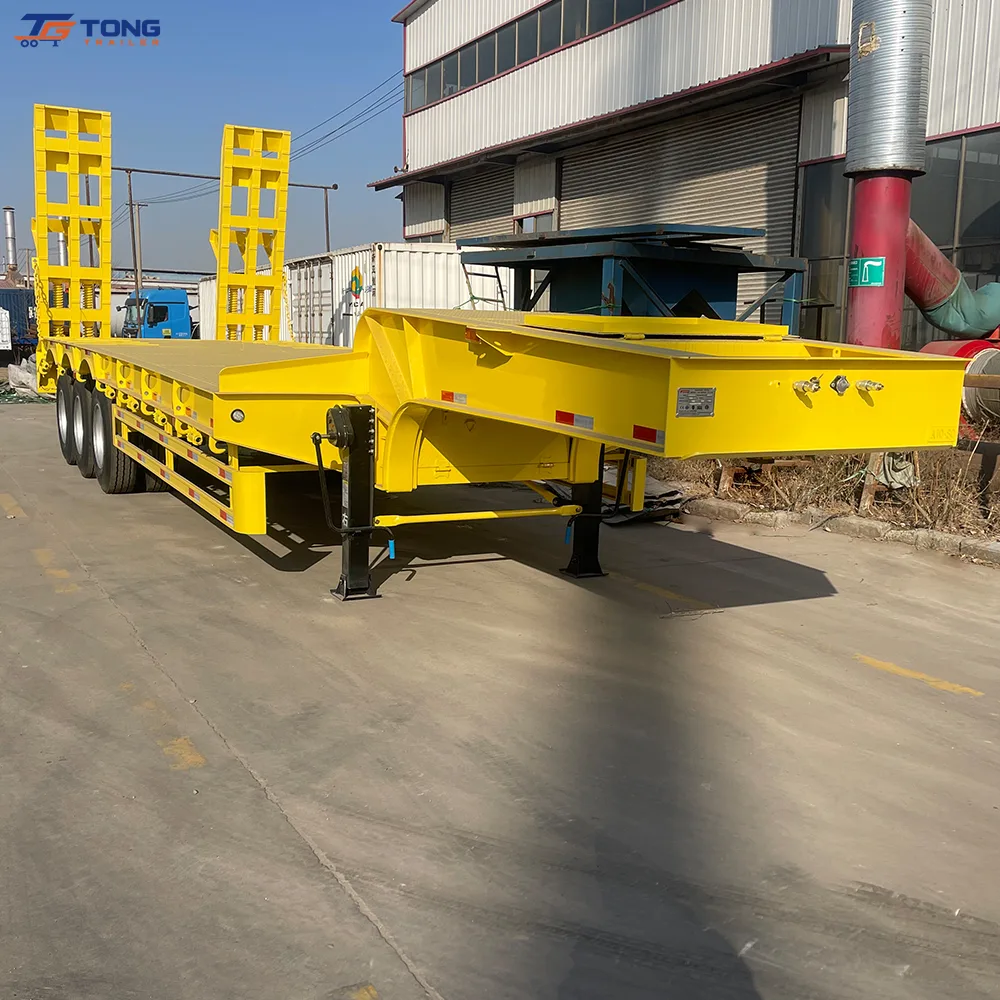

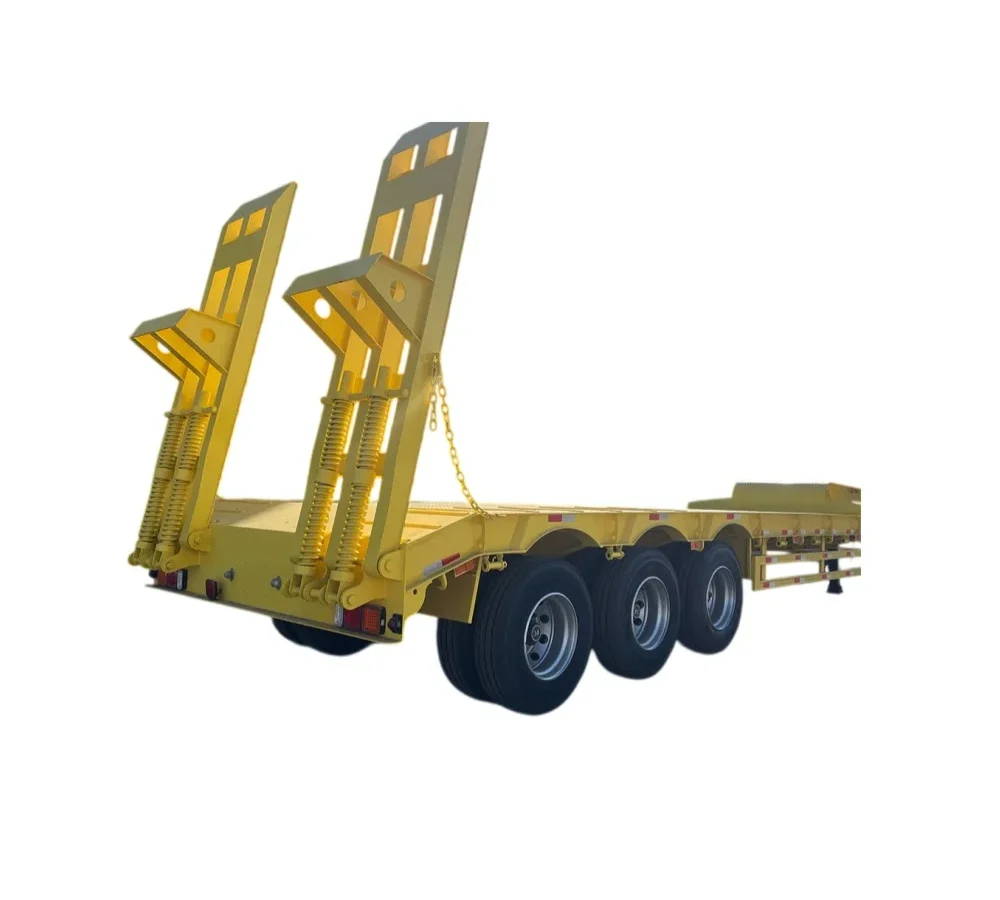

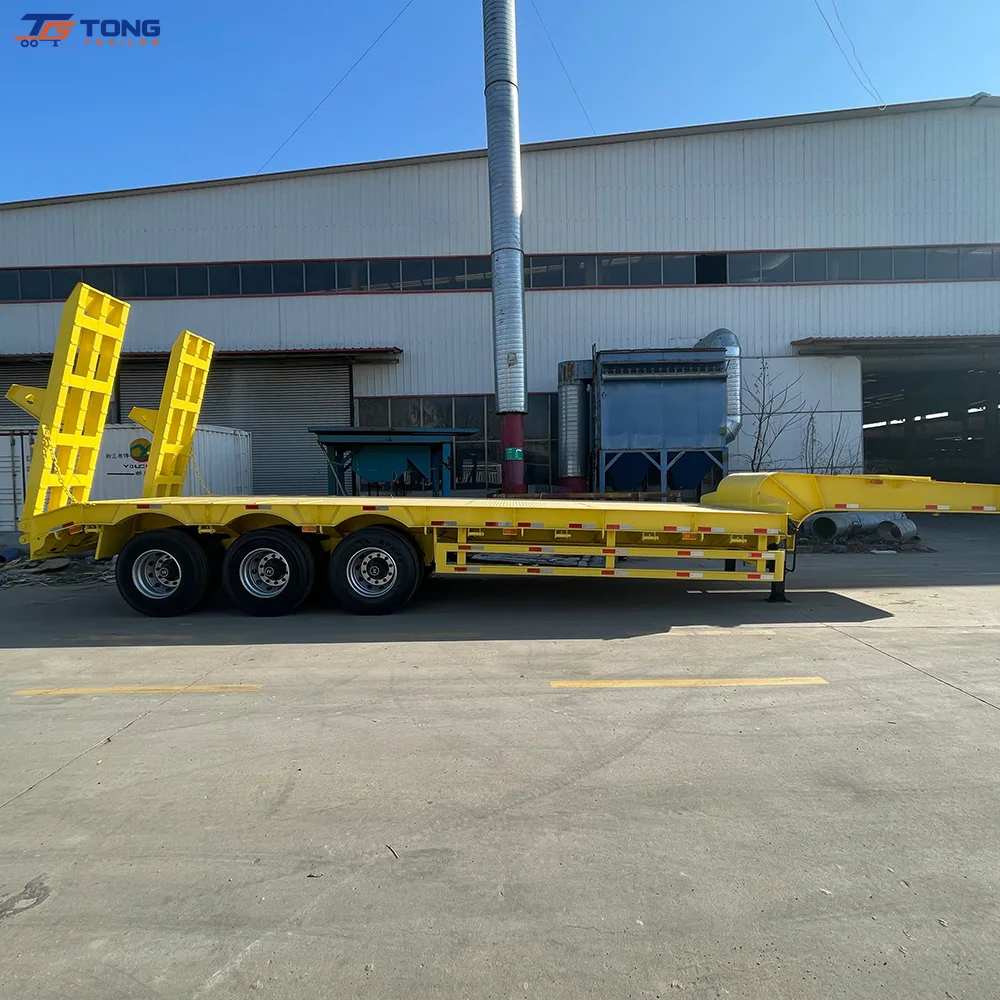

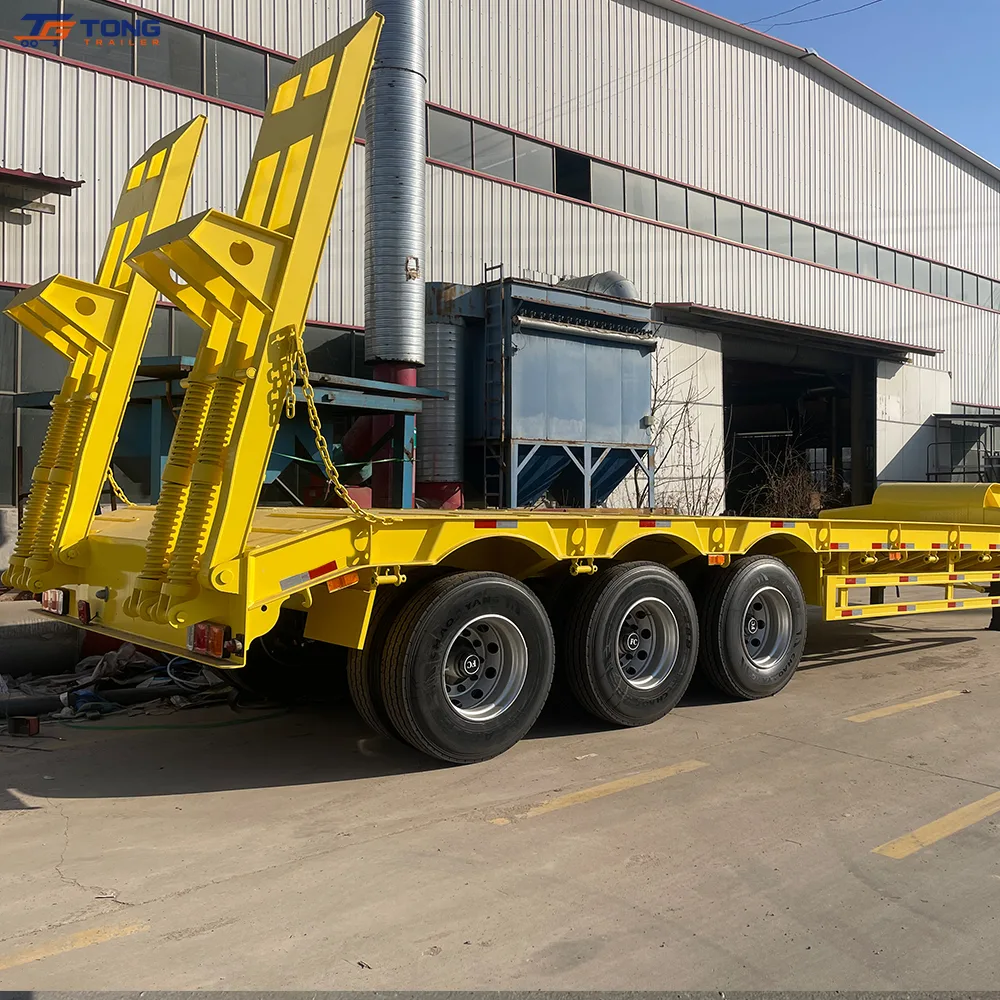

80 ton lowbed semi trailer with 4 axles and 11500-13000 mm deck. Moves excavators and heavy machinery. Contact us for factory price and lead time.
The 80ton lowbed semi trailer is built to move excavators, bulldozers and other heavy machinery. It serves construction, mining and heavy logistics fleets. Ladder options include manual or hydraulic type.
Payload options range from 60T to 150T, or built to your request. Axle configurations include 3 or 4 axles, using 13T or 16T axles. Deck sizes run from 11500 mm to 13000 mm long and 3000 mm wide. Tare weight is 8000 kg to 12800 kg depending on configuration. Tire options include 12R22.5 and 315/80R22.5. Two spare tire carriers are fitted.
Main beams are made from Q690 steel for load strength. The low bed platform uses 3 mm to 5 mm chequered plate with welded anti-slip ribs. The axle beam is a low-alloy design with no welding. The king pin is a 2.0 or 3.5 inch bolted type. Suspension is mechanical or air type. Braking includes a relay valve, spring brake chambers and 45L air tanks.
These low bed trailers carry excavators, loaders, pavers, cranes and rail vehicles. A lower deck height improves stability and helps clear overhead obstacles. A four axle 80ton lowbed semi trailer spreads load across more axles and meets stricter road weight limits.
Tell us your load weight, route and deck length. Contact us for factory pricing, lead time and shipping options.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
