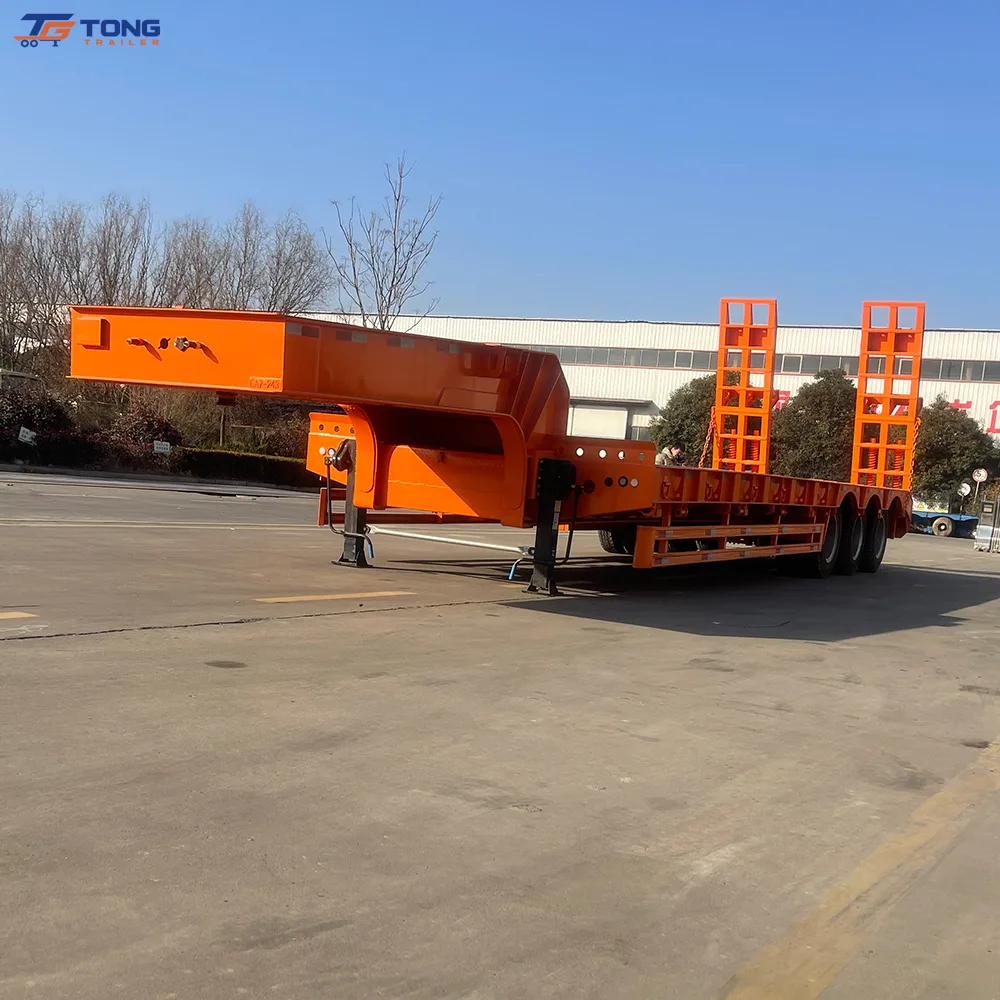

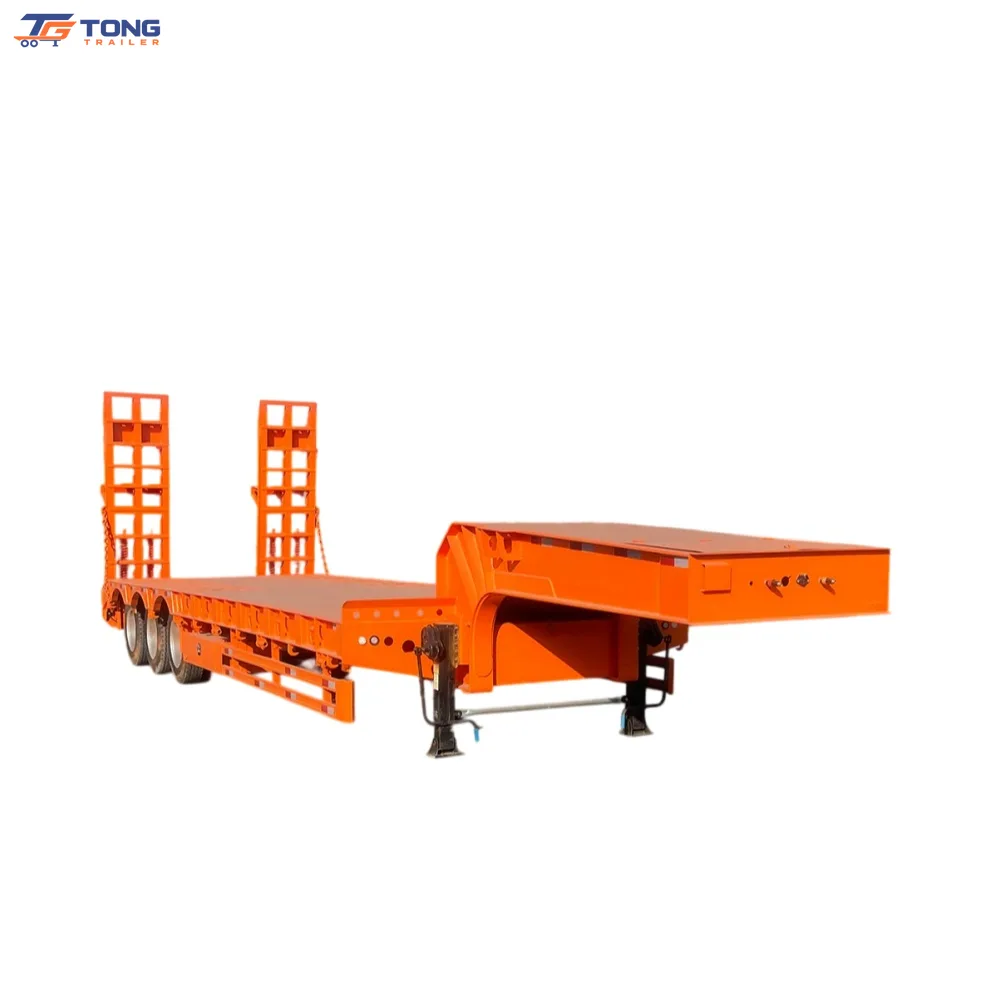

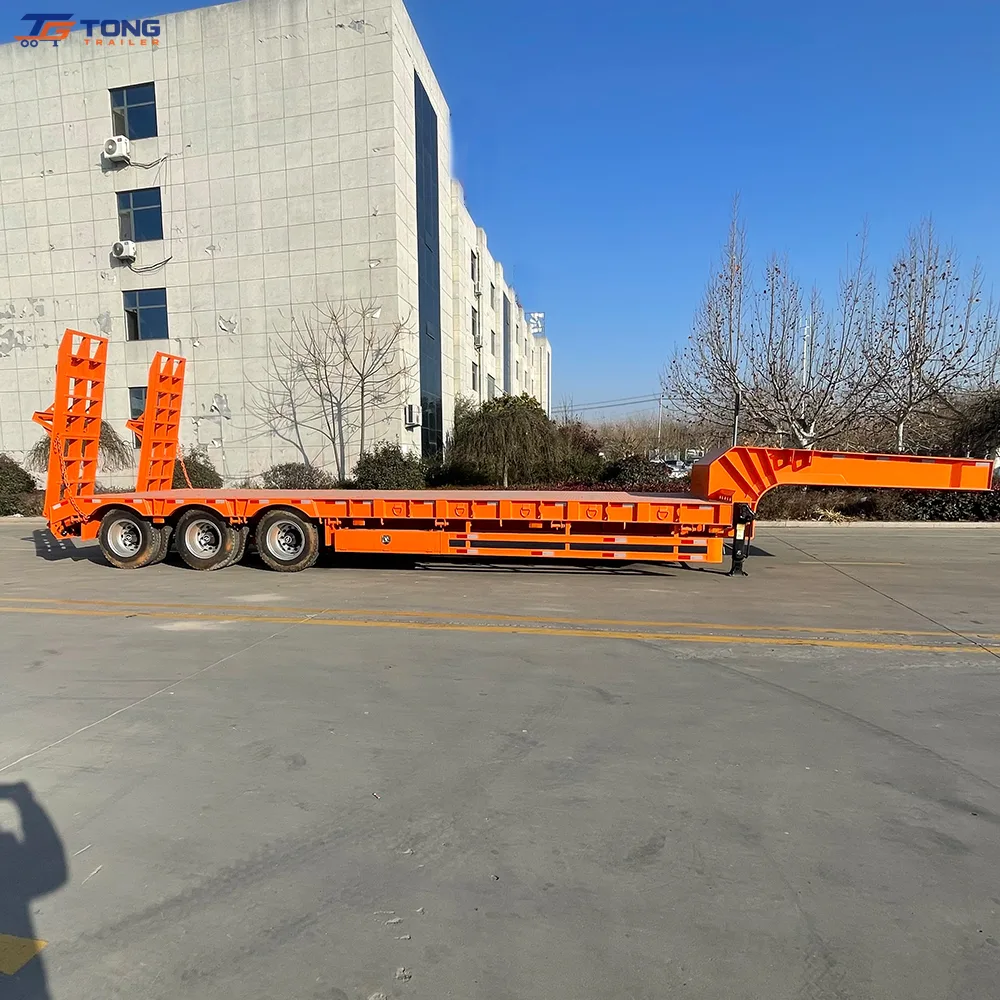

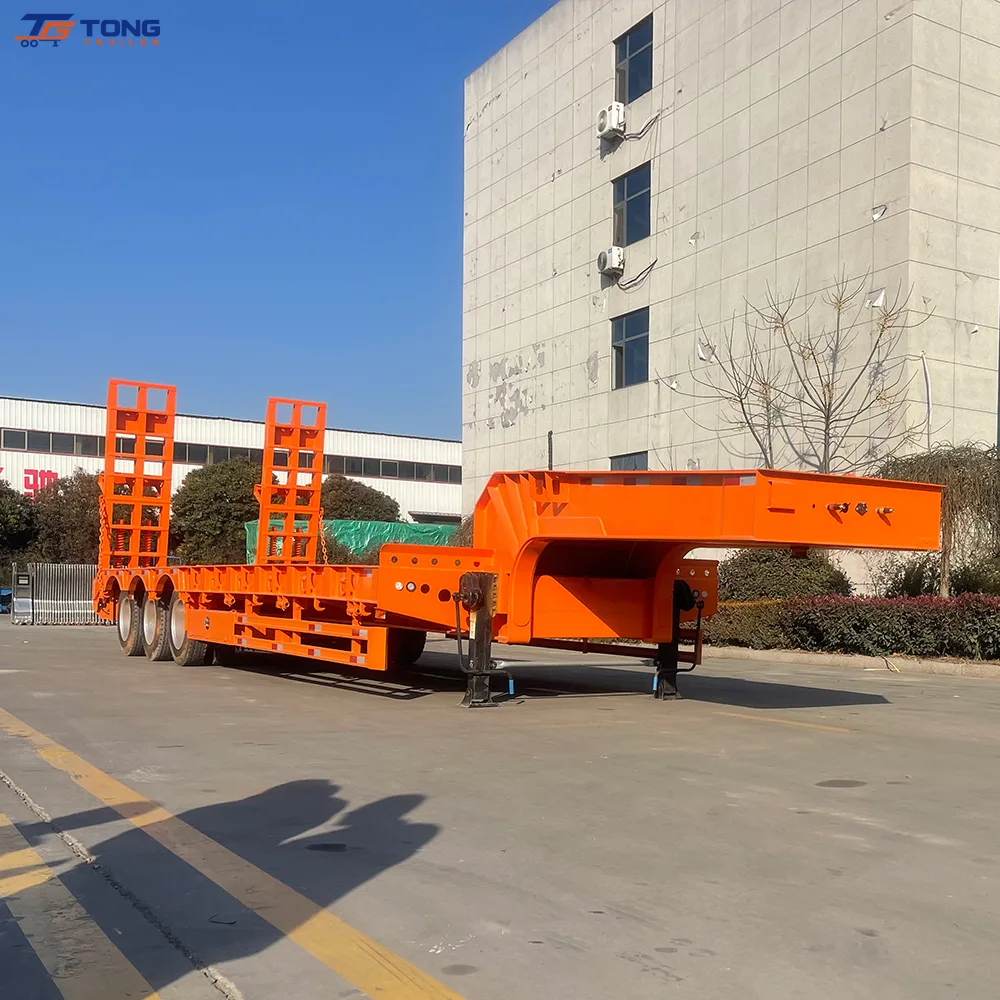

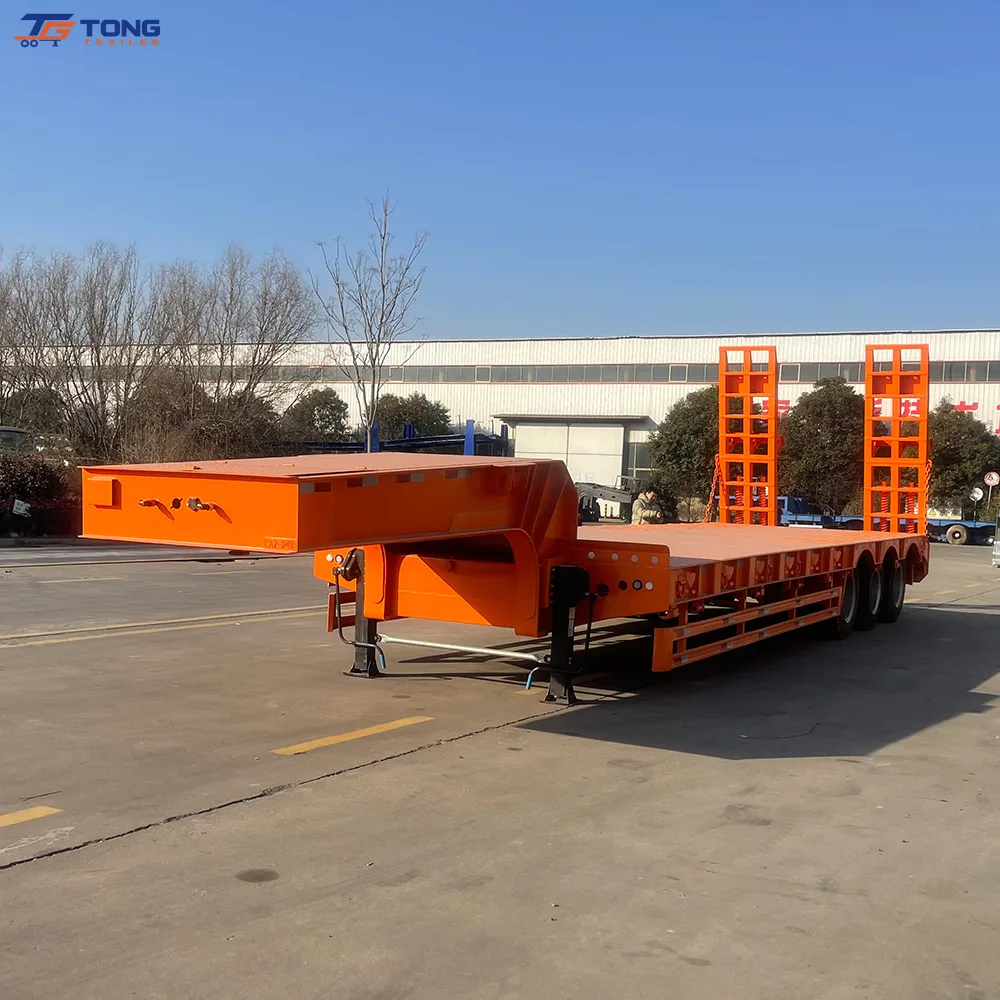

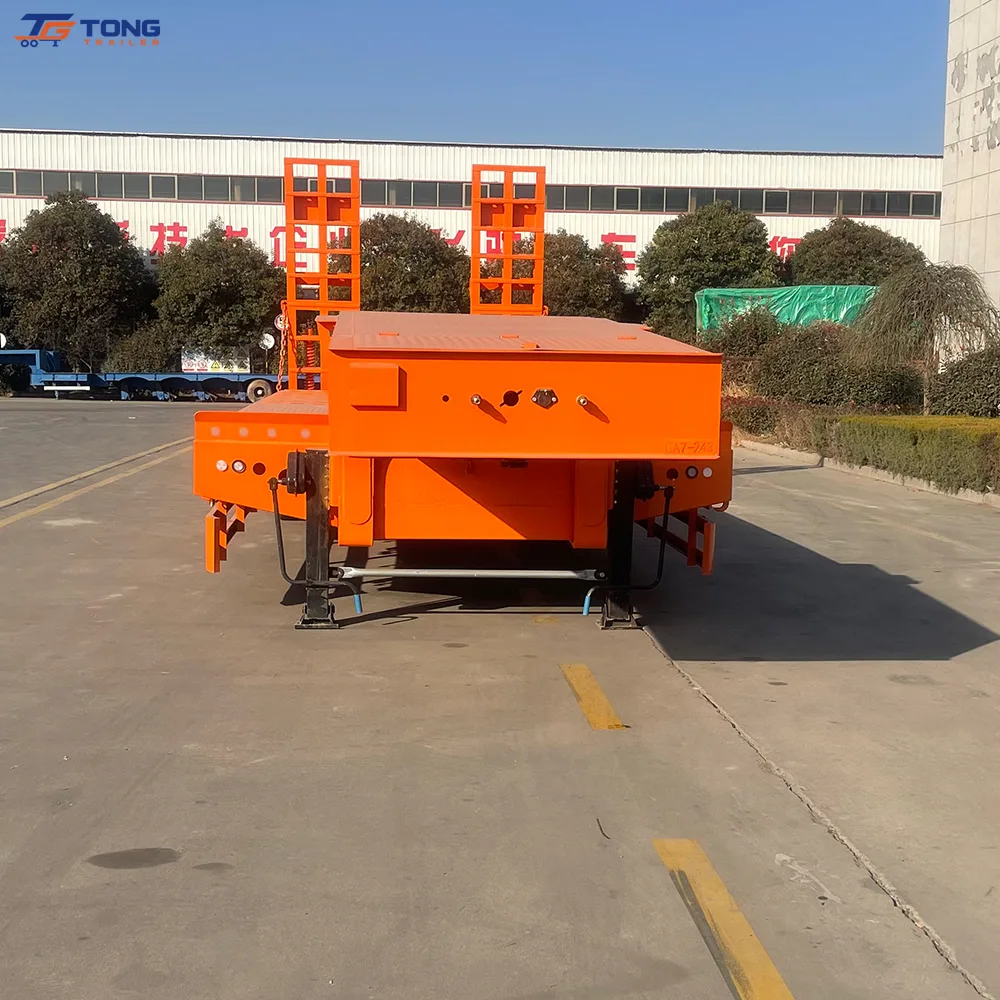

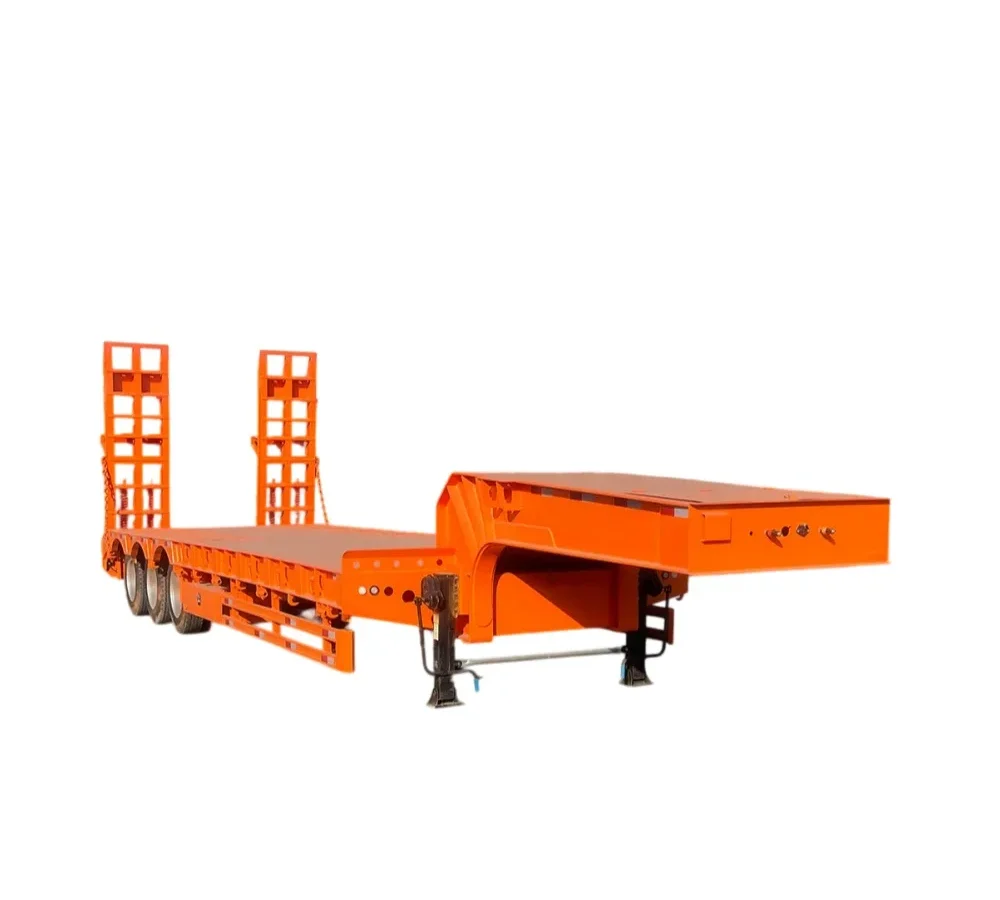

80 Ton Lowbed Semi Trailer for excavator and heavy machinery delivery. 3 or 4 axles, 60T to 150T payload, 11500-13000mm deck. Contact us for factory price.
An 80 Ton Lowbed Semi Trailer is a heavy-duty semi-trailer for heavy machinery transport. It carries excavators, bulldozers, loaders, cranes and rail vehicles.
Payload options cover 60T, 80T, 100T and 150T, or buyer's request. The deck measures 9500-16500mm long, 2500-3000mm wide and 3200mm high. Customized dimensions are available. Tare weight ranges from 8000kg to 12800kg. Three axle and four axle lowbed versions run on 13/16 ton axles. The king pin is 2.0 inch or 3.5 inch bolted type. Tire sizes include 12R22.5, 315/80R22.5 and 385/65R22.5. Rims are 9.0*22.5 or 8.5-20.
The main beam is Q690 steel. Side beams use 16mm to 25mm high-strength plate. The platform is 3mm to 5mm chequered plate with welded anti-slip ribs. Suspension is mechanical or air type. Leaf springs are 90mm x 13mm x 10 layer or 100mm x 12mm x 12 layer. Braking includes a relay valve, spring brake chambers and two 45L air tanks. ABS is optional, and two spare tire carriers are fitted. Painting uses one anticorrosive primer coat and two top coats. The low center of gravity improves stability and clearance under overhead obstacles.
These low bed trailers serve construction, mining, forestry and rail sectors. Typical loads include excavators, pavers, cranes and mining machinery. The ladder is manual or hydraulic type.
Contact us for factory price and customization of this 80 Ton Lowbed Semi Trailer.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
