4 axle lowbed semi trailer for heavy machinery. 60-100 ton payload, 9.5-16.5m deck length, Q690 steel main beam. Contact us for factory price.

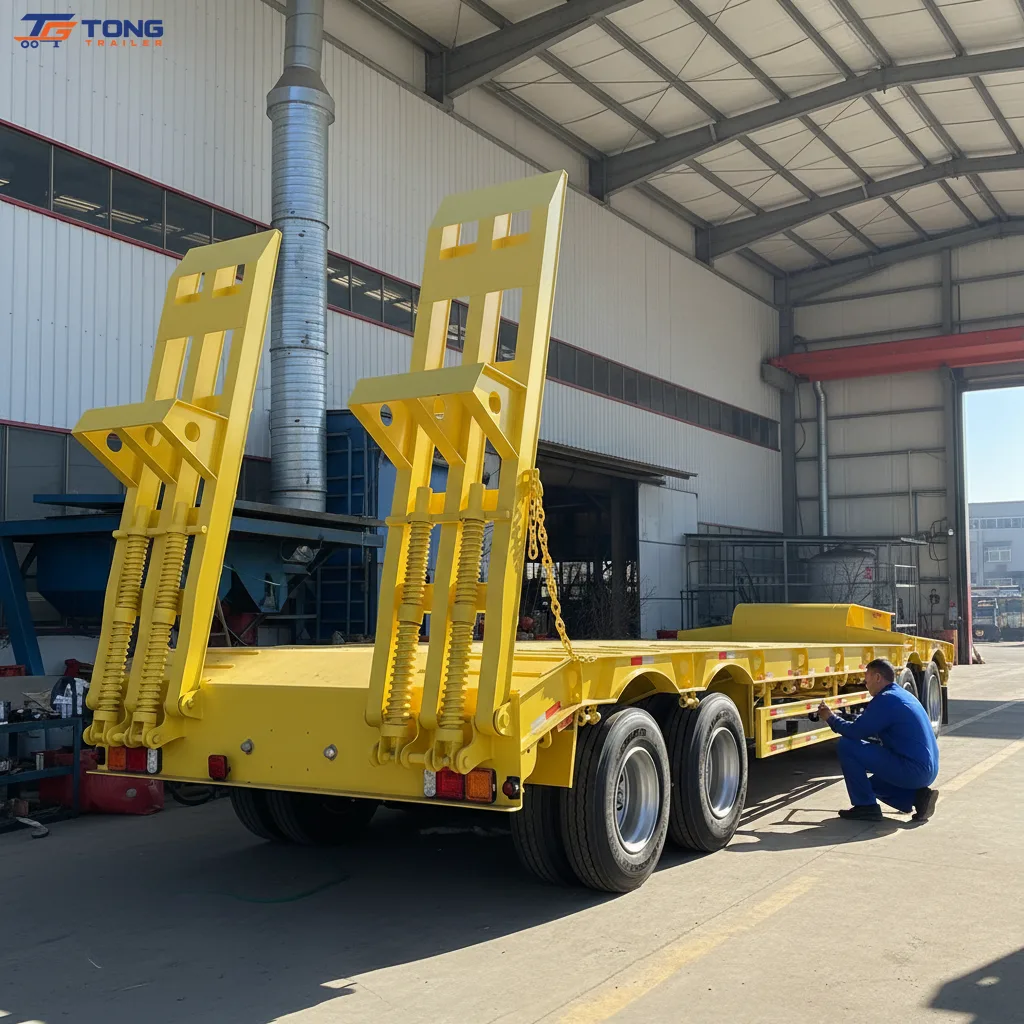

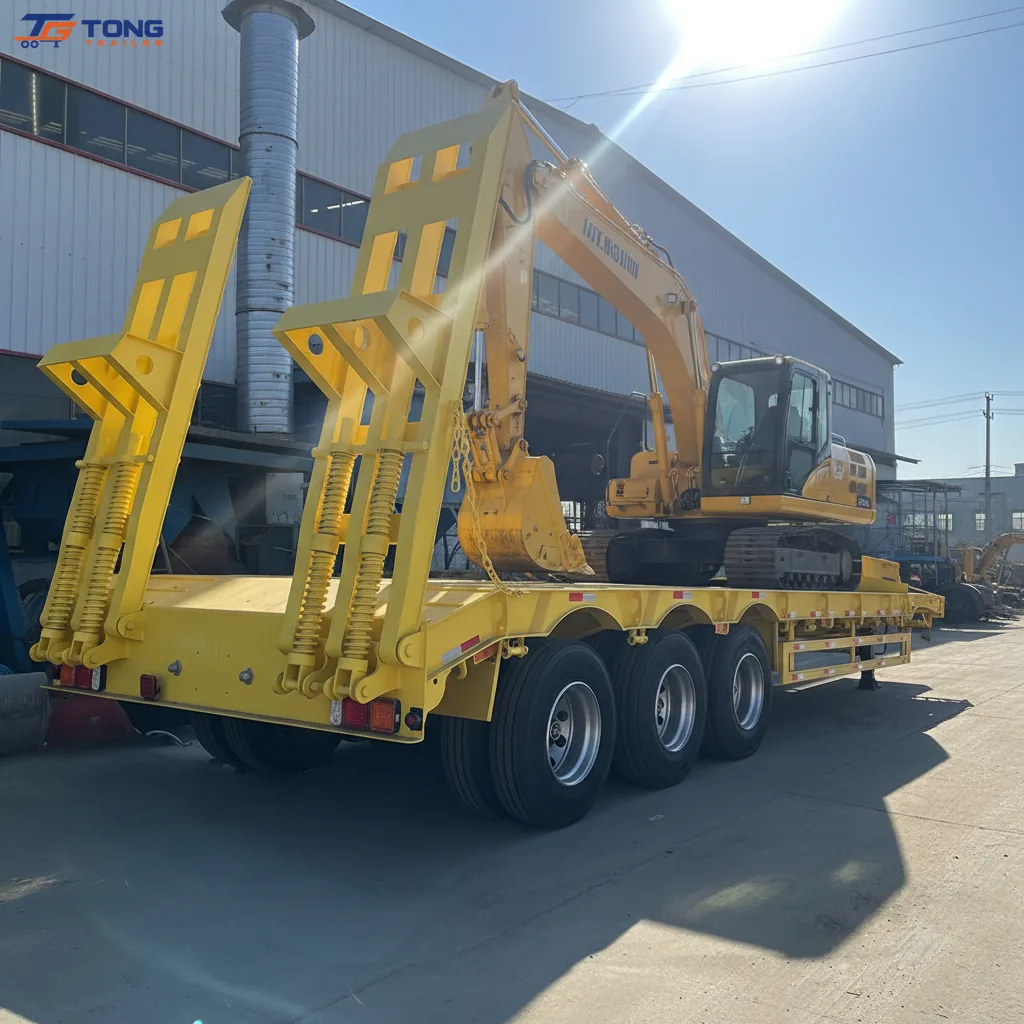

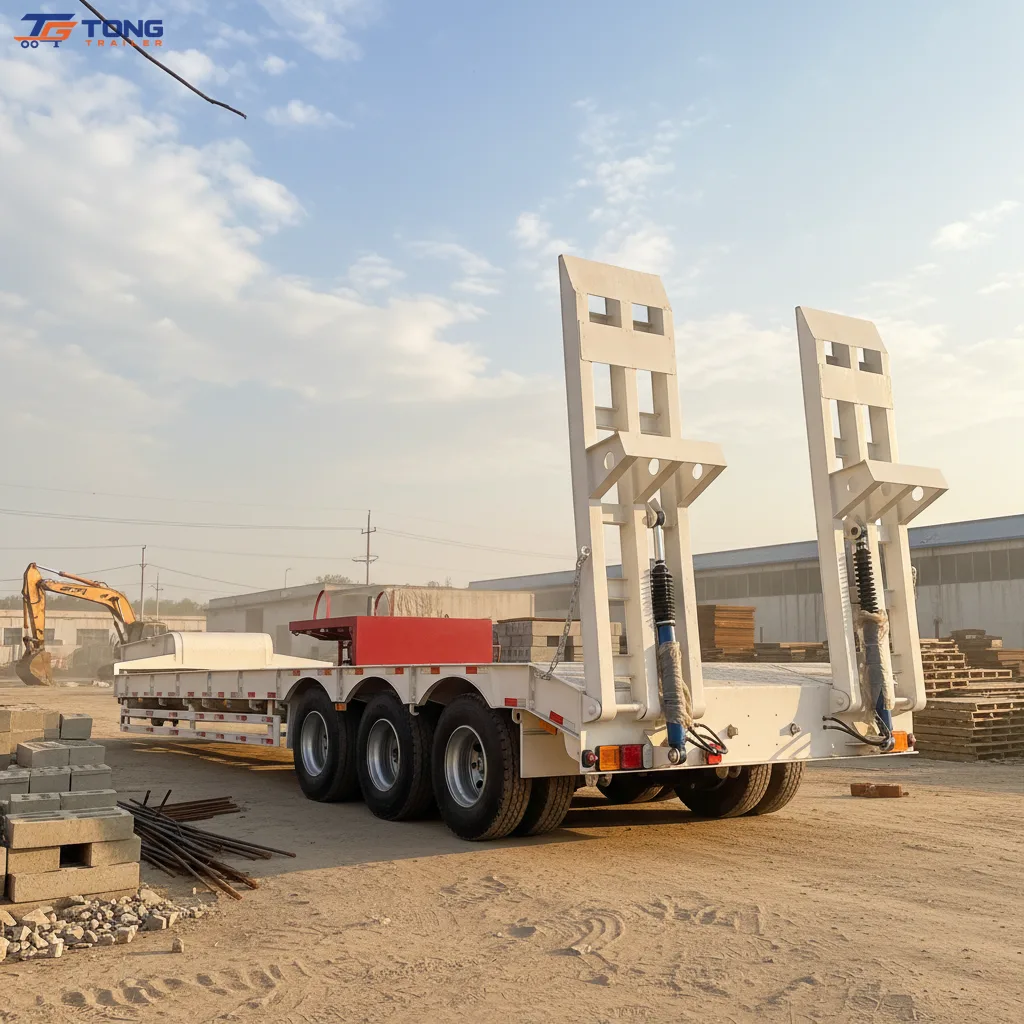

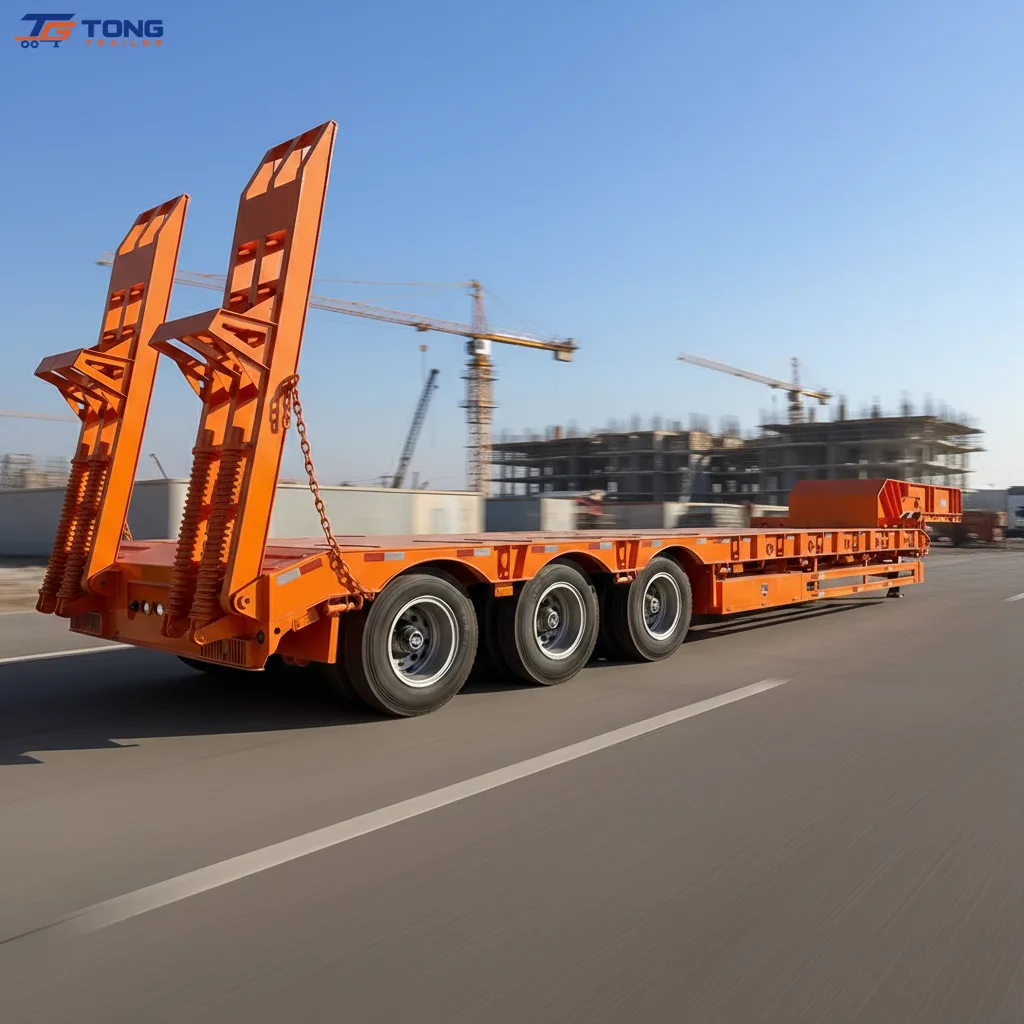

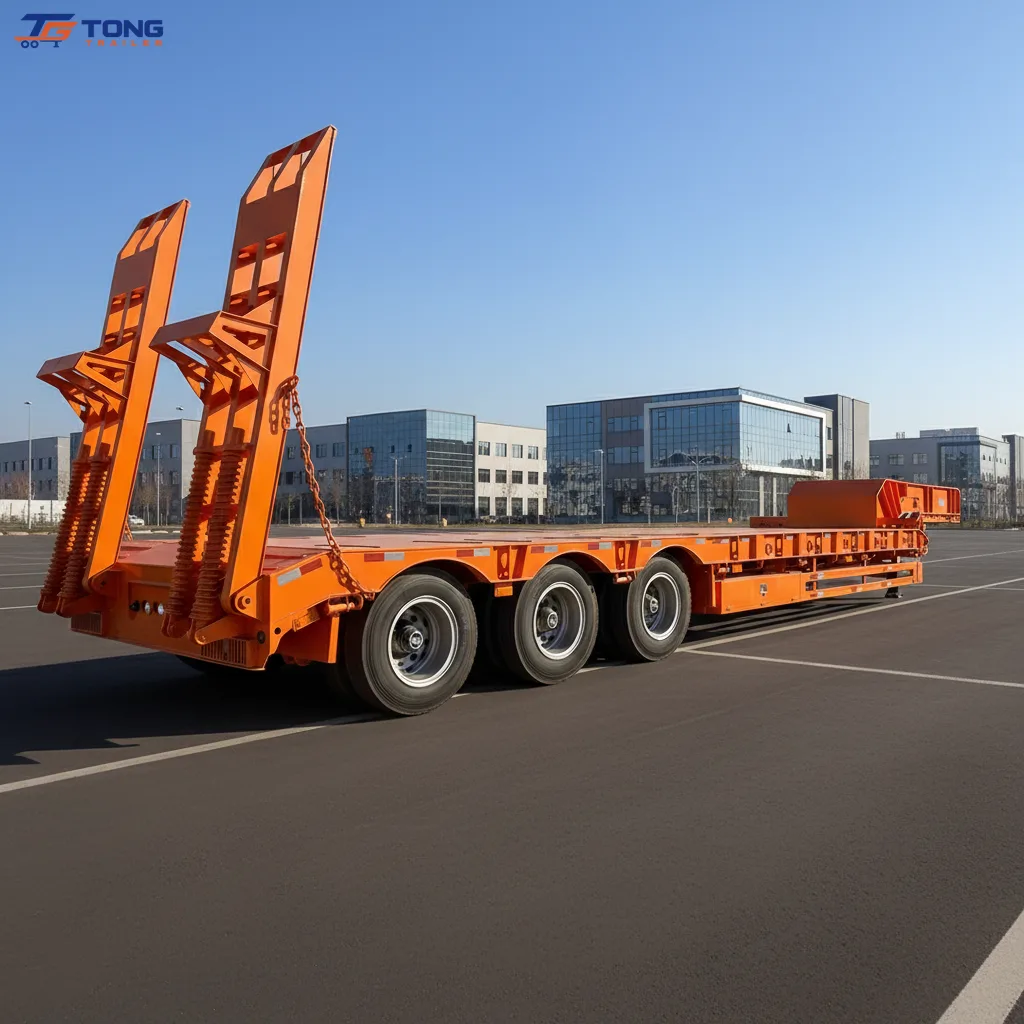

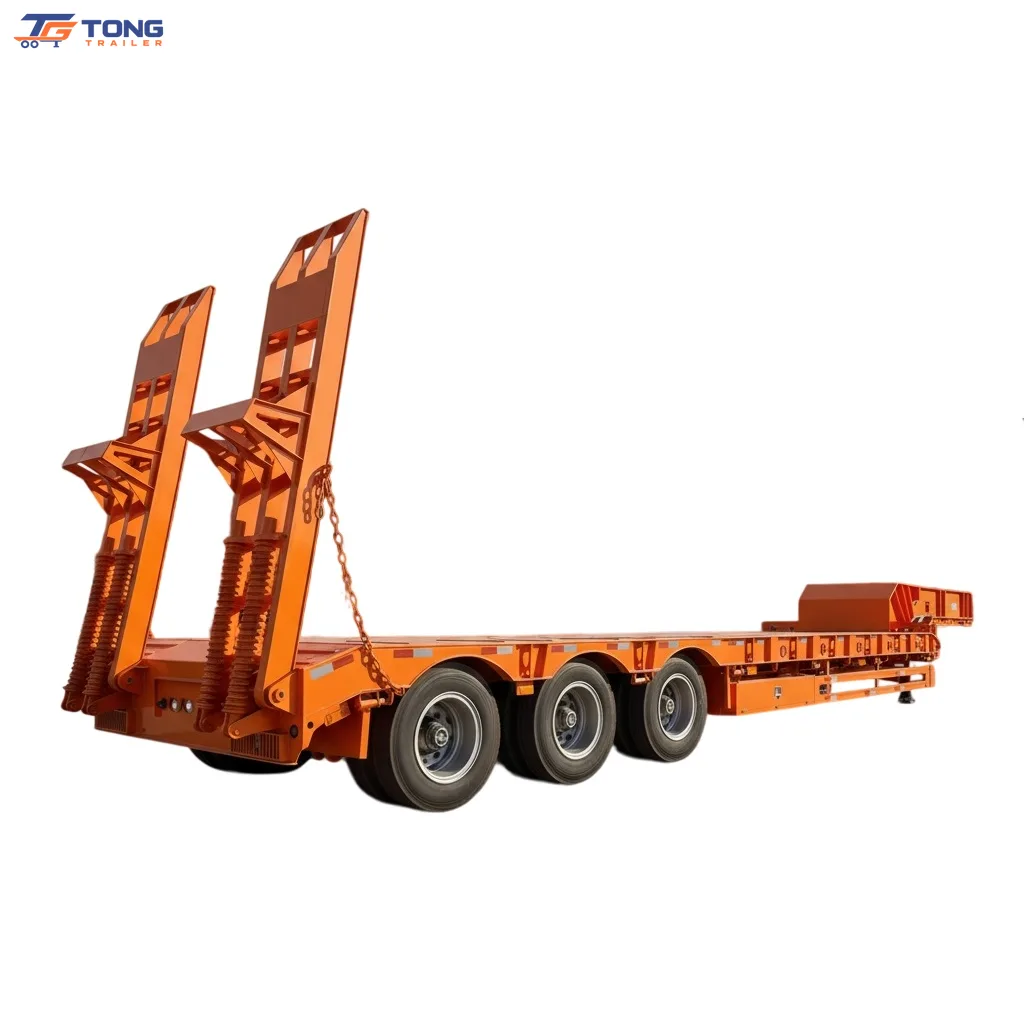

4 axle lowbed semi trailer is a heavy-duty low loader built for excavators, bulldozers, loaders, and other construction machinery. It also moves rail vehicles, mining equipment, and forestry machinery.
Payload options reach 60T, 80T, 100T, or 150T to match buyer requirements. The deck measures 9,500 mm to 16,500 mm long and 2,500 mm to 3,000 mm wide. Deck height is 3,200 mm. Custom sizes are available. Tare weight ranges from 8,000 kg to 12,800 kg. Axle capacity is 13 ton or 16 ton.
The main beam is Q690 steel. Side beams use 16 mm to 25 mm high-strength bent plate. The low bed platform is 3 mm to 5 mm chequered plate that limits cargo sliding. Leaf springs run 90 mm x 13 mm x 10 layers. Braking uses a relay valve, spring brake chamber, and two 45L air tanks. Mechanical or air suspension is available. King pin is 2.0 inch (50 mm) or 3.5 inch (90 mm) bolted type. Tires include 12R22.5, 315/80R22.5, and 385/65R22.5. Manual or hydraulic ladder and two spare tire carriers are fitted.
This low loader suits construction, mining, energy, and rail projects. The low deck improves stability and helps clear overhead obstacles.
Send your machine dimensions and load weight to request factory price on this 4 axle lowbed semi trailer.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
