4 axle low bed semi trailer with 60T-150T payload, 11500-13000mm deck and hydraulic ramp. Suits excavators and heavy machinery. Request a quote.

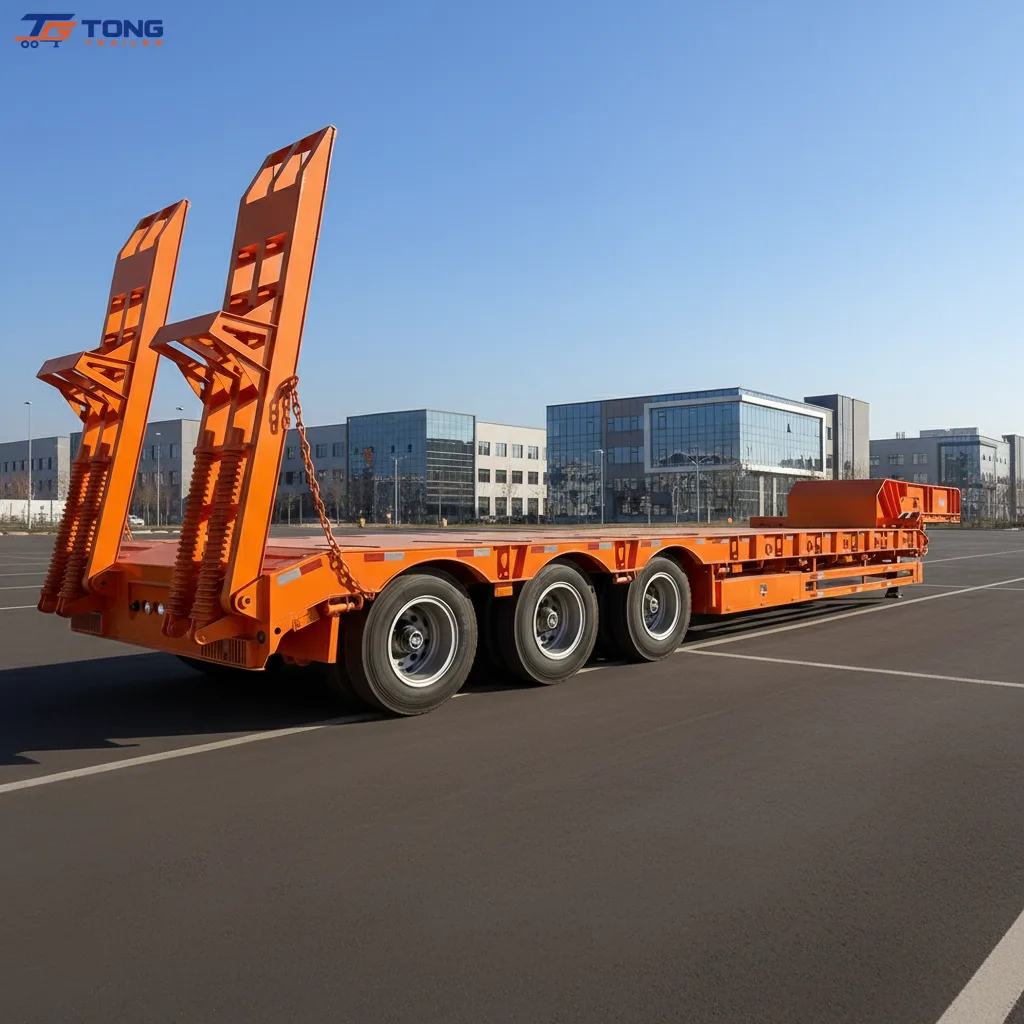

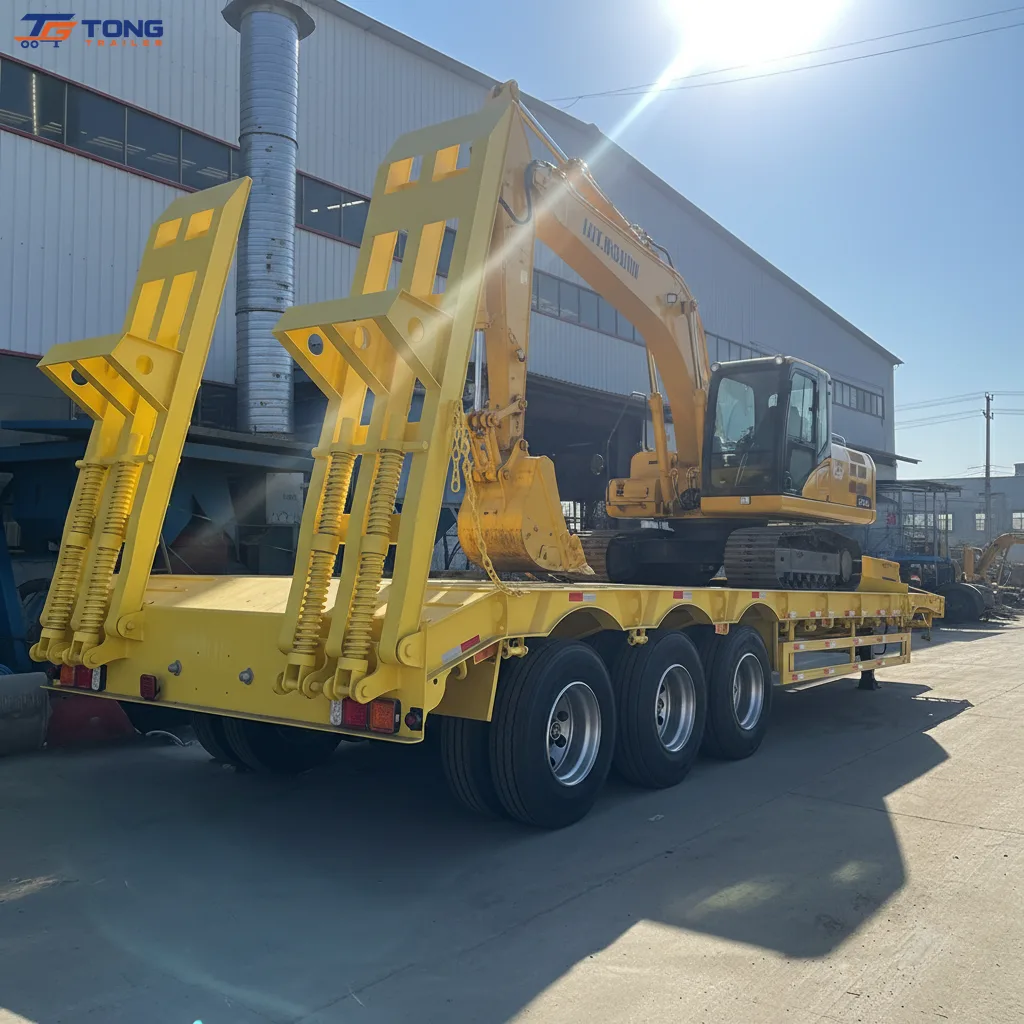

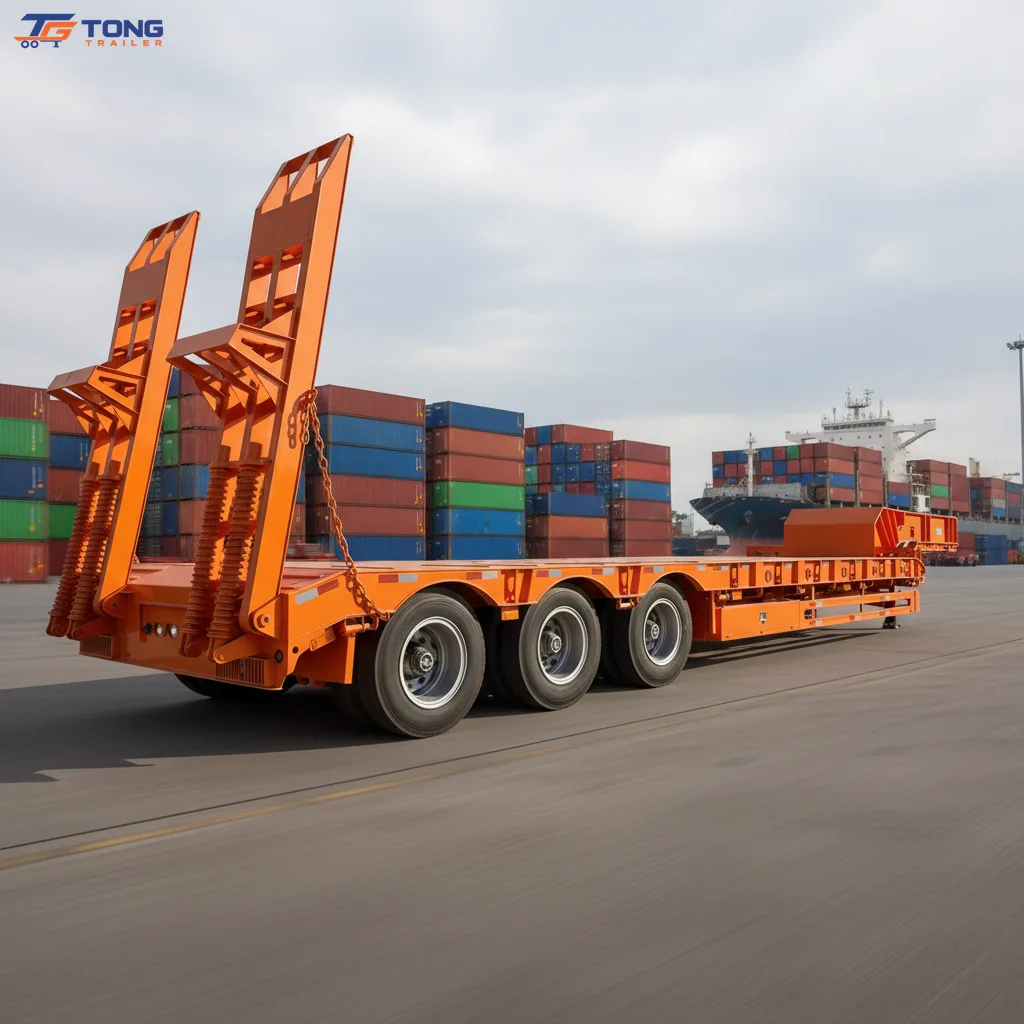

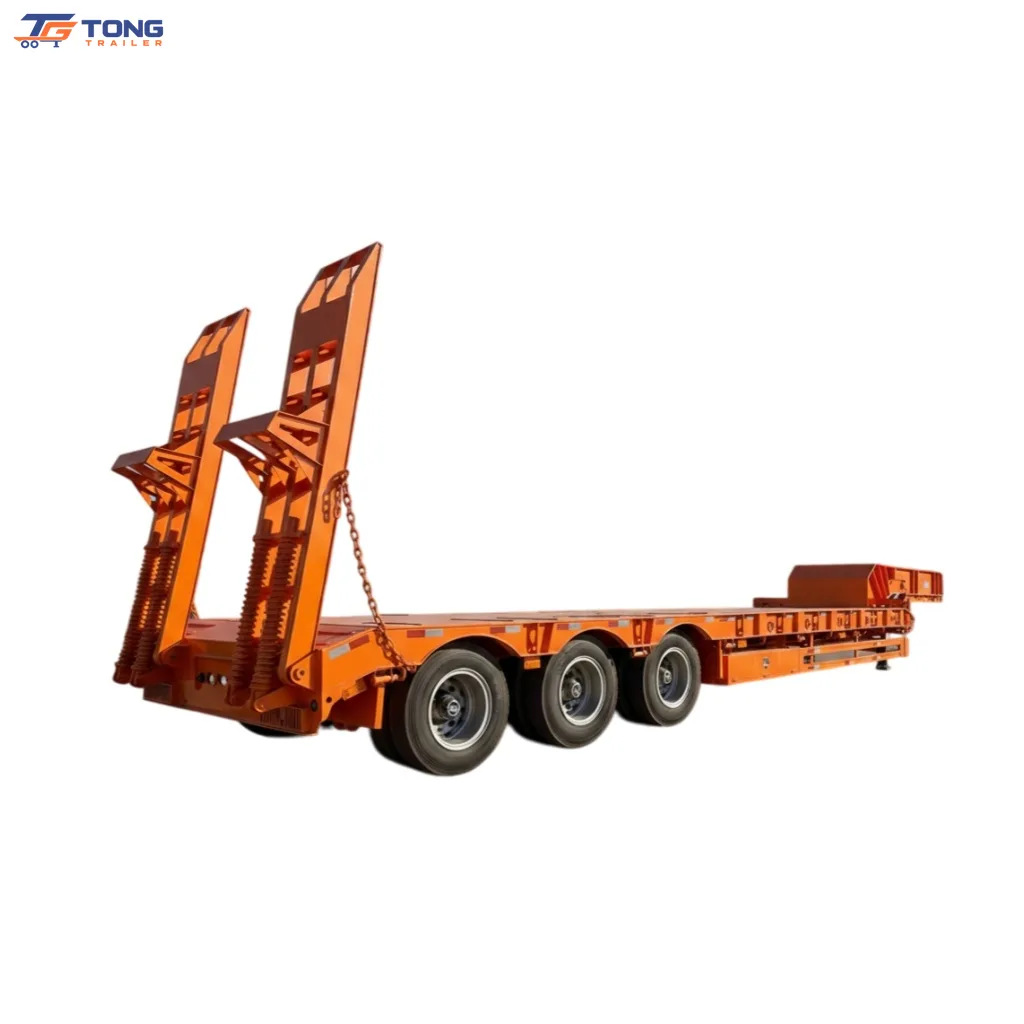

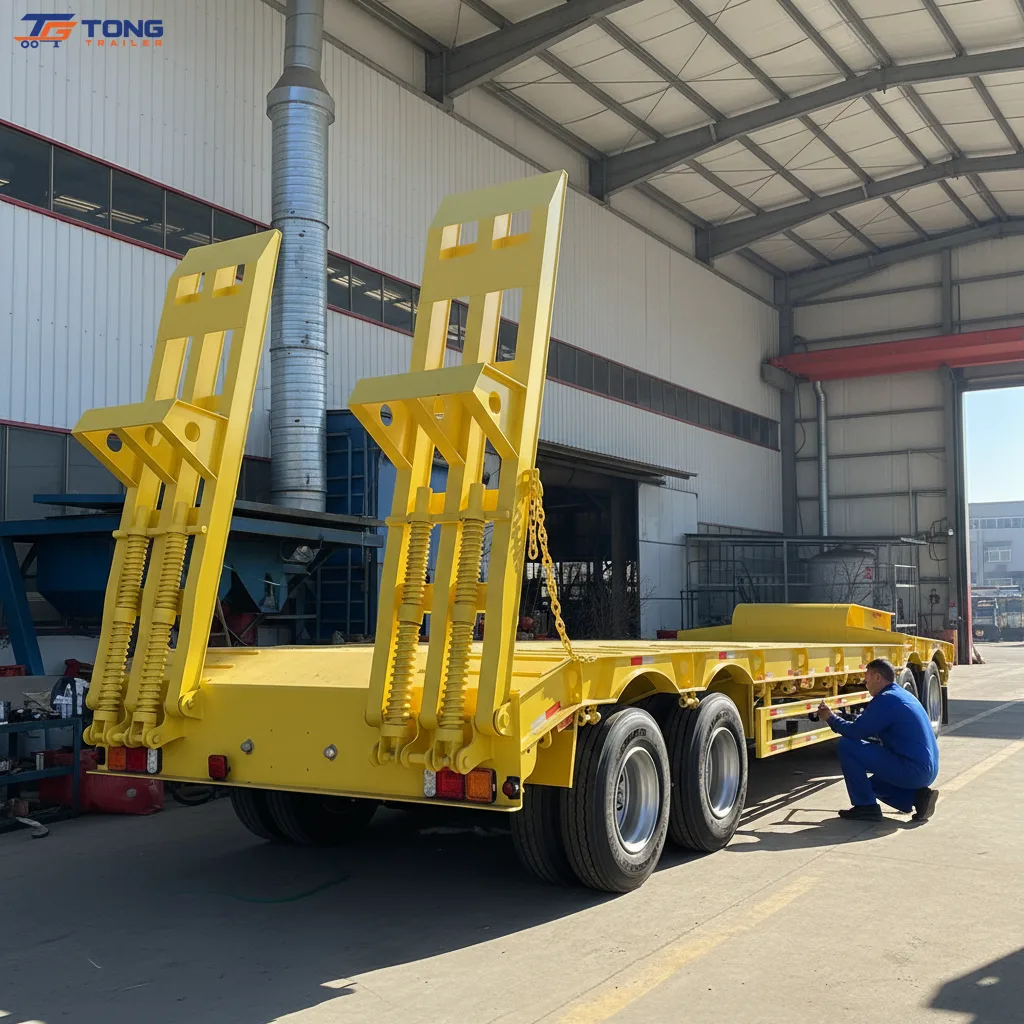

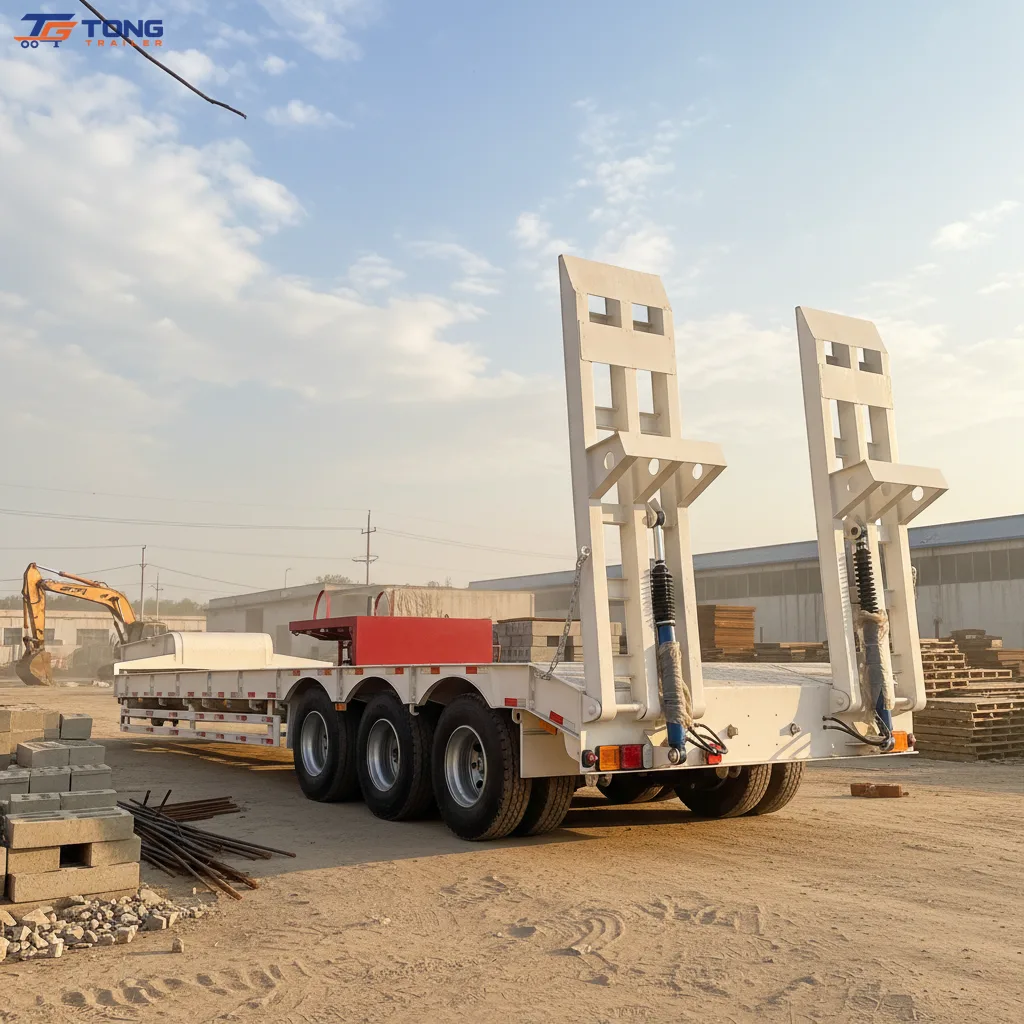

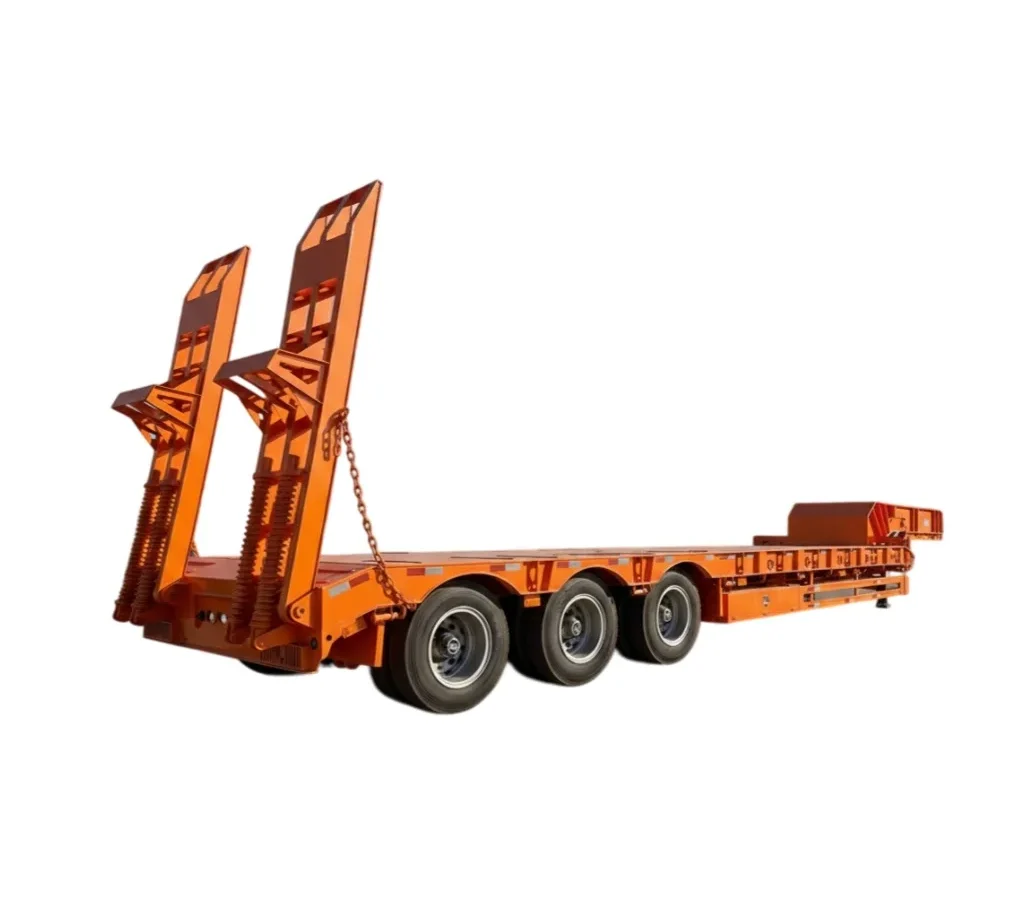

This 4 Axle Low Bed Semi Trailer is built to transport excavators, bulldozers, loaders, cranes and other heavy machinery. It suits fleets that move oversized equipment over long distances.
Payload options range from 60T to 150T. Deck length spans 11500mm to 13000mm, with 3000mm width and 1750mm height. The trailer rides on 13/16 ton axles and a 2.0 inch or 3.5 inch bolted king pin. Three axle and four axle configurations are available to match local weight limits.
Main beams use Q690 steel for strength and bending resistance. The low bed platform uses 3mm to 5mm chequered plate with welded anti-slip ribs. Tire options include 12R22.5, 315/80R22.5 and 385/65R22.5. Mechanical or air suspension is available, and ABS is optional. Braking relies on a relay valve, spring brake chamber and two 45L air tanks. Two spare tire carriers are fitted, and each unit receives one primer coat and two finish coats.
A manual or hydraulic ladder supports e loading. The low deck lowers the center of gravity for stable hauling and easier clearance under overhead obstacles.
Typical applications include construction, mining, forestry and rail projects. Operators use this low bed trailer for excavators, pavers, cranes and other tracked equipment.
Share your required load rating, deck length and suspension preference. Contact us for pricing and delivery details on this 4 Axle Low Bed Semi Trailer.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
