3 axle lowboy trailer with 60-100 ton payload and 11500-13000mm deck. Hauls excavators, loaders and heavy equipment. Request factory pricing today.

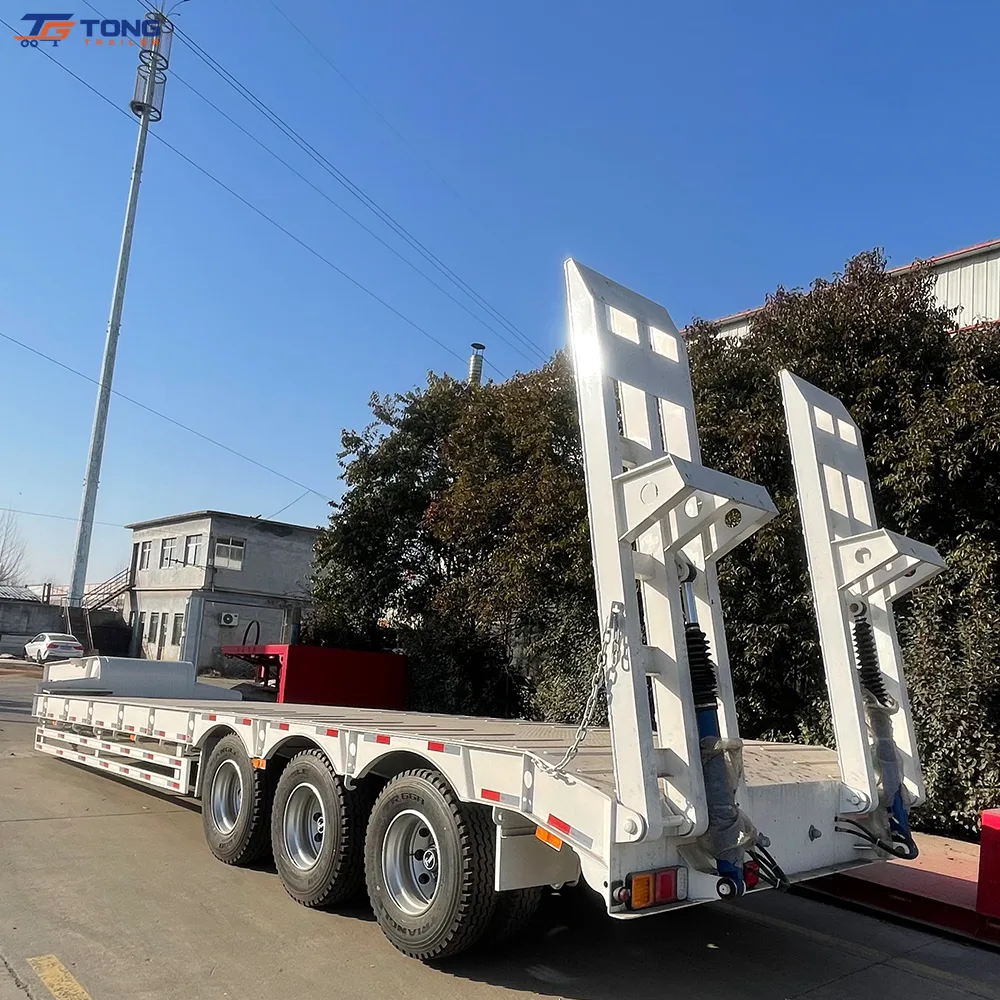

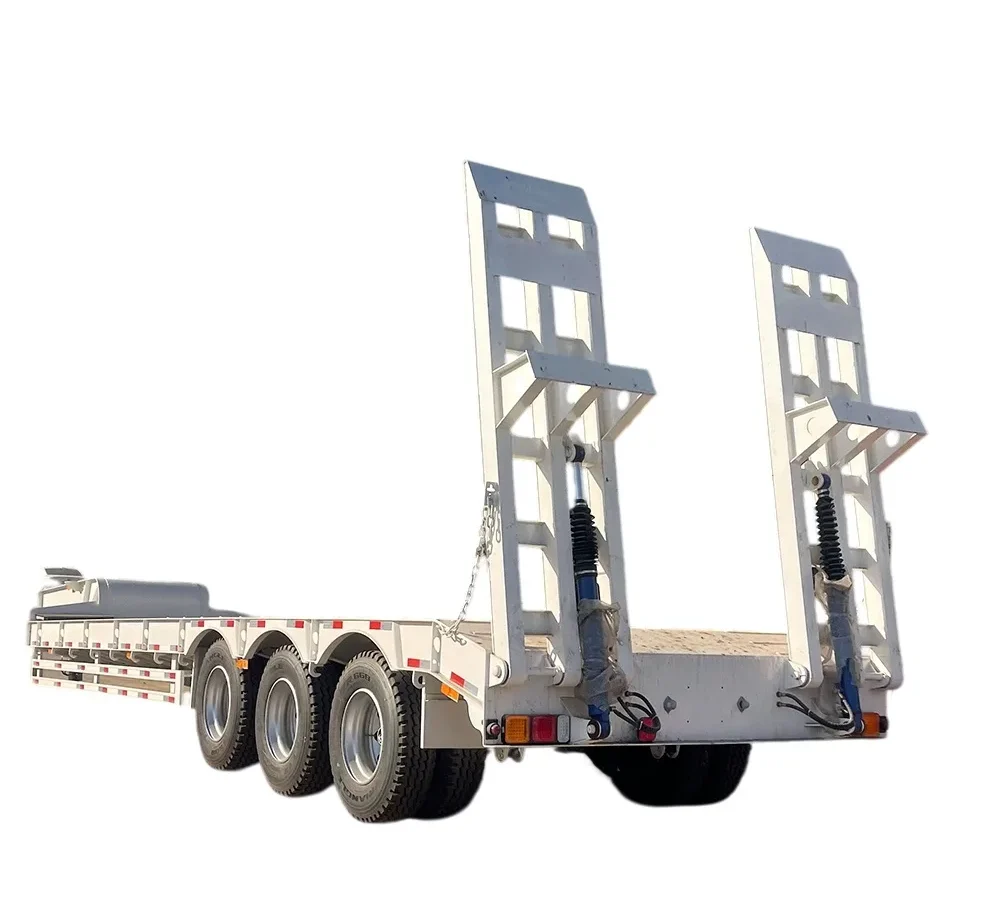

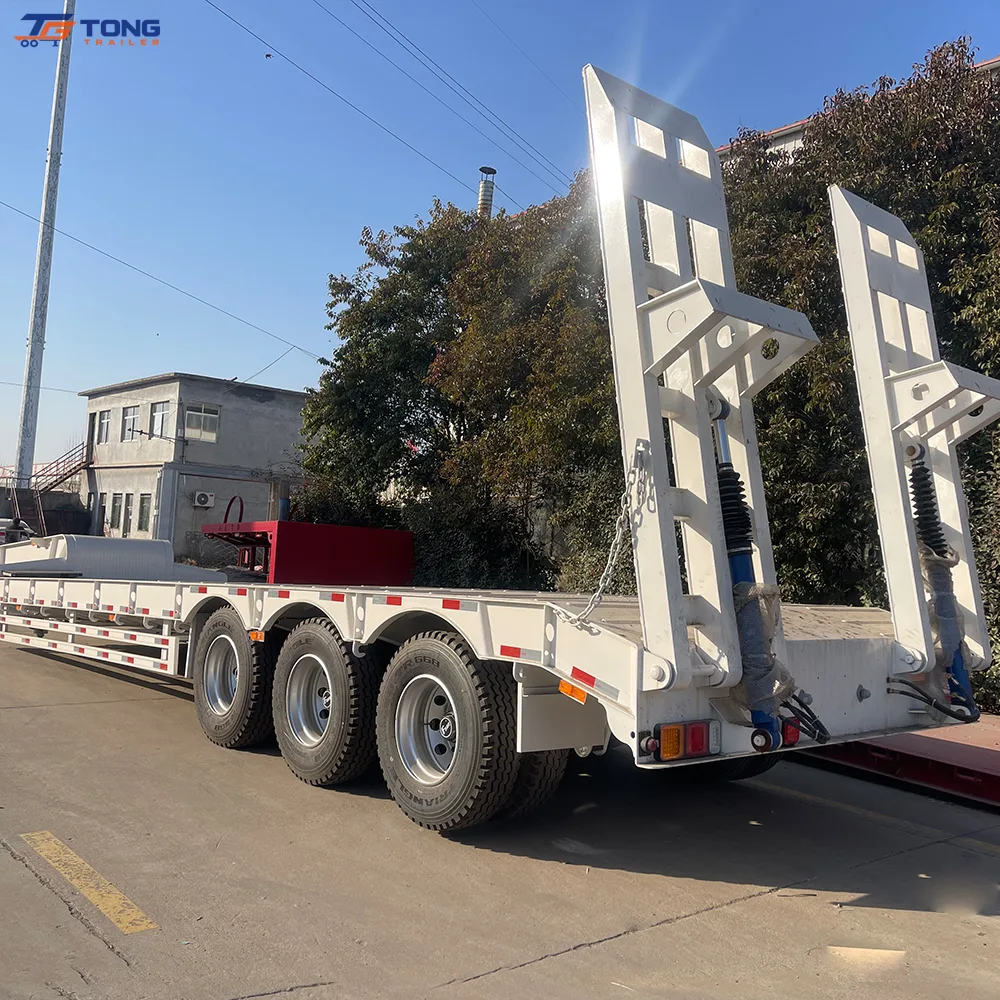

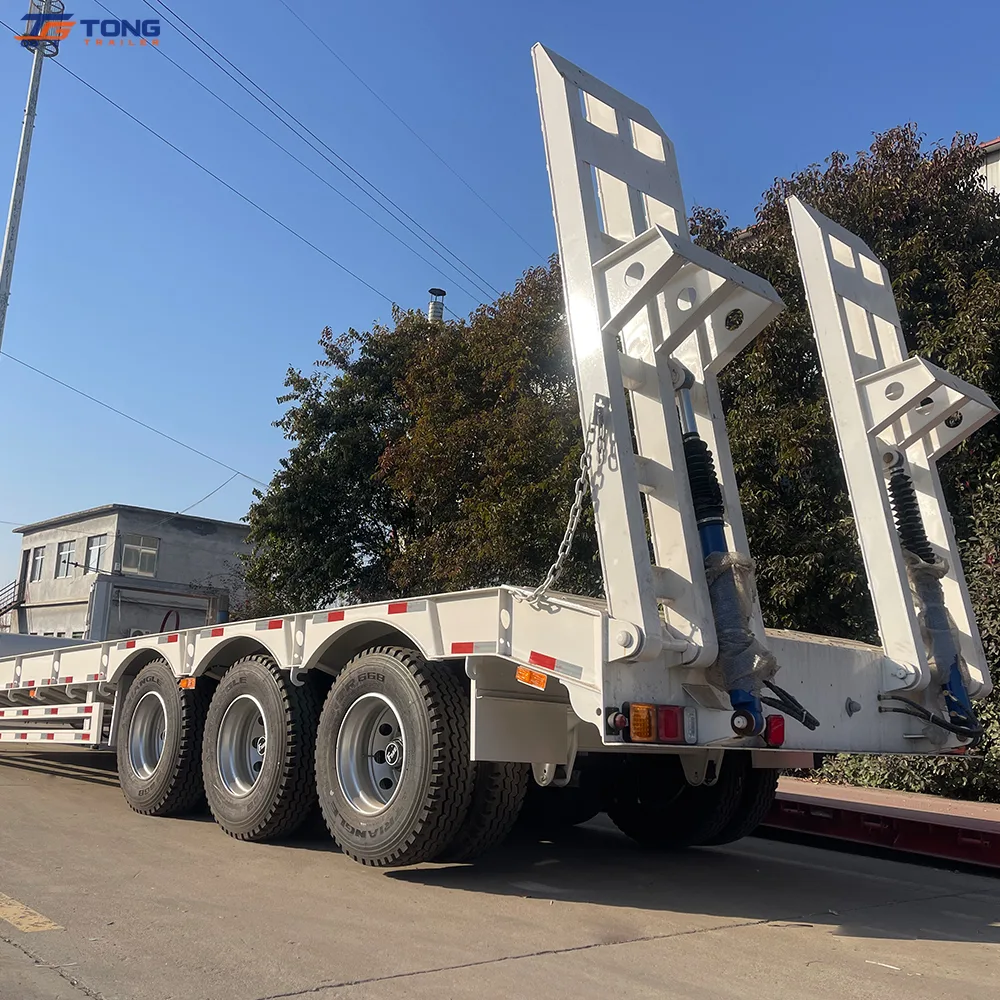

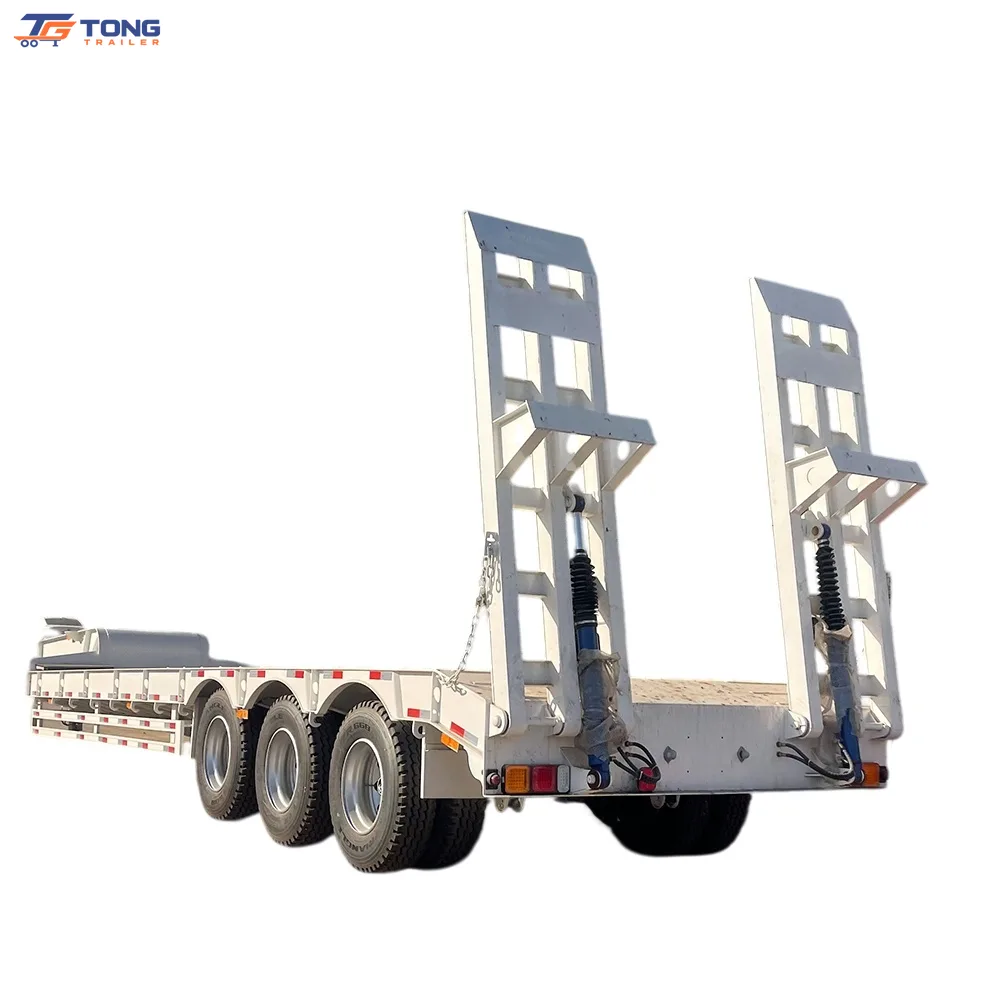

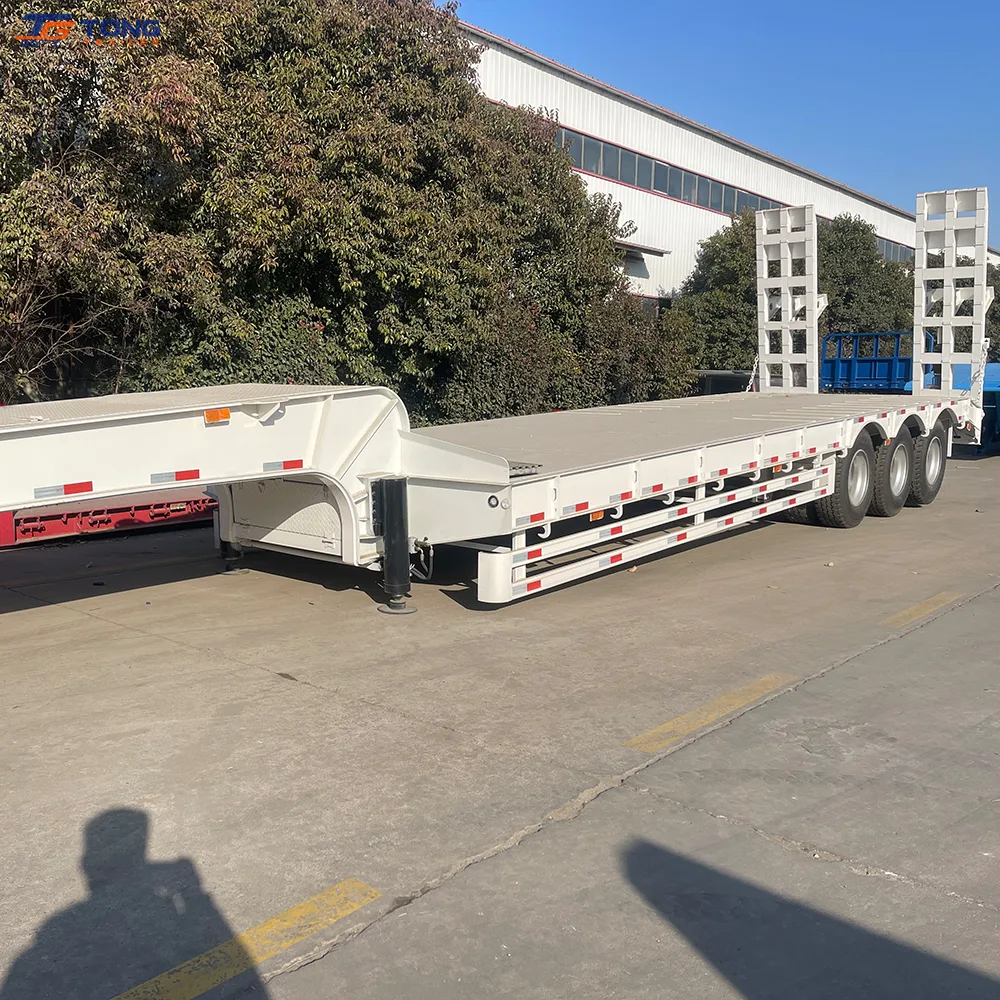

3 Axle Lowboy Trailer is a heavy-duty low bed semi trailer built for moving excavators, loaders and other oversized machinery.
It supports a max payload of 60T, 80T, 100T or 150T. The deck measures 11500mm, 12500mm or 13000mm long and 3000mm wide. Tare weight ranges from 8000kg to 12800kg. Buyers can choose 3, 4 or 5 axles to match local weight limits.
The main beam uses Q690 steel for high bending strength. The platform is 3mm to 5mm chequered plate with welded anti-slip ribs. Side beams are 16mm to 25mm high-strength bent plate. The axle beam is a one-piece low-alloy design with no welding along the beam. A mechanical or air suspension, 13/16 ton axles and a 2.0 or 3.5 inch king pin are available. Braking includes six relay valves, spring brake chambers and two 45L air tanks.

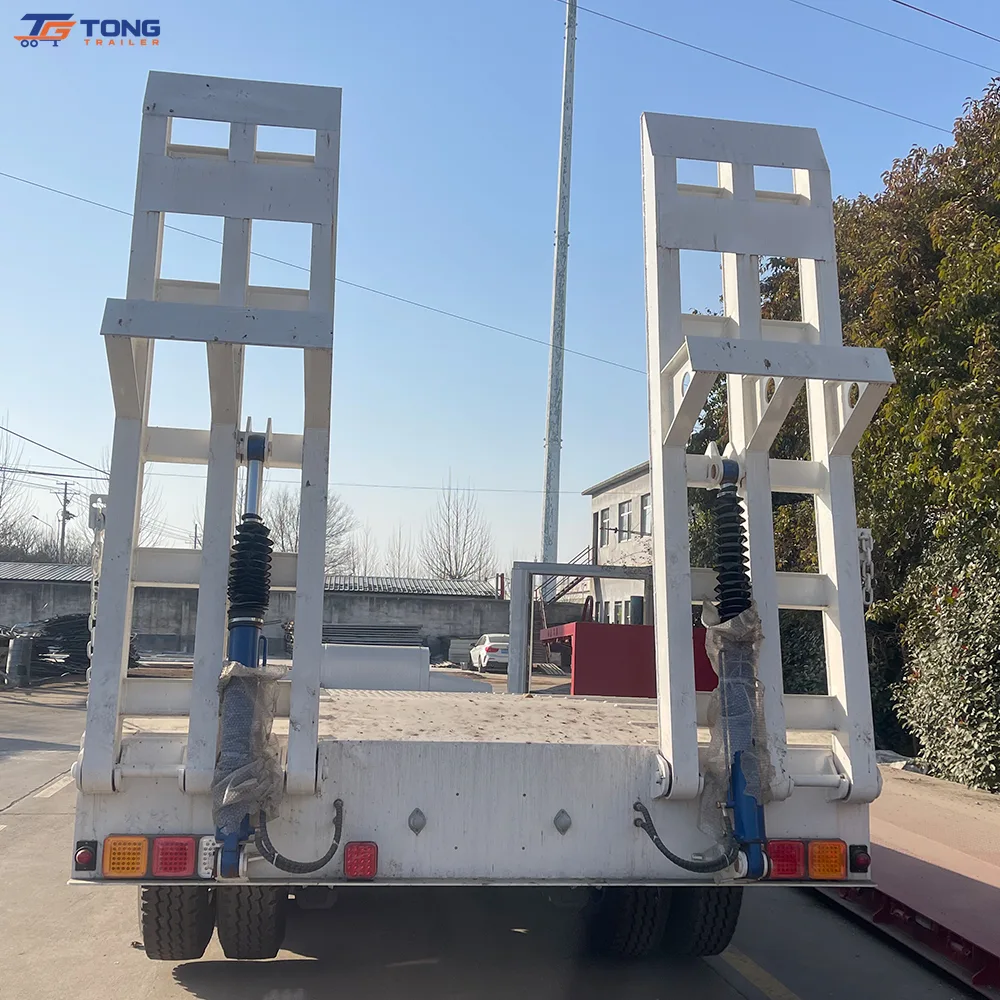

The ladder can be manual or hydraulic, which removes the need to release it by hand. Options include ABS, spare tire carriers and 9.0*22.5 rims. Painting follows one anticorrosive primer coat and two top coats in your chosen color.
This 3 axle lowboy trailer suits construction, mining, forestry and rail transport. It handles excavators, bulldozers, cranes, pavers and buses. A lower deck center of gravity improves stability and clearance under overhead obstacles.
The trailer ships by bulk or container, with wax spray protection against seawater corrosion. Delivery is usually within 15-35 days after order confirmation. Configuration is customizable to your route and cargo. Contact us for pricing and shipping details on this 3 axle lowboy trailer.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
