Heavy duty 3 axle lowbed semi trailer for 60-100T machinery transport. 11500-13000mm deck, Q690 steel main beam. Contact us for pricing and customization.

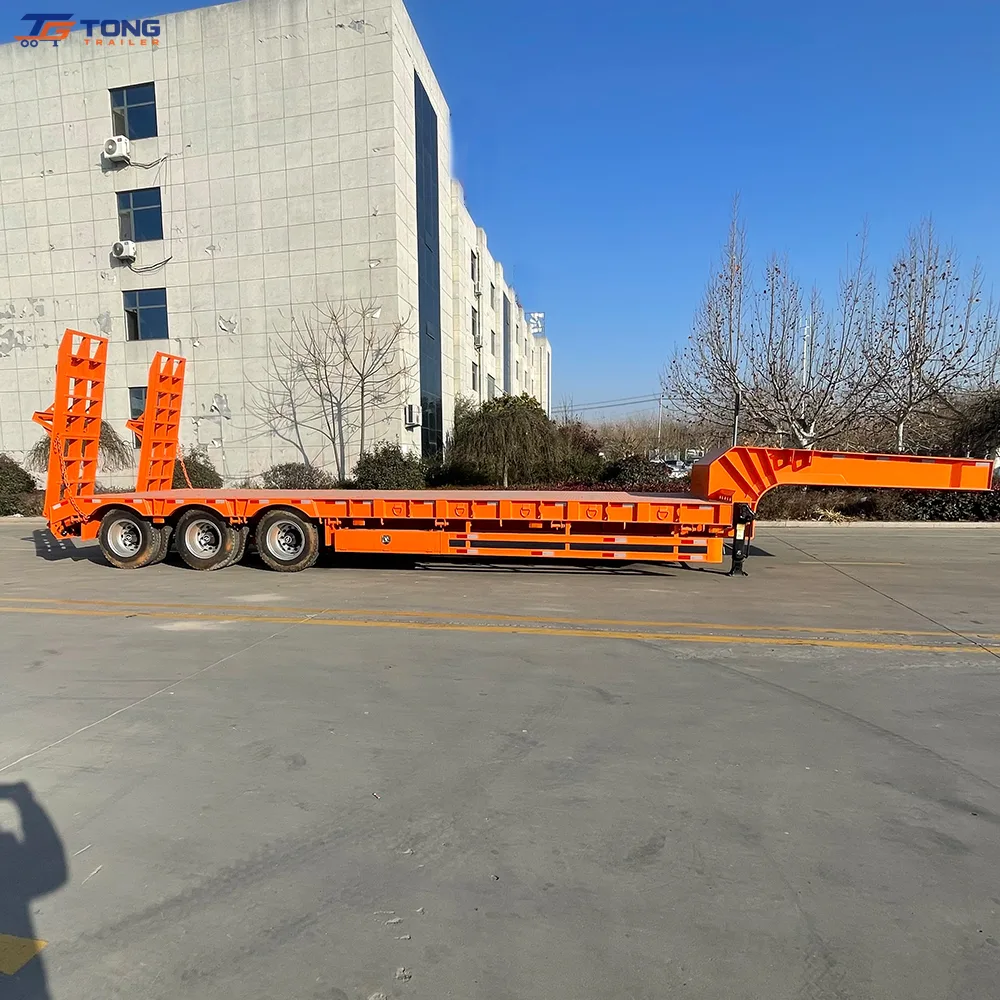

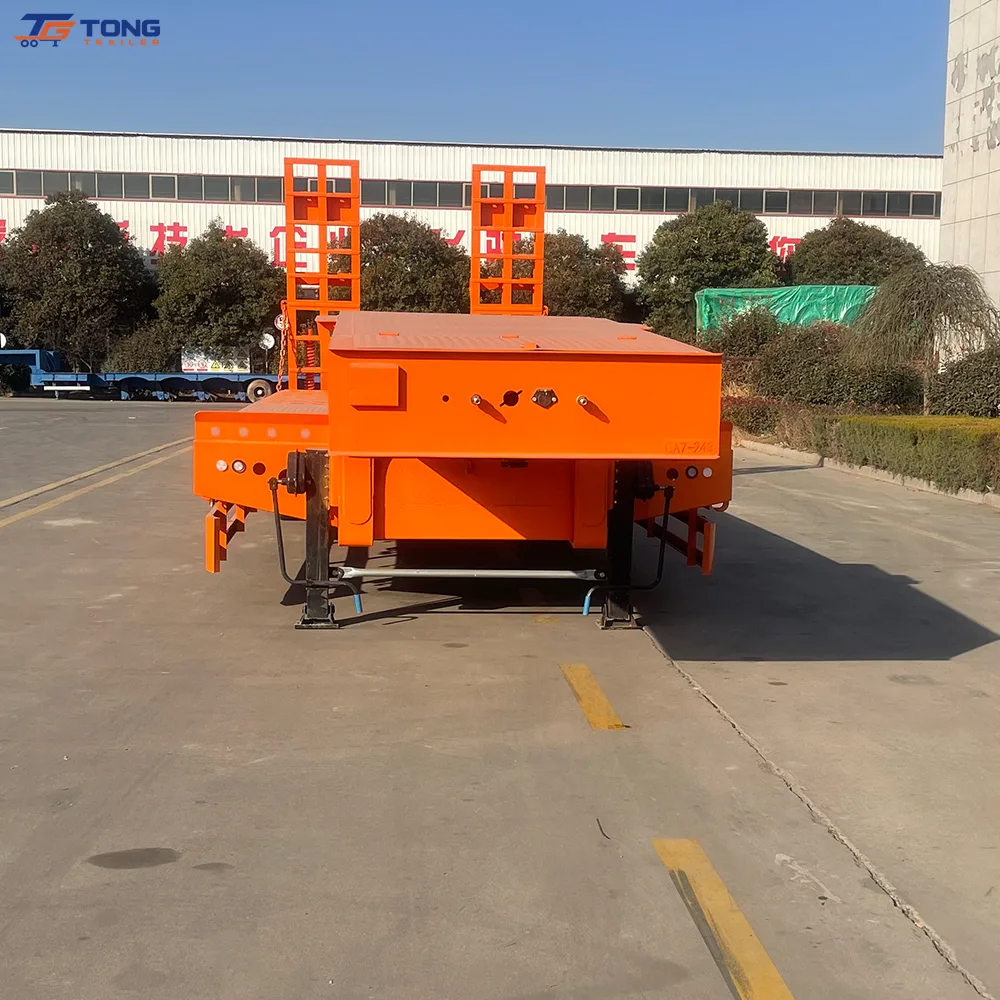

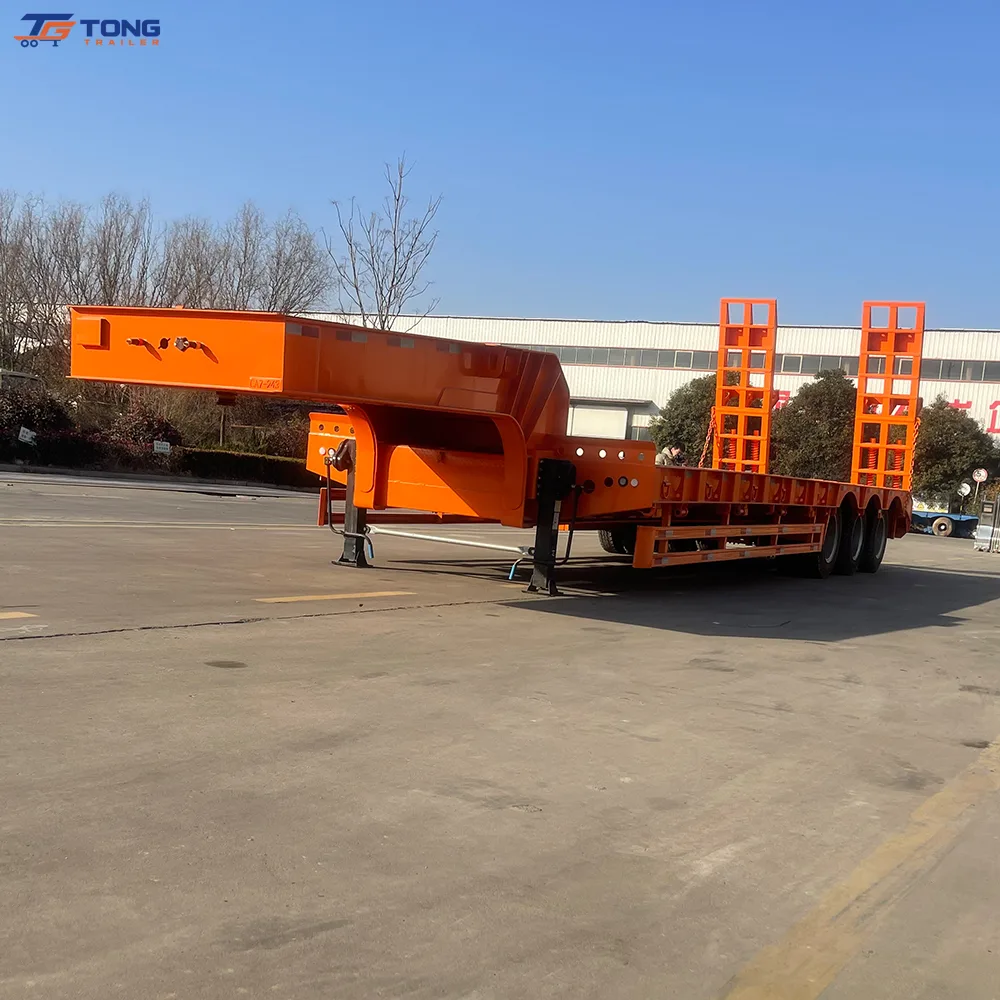

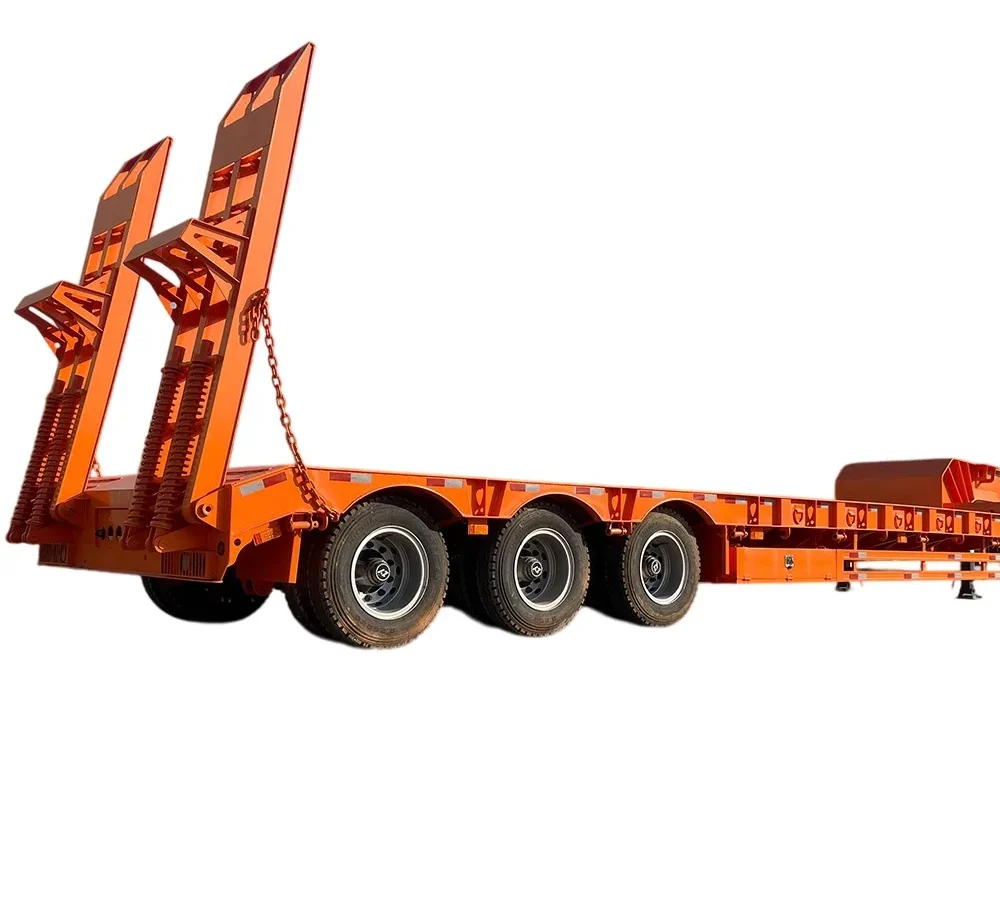

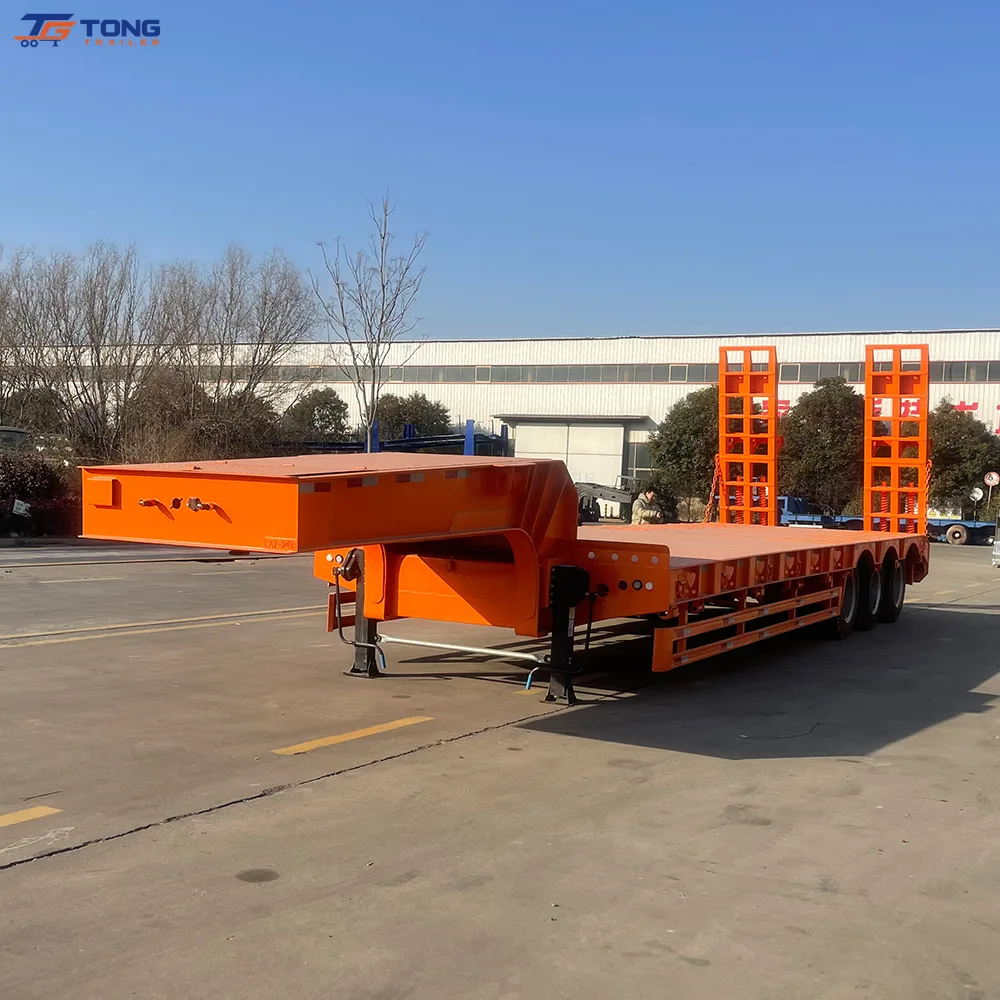

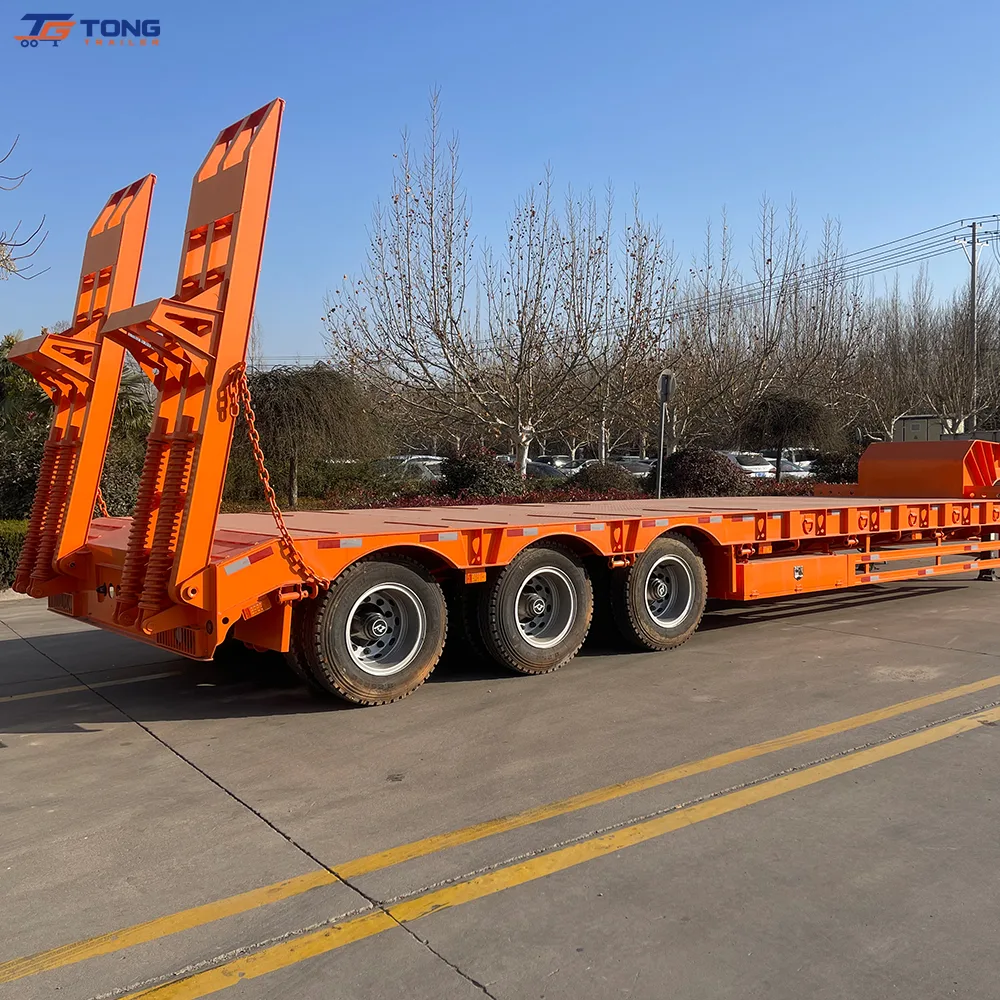

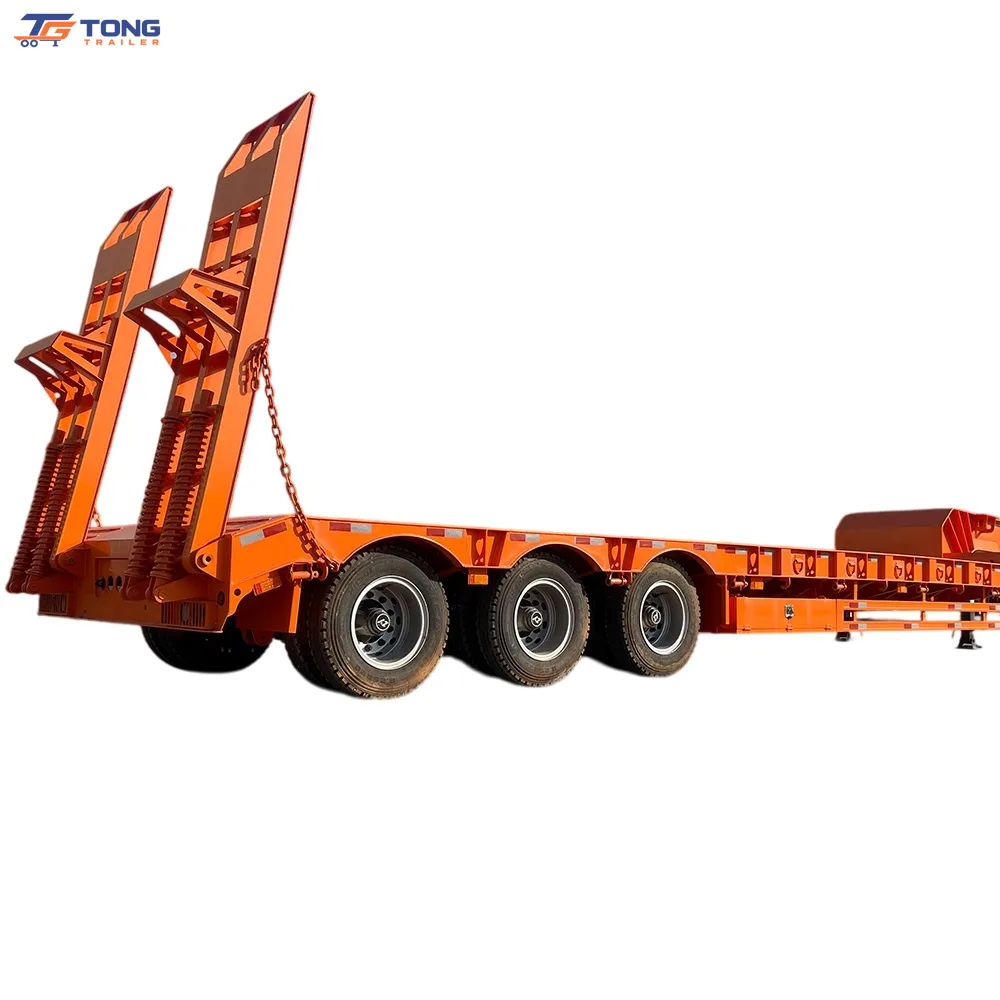

The 3 Axle Lowbed Semi Trailer is a heavy-duty lowbed semi trailer built to move construction machinery. It transports excavators, bulldozers, loaders, pavers, cranes and rail vehicles.
Load capacity ranges from 30 ton to 100 ton. Max payload is 60T, 80T, 100T or 150T on request. The deck measures 11500/12500/13000 x 3000 x 1750 mm and can be customized. Axle ratings are 13T or 16T in 3 axle or 4 axle setups. Tare weight is 8000 kg to 12800 kg.
The main beam uses Q690 steel. Side beams are 16 mm to 25 mm high-strength bent plate. The platform is 3 mm to 5 mm chequered plate. Gooseneck reinforcement bars increase effective load capacity. Suspension is mechanical or air type. The ladder is manual or hydraulic. A relay valve braking system, spring brake chambers and two 45L air tanks are standard. Painting includes one anticorrosive primer coat and two finishing coats.
This 3 Axle Lowbed Semi Trailer suits construction, mining, forestry and heavy haulage work. The low deck improves stability and clears overhead obstacles. A 2.0 or 3.5 inch king pin, ABS option and two spare tire carriers are available.
Contact us about this 3 Axle Lowbed Semi Trailer for pricing, delivery options and customized specifications. Our team supports 3 axle and 4 axle builds, custom deck lengths and buyer-specified configurations.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
