3 axle lowbed semi trailer with 60T-150T payload, 11500-13000mm deck and Q690 steel main beam. Mechanical or air suspension. Contact us for pricing.

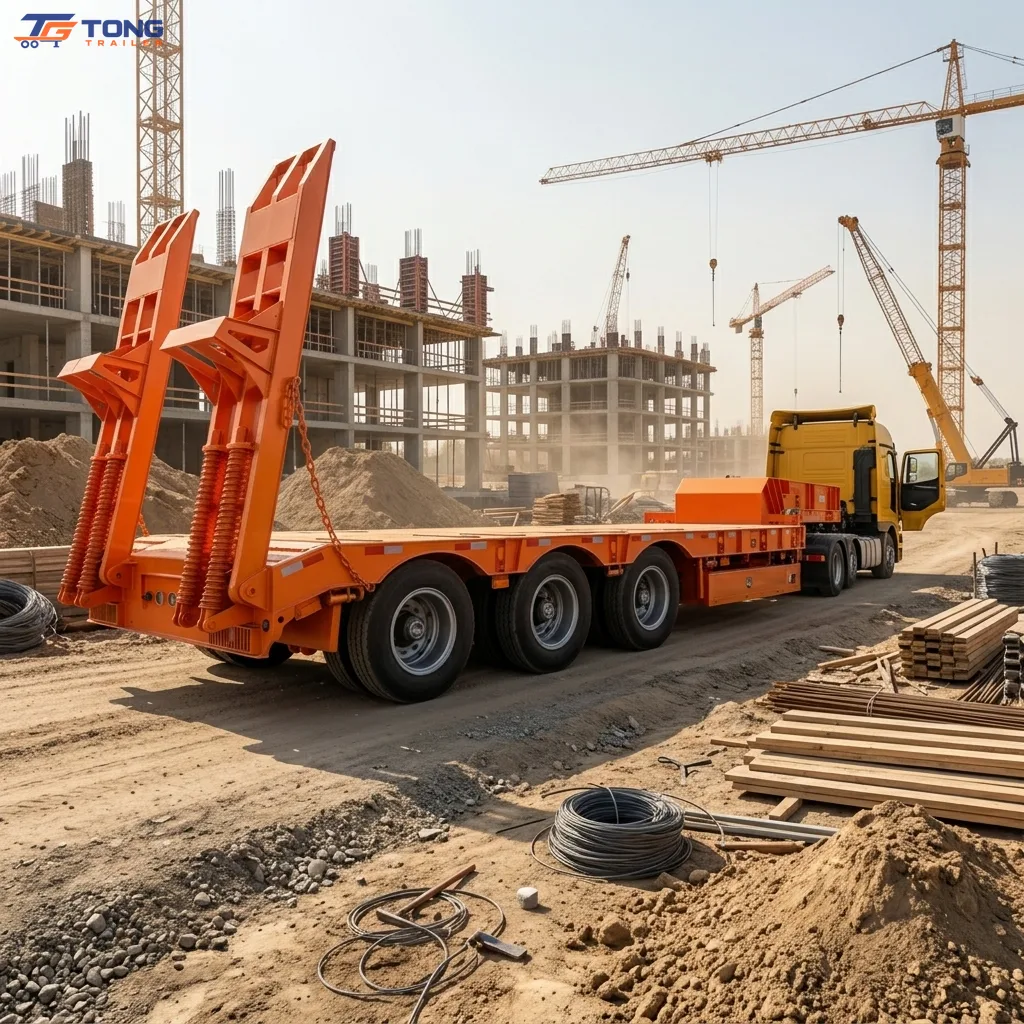

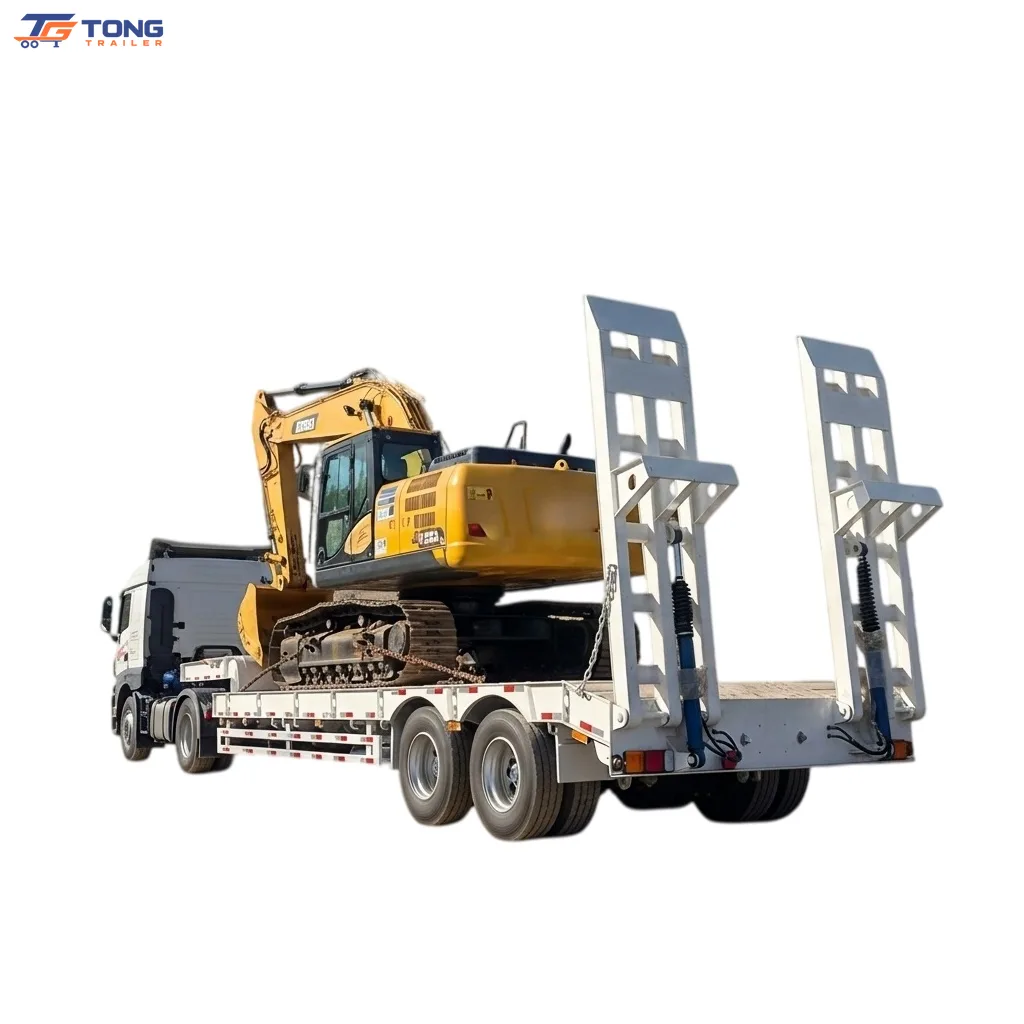

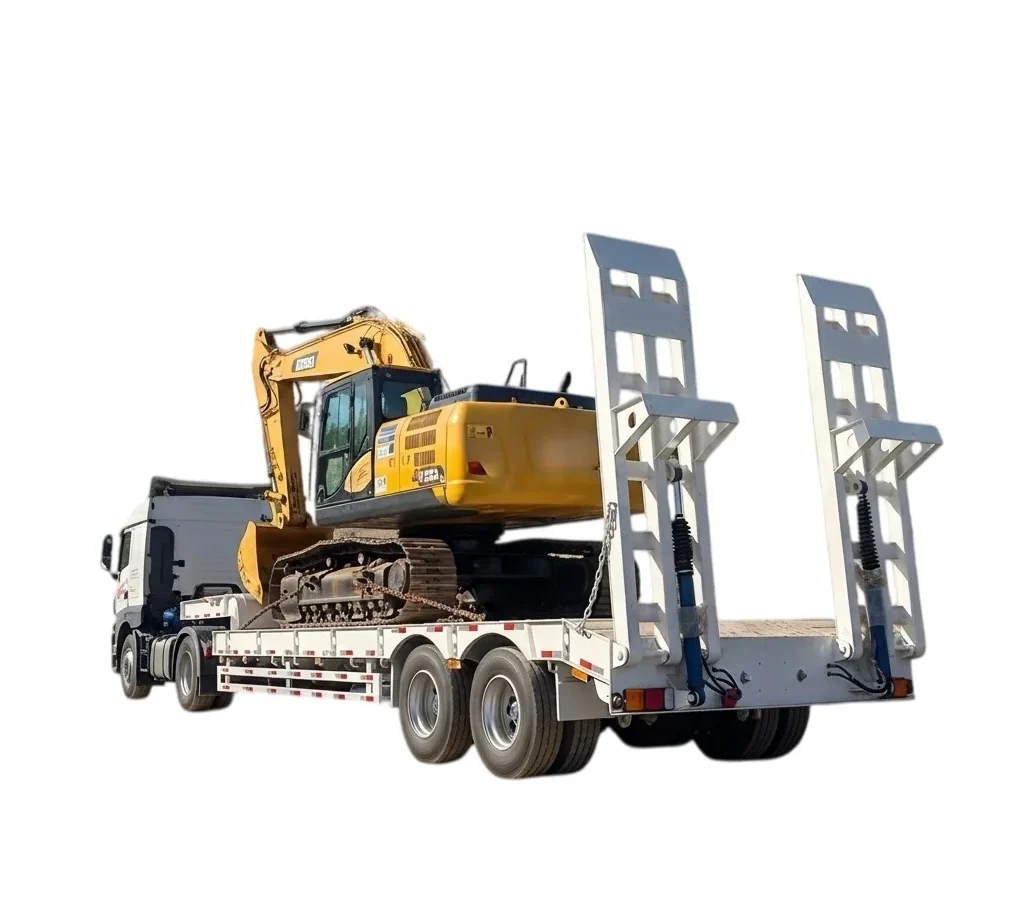

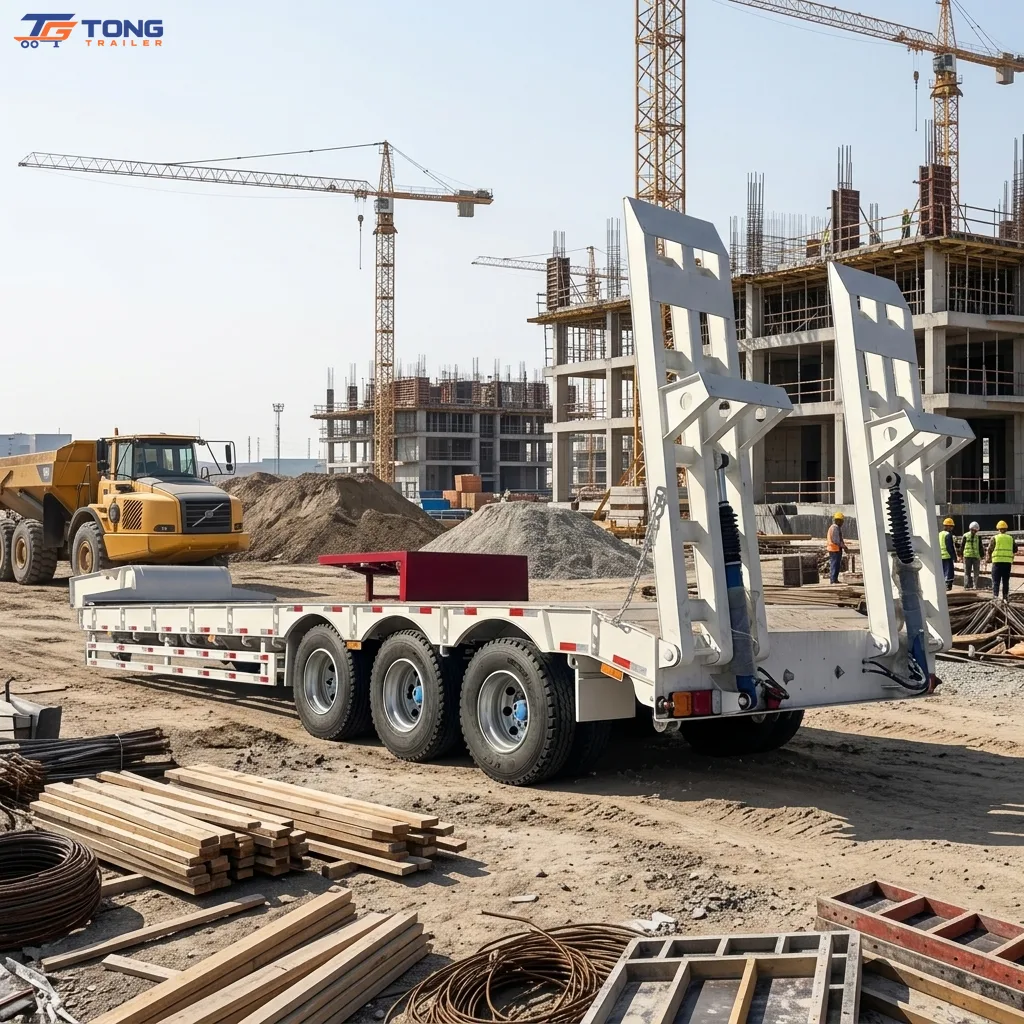

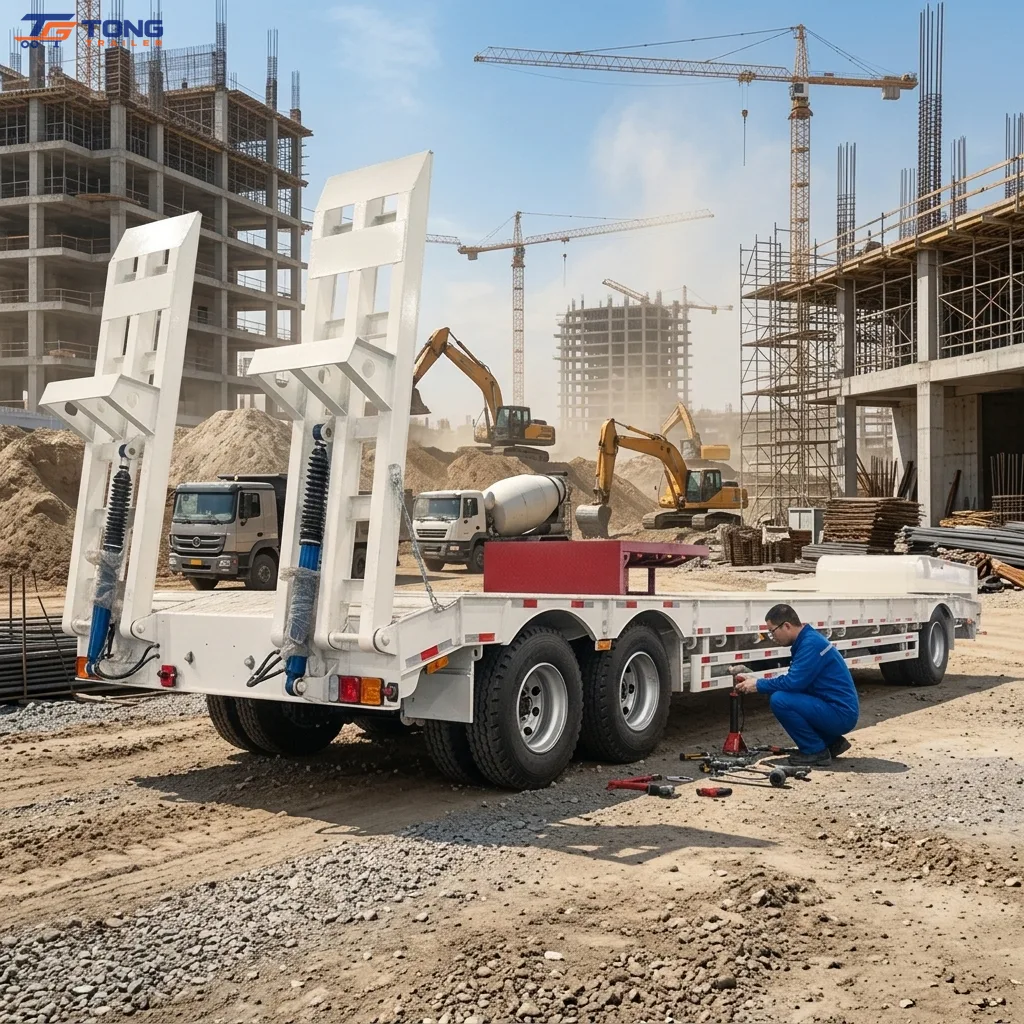

The 3 axle lowbed semi trailer is built to transport heavy machinery, rail vehicles and oversized cargo. It suits excavators, bulldozers, loaders, pavers, cranes and other heavy loads.
Maximum payload ranges from 60T to 150T, or built to buyer's request. Three axles with 13T or 16T capacity share the load evenly across 12 tires. Deck sizes are 11500, 12500 or 13000 x 3000 x 1750 mm, and dimensions can be customized.
The main beam uses Q690 steel for high bending strength. The low bed platform takes 3-5 mm chequered plate with welded anti-slip ribs. The king pin is 2.0 inch or 3.5 inch bolted type. Suspension is mechanical or air type with 90 x 13 mm leaf springs. Braking covers a relay valve, spring brake chambers and two 45L air tanks. Two spare tire carriers are standard, and ABS is optional. Painting applies one anticorrosive primer coat and two top coats.
The 3 axle lowbed semi trailer fits construction, mining, forestry and heavy haul transport. A manual or hydraulic ladder is available for faster loading. The low deck height improves stability and helps clear overhead obstacles.
Contact us for pricing, delivery time and custom specifications for your fleet.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
