3 Axle Low Bed Trailer for 60T to 150T payloads, with 11500-13000mm deck. Gooseneck design, Q690 steel beam, 13/16T axles. Request a quote today.

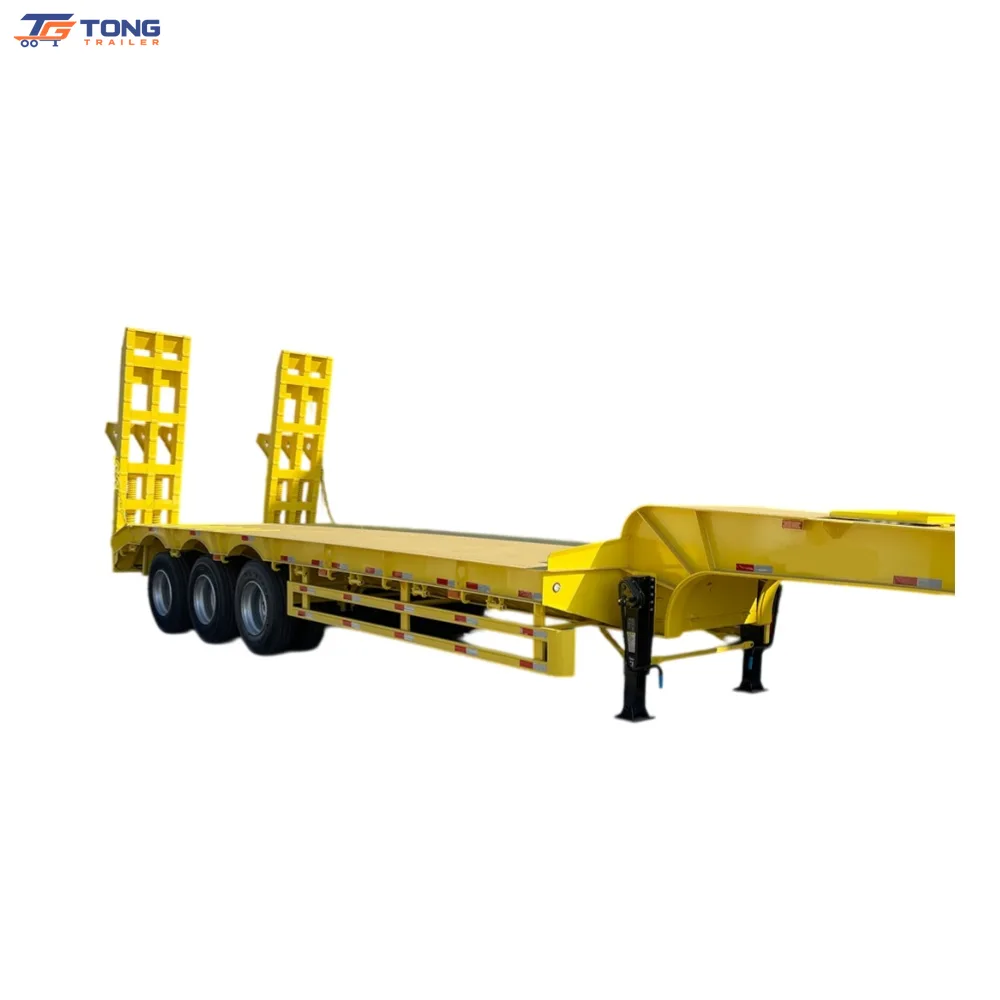

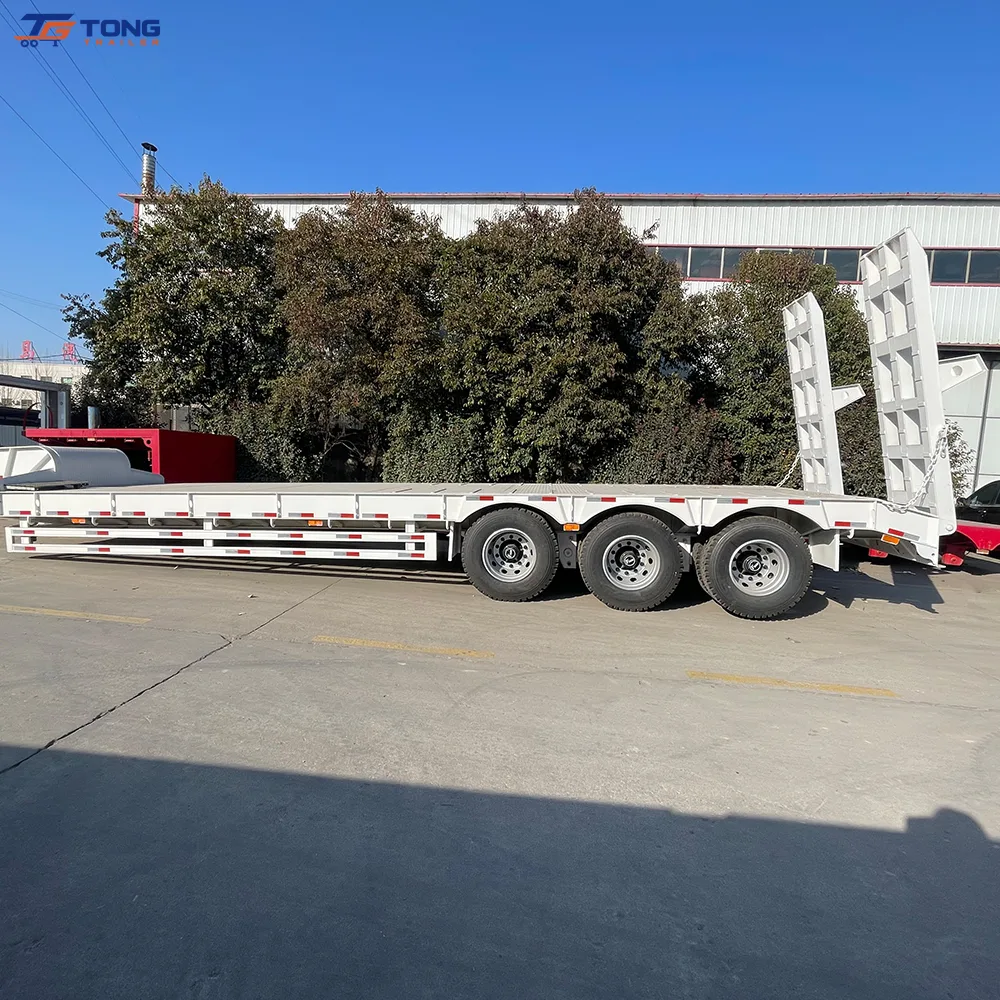

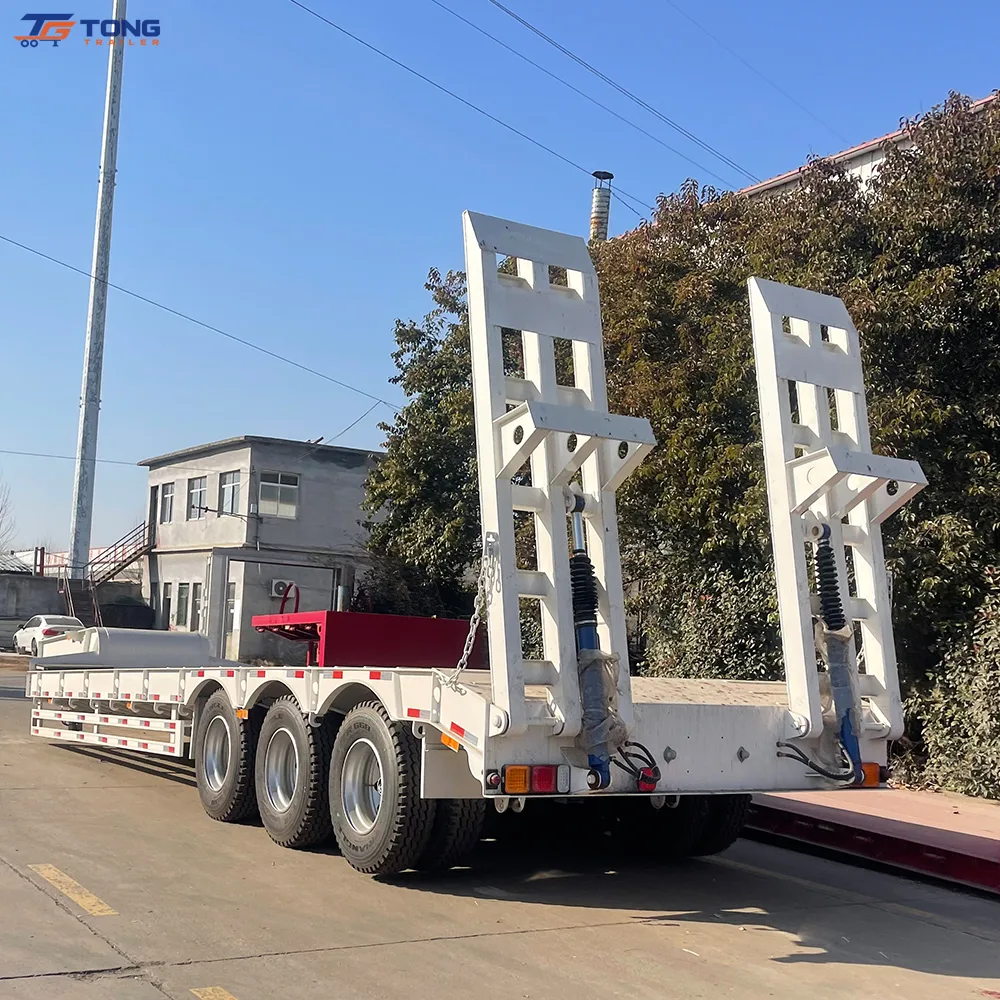

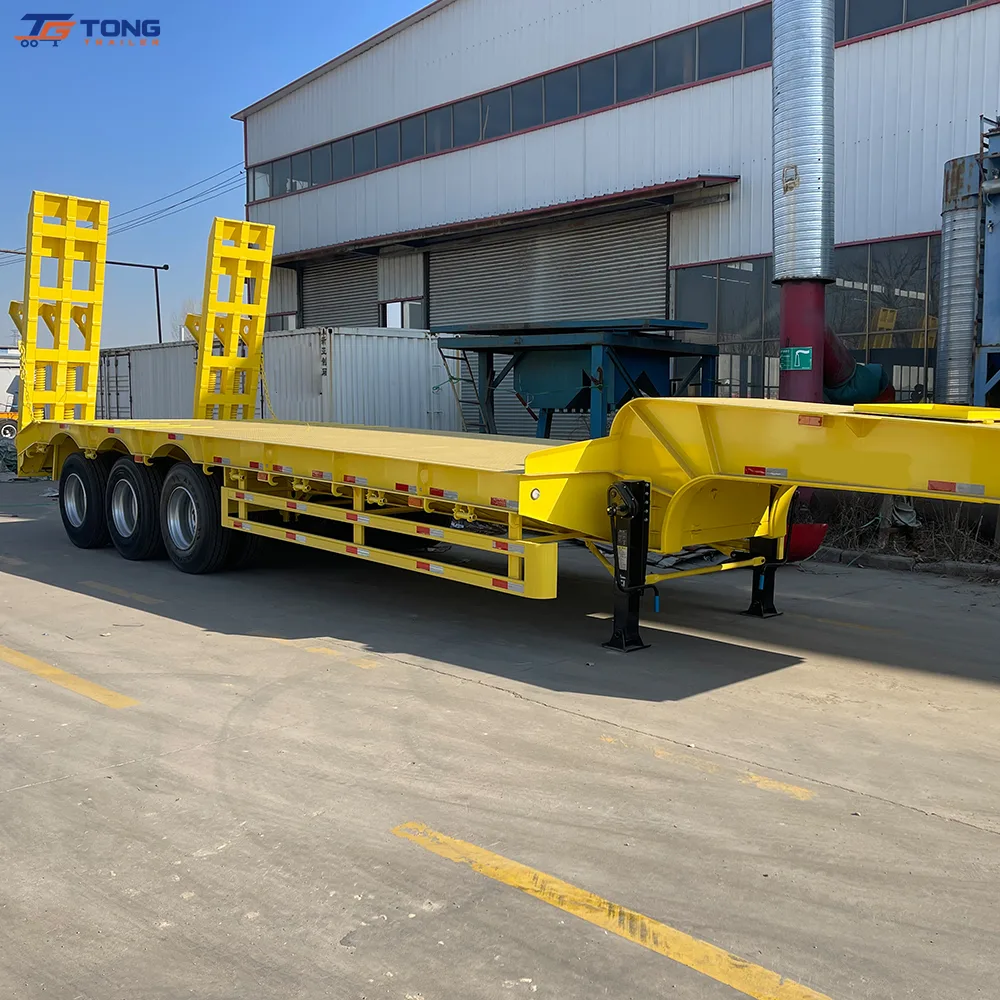

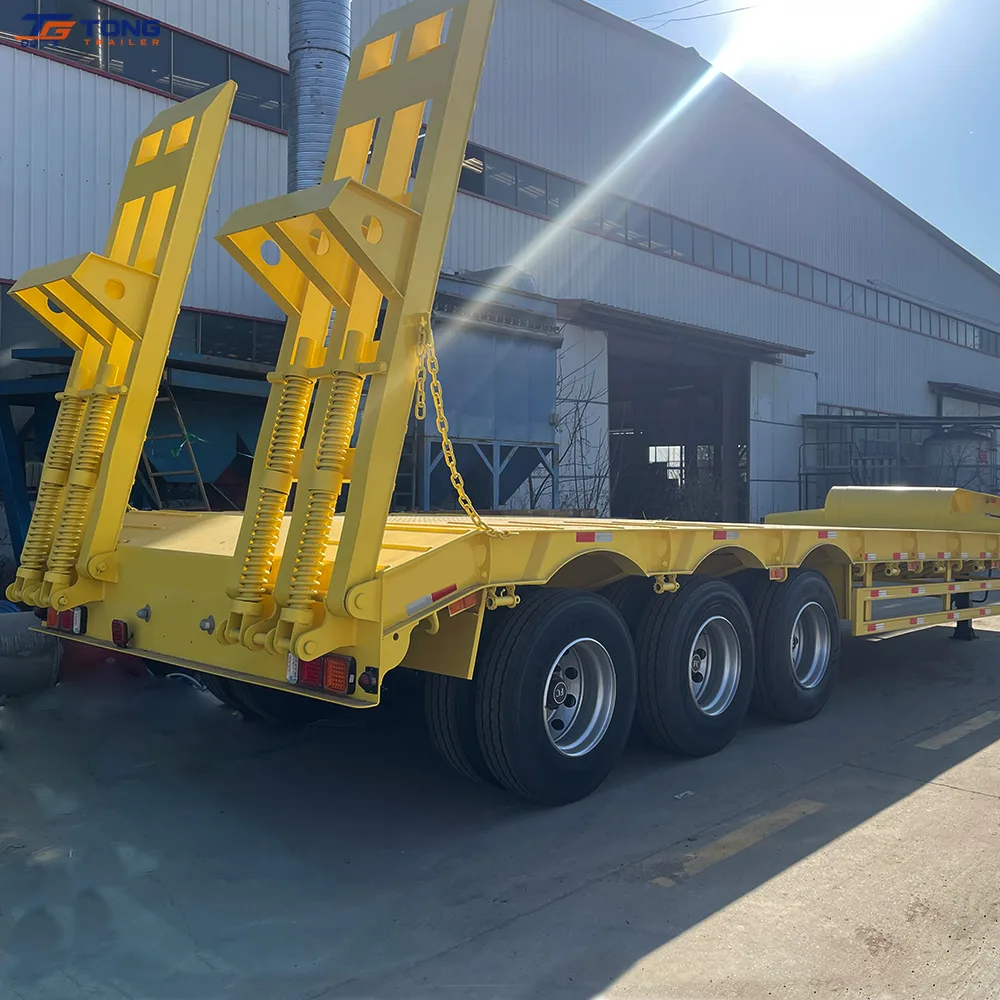

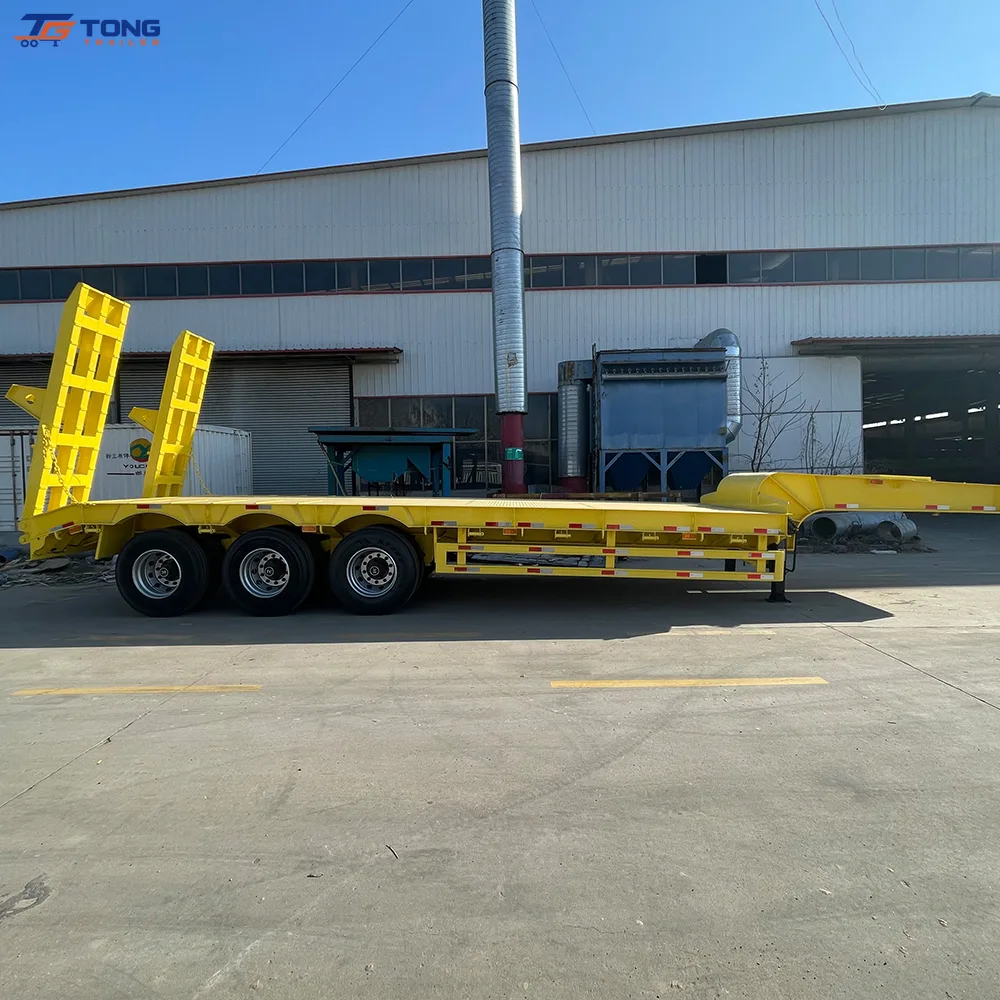

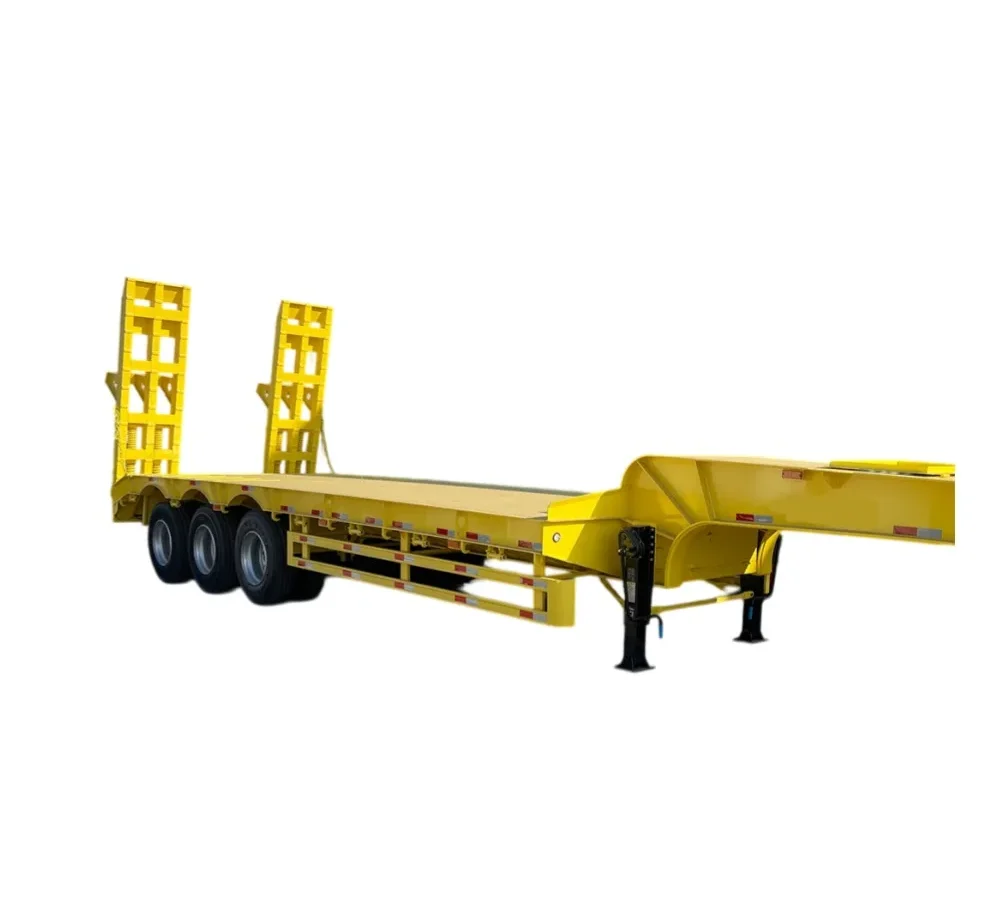

3 Axle Low Bed Trailer is a gooseneck semi-trailer built to move excavators, bulldozers, loaders and other heavy machinery.
Max payload options run from 60T to 150T, or built to buyer request. Deck size measures 11500, 12500 or 13000 x 3000 x 1750 mm, with custom dimensions available. Tare weight ranges from 8000 kg to 12800 kg. Three 13/16T axles share the load evenly.
The main beam uses Q690 steel. Side beams are 16 mm to 25 mm high-strength bent plate. The platform is 3 mm to 5 mm chequered plate with welded anti-slip ribs. A gooseneck frame with reinforcement bars raises effective load capacity. Manual or hydraulic ladder options are available. The braking system includes a relay valve, spring brake chamber and two 45L air tanks.
Suspension choices cover mechanical and air types. King pin sizes are 2.0 inch (50 mm) or 3.5 inch (90 mm). Tires fit 12R22.5, 315/80R22.5 and 385/65R22.5 rims. ABS is optional. Two spare tire carriers are fitted, and one anticorrosive primer coat plus two finishing coats protect the steel.
This 3 Axle Low Bed Trailer suits construction, mining, forestry and rail equipment transport. These low bed semi trailers offer a lower deck centre of gravity for better stability on uneven roads. Typical buyers include fleet operators, rental companies and equipment dealers.
Contact us for pricing, lead time and configuration options.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
