3 Axle Low Bed Semi Trailer with 60T capacity and gooseneck design. Custom lengths up to 13000mm; hydraulic ladder optional. Request a quote today.

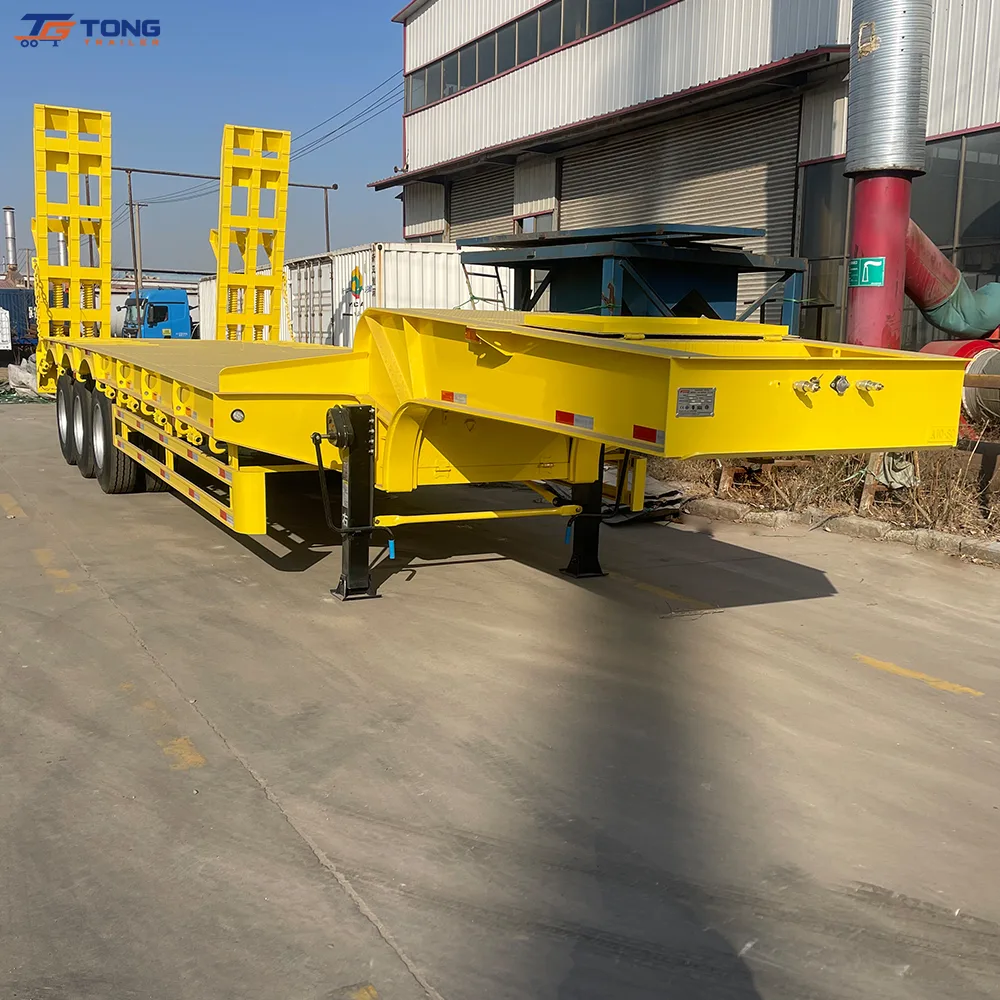

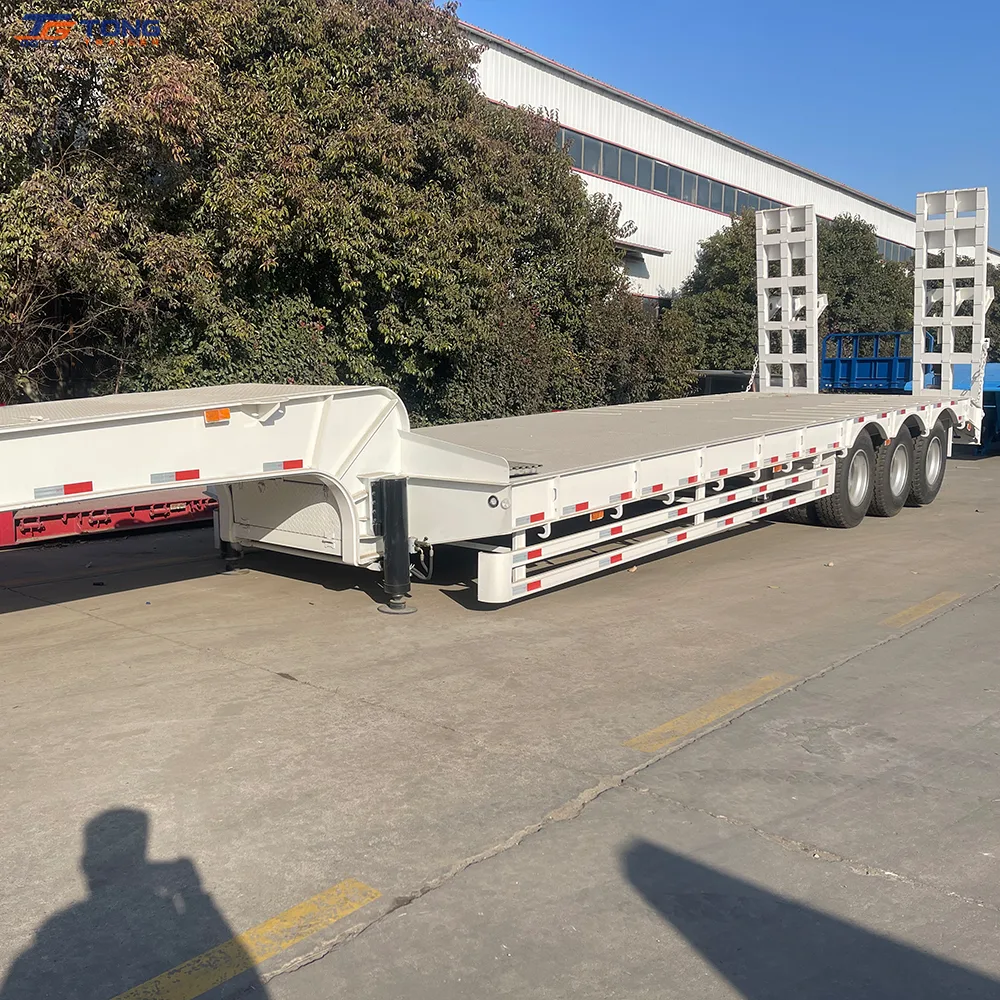

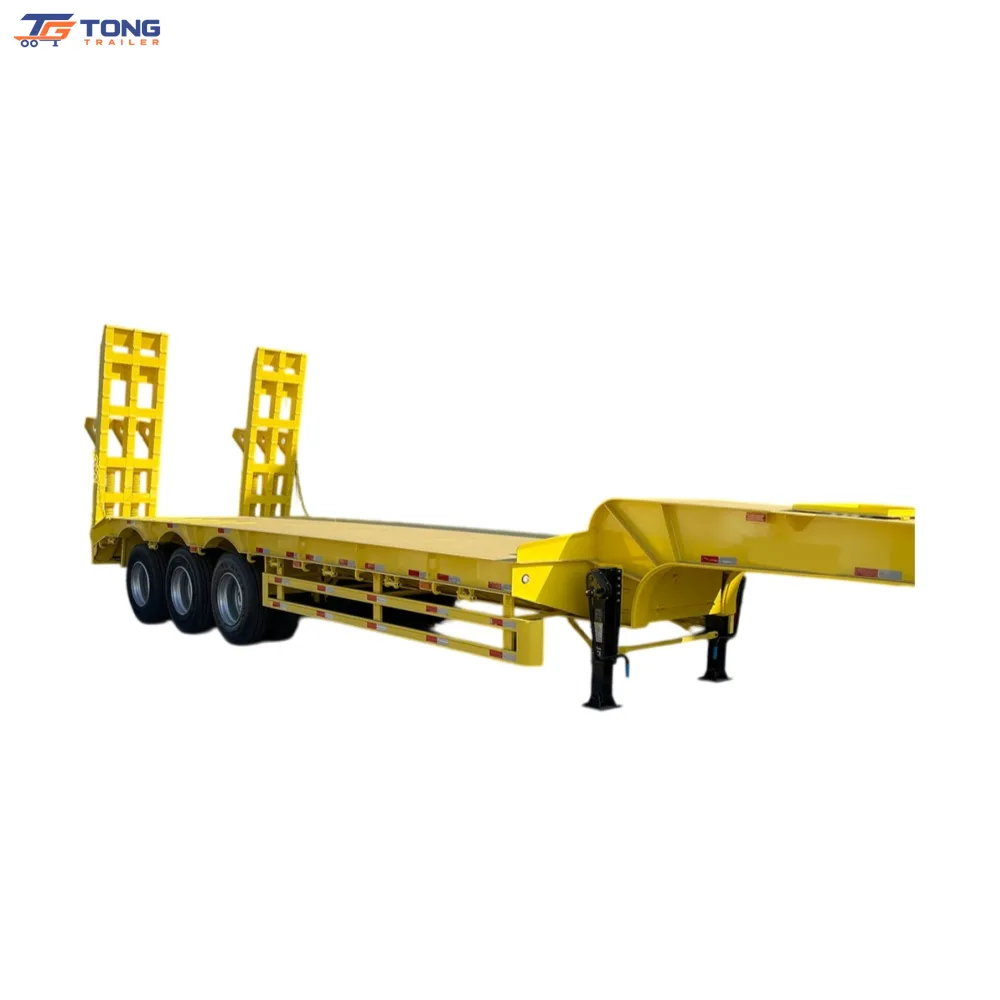

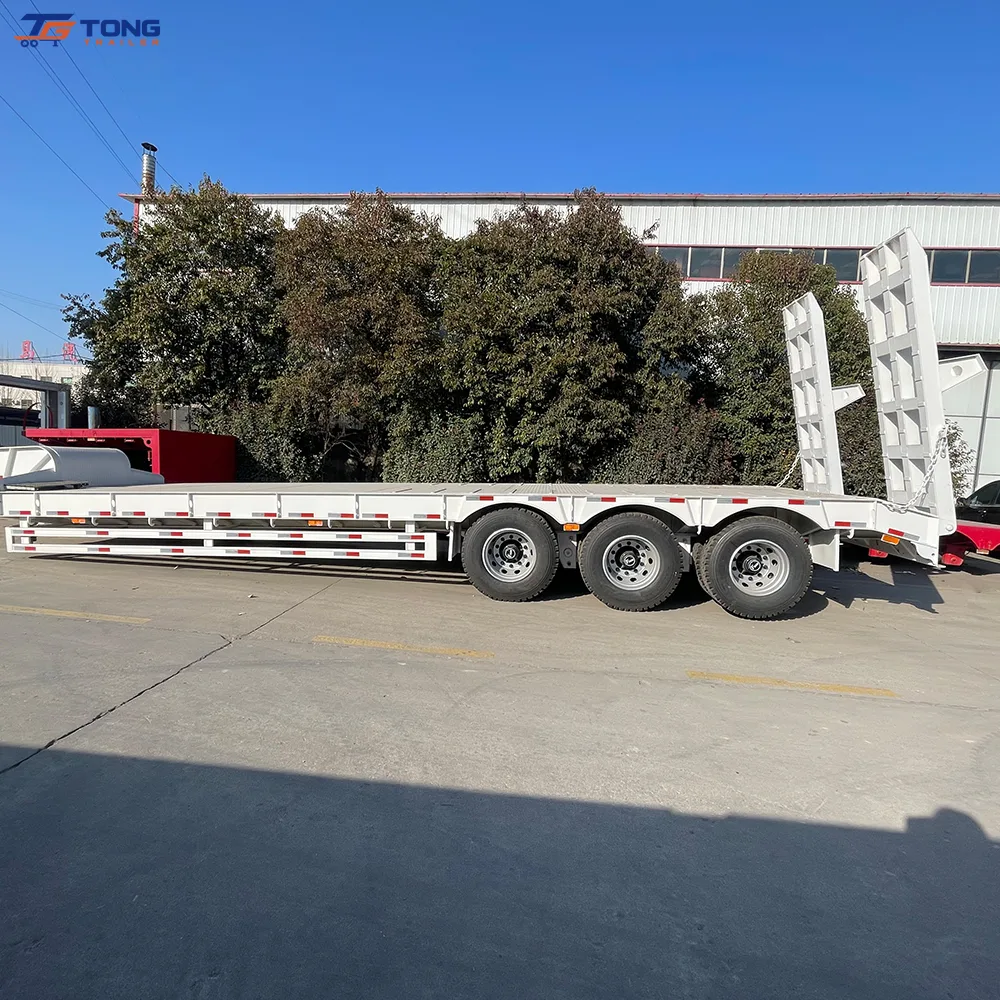

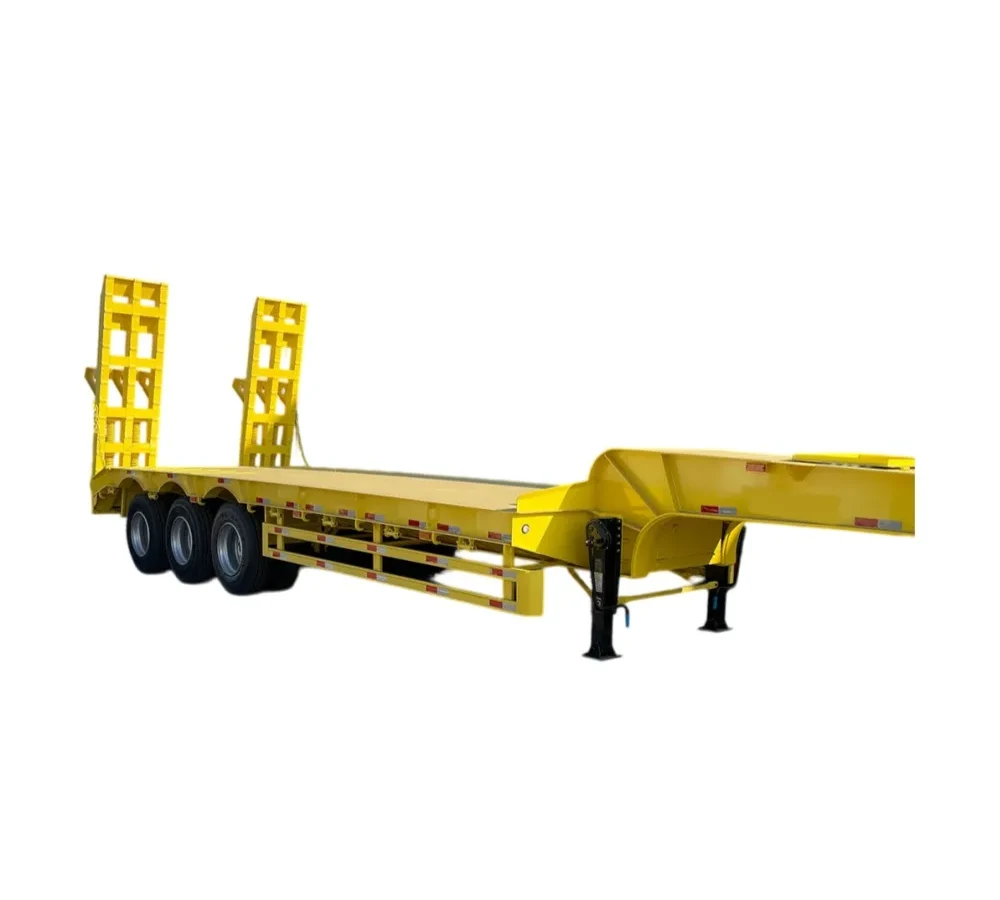

The 3 axle low bed semi trailer is a heavy-duty semi-trailer designed to move excavators, loaders, and other construction machinery. Its gooseneck frame and low deck keep the center of gravity low for stable transport. It is also used for ultra-high loads and for clearing overhead obstacles.
Load capacity ranges from 60T to 150T, or as buyer's request. Buyers can choose 3, 4, or 5 axle configurations for this low bed semi trailer. Overall dimensions are 11500/12500/13000 x 3000 x 1750 mm, and lengths can be customized. The main beam uses Q690 steel.

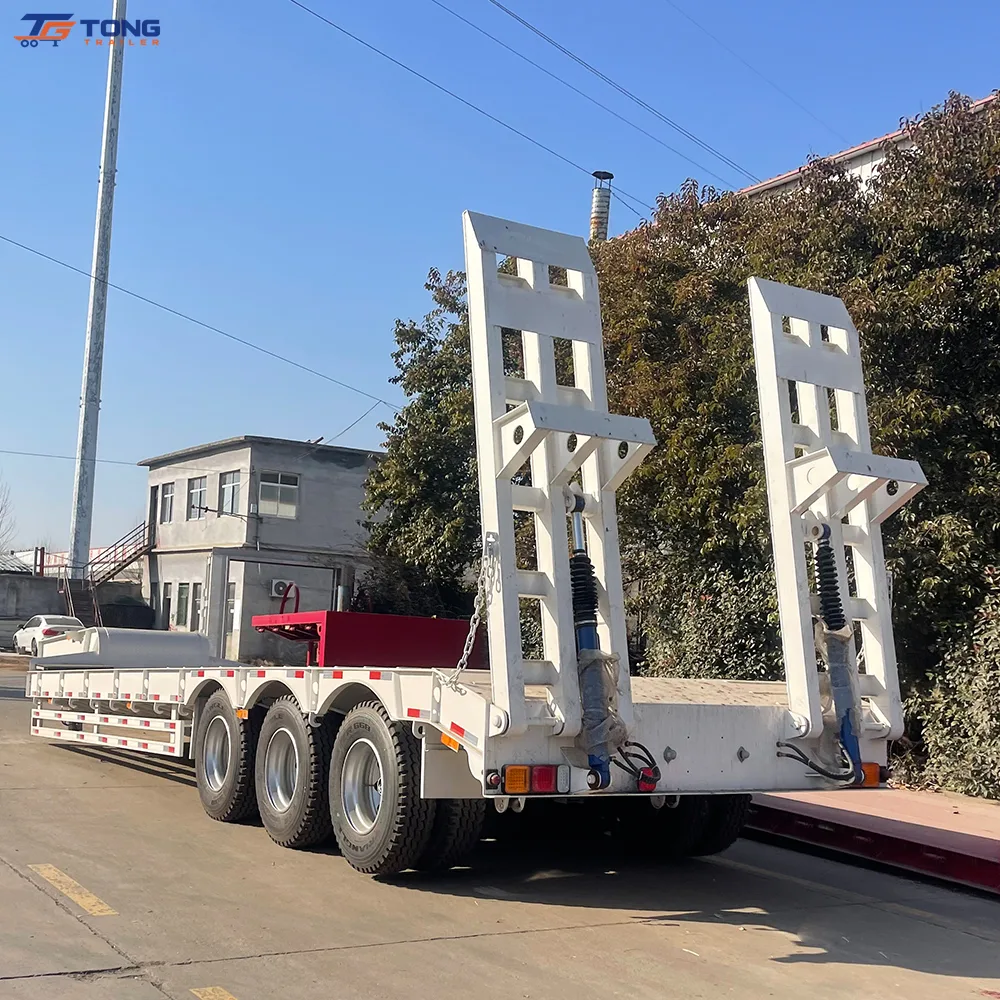

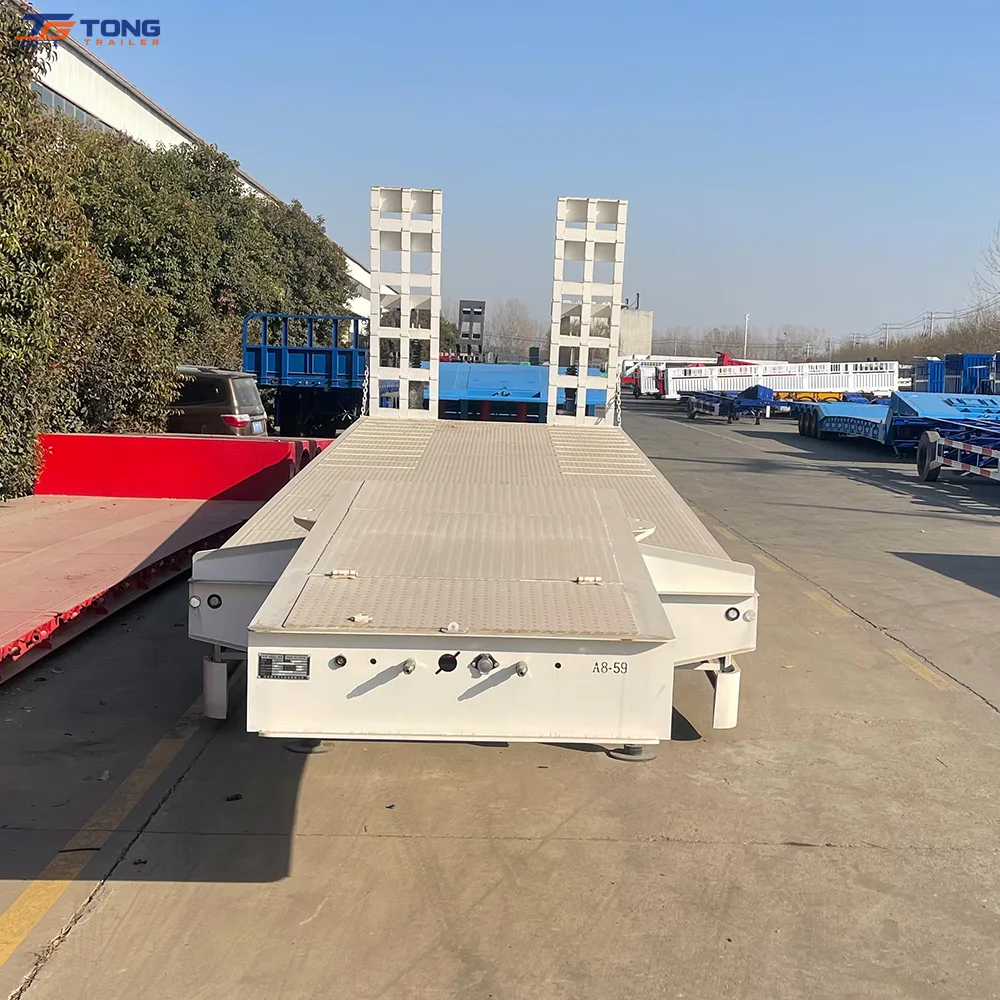

The low bed platform is 3 mm to 5 mm chequered plate with welded anti-slip ribs. Side beams run 16 mm to 25 mm high-strength bent plate. Axles are rated 13/16 ton, with a 2.0 or 3.5 inch bolted king pin. Suspension options include mechanical, Germany type, America type, or air suspension. Ladders are manual or hydraulic type. Braking includes relay valves, spring brake chambers, and two 45L air tanks. ABS is optional. A spare tire carrier holds two pieces, and each unit is finished with one anticorrosive primer coat and two finishing coats.
This lowboy trailer handles excavators, bulldozers, loaders, pavers, cranes, and rail vehicles. Mining, forestry, and construction fleets use it for oversized and heavy loads.
Contact us for pricing, custom specifications, and delivery options on this 3 axle low bed semi trailer.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
