Extendable 60T lowbed semi trailer with 3 axles. Adjustable deck for oversized loads. Factory-direct pricing for fleet buyers.
The 60 ton lowbed semi trailer is a heavy-duty platform for transporting large machinery. It combines low deck height with high load capacity.
This 3 axle low loader handles payloads from 60T to 150T. Deck length ranges from 11500 mm to 13000 mm. Width is 3000 mm. All dimensions are customizable. Tare weight ranges from 8000 kg to 12800 kg.
The main beam uses Q690 high-strength steel. Side beams are 16–25 mm high-strength bent plates. The platform uses 3–5 mm chequered plate with anti-slip ribs. The gooseneck frame includes reinforcement bars for extra capacity. Hydraulic ladders are optional for er loading.
Suspension options include mechanical or air systems. The braking system features 6 relay valves and two 45L air tanks. Axles are rated at 13 or 16 tons. Choose from multiple tire sizes. King pins are available in 2.0 or 3.5 inch bolted types.

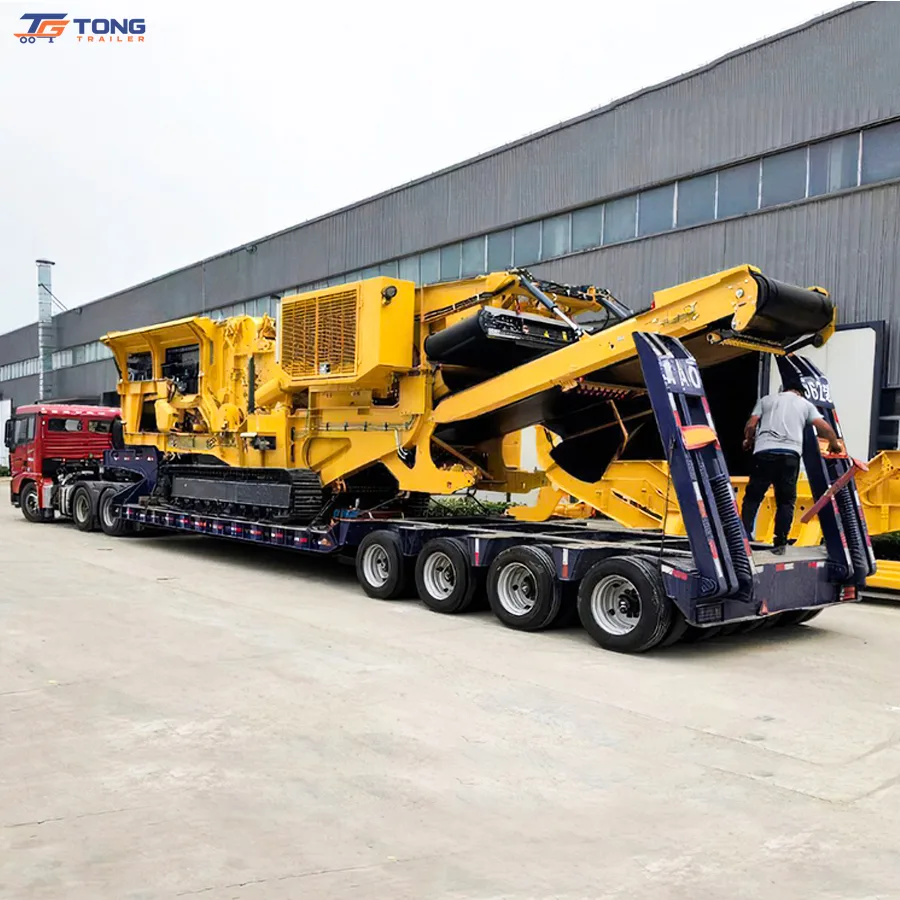

This 60 ton lowbed semi trailer transports excavators, bulldozers, cranes, and mining machinery. It also carries tractors, buses, and rail equipment. The low center of gravity improves stability and ety. It handles oversized loads while clearing overhead obstacles.
Contact us for detailed specifications. We offer factory prices and fast delivery. Custom configurations are available. Ask about spare tire carriers and painting options.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
