5-axle lowbed semi trailer for heavy machinery. Load capacity 60-100 tons, customizable dimensions. Factory pricing for excavator transport.

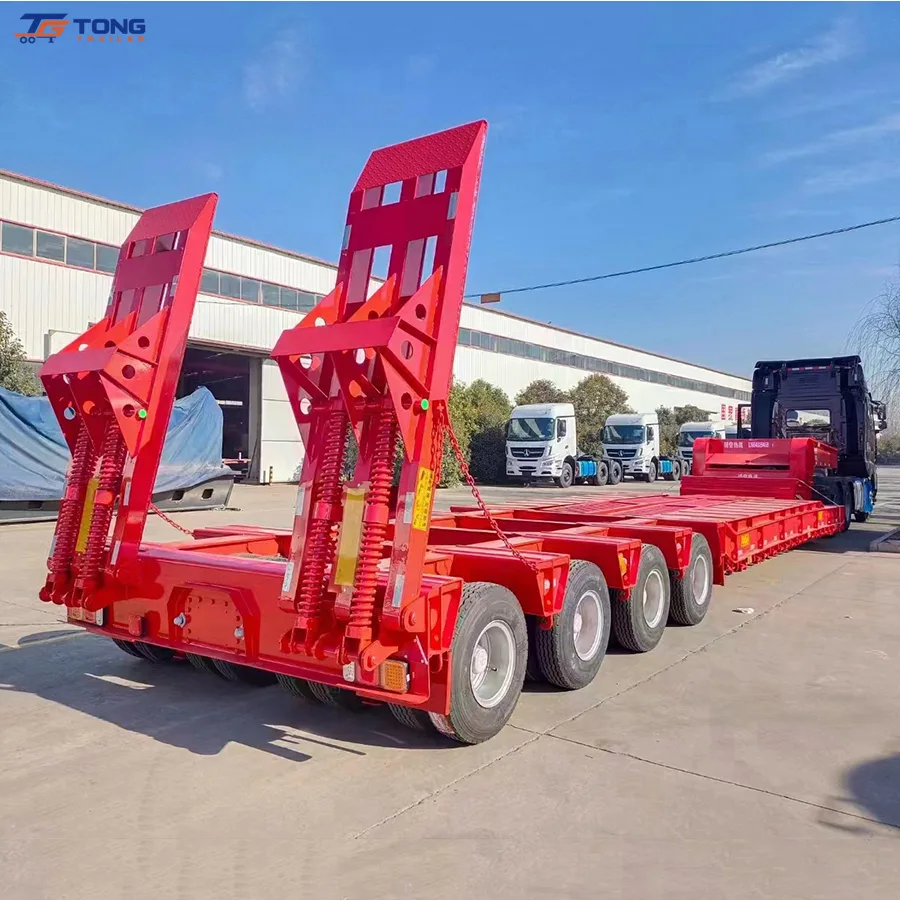

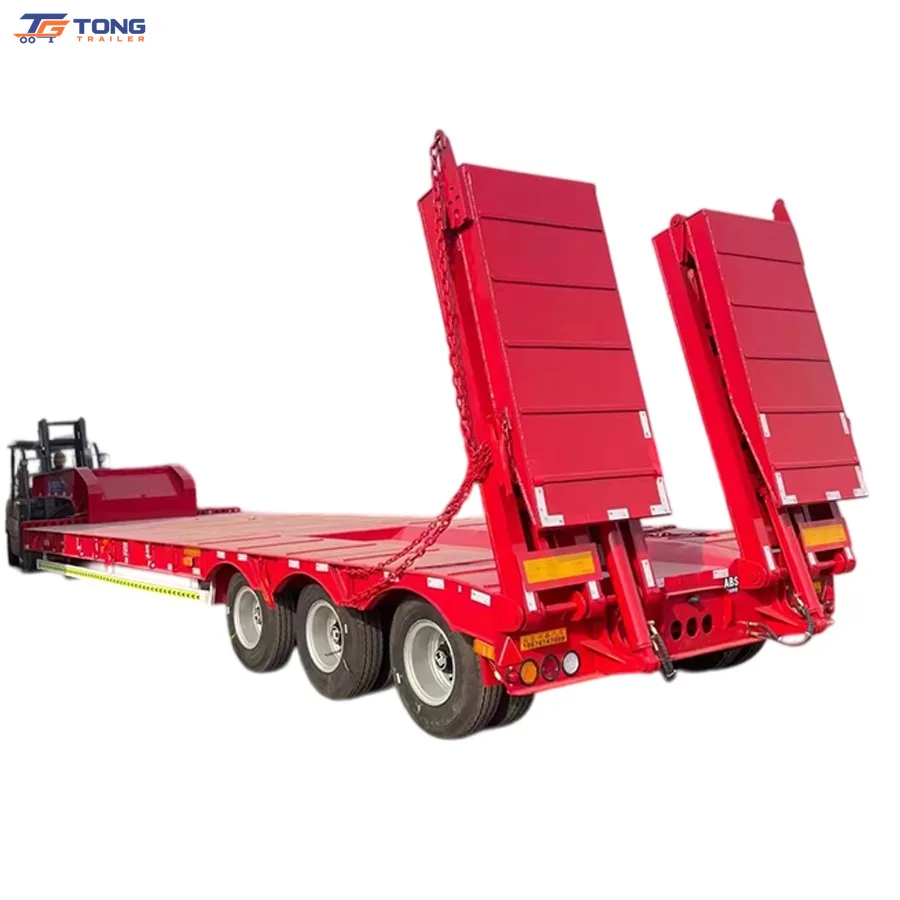

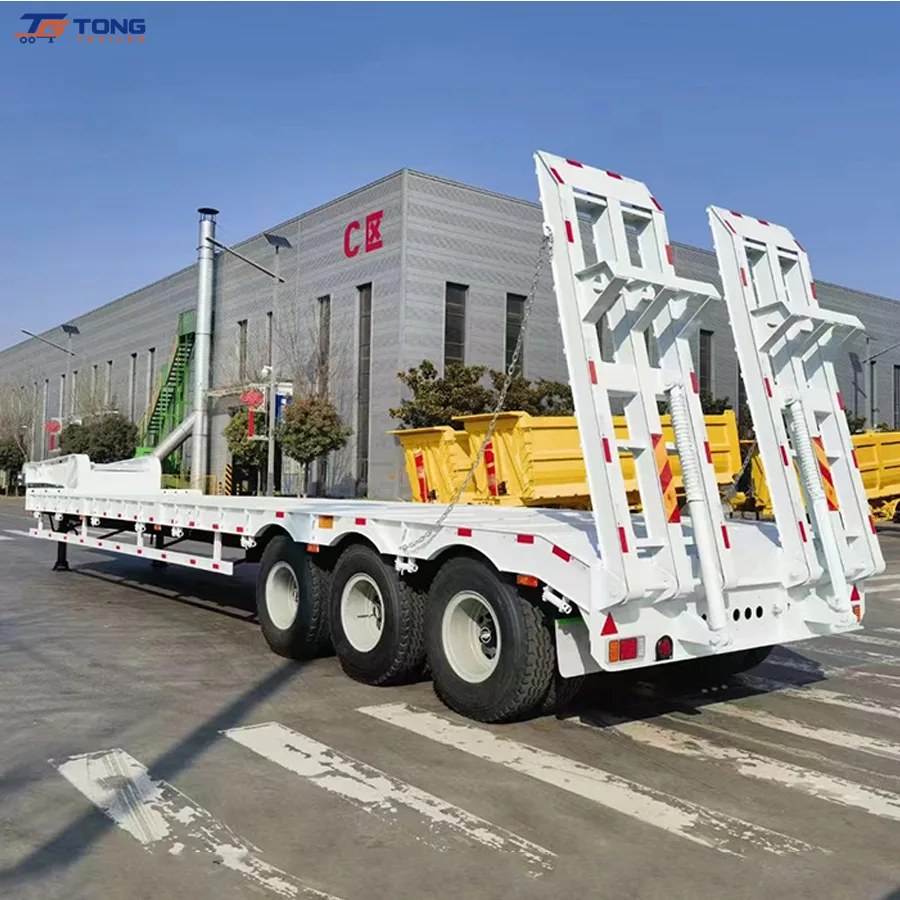

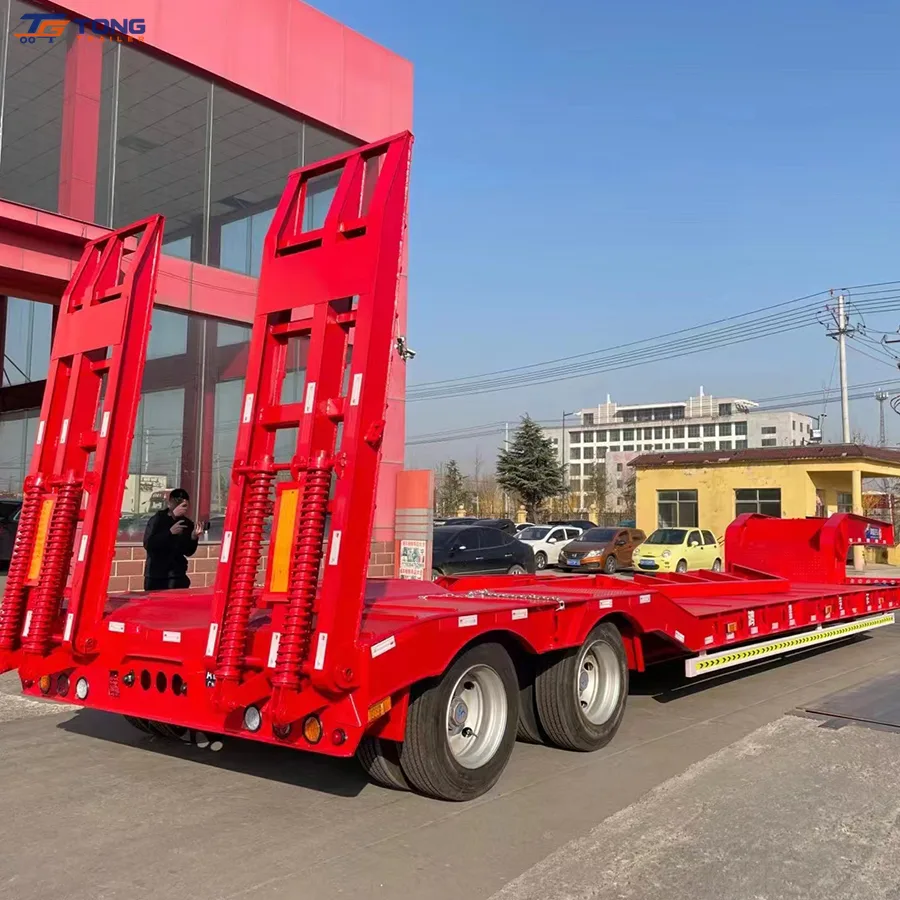

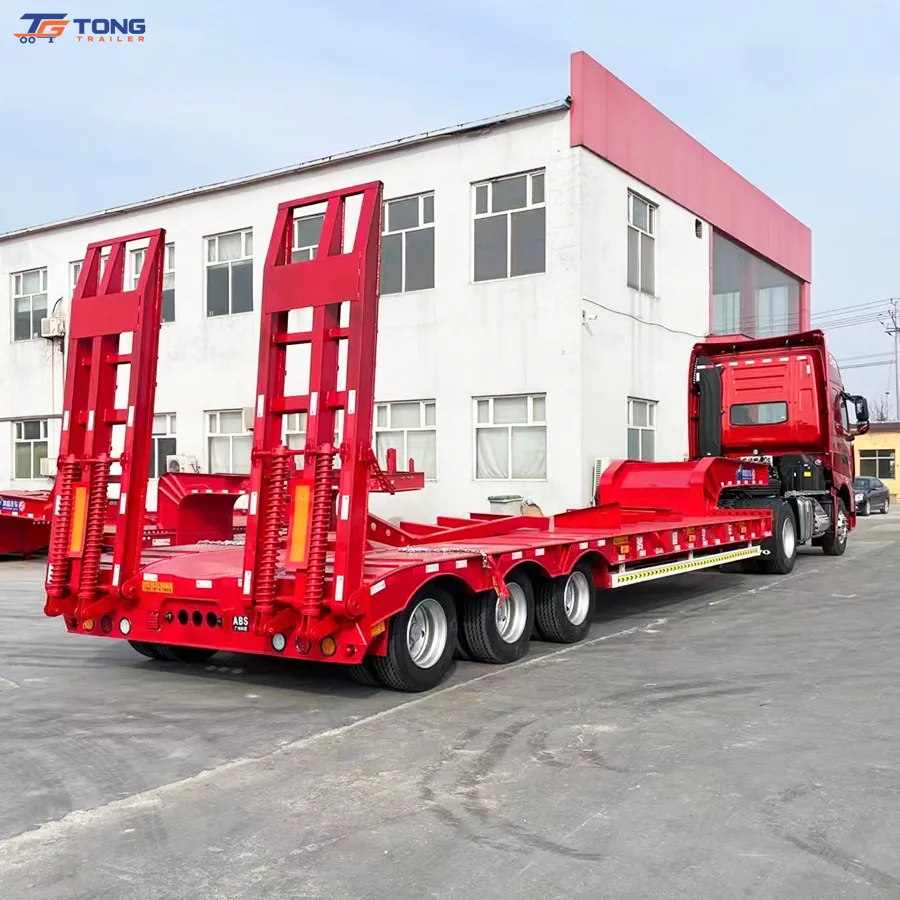

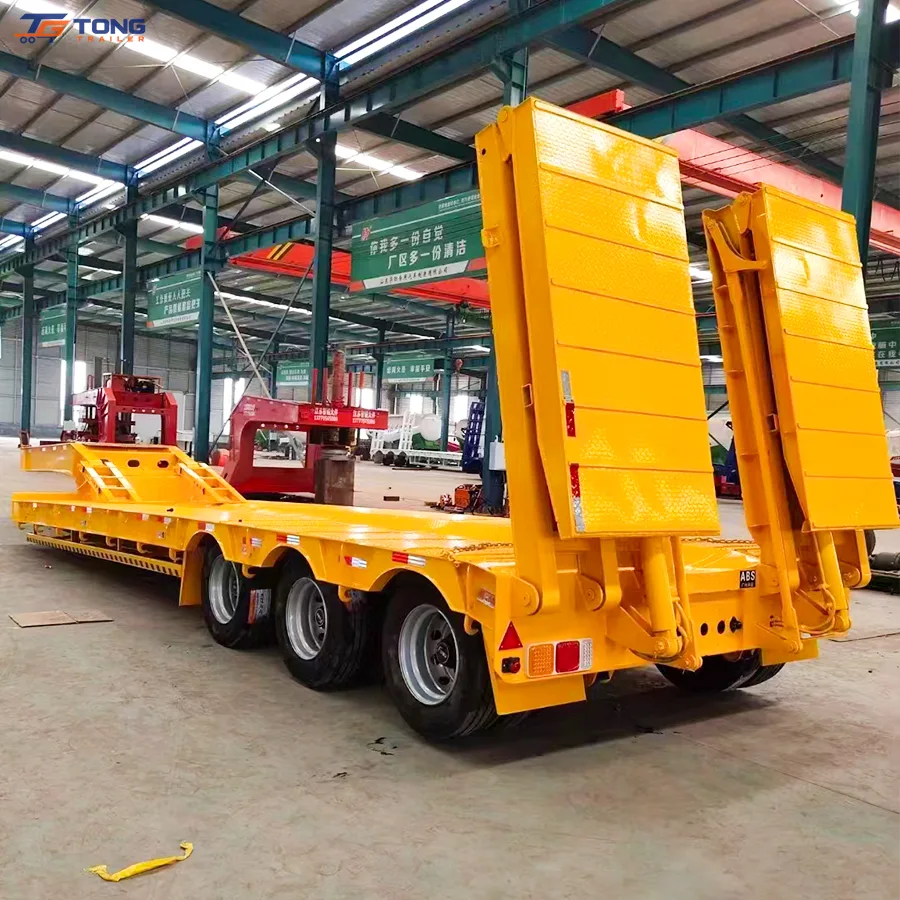

The 5 axle 60ton lowbed semi trailer is built for heavy machinery transport. It moves excavators, bulldozers, and cranes ely. This low loader keeps the center of gravity low for stable hauling.
This 5 axle lowbed trailer handles 60T, 80T, or 100T payloads. Buyer-specific ratings up to 150T are available. Standard deck dimensions range from 11500mm to 13000mm in length. Width is 3000mm, with a loading height of 1750mm. Custom sizes are available on request.
The main beam uses Q690 high-strength steel. Side beams use 16mm to 25mm high-strength bent plates. The platform is 3mm to 5mm chequered plate with welded anti-slip ribs. This structure resists bending and twisting under heavy loads.
The 5 axle 60ton lowbed semi trailer uses 13 or 16 ton rated axles. Mechanical or air suspension is available. The braking system includes relay valves, spring brake chambers, and dual 45L air tanks. A 2.0 or 3.5 inch bolted king pin connects to standard tractors. Tire options include 12.00R22.5 and 11.00R20 sizes.
This low loader suits construction, mining, and logistics industries. It transports tracked excavators, wheel loaders, and road construction equipment. The low platform height clears overhead obstacles and simplifies loading.
We offer full customization for your fleet needs. Contact us for detailed specifications and a factory-direct quote.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
