4-axle lowbed gooseneck trailer, 60-150T payload, steel deck, customizable length 11.5-13m. Ideal for heavy hauling. Get a quote.
This 4 axle lowbed trailer is a gooseneck lowboy semi trailer designed for heavy machinery transport. It moves excavators, loaders, and bulldozers reliably across any terrain.
Payload ratings reach 60T, 80T, 100T, or 150T, or buyer request. Deck dimensions range from 11500mm to 13000mm length, with 3000mm width and 1750mm height. Four axles carry the load, using 13 or 16 ton rated axles. Tire choices include 12R22.5, 315/80R22.5, and 385/65R22.5. The gooseneck design supports straightforward loading of tall equipment.
The chassis uses high-tensile steel with integrated welding. It resists compression, bending, and impact under heavy loads. Key stress areas are reinforced for long-term use. Full anti-rust coating blocks rain, mud, and salt fog. Reinforced spring ramps and solid steel plates protect the loading surface. Anti-slip surfaces prevent machinery sliding during loading.

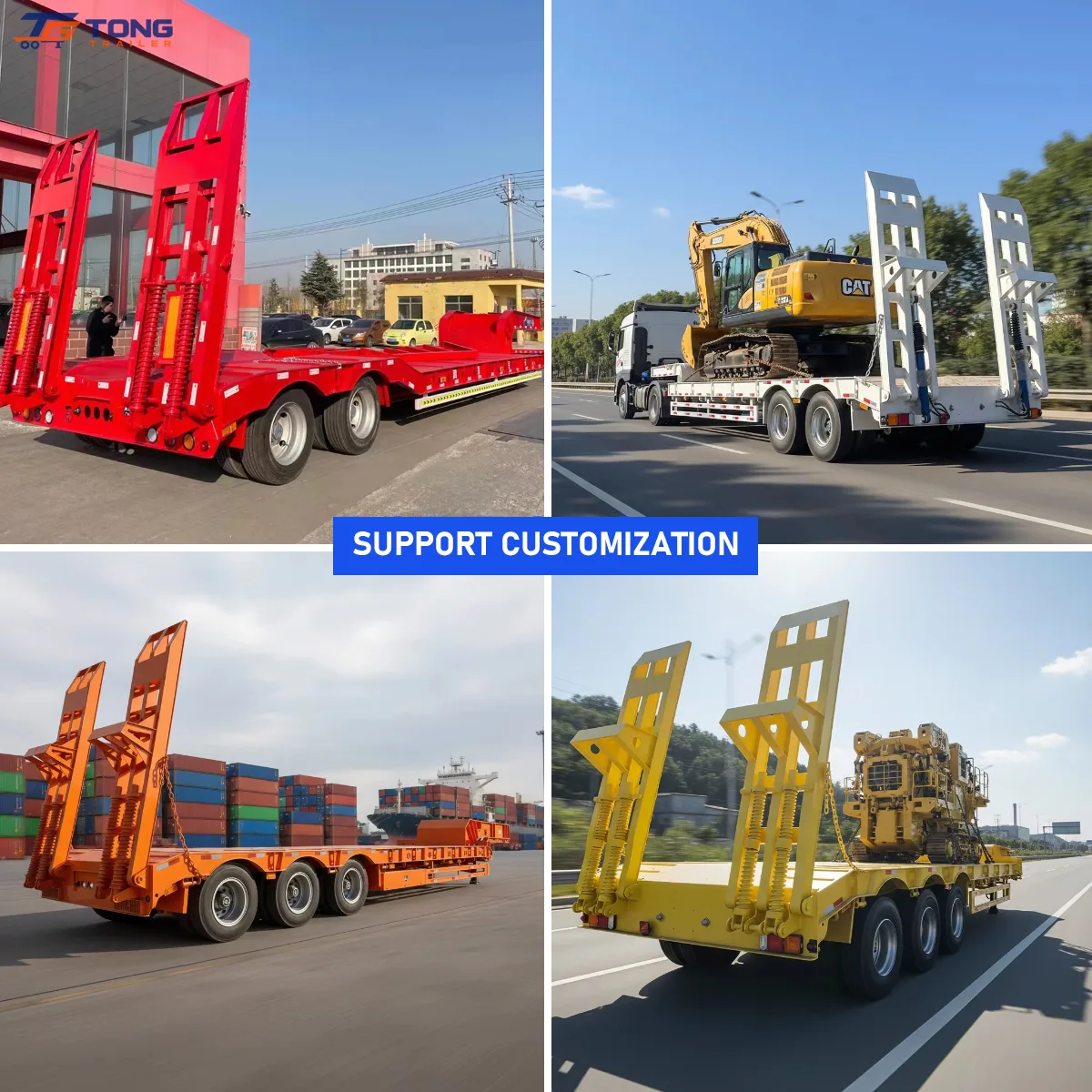

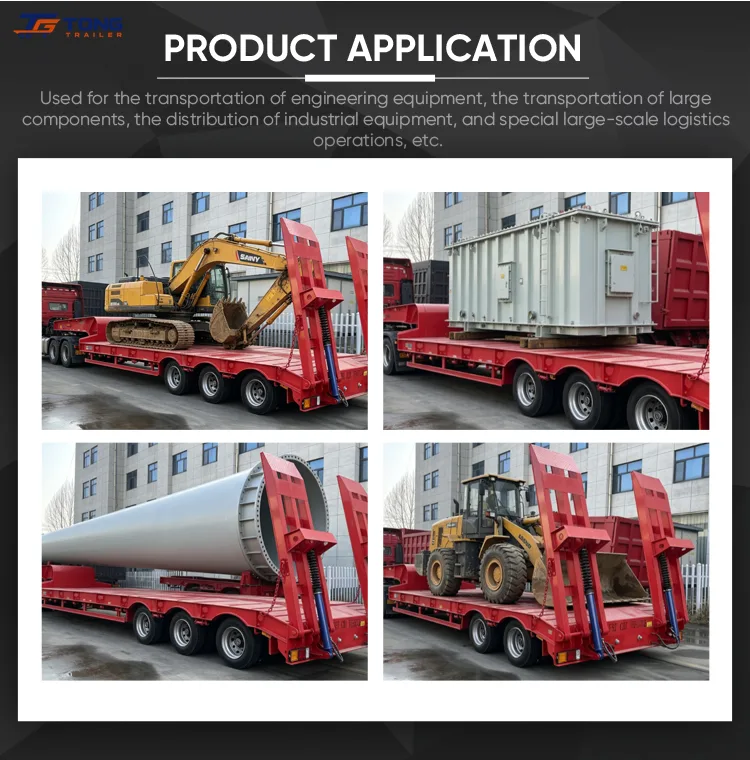

This 4 axle lowbed trailer suits construction, mining, and infrastructure projects. It adapts to highways, mountain roads, and rough construction sites. The relay valve air brake system delivers balanced braking on all axles. Mechanical or air suspension options protect cargo and improve handling. Custom sizing matches regular hauling needs and maximizes loading space.
Contact us for pricing and full customization options. We support T/T and L/C payment terms. Delivery time is 15-35 days after order confirmation.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
