Heavy-duty lowbed semi trailer for transporting equipment. 60-150T payload capacity, customizable platform. Built for mining and construction fleets.
This 4 axle lowbed semi trailer is built for heavy equipment transport. It moves excavators, loaders, and bulldozers with ease. The trailer handles demanding construction jobs reliably.

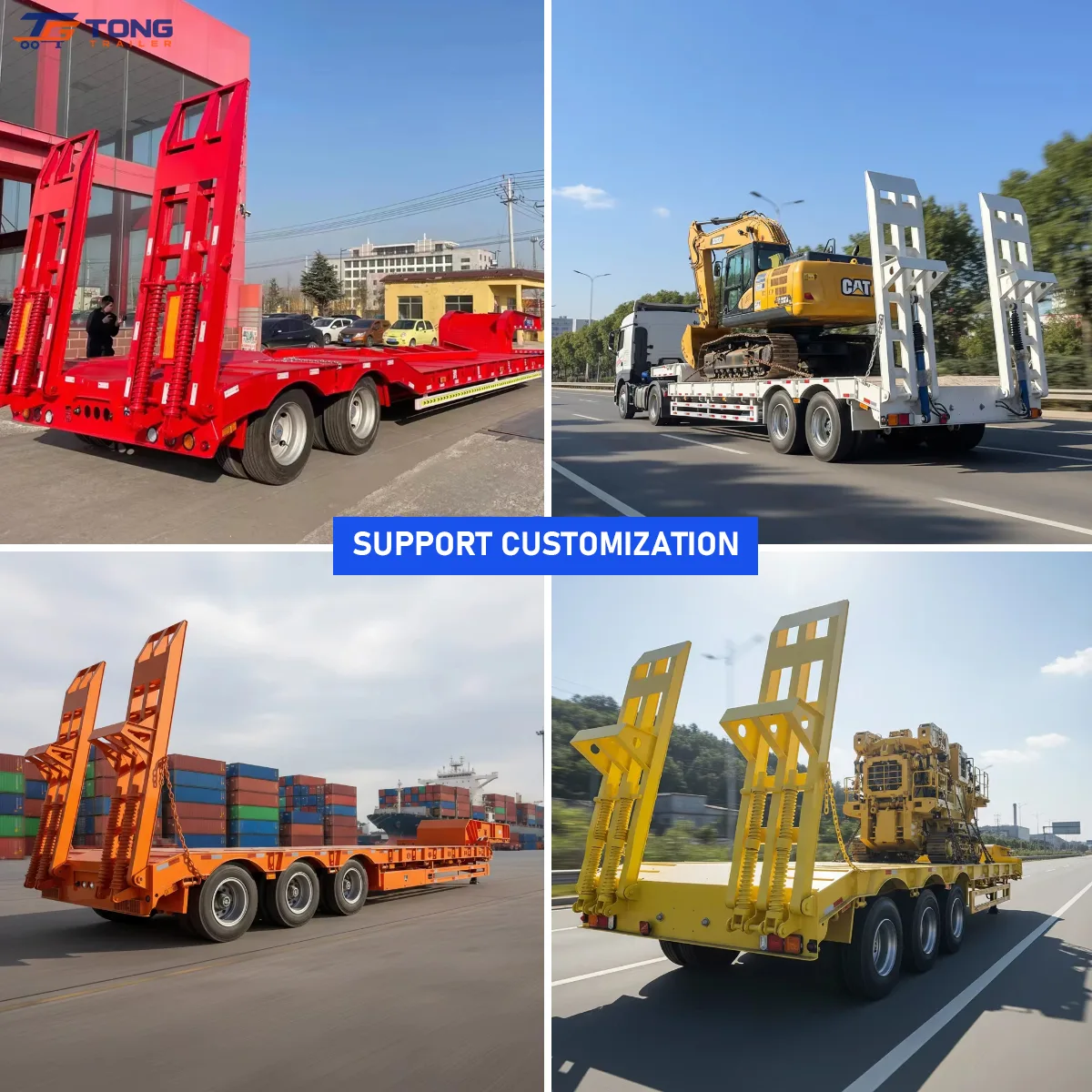

Payload options are 60T, 80T, 100T, or 150T. Axle configurations include 4 or 5 axles. Deck sizes are 11500, 12500, or 13000 mm long. Width is 3000 mm, with a height of 1750 mm. Custom sizes are available upon request. Axle capacity is a standard 28 tons per axle.
The chassis uses high-tensile steel. Integrated welding provides strong compression and bending resistance. Key stress areas are reinforced for long-term heavy use. A complete anti-rust coating protects against rain, mud, and salt fog. This reduces maintenance costs and extends the service life.
The deck features a fully reinforced spring ramp. Thick solid steel plates and anti-slip surfaces prevent machinery sliding. Thickened hinges and anti-loose fasteners boost stability. The structure resists deformation from frequent loading.
The braking system uses standard relay valves. It offers fast air response and balanced braking force on all axles. This shortens braking distance and prevents sliding during emergency stops. Two suspension options are available. Heavy-duty mechanical suspension suits rough mining roads. Air suspension buffers bumps to protect cargo. Both improve steering and climbing.

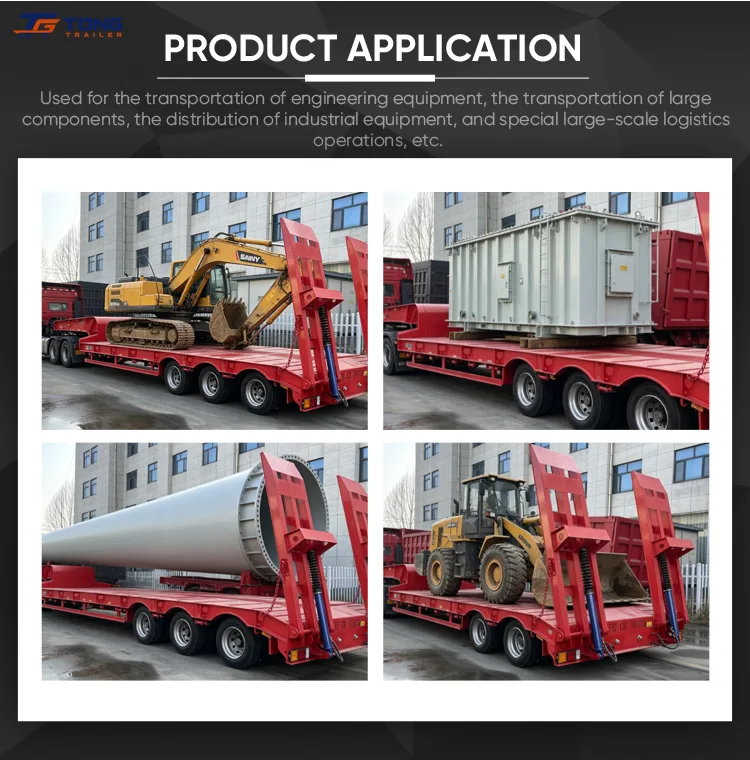

This trailer serves construction, mining, and infrastructure sectors. It adapts to various machinery sizes and maximizes loading space. The platform layout is flexible for different cargo types.
Contact us for pricing and customization details. We support tailored builds to match your hauling needs.
| Model Number | Lowbed Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 11500/12500/13000x3000x1750mm or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Lowbed Semi Trailer |
