Livestock fence semi trailer with 2 to 5 axles and 60T-150T payload. 12,400mm fence structure, 600mm side walls, Q345B steel. Contact us for pricing.

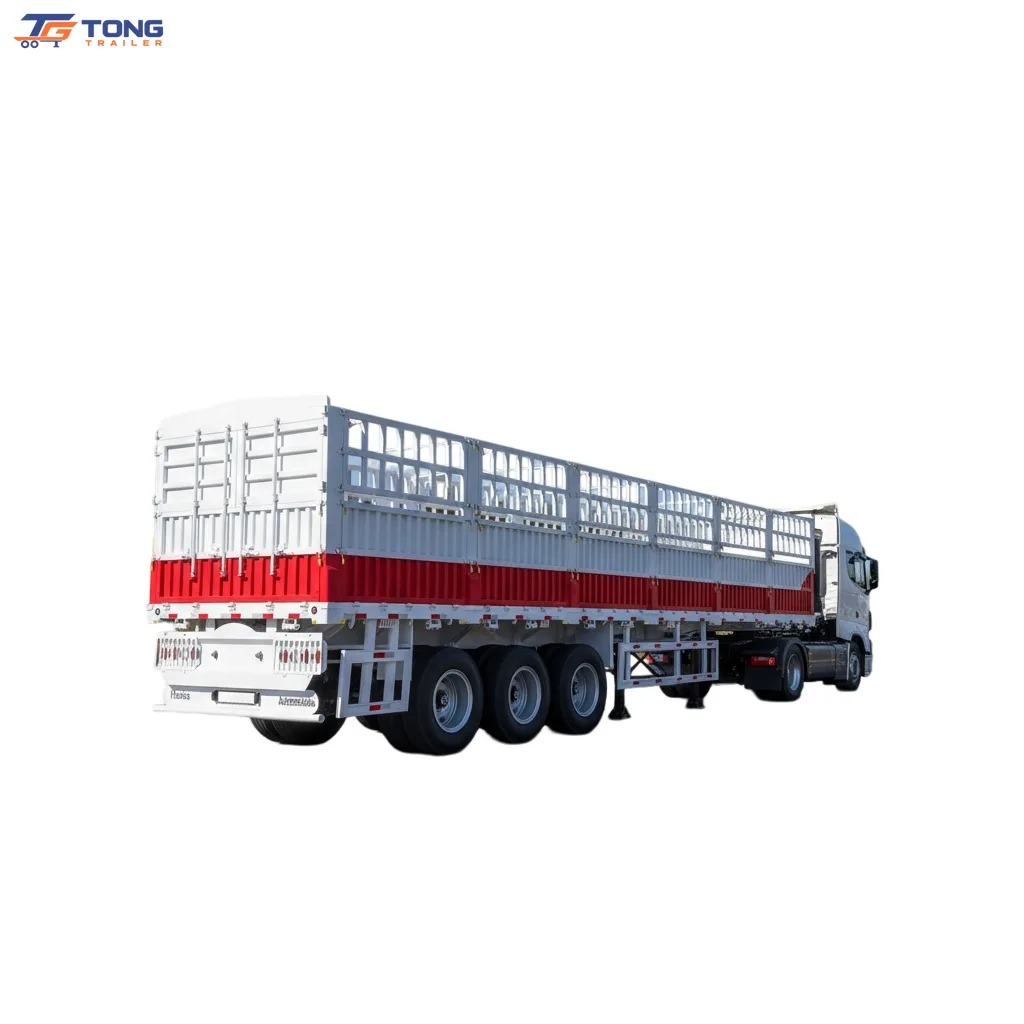

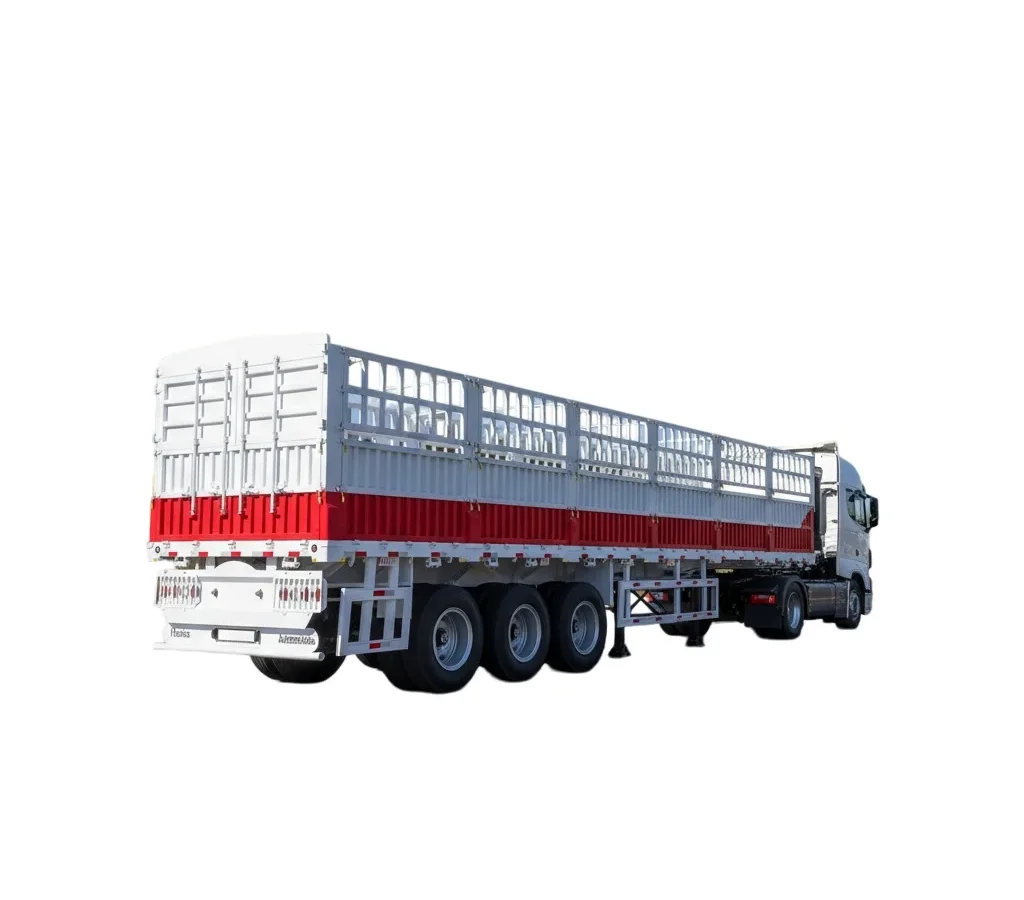

The livestock fence semi trailer is a fence structure trailer designed for livestock transport and sensitive goods. It carries animals, agricultural products, and general cargo ely.
It is available with 2, 3, 4, or 5 axles. Payload options reach 60T, 80T, 100T, and 150T. Overall length is 12500mm or 13000mm, with a 2500mm width. The fence side wall stands 600mm high and can be customized. Tare weight is approximately 6.2T.
The main beam uses Q345B steel, and the side beam uses 16mm channel steel. The bottom platform is 3mm chequered steel plate. Leaf springs measure 90mm by 13mm with 10 layers. Choose mechanical or air suspension. Axles are rated at 13T or 16T. Tire options include 12R22.5, 315/80R22.5, and 385/65R22.5.
LED lights run on 24V with a 7-way wiring harness. A relay valve supports braking control. A 1m x 0.5m x 0.5m tool box is fitted. The chassis is sand blasted, primed, and finished with two topcoats.
This fence trailer suits livestock hauling and agricultural logistics. It also works as a flatbed trailer for container transport. Optional twist locks and ABS are available. Delivery is by bulk vessel, RORO, or 40HQ container.
Contact us for pricing and shipping details on this livestock fence semi trailer.
| Model Number | Fence Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 12500/13000*2500*2800/3800 (mm) or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Fence Semi Trailer |
