4 axle fence semi trailer for sensitive goods, 60T to 150T payload, 600mm side wall and 12400mm length. Request a quote for pricing.

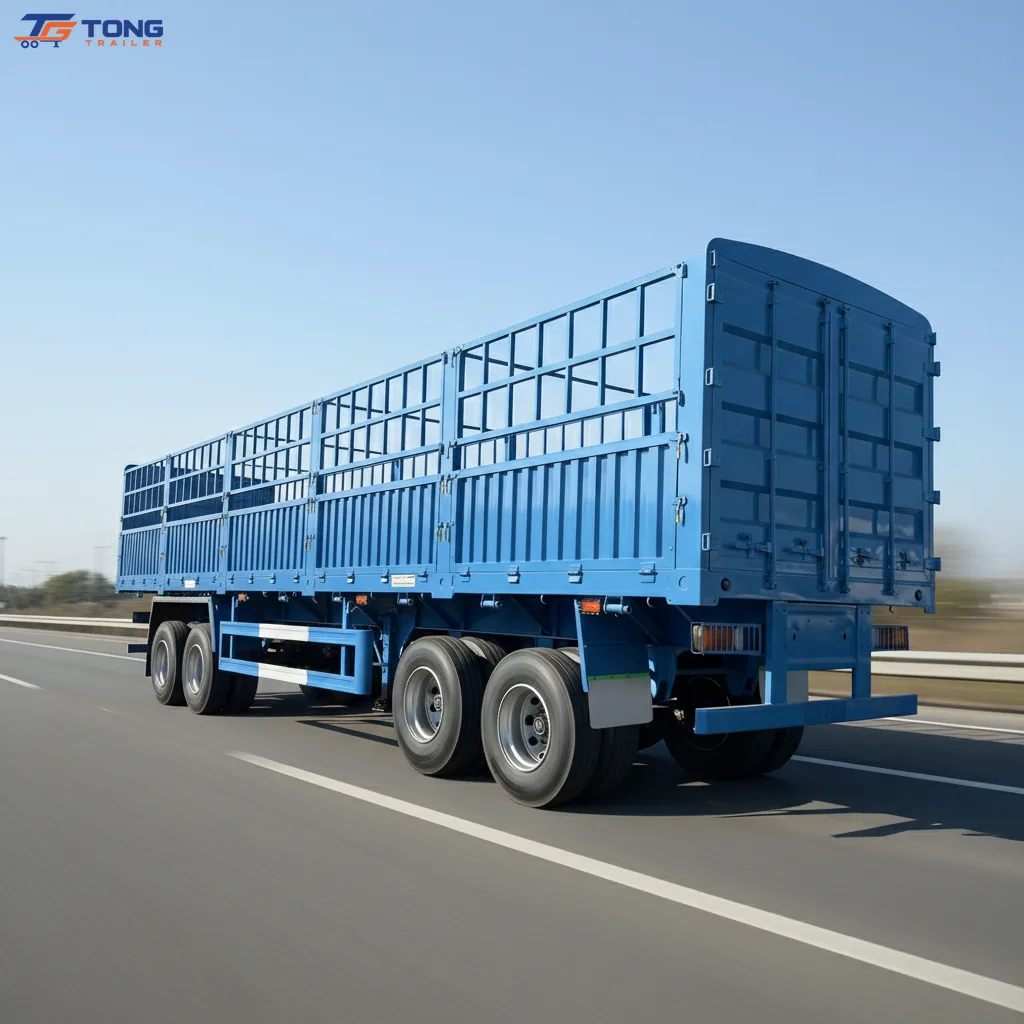

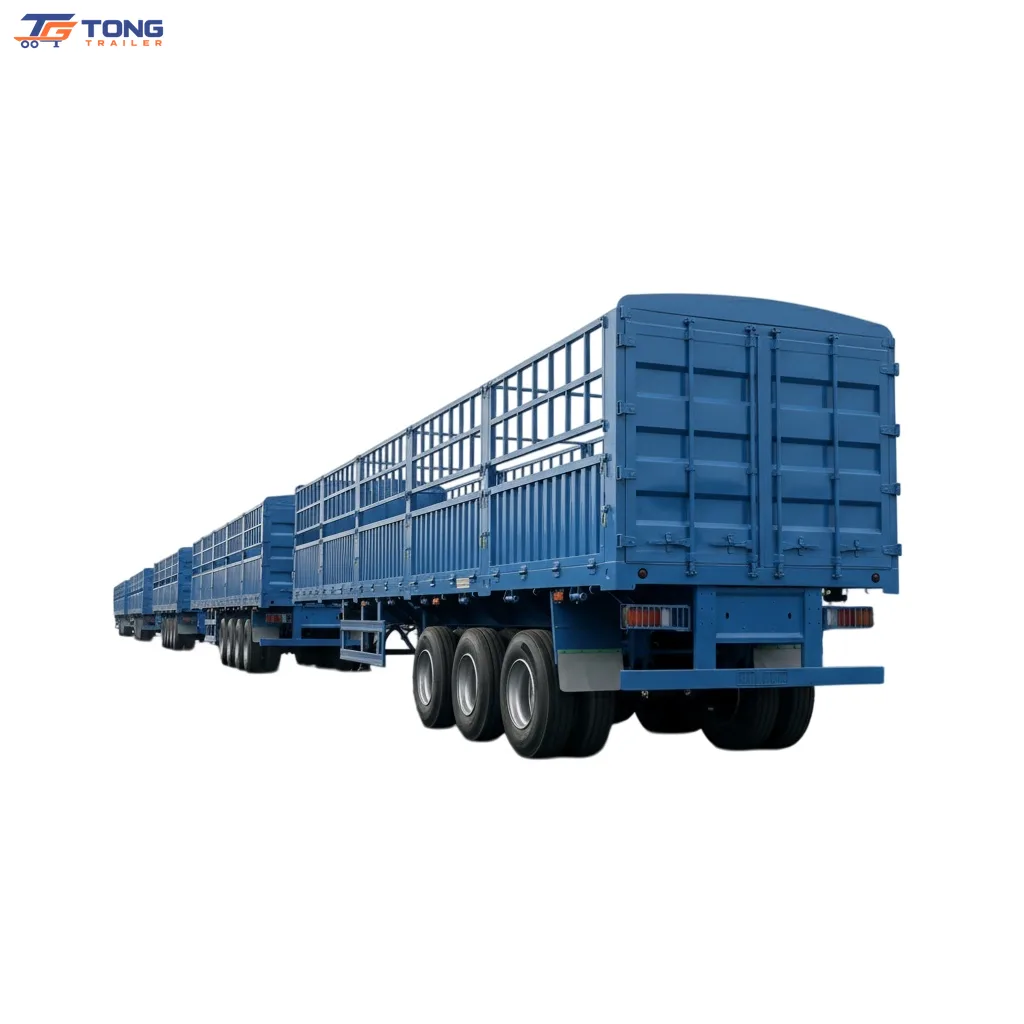

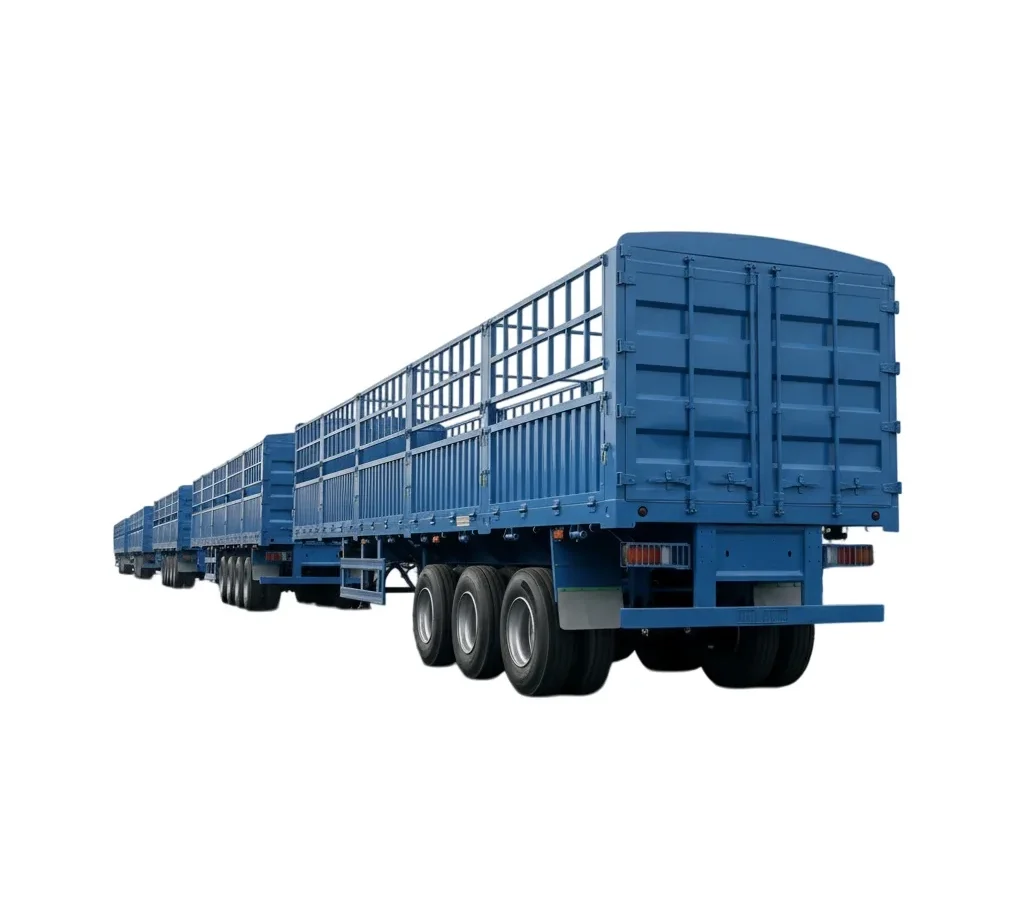

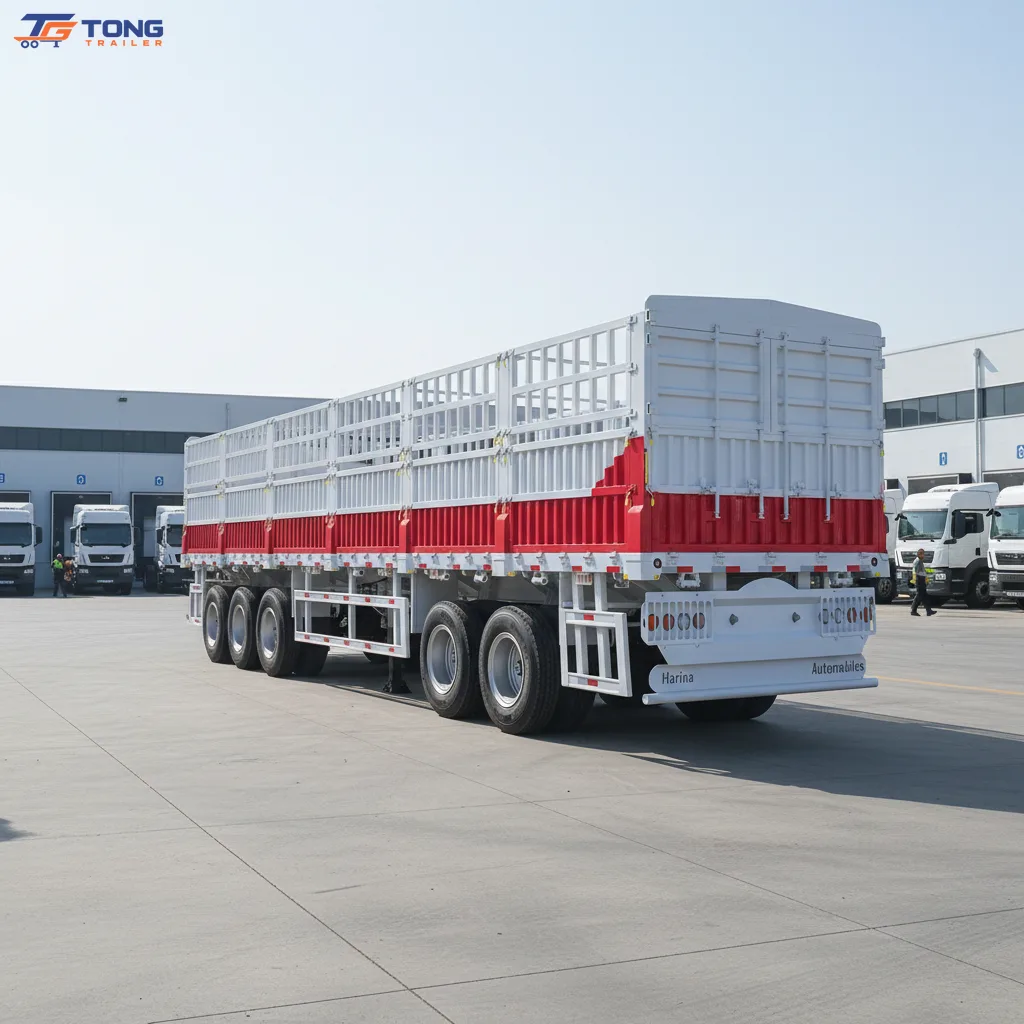

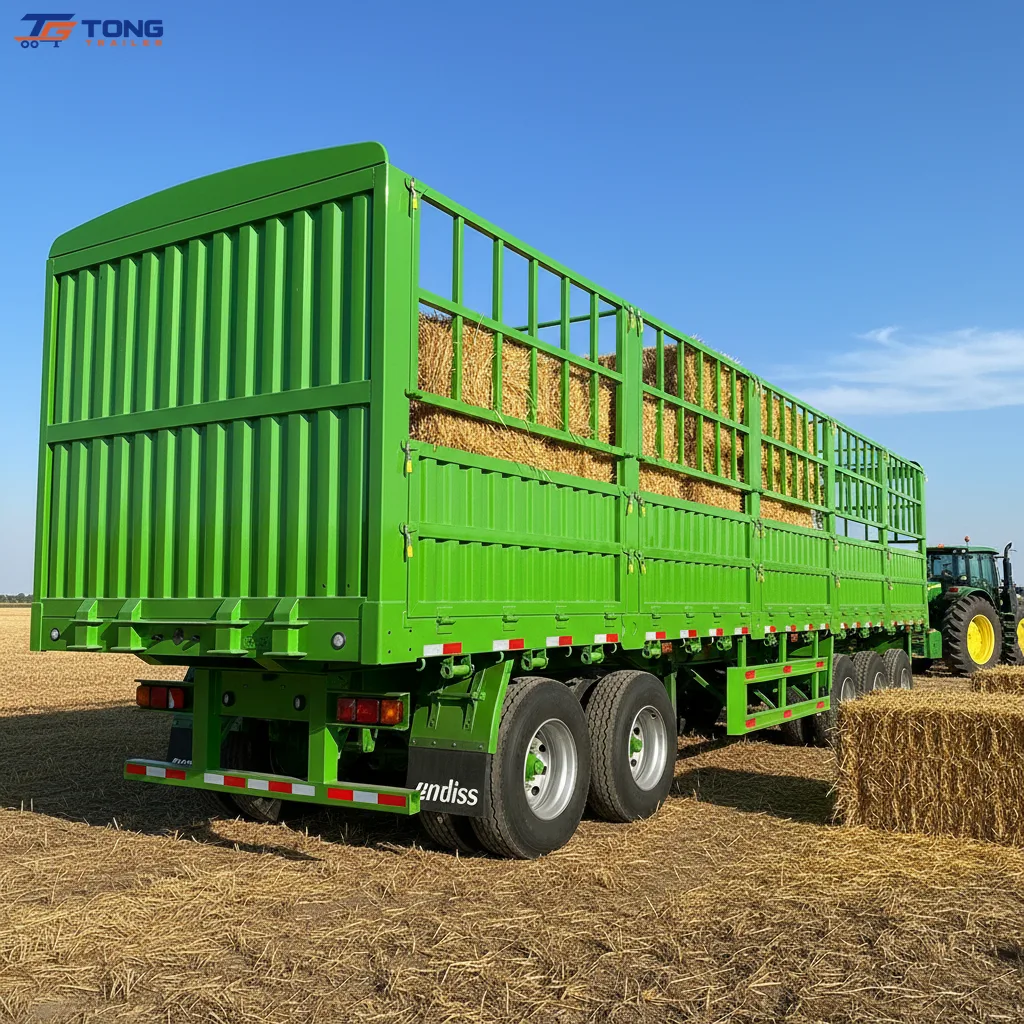

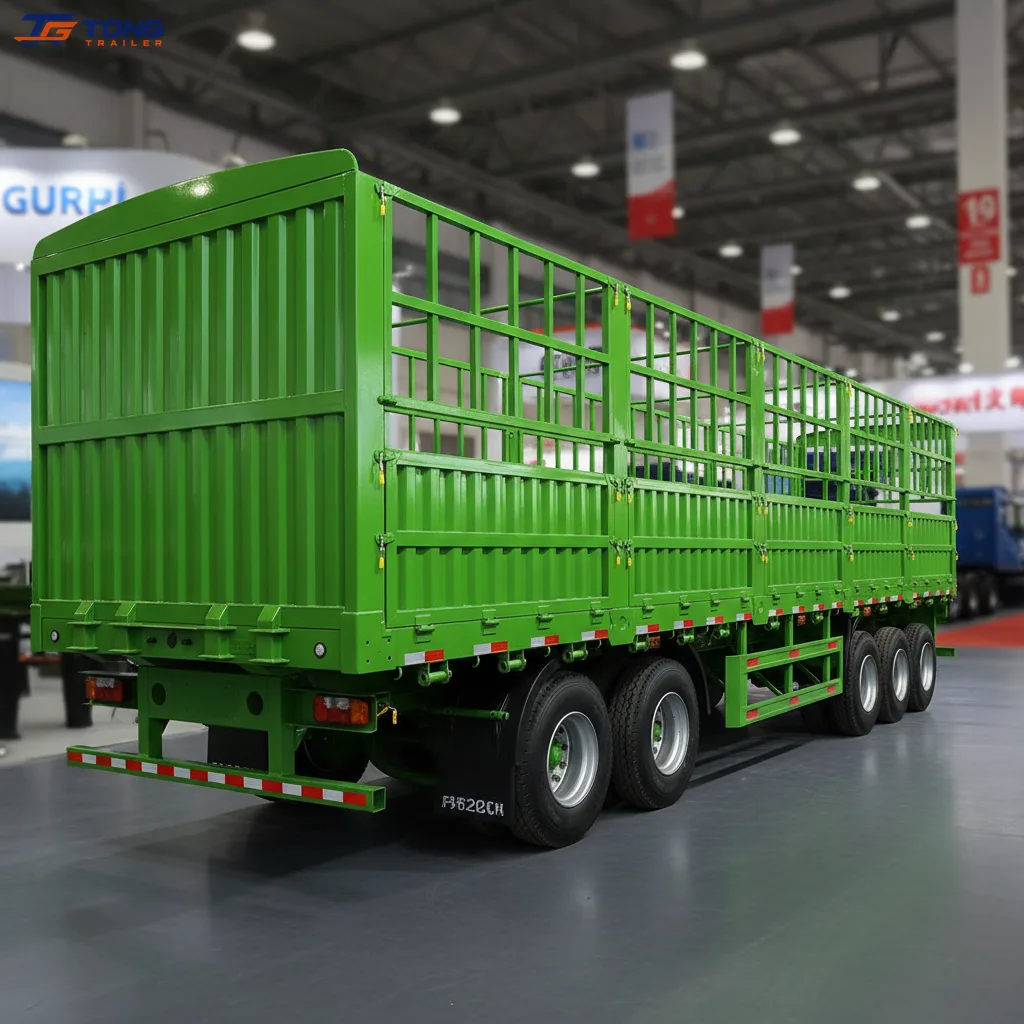

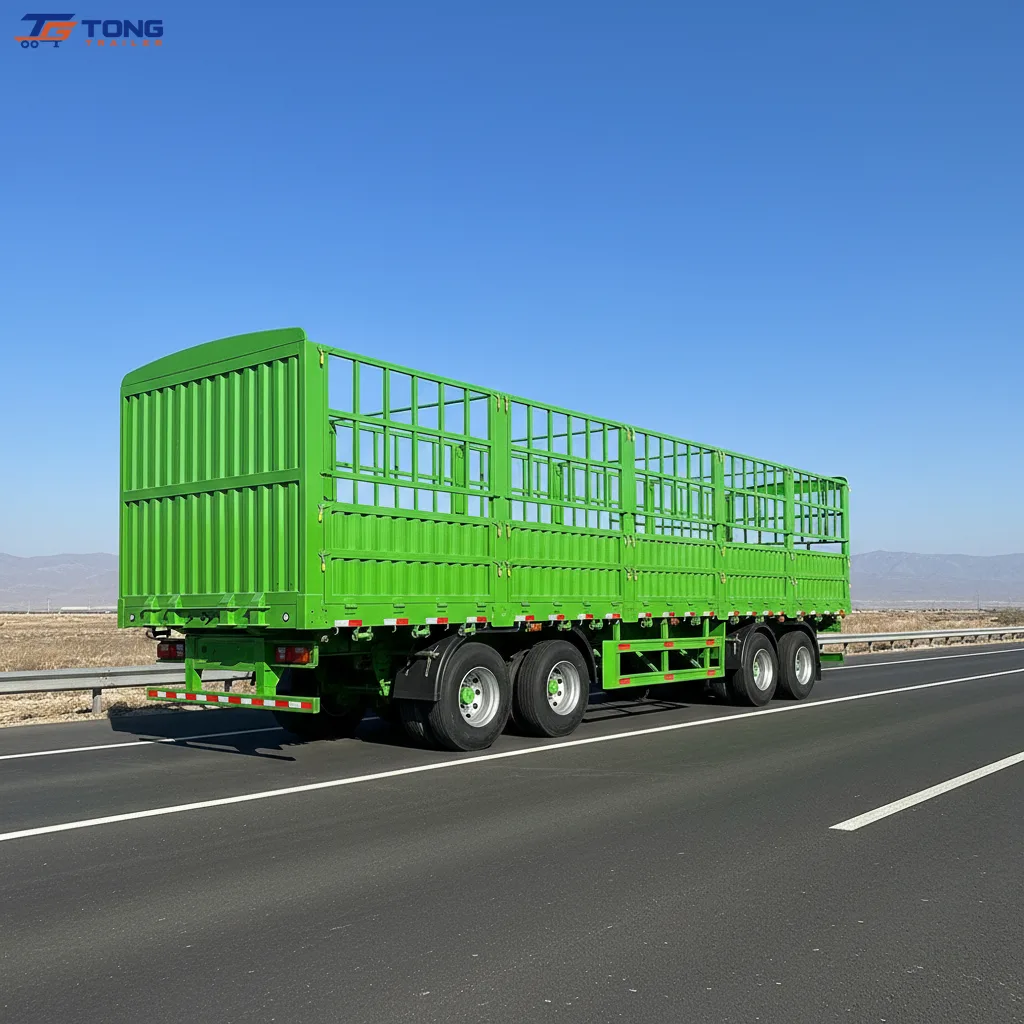

Fence semi trailer is a drop side cargo trailer built for diverse transport needs, sensitive goods and livestock.
The trailer supports 60T, 80T, 100T and 150T payload options. It uses a 4 axle configuration with 13T or 16T axles and mechanical or air suspension. Overall dimensions are 12500 or 13000 mm long, 2500 mm wide, and 2800 or 3800 mm high. Tare weight is approximately 6.2 T. The 600 mm side wall can be customized.
Body construction uses Q345B steel main beams and 16mm channel steel side beams. The bottom platform is 3mm chequered steel plate. Submerged arc automatic welding strengthens load points and reduces leakage risk. The braking system combines a relay valve, T30/30 spring brake chambers and two 45L air tanks. LED lights and a 7-way wire harness run on 24V. The chassis is sand blasted to remove rust, then sealed with primer and two paint coats.
The fence structure suits warehouse-type cargo such as fruits, vegetables, daily necessities and light foam goods. The fence semi trailer also works as a flatbed for container transport. Optional ABS and twist locks are available. Axle count, side wall height and tool box size can be customized. A 1m x 0.5m x 0.5m tool box is standard.
Contact us for pricing and shipping by bulk vessel, RORO or 40HQ container.
| Model Number | Fence Semi Trailer |
| Type | Semi-Trailer |
| Max Payload | 60T/80T/100T/150T or Buyer's Request |
| Place Of Origin | China (Mainland) |
| Province | Guangdong |
| Use | Truck Trailer |
| Material | Steel |
| Size | 12500/13000*2500*2800/3800 (mm) or customizable |
| Dimensions | 450 * 228 * 210 |
| Model | Fence Semi Trailer |
